Mercedes-Benz W210 E-Class Repair Service Manual 1996-2003

Complete service repair manual with Electrical Wiring Diagrams for Mercedes-Benz W210 E-Class, with all the technical information to maintain, diagnose, repair, and rebuild like professional mechanics.

Mercedes-Benz W210 E-Class workshop service repair manual includes:
* Numbered table of contents easy to use so that you can find the information you need fast.
* Detailed sub-steps expand on repair procedure information
* Numbered instructions guide you through every repair procedure step by step.
* Troubleshooting and electrical service procedures are combined with detailed wiring diagrams for ease of use.
* Notes, cautions and warnings throughout each chapter pinpoint critical information.
* Bold figure number help you quickly match illustrations with instructions.
* Detailed illustrations, drawings and photos guide you through every procedure.
* Enlarged inset helps you identify and examine parts in detail.

Mercedes-Benz W210 E-Class Service Repair Manual 1996-2003.pdf
W210_E-Class_Technical_Information.zip

PRODUCT DETAILS:
Total Pages: 4,322 pages
File Format: PDF (Internal Links, Bookmarked, Table of Contents, Searchable, Printable, high quality)
Language: English

E 200, E 200 Kompressor, E 230, E 280, E 320, E 36 AMG, E 240, E 280, E 280 4MATIC, E 320 4MATIC, E 320, E 420, E 430, E 430 4MATIC, E 50 AMG, E 55 AMG, E 55 AMG 4MATIC, E 60 AMG, E 60 AMG 6.3, E 200 Diesel, E 200 CDI, E 220 Diesel, E 220 CDI, E 250 Diesel, E 250 Turbodiesel, E 270 CDI, E 290 Turbodiesel, E 300 Diesel, E 300 Turbodiesel, E 320 CDI

TABLE OF CONTENTS
00_Overall Vehicle…3
00.00 – 00 – Foreword Diesel Engine Volume 1.2 Engines; 605, 606 (dh0000p20vt00x)…12
00.00 – 00 – Overview of test descriptions Diagnosis – Climate control Models 129, 140, 170, 202 ,210 (dh0000pk0up00x)…13
00.00 – 00 – Overview of test descriptions Diagnosis – Information_Communication Models 124, 129, 140, 170, 202, 210 (dh0000pi0up00x)…14
00.00 – 00 – Preface Diagnosis Manual Models 124, 129, 140, 170, 201, 202, 210 (dh0000p00vt00x)…15
00.00 – 00 – Summary of test descriptions Diagnosis – Body Models 124, 129, 140, 163, 168, 170, 202, 208, 210 (dh0000pa0up00x)…16
00.00 – 00 – Survey of test descriptions Diagnosis Chassis Models 124, 129, 140, 170, 202, 210 (dh0000pf0up00x)…19
00.00 – 00 – Survey of test descriptions Diesel Engine Volume 1.2 Engines; 605, 606 (dh0000p20up00x)…20
00.00 – 00 – Use of the Diagnosis Manual Diesel Engine Volume 1.2 Engines; 601.913, 604, 605.910_960 and 604, 605.912, 606.912 (dh0000p20an00x)…21
00.00 – 00 – Use of the diagnosis manual Diagnosis; Chassis – Body – Climate control – Information_Communication Models 124, 129, 140, 170, 201, 202, 210 (dh0000p00an00x)…23
00.00 – 000 588 03 90 00 Extractor link arm (ws00.00-p-0037b)…25
00.00 – 000 588 04 90 00 Hose grommet (ws00.00-p-0035b)…26
00.00 – 000 588 05 80 00 Pit lift (ws00.00-p-0248b)…27
00.00 – 000 588 05 90 00 Clamping grommet (ws00.00-p-0036b)…28
00.00 – 000 589 00 21 00 Test box (ws00.00-p-0034b)…29
00.00 – 000 589 01 10 00 Torx bit set (ws00.00-n-0001z)…30
00.00 – 000 589 01 40 00 Bracket (ws00.00-p-0244z)…31
00.00 – 000 589 10 99 00 Tool kit (ws00.00-p-0030z)…32
00.00 – 000 589 25 33 00 Internal extractor (ws00.00-n-0050z)…33
00.00 – 000 589 28 33 00 Puller dia. 28-37 mm (ws00.00-n-3026z)…34
00.00 – 000 589 29 33 00 Internal extractor (ws00.00-n-3027z)…35
00.00 – 000 589 30 16 00 Hexagon ratchet, 10 mm (ws00.00-p-0002z)…36
00.00 – 000 589 31 16 00 Hexagon ratchet, 13 mm (ws00.00-p-0003z)…37
00.00 – 000 589 32 16 00 Hexagon ratchet, 17 mm (ws00.00-p-0004z)…38
00.00 – 000 589 33 33 00 Counter stay (ws00.00-n-0051z)…39
00.00 – 000 589 35 33 00 Countersupport (ws00.00-n-3033z)…40
00.00 – 000 589 40 37 00 Clamp (ws00.00-n-0005z)…41
00.00 – 000 589 40 37 00 Clamp (ws00.00-p-0005z)…42
00.00 – 000 589 49 98 00 Oil sample container (ws00.00-p-0263b)…43
00.00 – 000 589 54 37 00 Clamp (ws00.00-p-0006z)…44
00.00 – 000 589 65 33 00 Puller (ws00.00-p-0007z)…45
00.00 – 000 589 67 21 00 Torque wrench (ws00.00-p-0008z)…46
00.00 – 000 589 68 33 00 Internal extractor (ws00.00-n-3030z)…47
00.00 – 000 589 75 03 00 Box wrench bit (ws00.00-p-0009z)…48
00.00 – 000 589 76 03 00 Box wrench (ws00.00-p-0010z)…49
00.00 – 000 589 87 33 00 Gripper (ws00.00-n-3054z)…50
00.00 – 000 589 89 33 00 Puller (ws00.00-n-3022z)…51
00.00 – 001 589 00 16 00 Adapter coupling (ws00.00-p-0120z)…52
00.00 – 001 589 03 91 00 Set of protective covers (ws00.00-p-3069b)…53
00.00 – 001 589 51 21 00 Torque wrench (ws00.00-p-0012z)…54
00.00 – 001 589 53 21 00 Dial gage (ws00.00-n-0013z)…55
00.00 – 001 589 66 21 00 Torque wrench (ws00.00-n-0015z)…56
00.00 – 001 589 67 21 00 Torque wrench (ws00.00-n-0016z)…57
00.00 – 001 589 72 21 00 Torque wrench (ws00.00-p-0017z)…58
00.00 – 001 589 73 21 00 Hand vacuum pump (ws00.00-p-0018z)…59
00.00 – 001 589 74 21 00 Torque wrench (ws00.00-n-0019z)…60
00.00 – 001 589 75 21 00 Torque wrench (ws00.00-n-3049b)…61
00.00 – 001 589 76 09 00 External torx set (ws00.00-n-0020z)…62
00.00 – 001 589 81 09 00 Set of flexible head wrenches (ws00.00-p-0251b)…63
00.00 – 001 589 81 21 00 Torque screwdriver (ws00.00-n-0021z)…64
00.00 – 001 589 87 21 00 Torque wrench (ws00.00-p-0119z)…65
00.00 – 003 589 05 09 00 Torque tool set (ws00.00-n-0261a)…66
00.00 – 003 589 06 09 00 Plug-in wrench (ws00.00-p-0262a)…67
00.00 – 100 589 02 59 00 Adapter (ws00.00-p-0022z)…68
00.00 – 110 589 03 59 00 Mounting wedge (ws00.00-p-0274k)…69
00.00 – 112 589 00 25 00 Squeeze gun (ws00.00-p-0052z)…70
00.00 – 116 589 02 07 00 Screwdriver, 5 mm (ws00.00-n-0023z)…71
00.00 – 116 589 03 07 00 T-handle Allen wrench (ws00.00-p-0024z)…72
00.00 – 117 589 02 07 00 Pin box wrench (ws00.00-p-0054z)…73
00.00 – 123 589 00 16 00 Extension (ws00.00-p-0025z)…74
00.00 – 123 589 02 09 00 Socket (ws00.00-p-0026z)…75
00.00 – 123 589 02 10 00 Allen wrench socket (ws00.00-p-0027z)…76
00.00 – 123 589 03 09 00 Socket (ws00.00-p-0028z)…77
00.00 – 163 589 03 43 00 Press (ws00.00-p-0057z)…78
00.00 – 198 589 00 09 00 Flexible head wrench socket (ws00.00-p-0032z)…79
00.00 – 210 589 00 71 00 Hand pump (ws00.00-p-0280z)…80
00.00 – 220 589 05 99 00 Electrical connection kit (ws00.00-p-0279z)…81
00.00 – 363 589 02 21 00 Dial indicator holder (ws00.00-p-0033z)…82
00.00 – Collection and disposal of components containing mercury (os00.00-p-1000zz)…83
00.00 – Connecting and using test equipment (ad00.00-p-1000az)…84
00.00 – Forms Passenger cars Overall vehicle (of00.00-z-3999az)…85
00.00 – General notes Passenger cars Overall vehicle (ah00.00-z-9999az)…86
00.00 – Safety information Overall vehicle (as00.00-z-9999zz)…88
00.00 – Scrapping gas-filled hydraulic components (os00.00-p-2000zz)…91
00.00 – Service Information AMG After Sales Portal (si00.00-p-0125a)…92
00.00 – Service Information Identification of fine dust badge for vehicles not registered in Germany (si00.00-p-0082a)…93
00.00 – Service Information New operation number structure for diagnosis jobs (si00.00-p-0051a)…94
00.00 – Service Information Operation items for test drives (si00.00-p-0009a)…98
00.00 – Service Information Processing of warranty and goodwill claims (si00.00-p-0116a)…100
00.00 – Service Information QR code for rescue forces (si00.00-p-0089a)…101
00.00 – Service information Important notes on the use of various vehicle systems and components (si00.00-p-0500a)…102
00.00 – Service information New damage code (si00.00-z-0038a)…105
00.00 – Service information New update concept for diagnosis applications (si00.00-z-0004a)…106
00.00 – Sheet of drawings on paint damage Passenger cars, Model des. 129, 140, 202, 210 (wb6516lit7423z)…107
00.00 – Tightening torques Passenger cars Overall vehicle (ba00.00-z-9999az)…109
00.01 – Certificates (of00.01-z-1999zz)…110
00.01 – Forms (of00.01-z-3999zz)…111
00.01 – Function group overview, engine (ov00.01-z-1904a)…112
00.01 – Function group survey, body (ov00.01-z-1906a)…113
00.01 – Information for the user (ov00.01-z-0100zz)…114
00.01 – Introduction of WIS Service Media (sn00.01-z-0012a)…115
00.01 – Overall vehicle model and major assembly installation overview (ov00.01-z-0150az)…117
00.01 – Overview of function groups, chassis (ov00.01-z-1905a)…119
00.01 – Search aid for all wiring diagram groups (ov00.01-p-1901a)…120
00.01 – Search aid for electrical components (ov00.01-z-1800a)…132
00.01 – Service Information Content and application of data mediums Telematics CD_DVD, Regio DVD and Digital Owner‘s Manual DVD (si00.01-p-0014a)…134
00.01 – Service Information Damage or breakdown case in international traffic (si00.01-z-0031a)…135
00.01 – Service Information Invoicing of quick test (si00.01-p-0006a)…136
00.01 – Service Information Modification of battery maintenance (si00.01-p-0013a)…137
00.01 – Service Information SDconnect rechargeable battery (si00.01-p-0003a)…138
00.01 – Service Information Structure of the new operation numbers for SmallRepair in ASRA [operation texts, standard texts, flat rates and work units] (si00.01-z-0001a)…139
00.01 – Service Information Synonym search – New functionality in WIS (si00.01-z-0036a)…140
00.01 – Service Information Trouble diagnosis bulletins (AF) publication type not applicable (si00.01-z-0029a)…141
00.01 – Service Information WIS Service Media (si00.01-z-0012a)…142
00.01 – Service Information bulletin Use of basic operations (G) and linked operations (V) (si00.01-p-0024a)…143
00.01 – Service-Information Xentry Support & Feedback in WIS net (si00.01-z-0030a)…144
00.01 – Summaries (ov00.01-z-0102zz)…147
00.01 – Survey of function groups – overall vehicle (ov00.01-z-1903a)…148
00.01 – Terminology (ov00.01-z-0104zz)…149
00.10 – Check gear capacity (ar00.10-p-1010a)…150
00.10 – Complete vehicle, model_component installation survey, build condition (gf00.10-p-0801a)…153
00.10 – Overall vehicle, technology and general information (gf00.10-p-0802c)…154
00.10 – Service Information Vehicle identification plate orders (si00.10-p-0003b)…155
00.10 – Service information on increase of engine performance (si00.10-p-0004a)…156
00.10 – Table of contents for retrofitting and converting special equipment (an00.10-p-1000az)…157
00.10 – Table of contents for subsequent installation and conversion of accessories (az00.10-p-1000hz)…161
00.19 – 000 589 13 99 00 Wiring harness repair kit, basic (ws00.19-p-0007b)…165
00.19 – 220 589 01 99 00 Wiring harness repair kit (ws00.19-p-0009b)…166
00.19 – 220 589 02 99 00 Wiring harness repair kit (ws00.19-p-0002b)…169
00.19 – 220 589 03 99 00 Positioning mount with quick-release fitting (ws00.19-p-0003b)…171
00.19 – 220 589 04 99 00 Wiring harness repair kit, supplement (ws00.19-p-0006b)…172
00.19 – 930 589 00 99 00 Wiring harness repair kit, supplement (ws00.19-n-0004b)…173
00.19 – Extended vehicle network (GVN) diagnosis, content (ad00.19-p-1000az)…174
00.19 – Extended vehicle networking (EVN) – networking of components (pe00.19-p-2001a)…176
00.19 – General repair methods for wiring harness (ar00.19-p-0100a)…177
00.19 – Performing basic programming (ar00.19-p-0200d)…181
00.19 – Removing contacts from plugs and connectors (ar00.19-p-0120a)…182
00.19 – Repair wiring harness as per specified repair method (ar00.19-p-0001a)…187
00.19 – Wiring diagram CAN bus interior (pe00.19-p-2300a)…189
00.19 – Wiring diagram CAN engine bus (pe00.19-p-2200a)…190
00.19 – Wiring diagram of CAN bus – engine (pe00.19-p-2200b)…191
00.19 – Wiring diagram of CAN bus – engine (pe00.19-p-2200d)…192
00.19 – Wiring diagram of CAN bus – engine (pe00.19-p-2200ea)…193
00.19 – Wiring diagram of CAN bus – engine (pe00.19-p-2200f)…194
00.19 – Wiring diagram of CAN bus – interior compartment (pe00.19-p-2300c)…195
00.19 – Wiring diagram of CAN bus – interior compartment (pe00.19-p-2300ea)…196
00.19 – Wiring diagram of front axle speed signal (VSS) (pe00.19-p-2000e)…197
00.19 – Wiring diagram of rear axle speed signal (VSS) (pe00.19-p-2100e)…198
00.20 – Active service system (ASSYST) function description contents (gf00.20-p-0997az)…199
00.20 – Active service system (ASSYST) function description contents (gf00.20-p-0997bz)…200
00.20 – Check all visible parts for leaks and damage (ap00.20-p-0053ba)…201
00.20 – Economy service – vehicles older than 4 years (ap00.20-p-0008c)…204
00.20 – Inspect chassis and load-bearing body parts for damage and corrosion (ap00.20-p-0090ba)…208
00.20 – Inspection service every 15000 km_annually (ap00.20-p-0013a)…211
00.20 – Maintenance (ap00.20-p-0000a)…213
00.20 – Maintenance (ap00.20-p-0000d)…214
00.20 – Maintenance service every 30 000 km_2 years (ap00.20-p-0014a)…216
00.20 – SERVICE SHEET for Active Service System (ASSYST) (ap00.20-p-0001h)…220
00.20 – Service Information Check of axle components during maintenance (si00.20-p-0042b)…225
00.20 – Service Information Filling of AdBlue during service (si00.20-p-0004a)…227
00.20 – Service Information Forms for delivery and hand-over inspections, inspections and checks in information type AP (si00.20-p-0044a)…229
00.20 – Service Information Notes on Economy-Service (si00.20-p-0035a)…230
00.40 – Directory of additional operating fluids (bb00.40-p-0300zz)…231
00.40 – General list (bb00.40-p-0000zz)…232
00.40 – List of fuels (bb00.40-p-0100zz)…233
00.40 – List of lubricants (bb00.40-p-0200zz)…234
00.40 – Search aid for Specifications for Operating Fluids (bb00.40-p-0900a)…235
00.40 – Service Information Exclusive use of Mercedes-Benz lubricants in warranty and goodwill cases (si00.40-p-0009a)…239
00.40 – Service Information bulletin Specifications for Operating Fluids for automatic transmission (si00.40-p-0014a)…240
00.40 – Service information Dying of windshield washer fluid concentrate (si00.40-z-0006a)…242
00.45 – Auxiliary repair materials (br00.45-z-0999zz)…243
00.45 – Service Information Multipurpose metal grease (si00.45-p-0004a)…244
00.45 – Service Information Service kit for rectifying squeaking, creaking and tearing noises (si00.45-p-0002a)…245
01_Complete Engine, Crankcase Ventilation, Cylinder Head, Crankcase…246
01.00 – 000 588 00 31 00 Assembly stand (ws01.00-n-3028b)…251
01.00 – 000 588 00 62 00 Load tilter (ws01.00-p-0102b)…252
01.00 – 000 588 01 21 00 Endoscope (ws01.00-p-0097b)…253
01.00 – 000 588 03 62 00 Lifting platform (ws01.00-p-0091a)…254
01.00 – 000 588 04 62 00 Removal fixture (ws01.00-n-3014b)…255
01.00 – 000 588 09 62 00 Engine support fixture (ws01.00-p-0094b)…256
01.00 – 000 588 11 62 00 Major assembly mount (ws01.00-p-0092b)…257
01.00 – 000 589 01 25 00 Hand pressure gun (ws01.00-n-3060b)…258
01.00 – 000 589 03 10 00 Screwdriver bit (ws01.00-p-0054b)…259
01.00 – 001 589 00 91 00 Set of protective covers (ws01.00-n-0110b)…260
01.00 – 001 589 01 91 00 Set of protective covers (ws01.00-p-0111b)…261
01.00 – 001 589 02 91 00 Set of protective covers (ws01.00-n-0112b)…262
01.00 – 001 589 76 21 00 Compression tester (ws01.00-p-0004a)…263
01.00 – 001 589 78 21 00 Compression tester (ws01.00-p-0006a)…264
01.00 – 003 589 03 37 00 Hose clamp pliers (ws01.00-p-0113b)…265
01.00 – 102 589 00 15 00 Drift (ws01.00-n-0007c)…266
01.00 – 111 589 12 31 00 Support (ws01.00-p-0021c)…267
01.00 – 119 589 01 40 00 Retaining bracket (ws01.00-p-0029c)…268
01.00 – 140 589 01 61 00 Engine support frame (ws01.00-p-0032c)…269
01.00 – 452 589 01 99 00 Repair tools for valves (ws01.00-p-0108c)…270
01.00 – 601 589 00 10 00 Screwdriver bit (ws01.00-p-0033b)…271
01.00 – 601 589 08 15 00 Drift (ws01.00-n-0037c)…272
01.00 – 601 589 09 15 00 Drift (ws01.00-n-0038c)…273
01.00 – 602 589 00 25 00 Adapter (ws01.00-n-3094a)…274
01.00 – 602 589 00 33 00 Impact extractor (ws01.00-p-0039b)…275
01.00 – 602 589 00 63 00 Connection piece (ws01.00-n-0040b)…276
01.00 – 604 589 00 63 00 Connection piece (ws01.00-p-0042b)…277
01.00 – 604 589 01 09 00 Socket (ws01.00-p-0043b)…278
01.00 – Check for cylinder leakage (ar01.00-p-1300ha)…279
01.00 – Cleaning and preserving engine and engine compartment (ap01.00-p-1000zz)…282
01.00 – Disconnecting, connecting engine wiring harness (ar01.00-p-2410c)…283
01.00 – Disconnecting, connecting engine wiring harness (ar01.00-p-2410ca)…285
01.00 – Disconnecting, connecting engine wiring harness (ar01.00-p-2410d)…286
01.00 – Disconnecting, connecting engine wiring harness (ar01.00-p-2410h)…288
01.00 – Disconnecting, connecting engine wiring harness (ar01.00-p-2410hc)…290
01.00 – Disconnecting, connecting engine wiring harness (ar01.00-p-2410hw)…292
01.00 – Disconnecting, connecting engine wiring harness (ar01.00-p-2410k)…294
01.00 – Forms Passenger cars Complete engine, crankcase ventilation, cylinder head , crankcase (of01.00-z-3999az)…296
…
05.00 – 115 589 01 34 00 Threaded bolt (ws05.00-p-0077b)…604
05.00 – 115 589 20 33 00 Puller (ws05.00-p-0079b)…605
05.00 – 116 589 01 34 00 Threaded bolt (ws05.00-n-0083b)…606
05.00 – 116 589 06 63 00 Magnetic rod (ws05.00-p-0088b)…607
05.00 – 119 589 00 43 00 Drift (ws05.00-n-0098b)…608
05.00 – 119 589 00 53 00 Reamer (ws05.00-p-0151c)…609
05.00 – 119 589 01 53 00 Broaching tool (ws05.00-p-0152c)…610
05.00 – 119 589 05 63 00 Guide sleeve (ws05.00-p-0153c)…611
05.00 – 210 589 00 40 00 Magnetic pin (ws05.00-n-0155b)…612
05.00 – 271 589 00 59 00 Assembly tool (ws05.00-p-0202c)…613
05.00 – 602 589 00 39 00 Riveting tool (ws05.00-p-0162c)…614
05.00 – 602 589 00 98 00 Case (ws05.00-p-0158c)…615
05.00 – 602 589 02 33 00 Chain separating tool (ws05.00-p-0159c)…616
05.00 – 602 589 02 40 00 Assembly links (ws05.00-p-0171c)…617
05.00 – 602 589 02 63 00 Assembly inserts (ws05.00-p-0163c)…618
05.00 – 602 589 03 63 00 Thrust piece (ws05.00-p-0164c)…619
05.00 – 602 589 04 63 00 Thrust spindle (ws05.00-p-0160c)…620
05.00 – 604 589 00 40 00 Retaining device (ws05.00-p-0169c)…621
05.00 – 604 589 00 43 00 Drift (ws05.00-p-0114b)…622
05.00 – 605 589 00 33 00 Puller (ws05.00-p-0154b)…623
05.00 – 606 589 00 15 00 Drift punch (ws05.00-p-0132c)…624
05.00 – 606 589 00 31 00 Supports (1 pair) (ws05.00-p-0131c)…625
05.00 – 606 589 00 37 00 Pliers (ws05.00-p-0116b)…626
05.00 – 606 589 00 53 00 Reamer (ws05.00-p-0150c)…627
05.00 – 606 589 01 15 00 Drift punch (ws05.00-p-0157c)…628
05.00 – 606 589 02 15 00 Drift punch (ws05.00-p-0167c)…629
05.00 – 642 589 00 33 00 Riveting tool (ws05.00-p-0260c)…630
05.00 – Checking hydraulic valve clearance compensating elements (ar05.00-p-2010hw)…631
05.00 – General notes Passenger cars Engine timing (ah05.00-z-9999az)…632
05.00 – Remove_install hydraulic valve clearance compensation elements (ar05.00-p-2011b)…633
05.00 – Removing, installing hydraulic valve clearance compensation elements (bucket tappets) (ar05.00-p-2011hy)…635
05.00 – Safety information Engine timing (as05.00-z-9999zz)…636
05.00 – Technical modifications Passenger cars Engine timing (bt05.00-z-9999az)…637
05.00 – Test and adjustment values Passenger cars Engine timing (be05.00-z-9999az)…638
05.00 – Tightening torques Passenger cars Engine timing (ba05.00-z-9999az)…640
05.10 – Check the engine valve timing (ar05.10-p-6858v)…641
05.10 – Remove_install chain tensioner (ar05.10-p-7800c)…646
05.10 – Remove_install chain tensioner (ar05.10-p-7800ca)…648
05.10 – Remove_install chain tensioner (ar05.10-p-7800hb)…650
05.10 – Remove_install slide rail in cylinder head (ar05.10-p-8432ha)…652
05.10 – Remove_install slide rail in cylinder head (ar05.10-p-8432hb)…654
05.10 – Remove_install slide rail in timing case cover (ar05.10-p-8484v)…656
05.10 – Removing and installing slide rail in timing case cover (ar05.10-p-8484ha)…661
05.10 – Removing, installing tensioning rail (ar05.10-p-8127ha)…662
05.10 – Removing_installing the chain tensioner (ar05.10-p-7800ha)…663
05.10 – Replacing timing chain (ar05.10-p-7601av)…665
05.10 – Replacing timing chain (ar05.10-p-7601ha)…668
05.10 – Replacing timing chain (ar05.10-p-7601hb)…670
05.20 – Check camshaft timing (ar05.20-p-6015hb)…672
05.20 – Checking basic position of camshafts (ar05.20-p-6010ha)…674
05.20 – Remove_install camshaft bearing bridge (ar05.20-p-7103au)…675
05.20 – Remove_install camshaft housing (ar05.20-p-6995ha)…678
05.20 – Remove_install camshafts (ar05.20-p-6992au)…680
05.20 – Remove_install camshafts (ar05.20-p-6992ha)…684
05.20 – Removing, installing end cover for camshafts (ar05.20-p-6030ha)…687
05.20 – Removing_installing camshaft (ar05.20-p-6292hw)…688
05.20 – Set the basic position of camshafts (ar05.20-p-6020au)…691
05.20 – Setting the basic position of camshafts (ar05.20-p-6020ha)…695
05.30 – Check, machine valves (ar05.30-p-4201a)…698
05.30 – Check, remove, install valve guides (ar05.30-p-3731av)…700
05.30 – Check, remove_install valve guides (ar05.30-p-3731a)…702
05.30 – Inspecting, removing, installing valve guides (ar05.30-p-4511av)…705
05.30 – Machine valve seat rings (ar05.30-p-4511b)…707
05.30 – Remove_install valve springs and_or valve stem seals (ar05.30-p-3500b)…709
05.30 – Remove_install valve springs and_or valve stem seals (ar05.30-p-3500ba)…713
05.30 – Remove_install valve springs and_or valve stem seals (ar05.30-p-3500hb)…718
05.30 – Remove_install valves (ar05.30-p-3511av)…723
05.30 – Remove_install valves (ar05.30-p-3511hb)…727
05.30 – Removing and installing valve springs and_or valve stem seals (ar05.30-p-3500hw)…730
05.30 – Removing, installing valve springs and_or valve stem seals (ar05.30-p-3500ha)…732
05.30 – Removing, installing valves (ar05.30-p-3511b)…734
05.30 – Replace valve seat rings (ar05.30-p-3831av)…736
05.30 – replace valve seat rings (ar05.30-p-3831a)…739
07_Mixture Formation…741
07.00 – 000 589 00 68 00 Cleaning kit (ws07.00-p-0001c)…746
07.00 – 000 589 68 03 00 Box wrench bit (ws07.00-n-0004a)…747
07.00 – 000 589 68 03 00 Box wrench bit (ws07.00-p-0004b)…748
07.00 – 000 589 69 03 00 Ring wrench bit (ws07.00-p-0088b)…749
07.00 – 000 589 77 03 00 Box wrench socket (ws07.00-p-0005b)…750
07.00 – 104 589 00 63 00 Test cable (ws07.00-p-0018b)…751
07.00 – 601 589 00 08 00 Serrated wrench (ws07.00-n-0043b)…752
07.00 – 601 589 05 14 00 Centering sleeve (ws07.00-p-0045b)…753
07.00 – 601 589 05 21 00 Arresting screw (ws07.00-n-0046b)…754
07.00 – 603 589 00 21 00 TDC sensor (ws07.00-p-0047a)…755
07.00 – 605 589 00 90 00 Test line (ws07.00-p-0050b)…756
07.00 – 606 589 00 09 00 Socket (ws07.00-p-0051b)…757
07.00 – 617 589 01 09 00 Socket (ws07.00-n-0054b)…758
07.00 – 617 589 04 21 00 Tester (ws07.00-p-0055b)…759
07.00 – 617 589 08 21 00 Position sensor (ws07.00-n-0056a)…760
07.00 – 617 589 09 21 00 GI adapter (ws07.00-n-0057a)…761
07.00 – 617 589 10 21 00 GI sensor (ws07.00-n-0058a)…762
07.00 – Certificates Passenger cars Mixture formation (of07.00-z-1999az)…763
07.00 – Check and adjust engine (ar07.00-p-3001wa)…764
07.00 – Check and adjust engine (ar07.00-p-3001wb)…767
07.00 – Engine test and setting operations (ar07.00-p-3000wa)…770
07.00 – Engine test and setting operations (ar07.00-p-3000wb)…771
07.00 – Engine test and setting operations (ar07.00-p-3000wc)…772
07.00 – Enlargement to testing, adjusting engine (ar07.00-p-3004wb)…773
07.00 – Enlargement to testing, adjusting engine (ar07.00-p-3004wc)…774
07.00 – Exhaust emission test I (ar07.00-p-1000a)…775
07.00 – Extension to testing, adjusting engine (ar07.00-p-3004wa)…776
07.00 – Forms Passenger cars Mixture formation (of07.00-z-3999az)…777
07.00 – General notes Passenger cars Mixture formation (ah07.00-z-9999az)…778
07.00 – Safety information Mixture formation (as07.00-z-9999zz)…780
07.00 – Service Information on fuel consumption measurement (si07.00-p-0004a)…781
07.00 – Technical modifications Passenger cars Mixture formation (bt07.00-z-9999az)…783
07.00 – Test and adjustment values Passenger cars Mixture formation (be07.00-z-9999az)…784
07.00 – Test engine performance and exhaust emissions (ar07.00-p-3003wa)…786
07.00 – Test engine performance and exhaust emissions (ar07.00-p-3003wb)…789
07.00 – Test, regulate idle speed (ar07.00-p-3002wa)…792
07.00 – Test, regulate idle speed (ar07.00-p-3002wb)…794
07.00 – Tightening torques Passenger cars Mixture formation (ba07.00-z-9999az)…797
07.03 – Remove_install injectors (ar07.03-p-6830h)…799
07.07 – Service Information diagnosis of mass air flow sensor in conjunction with complaints about engine running characteristics (si07.07-p-0001a)…801
07.08 – Removing, installing fuel injection system control module (ar07.08-p-7008a)…802
07.08 – Service Information Sending back diagnosis data on engine control unit (si07.08-p-0009a)…803
07.12 – Electronic in-line fuel injection (IFI) diagnosis contents (ad07.12-p-1000cz)…804
07.12 – Electronic in-line fuel injection (IFI) diagnosis contents (ad07.12-p-1000dz)…805
07.12 – Electronically-controlled in-line fuel injection (IFI) diagnosis, contents (ad07.12-p-1000az)…806
07.12 – Electronically-controlled in-line fuel injection (IFI) diagnosis, contents (ad07.12-p-1000bz)…807
07.12 – Remove_install injection lines (ar07.12-p-9230h)…808
07.12 – Remove_install injection pump (ar07.12-p-8410h)…810
07.12 – Removing and installing injection timing device (ar07.12-p-8014h)…813
07.13 – B1 – Test and adjustment work; Testing and adjusting engine 11 – Engine 602.982 DFI, 604 DFI, 605_606 IFI (dh0b01p100011x)…814
07.13 – B10 – Test and adjustment work; Repairing and adjusting injection nozzle after testing 82 – Engines 604 DFI, 605_606 IFI (dh0b10p100082x)…817
07.13 – B11 – Test and adjustment work; Testing fuel low pressure circuit for leaks 91 – Engines 602.982 DFI, 604 DFI, 605_606 IFI (dh0b11p100091x)…818
07.13 – B2 – Test and adjustment work; Testing, adjusting idle speed 21 – Engines 602.982 DFI, 604 DFI, 605_606 IFI (dh0b02p100021x)…821
07.13 – B3 – Test and adjustment work; Testing engine output and exhaust emissions 31 – All Engines (dh0b03p100031x)…822
07.13 – B4 – Test and adjustment work; Testing start of delivery 41 – Engines 604 DFI, 605_606 IFI (dh0b04p100041x)…825
07.13 – B5 – Test and adjustment work; Adjusting start of delivery 43 – Engines 604 DFI, 605_606 IFI (dh0b05p100043x)…827
07.13 – B6 – Test and adjustment work; Testing fuel pump 51 – Engines 602.982 DFI, 604 DFI, 605_606 IFI (dh0b06p100051x)…828
07.13 – B7 – Test and adjustment work; Testing fuel pressure 61 – Engines 602.982 DFI, 604 DFI, 605_606 IFI (dh0b07p100061x)…831
07.13 – B9 – Test and adjustment work; Testing injection nozzle 81 – Engines 602.982, 604 DFI, 605_606 IFI (dh0b09p100081x)…834
07.16 – Bleed low pressure fuel circuit (ar07.16-p-0100p)…836
07.16 – Common rail diesel injection (CDI) diagnosis, contents (ad07.16-p-1000az)…838
07.16 – Remove fuel cooler, install (ar07.16-p-1100b)…839
07.17 – Remove_install pressure control valve (ar07.17-p-1060hb)…840
07.61 – A – Test and adjustment Data 64 – Engines 112.921_941 as of 02_97 (dh0a00pm00064x)…843
07.61 – C – Diagnosis test equipment 39 – Connecting diagram for rotorless high-voltage distributor Engine 112_113 ME-SFI (dh0c00pm00039x)…847
07.61 – Fuel injection and ignition system (ME-SFI) diagnosis contents (ad07.61-p-1000wz)…848
07.61 – ME-SFI fuel injection and ignition system model and component installation survey as-built configuration (gf07.61-p-0801f)…849
07.61 – ME-SFI pneumatic diagrams (pp07.61-p-5000a)…850
07.61 – Motor electronics (ME-SFI) fuel injection and ignition system contents function description (gf07.61-p-0999z)…851
07.61 – Motor electronics (ME-SFI) fuel injection and ignition system survey of system components location_task_design_function (gf07.61-p-9999f)…855
07.61 – Test_adjust idle speed, emission value_lambda control (ME-SFI) (ap07.61-p-0750b)…858
07.61 – Test_adjust idle speed, emission value_lambda control (ME-SFI) (ap07.61-p-0750c)…862
07.61 – Wiring diagram – ME-SFI fuel injection and ignition system (pe07.61-p-2000eb)…866
07.61 – Wiring diagram – ME-SFI fuel injection and ignition system (pe07.61-p-2000ee)…867
07.61 – Wiring diagram – ME-SFI fuel injection and ignition system (pe07.61-p-2000h)…868
07.61 – Wiring diagram – ME-SFI fuel injection and ignition system (pe07.61-p-2000i)…869
07.61 – Wiring diagram – ME-SFI fuel injection and ignition system (pe07.61-p-2000j)…870
07.61 – Wiring diagram ME-SFI fuel injection and ignition system (pe07.61-p-2000aa)…871
07.61 – Wiring diagram ME-SFI fuel injection and ignition system (pe07.61-p-2000ab)…872
07.61 – Wiring diagram of ME fuel injection and ignition system (pe07.61-p-2000g)…873
07.61 – Wiring diagram of ME-SFI fuel injection and ignition system (pe07.61-p-2000ef)…874
08_Electric Drive, Hybrid Drive…875
08.00 – Capacities Passenger cars Electrical drive system (bf08.00-z-9999az)…876
08.00 – Forms Passenger cars Electrical drive system (of08.00-z-3999az)…877
08.00 – Test and adjustment values Passenger cars Electrical drive system (be08.00-z-9999az)…878
08.00 – Tightening torques Passenger cars Electrical drive system (ba08.00-z-9999az)…879
09_Air Intake, Turbocharging…880
09.00 – Forms Passenger cars Air intake, supercharging (of09.00-z-3999az)…881
09.00 – General notes Passenger cars Air intake, supercharging (ah09.00-z-9999az)…882
09.00 – Technical modifications Passenger cars Air intake, supercharging (bt09.00-z-9999az)…883
09.00 – Test and adjustment values Passenger cars Air intake, supercharging (be09.00-z-9999az)…884
09.00 – Tightening torques Passenger cars Air intake, supercharging (ba09.00-z-9999az)…885
09.10 – Luftfilter aus-, einbauen (ar09.10-p-1050e)…887
09.10 – Remove_install air filter (ar09.10-p-1050c)…888
09.10 – Removing and installing air cleaner (ar09.10-p-1050a)…890
09.10 – Replace air filter element (ap09.10-p-0980b)…892
09.20 – Remove, install inlet port shutoff actuator motor (ar09.20-p-1313c)…893
09.20 – Remove_install mixing chamber (ar09.20-p-1320a)…895
09.20 – Removing and installing intake manifold (ar09.20-p-1310ea)…897
09.20 – Removing and installing intake manifold (ar09.20-p-1310gb)…899
09.20 – Removing and installing intake manifold (ar09.20-p-1310h)…900
09.40 – Remove_install turbocharger (ar09.40-p-6020hb)…901
09.41 – Remove_install charge air cooler (ar09.41-p-6817c)…903
09.41 – Remove_install charge air distribution pipe (ar09.41-p-1310hb)…905
09.41 – Remove_install charge air pipe (ar09.41-p-1311hb)…907
09.41 – Removing and installing charge air cooler (ar09.41-p-6817d)…909
09.41 – Removing and installing charge air pipe (ar09.41-p-1311hc)…910
09.50 – Remove compressor, install (ar09.50-p-4705pk)…911
09.50 – Remove_install intake and pressure connection from compressor (ar09.50-p-8841pk)…912
13_Air Compressor, Belt Drives…914
13.00 – General notes Passenger cars Air compressor, belt drives (ah13.00-z-9999az)…915
13.00 – Technical modifications Passenger cars Air compressor, belt drives (bt13.00-z-9999az)…916
13.00 – Test and adjustment values Passenger cars Air compressor, belt drives (be13.00-z-9999az)…917
13.00 – Tightening torques Passenger cars Air compressor, belt drives (ba13.00-z-9999az)…918
13.21 – Remove_install poly-V belt for compressor (ar13.21-p-1202a)…919
13.21 – Remove_install poly-V belt for compressor (ar13.21-p-1202b)…921
13.21 – Removing_installing guide pulley for compressor (ar13.21-p-3460a)…923
13.21 – Removing_installing poly-V-belt tensioning device for compressor (ar13.21-p-3200a)…924
13.22 – Check visible area of poly-V belt for wear (ap13.22-p-1352z)…925
13.22 – Remove, install poly V-belt (ar13.22-p-1202b)…926
13.22 – Remove, install poly V-belt (ar13.22-p-1202ba)…928
13.22 – Remove_install generator poly-V belt pulley (ar13.22-p-5700ea)…929
13.22 – Remove_install poly-V belt (ar13.22-p-1202ha)…931
13.25 – Remove_install poly V-belt tensioning device (ar13.25-p-3200ba)…933
13.25 – Remove_install poly-V belt tensioning device (ar13.25-p-3200b)…936
13.25 – Removing, installing poly V-belt tensioning device (ar13.25-p-3200ha)…938
13.25 – Removing, installing shock absorber of poly V-belt tensioning device (ar13.25-p-3210ha)…940
14_Exhaust Manifold, Engine Brake, Emission Control System…942
14.00 – 000 588 01 71 00 Extraction pump (ws14.00-p-0013b)…943
14.00 – 000 588 08 21 00 Test and measuring kit (ws14.00-p-0012b)…944
14.00 – Capacities Passenger cars Exhaust manifold, engine brake, emission control system (bf14.00-z-9999az)…945
14.00 – Certificates Passenger cars Exhaust manifold, engine brake, emission control system (of14.00-z-1999az)…946
14.00 – General notes Passenger cars Exhaust manifold, engine brake, emission control system (ah14.00-z-9999az)…947
14.00 – Safety information Exhaust manifold, engine brake, emission control system (as14.00-z-9999zz)…948
14.00 – Technical modifications Passenger cars Exhaust manifold, engine brake, emission control system (bt14.00-z-9999az)…949
14.00 – Test and adjustment values Passenger cars Exhaust manifold, engine brake, emission control system (be14.00-z-9999az)…950
14.00 – Tightening torques Passenger cars Exhaust manifold, engine brake, emission control system (ba14.00-z-9999az)…951
14.10 – Remove_install exhaust manifold (ar14.10-p-3915h)…952
14.30 – Remove, install air pump (ar14.30-p-7251a)…954
14.40 – Service Information Fill AdBlue container (si14.40-p-0014a)…955
14.40 – Service Information Return delivery of AdBlue tank (si14.40-p-0023a)…956
…
35.31 – Remove_install differential (ar35.31-p-0520b)…1916
35.31 – Replace radial sealing ring on connecting flange of rear axle shaft (ar35.31-p-0540b)…1920
35.31 – Service Information Change of oil filler screw and oil drain screw on rear axle center assembly (si35.31-p-0003a)…1926
35.31 – Service Information Rear axle center assembly (si35.31-p-0001a)…1927
35.31 – Service Information Rear axle gear (si35.31-p-0002a)…1928
40_Wheels, Chassis Alignment Check…1929
40.00 – 000 588 00 83 00 Tire mounting device (ws40.00-p-0006b)…1935
40.00 – 000 588 01 19 00 Tester (ws40.00-p-0005b)…1936
40.00 – 000 588 05 19 00 Inclinometer (ws40.00-p-0007b)…1937
40.00 – 000 588 12 21 00 Balancing machine (ws40.00-p-0024b)…1938
40.00 – 000 588 13 21 00 Wheel alignment system (ws40.00-p-0013b)…1939
40.00 – 000 589 18 31 00 Brake pedal winch (ws40.00-p-0001b)…1940
40.00 – 000 589 82 63 00 Mylon cord (ws40.00-p-0002b)…1941
40.00 – 115 589 18 23 00 Locating device (ws40.00-p-0008b)…1942
40.00 – 115 589 19 23 00 Securing fixture (ws40.00-p-0009b)…1943
40.00 – 124 589 01 19 00 Telescopic measuring rod (ws40.00-p-0014c)…1944
40.00 – 124 589 01 31 00 Quick clamping device (ws40.00-p-0015b)…1945
40.00 – 124 589 02 19 00 Telescopic measuring rod (ws40.00-p-0016c)…1946
40.00 – 124 589 04 21 00 Gage pins (ws40.00-p-0017c)…1947
40.00 – 124 589 08 63 00 Connecting pieces (ws40.00-p-0018c)…1948
40.00 – 124 589 17 63 00 Assembly tool (ws40.00-p-0021b)…1949
40.00 – 124 589 20 63 00 Chain (ws40.00-p-0022b)…1950
40.00 – 126 589 04 09 00 Socket wrench bit (ws40.00-p-0023a)…1951
40.00 – 129 589 00 59 00 Removal tool (ws40.00-p-0101b)…1952
40.00 – 129 589 01 21 00 Retainer device (ws40.00-p-0025b)…1953
40.00 – 140 589 09 63 00 Measuring fixture set (ws40.00-p-0029c)…1954
40.00 – 164 589 04 63 00 Retaining tube (ws40.00-p-0071c)…1955
40.00 – 168 589 07 63 00 Measuring set (ws40.00-p-0046b)…1956
40.00 – 170 589 00 63 00 Mount (ws40.00-p-0043c)…1957
40.00 – 201 589 11 31 00 Pulling device (ws40.00-p-0036b)…1958
40.00 – 201 589 12 21 00 Level carrier (ws40.00-p-0037c)…1959
40.00 – 211 589 00 31 00 Adapter for brake pedal winch (ws40.00-p-0047b)…1960
40.00 – 211 589 06 23 00 Brake pad test gauge (ws40.00-p-0066a)…1961
40.00 – 230 589 01 09 00 Socket wrench (ws40.00-p-0049b)…1962
40.00 – Forms Passenger cars Wheels, chassis alignment check (of40.00-z-3999az)…1963
40.00 – General information on vehicle level measurement (ar40.00-p-0202a)…1964
40.00 – General notes Passenger cars Wheels, chassis alignment check (ah40.00-z-9999az)…1966
40.00 – Safety information Wheels, chassis alignment check (as40.00-z-9999zz)…1967
40.00 – Service Information Permissible valve caps for vehicles with tire pressure monitoring system (si40.00-p-0003a)…1968
40.00 – Service Information Use of nitrogen as a tire-filling gas (si40.00-p-0004a)…1969
40.00 – Technical modifications Passenger cars Wheels, chassis alignment check (bt40.00-z-9999az)…1970
40.00 – Test and adjustment values Passenger cars Wheels, chassis alignment check (be40.00-z-9999az)…1971
40.00 – Tightening torques Passenger cars Wheels, chassis alignment check (ba40.00-z-9999az)…1976
40.10 – 40.00 – AMG Accessories Information for the Mercedes-Benz Organization specify wheel_tire combinations Model 124, 126, 129, 140, 170, 201, 202, 210 (ea4000pez0000x)…1977
40.10 – 40.40 – AMG Accessories Conversion to 235_40 ZR 18 tyres and 8 J x 18 H 2 ET 31 disk wheel Model 210 (E class) (ea4040pez0000x)…1978
40.10 – 40.41 – AMG Accessories Conversion to one piece disk wheel, Model 210 (E-Class) Front axle 8 J x 18 H 2 ET 31, Rear axle 9 J x 18 H 2 ET 35 (ea4041pez0000x)…1984
40.10 – Balancing wheels (ar40.10-p-1040a)…1992
40.10 – Check tires for damage and crack formations (ap40.10-p-4051z)…1994
40.10 – Checking tires for lateral and radial runout (ar40.10-p-1025a)…1997
40.10 – General overview of approved wheel_tire combinations in as-built configuration (gf40.10-p-0804a)…1998
40.10 – Overview of tire checks for damage and crack formation (ap40.10-p-4048u)…2013
40.10 – Perform smooth operation optimization (ar40.10-p-3201a)…2014
40.10 – Remove_install wheels, rotate if necessary (ap40.10-p-4050z)…2016
40.10 – Replace tires (ar40.10-p-1030a)…2019
40.10 – Service Information Clean light alloy disk wheel (si40.10-p-0022a)…2023
40.10 – Service Information Cosmetic processing of light alloy wheels (si40.10-p-0026a)…2024
40.10 – Service Information Speed index (si40.10-p-0006a)…2025
40.10 – Service Information bulletin TIREFIT tire sealant (si40.10-p-0020a)…2026
40.10 – Service information It is not permissible to use lead balancing weights (si40.10-p-0015a)…2027
40.10 – Service information Plastic wheel (si40.10-p-0002a)…2029
40.10 – Service information Radial crack in light alloy disk wheel (si40.10-p-0023a)…2030
40.10 – Service information Wheel bolts (si40.10-p-0005a)…2031
40.15 – Remove_install wheel sensor (ar40.15-p-0080a)…2032
40.15 – Service Information Notes on tire replacement (si40.15-p-0003a)…2035
40.15 – Service Information Notes on wheel_tire replacement (si40.15-p-0004a)…2039
40.15 – Service information Tire pressure monitor (si40.15-p-0002a)…2040
40.15 – Wiring diagram tire pressure indicator (pe40.15-p-2000ea)…2041
40.20 – Attaching Mercedes-Benz quick-clamp holder (ar40.20-p-0230fb)…2042
40.20 – Attaching Mercedes-Benz quick-clamping devices (ar40.20-p-0230a)…2043
40.20 – Chassis alignment test sheet Passenger cars (wb6516lit7434z)…2044
40.20 – Check and adjust camber and caster at front axle (ar40.20-p-0322d)…2046
40.20 – Check and adjust front axle toe-in (ar40.20-p-0323d)…2048
40.20 – Check and adjust front axle toe-in (ar40.20-p-0323fb)…2050
40.20 – Check and adjust reference point for self-leveling suspension (ar40.20-p-0310fb)…2052
…
82.61 – Wiring diagram auto pilot system (APS) (pe82.61-p-2000b)…3521
82.61 – Wiring diagram auto pilot system (APS) (pe82.61-p-2000e)…3522
82.61 – Wiring diagram auto pilot system (APS) (pe82.61-p-2000i)…3523
82.61 – Wiring diagram of Auto Pilot System (APS) (pe82.61-p-2000c)…3524
82.61 – Wiring diagram of auto pilot system (APS) (pe82.61-p-2000h)…3525
82.61 – Wiring diagram of auto-pilot system (APS) (pe82.61-p-2000d)…3526
82.61 – Wiring diagram of auto-pilot system (APS) (pe82.61-p-2000ea)…3527
82.62 – 4.3 – Antenna system (AS) 11 – Diagnosis – Function check Model 210 sedan with rear window antenna & T-model with side window antenna (dh0403pi00011x)…3528
82.62 – 4.3 – Antenna system (AS) 21 – Test program – Electrics – Location of components Model 210 sedan with rear window antenna & T-model with side window antenna (dh0403pi00021x)…3529
82.62 – 4.3 – Antenna system (AS) 22 – Test program – Electrics – Prerequisites for testing Model 210 sedan with rear window antenna & T-model with side window antenna (dh0403pi00022x)…3531
82.62 – 4.3 – Antenna system (AS) 23 – Test program – Electrics Testing Model 210 sedan with rear window antenna & T-model with side window antenna (dh0403pi00023x)…3532
82.62 – Contents . Function description of antenna system (ATS) (gf82.62-p-0999b)…3534
82.62 – Removing and installing FM_AM amplifier (ar82.62-p-8347a)…3535
82.62 – Removing and installing automatic antenna (ar82.62-p-8105ea)…3536
82.62 – Removing and installing front door speakers in mirror triangle (ar82.62-p-7850a)…3537
82.62 – Removing and installing left_right audio power amplifier (ar82.62-p-7720eb)…3538
82.62 – Removing and installing loudspeakers in front doors (ar82.62-p-7845ea)…3539
82.62 – Removing and installing loudspeakers in rear shelf (ar82.62-p-7836fb)…3541
82.62 – Removing and installing rear window anti-interference capacitor (ar82.62-p-7385b)…3542
82.62 – Removing and installing speakers in the rear shelf (ar82.62-p-7836ea)…3543
82.62 – Removing, installing window antenna (ar82.62-p-8103eb)…3545
82.62 – Speaker system (LSA) diagnosis contents (ad82.62-p-1001iz)…3546
82.62 – Speaker system (LSA) diagnosis contents (ad82.62-p-1001jz)…3547
82.64 – CD player with changer (CDC) diagnosis, contents (ad82.64-p-1000az)…3548
…
98.00 – Use of polish (ap98.00-p-0639a)…4299
98.20 – Painting plastic detachable body components (ar98.20-p-0685a)…4300
98.20 – Service information Paint repairs and repair work on plastic parts (si98.20-z-0002a)…4301
98.30 – Cleaning and care of MB vehicle paintwork (ap98.30-p-8070a)…4303
98.30 – Service Information Polish and care products for vehicle conditioning (si98.30-p-0001a)…4305
99_Printed Matter…4306
99.00 – General notes Passenger cars Publications (ah99.00-z-9999az)…4307
99.00 – Safety information Publications (as99.00-z-9999zz)…4308
99.00 – Technical modifications Passenger cars Publications (bt99.00-z-9999az)…4309
99.00 – Tightening torques Passenger cars Publications (ba99.00-z-9999az)…4310
99.20 – Body exposure Passenger vehicles incl. cross country vehicles (wb6516lit7490z)…4311
99.20 – Center section, Rear end Passenger vehicles incl. cross country vehicles (wb6516lit7501z)…4315
99.20 – Fault code documentation Passenger cars and Off Road Vehicles (wb6516lit7481z)…4319
99.20 – Front end Passenger cars and cross country vehicles (wb6516lit7500z)…4321
99.20 – Mobilo Attachment to warranty claim for the reimbursement of costs incurred from breakdowns and starting problems (wb65160010399z)…4324
99.20 – Predelivery inspection for püassenger cars, stage 2 (New vehicles up to 1 year after market launch) (wb6516lit7504z)…4327
99.20 – Test Sheet Passenger Cars (wb6516lit7438z)…4328

Mercedes-Benz W210 E-Class Repair Service Manual 1996-2003

INSTANT DOWNLOAD

Posted on December 15, 2024December 15, 2024 by admin

Mercedes-Benz C209/A209 CLK-Class Repair Service Manual 2003-2010

INSTANT DOWNLOAD

Complete service repair manual with Electrical Wiring Diagrams for Mercedes-Benz C209/A209 CLK-Class, with all the technical information to maintain, diagnose, repair, and rebuild like professional mechanics.

Mercedes-Benz C209/A209 CLK-Class workshop service repair manual includes:
* Numbered table of contents easy to use so that you can find the information you need fast.
* Detailed sub-steps expand on repair procedure information
* Numbered instructions guide you through every repair procedure step by step.
* Troubleshooting and electrical service procedures are combined with detailed wiring diagrams for ease of use.
* Notes, cautions and warnings throughout each chapter pinpoint critical information.
* Bold figure number help you quickly match illustrations with instructions.

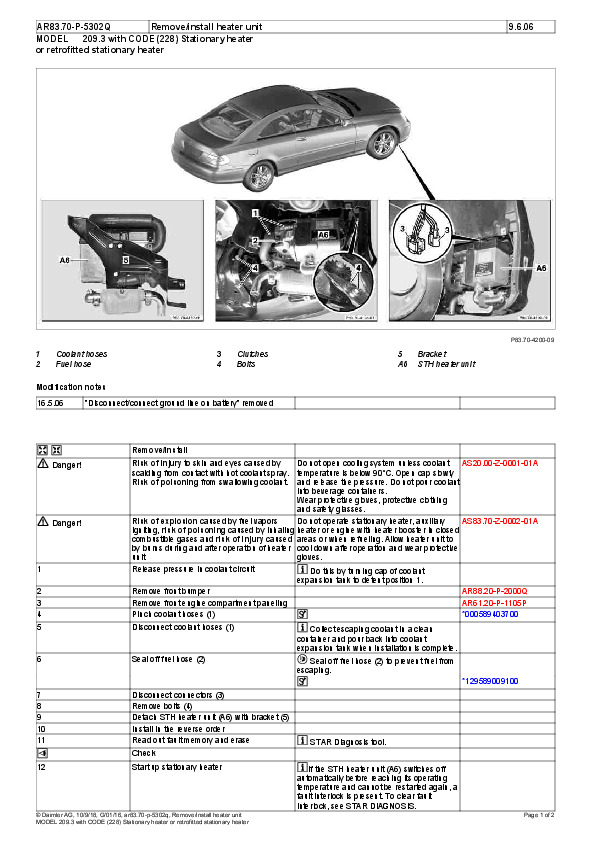

* Detailed illustrations, drawings and photos guide you through every procedure.
* Enlarged inset helps you identify and examine parts in detail.

Mercedes-Benz C209_A209 CLK-Class Service Repair Manual 2003-2010.pdf
C209_CLK-Class_Technical_Information.zip

2-door coupé (C209)
2-door convertible (A209)

CLK 200 Kompressor, CLK 200 CGI, CLK 240, CLK 280, CLK 320, CLK 350, CLK 500, CLK 550, CLK 55 AMG, CLK 63 AMG, CLK 63 AMG Black, CLK 220 CDI, CLK 270 CDI, CLK 320 CDI

PRODUCT DETAILS:
Total Pages: 3,244 pages
File Format: PDF (Internal Links, Bookmarked, Table of Contents, Searchable, Printable, high quality)
Language: English

TABLE OF CONTENTS
00_Overall Vehicle…3
00.00 – 000 588 03 90 00 Extractor link arm (ws00.00-p-0037b)…14
00.00 – 000 588 04 90 00 Hose grommet (ws00.00-p-0035b)…15
00.00 – 000 588 05 80 00 Pit lift (ws00.00-p-0248b)…16
00.00 – 000 588 05 90 00 Clamping grommet (ws00.00-p-0036b)…17
00.00 – 000 589 00 21 00 Test box (ws00.00-p-0034b)…18
00.00 – 000 589 01 10 00 Torx bit set (ws00.00-n-0001z)…19
00.00 – 000 589 01 40 00 Bracket (ws00.00-p-0244z)…20
00.00 – 000 589 10 99 00 Tool kit (ws00.00-p-0030z)…21
00.00 – 000 589 25 33 00 Internal extractor (ws00.00-n-0050z)…22
00.00 – 000 589 28 33 00 Puller dia. 28-37 mm (ws00.00-n-3026z)…23
00.00 – 000 589 29 33 00 Internal extractor (ws00.00-n-3027z)…24
00.00 – 000 589 30 16 00 Hexagon ratchet, 10 mm (ws00.00-p-0002z)…25
00.00 – 000 589 31 16 00 Hexagon ratchet, 13 mm (ws00.00-p-0003z)…26
00.00 – 000 589 32 16 00 Hexagon ratchet, 17 mm (ws00.00-p-0004z)…27
00.00 – 000 589 33 33 00 Counter stay (ws00.00-n-0051z)…28
00.00 – 000 589 35 33 00 Countersupport (ws00.00-n-3033z)…29
00.00 – 000 589 40 37 00 Clamp (ws00.00-n-0005z)…30
00.00 – 000 589 40 37 00 Clamp (ws00.00-p-0005z)…31
00.00 – 000 589 49 98 00 Oil sample container (ws00.00-p-0263b)…32
00.00 – 000 589 54 37 00 Clamp (ws00.00-p-0006z)…33
00.00 – 000 589 65 33 00 Puller (ws00.00-p-0007z)…34
00.00 – 000 589 67 21 00 Torque wrench (ws00.00-p-0008z)…35
00.00 – 000 589 68 33 00 Internal extractor (ws00.00-n-3030z)…36
00.00 – 000 589 75 03 00 Box wrench bit (ws00.00-p-0009z)…37
00.00 – 000 589 76 03 00 Box wrench (ws00.00-p-0010z)…38
00.00 – 000 589 87 33 00 Gripper (ws00.00-n-3054z)…39
00.00 – 000 589 89 33 00 Puller (ws00.00-n-3022z)…40
00.00 – 001 589 00 16 00 Adapter coupling (ws00.00-p-0120z)…41
00.00 – 001 589 03 91 00 Set of protective covers (ws00.00-p-3069b)…42
00.00 – 001 589 51 21 00 Torque wrench (ws00.00-p-0012z)…43
00.00 – 001 589 53 21 00 Dial gage (ws00.00-n-0013z)…44
00.00 – 001 589 66 21 00 Torque wrench (ws00.00-n-0015z)…45
00.00 – 001 589 67 21 00 Torque wrench (ws00.00-n-0016z)…46
00.00 – 001 589 72 21 00 Torque wrench (ws00.00-p-0017z)…47
00.00 – 001 589 73 21 00 Hand vacuum pump (ws00.00-p-0018z)…48
00.00 – 001 589 74 21 00 Torque wrench (ws00.00-n-0019z)…49
00.00 – 001 589 75 21 00 Torque wrench (ws00.00-n-3049b)…50
00.00 – 001 589 76 09 00 External torx set (ws00.00-n-0020z)…51
00.00 – 001 589 81 09 00 Set of flexible head wrenches (ws00.00-p-0251b)…52
00.00 – 001 589 81 21 00 Torque screwdriver (ws00.00-n-0021z)…53
00.00 – 001 589 86 21 00 Torque wrench (ws00.00-p-0060z)…54
00.00 – 001 589 87 21 00 Torque wrench (ws00.00-p-0119z)…55
00.00 – 003 589 05 09 00 Torque tool set (ws00.00-n-0261a)…56
00.00 – 003 589 06 09 00 Plug-in wrench (ws00.00-p-0262a)…57
00.00 – 100 589 02 59 00 Adapter (ws00.00-p-0022z)…58
00.00 – 110 589 03 59 00 Mounting wedge (ws00.00-p-0274k)…59
00.00 – 112 589 00 25 00 Squeeze gun (ws00.00-p-0052z)…60
00.00 – 116 589 02 07 00 Screwdriver, 5 mm (ws00.00-n-0023z)…61
00.00 – 116 589 03 07 00 T-handle Allen wrench (ws00.00-p-0024z)…62
00.00 – 117 589 02 07 00 Pin box wrench (ws00.00-p-0054z)…63
00.00 – 123 589 00 16 00 Extension (ws00.00-p-0025z)…64
00.00 – 123 589 02 09 00 Socket (ws00.00-p-0026z)…65
00.00 – 123 589 02 10 00 Allen wrench socket (ws00.00-p-0027z)…66
00.00 – 123 589 03 09 00 Socket (ws00.00-p-0028z)…67
00.00 – 163 589 03 43 00 Press (ws00.00-p-0057z)…68
00.00 – 171 589 01 31 00 Vehicle hoist securing tool (ws00.00-p-0282z)…69
00.00 – 198 589 00 09 00 Flexible head wrench socket (ws00.00-p-0032z)…70
00.00 – 210 589 00 71 00 Hand pump (ws00.00-p-0280z)…71
00.00 – 220 589 05 99 00 Electrical connection kit (ws00.00-p-0279z)…72
00.00 – 363 589 02 21 00 Dial indicator holder (ws00.00-p-0033z)…73
00.00 – Check operating instructions (sm00.00-p-0013a)…74
00.00 – Collection and disposal of components containing mercury (os00.00-p-1000zz)…75
00.00 – Forms Passenger cars Overall vehicle (of00.00-z-3999az)…76
00.00 – General notes Passenger cars Overall vehicle (ah00.00-z-9999az)…77
00.00 – Overview of innovations_changes 03_2007 (sn00.00-p-1044h)…79
00.00 – Overview of innovations_changes 06_2006 (sn00.00-p-1047h)…80
00.00 – Overview of innovations_changes 06_2007 (sn00.00-p-1043h)…82
00.00 – Overview of innovations_changes 09_2006 (sn00.00-p-1046h)…83
00.00 – Overview of innovations_changes 12_2005 (sn00.00-p-1049h)…84
00.00 – Overview of innovations_changes 12_2007 (sn00.00-p-1041h)…85
00.00 – Overview of new products_features_modifications 03_2006 (sn00.00-p-1048h)…86
00.00 – Overview of new products_features_modifications 06_2005 (sn00.00-p-1051h)…87
00.00 – Overview of new products_features_modifications 09_2007 (sn00.00-p-1042h)…90
00.00 – Overview of new products_features_modifications 12_2006 (sn00.00-p-1045h)…91
00.00 – Safety information Overall vehicle (as00.00-z-9999zz)…92
00.00 – Scrapping gas-filled hydraulic components (os00.00-p-2000zz)…95
00.00 – Service Information AMG After Sales Portal (si00.00-p-0125a)…96
00.00 – Service Information Exclusion of liability for third-party retrofits (si00.00-p-0025a)…97
00.00 – Service Information Guidelines for queries in the event of technical complaints (si00.00-p-0086a)…98
00.00 – Service Information Identification of fine dust badge for vehicles not registered in Germany (si00.00-p-0082a)…100
00.00 – Service Information Innovations_modifications Passenger cars September 2006 (si00.00-p-0104a)…101
00.00 – Service Information Innovations_modifications Passenger cars September 2007 (si00.00-p-0110a)…102
00.00 – Service Information Innovations_modifications passenger cars December 2005 (si00.00-p-0101a)…104
00.00 – Service Information Innovations_modifications passenger cars December 2007 (si00.00-p-0112a)…105
00.00 – Service Information Innovations_modifications passenger cars June 2005 (si00.00-p-0100a)…106
00.00 – Service Information New operation number structure for diagnosis jobs (si00.00-p-0051a)…109
00.00 – Service Information New products_new features_modifications – passenger cars (June 2007) (si00.00-p-0107a)…113
00.00 – Service Information Operation items for test drives (si00.00-p-0009a)…115
00.00 – Service Information Processing of warranty and goodwill claims (si00.00-p-0116a)…117
00.00 – Service Information QR code for rescue forces (si00.00-p-0089a)…118
00.00 – Service information Important notes on the use of various vehicle systems and components (si00.00-p-0500a)…119
00.00 – Service information New damage code (si00.00-z-0038a)…122
00.00 – Service information New products_features _ modifications – passenger cars (March 2007) (si00.00-p-0106a)…123
00.00 – Service information New update concept for diagnosis applications (si00.00-z-0004a)…124
00.00 – Sheet of drawings on paint damage Passenger cars, Model des. 129, 140, 202, 210 (wb6516lit7423z)…125
00.00 – Tightening torques Passenger cars Overall vehicle (ba00.00-z-9999az)…127
00.01 – Certificates (of00.01-z-1999zz)…128
00.01 – Forms (of00.01-z-3999zz)…129
00.01 – Function group overview, engine (ov00.01-z-1904a)…130
00.01 – Function group survey, body (ov00.01-z-1906a)…131
00.01 – Information for the user (ov00.01-z-0100zz)…132
00.01 – Introduction of WIS Service Media (sn00.01-z-0012a)…133
00.01 – Overall vehicle model and major assembly installation overview (ov00.01-z-0150az)…135
00.01 – Overview of function groups, chassis (ov00.01-z-1905a)…137
00.01 – Search aid for all wiring diagram groups (ov00.01-p-1901ba)…138
00.01 – Search aid for electrical components (ov00.01-z-1800a)…145
00.01 – Service Information Content and application of data mediums Telematics CD_DVD, Regio DVD and Digital Owner‘s Manual DVD (si00.01-p-0014a)…147
00.01 – Service Information Damage or breakdown case in international traffic (si00.01-z-0031a)…148
00.01 – Service Information Invoicing of quick test (si00.01-p-0006a)…149
00.01 – Service Information Modification of battery maintenance (si00.01-p-0013a)…150
00.01 – Service Information SDconnect rechargeable battery (si00.01-p-0003a)…151
00.01 – Service Information Structure of the new operation numbers for SmallRepair in ASRA [operation texts, standard texts, flat rates and work units] (si00.01-z-0001a)…152
00.01 – Service Information Synonym search – New functionality in WIS (si00.01-z-0036a)…153
00.01 – Service Information Trouble diagnosis bulletins (AF) publication type not applicable (si00.01-z-0029a)…154
00.01 – Service Information WIS Service Media (si00.01-z-0012a)…155
00.01 – Service Information bulletin Use of basic operations (G) and linked operations (V) (si00.01-p-0024a)…156
00.01 – Service-Information Xentry Support & Feedback in WIS net (si00.01-z-0030a)…157
00.01 – Summaries (ov00.01-z-0102zz)…160
00.01 – Survey of function groups – overall vehicle (ov00.01-z-1903a)…161
00.01 – Terminology (ov00.01-z-0104zz)…162
00.10 – Check gear capacity (ar00.10-p-1010a)…163
00.10 – Complete vehicle, model_component installation survey, build condition (gf00.10-p-0801w)…166
00.10 – Service Information Vehicle identification plate orders (si00.10-p-0003b)…167
00.10 – Service information on increase of engine performance (si00.10-p-0004a)…168
00.10 – Table of contents for retrofitting and converting accessories (az00.10-p-1000yz)…169
00.10 – Table of contents for retrofitting and converting special equipment (an00.10-p-1000yz)…171
00.19 – 000 589 13 99 00 Wiring harness repair kit, basic (ws00.19-p-0007b)…173
00.19 – 220 589 01 99 00 Wiring harness repair kit (ws00.19-p-0009b)…174
00.19 – 220 589 02 99 00 Wiring harness repair kit (ws00.19-p-0002b)…177
00.19 – 220 589 03 99 00 Positioning mount with quick-release fitting (ws00.19-p-0003b)…179
00.19 – 220 589 04 99 00 Wiring harness repair kit, supplement (ws00.19-p-0006b)…180
00.19 – 930 589 00 99 00 Wiring harness repair kit, supplement (ws00.19-n-0004b)…181
00.19 – Extended vehicle network (GVN) function description table of contents (gf00.19-p-0999qz)…182
00.19 – Extended vehicle network (GVN) function description table of contents (gf00.19-p-0999qzj)…183
00.19 – Extended vehicle network (GVN) function description table of contents (gf00.19-p-0999qzu)…184
00.19 – General repair methods for wiring harness (ar00.19-p-0100a)…185
00.19 – Overall network (GVN) function description table of contents (gf00.19-p-0999qm)…189
00.19 – Overall network (GVN) system component summary, location_task_design_function (gf00.19-p-9999qm)…190
00.19 – Perform basic programming (ar00.19-p-0200q)…193
00.19 – Removing contacts from plugs and connectors (ar00.19-p-0120a)…194
00.19 – Repair wiring harness as per specified repair method (ar00.19-p-0001a)…199
00.19 – Survey of system components, extended vehicle network (GVN), location_task_design_function (gf00.19-p-9999qz)…201
00.19 – Survey of system components, extended vehicle network (GVN), location_task_design_function (gf00.19-p-9999qzj)…203
00.19 – Survey of system components, extended vehicle network (GVN), location_task_design_function (gf00.19-p-9999qzu)…204
00.19 – Wiring diagram for engine CAN bus (pe00.19-p-2200ba)…205
00.19 – Wiring diagram for interior CAN bus (pe00.19-p-2300ba)…206
00.19 – Wiring diagram for interior CAN bus (pe00.19-p-2300bb)…207
00.19 – Wiring diagram for interior CAN bus (pe00.19-p-2300bc)…208
00.19 – Wiring diagrams, contents (pe00.19-p-1050ba)…209
00.20 – Check all visible parts for leaks and damage (ap00.20-p-0053ba)…210
00.20 – Check all visible parts in engine compartment for damage and leaks (ap00.20-p-0055ew)…213
00.20 – Check all visible parts of vehicle underside for damage and leaks (ap00.20-p-0054ew)…215
00.20 – Economy service – vehicles older than 4 years (ap00.20-p-0008i)…218
00.20 – Inspect chassis and load-bearing body parts for damage and corrosion (ap00.20-p-0090ba)…223
00.20 – Maintenance (ap00.20-p-0000d)…226
00.20 – OVERVIEW for Economy Service service sheet (ap00.20-p-1234me)…228
00.20 – OVERVIEW for service sheet (ap00.20-p-1228m)…233
00.20 – OVERVIEW for service sheet (ap00.20-p-1228tad)…239
00.20 – Overview of operations not controlled via workshop code (ap00.20-p-0047u)…246
00.20 – Perform vehicle handover (ar00.20-p-0006r)…247
00.20 – Plus package service items, general view (ap00.20-p-0048u)…248
00.20 – Read out maintenance data from instrument cluster and reset service indicator (ap00.20-p-0043p)…249
00.20 – Read out maintenance data from instrument cluster and reset service indicator, general view (ap00.20-p-0049u)…250
00.20 – Reset service indicator (ap00.20-p-0042pit)…251
00.20 – Reset service indicator to previous service (ap00.20-p-0044ac)…252
00.20 – SERVICE OVERVIEW for ASSYST (ap00.20-p-1229m)…253
00.20 – Service Information Additional information on introduction of reception report (si00.20-p-0038a)…259
00.20 – Service Information Automatic transmission fluid change (si00.20-p-0022a)…261
00.20 – Service Information Filling of AdBlue during service (si00.20-p-0004a)…262
00.20 – Service Information Forms for delivery and hand-over inspections, inspections and checks in information type AP (si00.20-p-0044a)…264
00.20 – Service Information Initial locking differential oil change at 3000 km (si00.20-p-0025a)…265
00.20 – Service Information Introduction of maintenance reception report for all model series (si00.20-p-0013a)…266
00.20 – Service Information Maintenance item Differential oil change (si00.20-p-0036a)…273
00.20 – Service Information Notes on Economy-Service (si00.20-p-0035a)…277
00.20 – Service Information Revised contents of service sheets (si00.20-p-0026a)…278
00.20 – Service Information bulletin Discontinuation of final acceptance sticker in service booklet (si00.20-p-0031a)…279
00.20 – Service information Digital Service Booklet Confirmation of maintenance operations in WIS service sheet (si00.20-p-0034a)…280
00.20 – Spring Inspection (ap00.20-p-0081a)…283
00.20 – Travel inspection (ap00.20-p-0080a)…286
00.20 – Used car check (Young Stars) (ap00.20-p-0085a)…289
00.20 – Used car check (ap00.20-p-0084a)…295
00.20 – Winter Inspection (ap00.20-p-0082a)…300
00.40 – Directory of additional operating fluids (bb00.40-p-0300zz)…303
00.40 – General list (bb00.40-p-0000zz)…304
00.40 – List of fuels (bb00.40-p-0100zz)…305
00.40 – List of lubricants (bb00.40-p-0200zz)…306
00.40 – Search aid for Specifications for Operating Fluids (bb00.40-p-0900a)…307
00.40 – Service Information Exclusive use of Mercedes-Benz lubricants in warranty and goodwill cases (si00.40-p-0009a)…311
00.40 – Service Information bulletin Specifications for Operating Fluids for automatic transmission (si00.40-p-0014a)…312
00.40 – Service information Dying of windshield washer fluid concentrate (si00.40-z-0006a)…314
00.45 – Auxiliary repair materials (br00.45-z-0999zz)…315
00.45 – Service Information Multipurpose metal grease (si00.45-p-0004a)…316
00.45 – Service Information Service kit for rectifying squeaking, creaking and tearing noises (si00.45-p-0002a)…317
00.60 – Lift_jack up vehicle (ar00.60-p-1000p)…318
00.60 – Secure vehicle on vehicle lift (ar00.60-p-0100t)…320
01_Complete Engine, Crankcase Ventilation, Cylinder Head, Crankcase…321
01.00 – 000 588 00 31 00 Assembly stand (ws01.00-n-3028b)…323
01.00 – 000 588 00 62 00 Load tilter (ws01.00-p-0102b)…324
01.00 – 000 588 01 21 00 Endoscope (ws01.00-p-0097b)…325
01.00 – 000 588 03 62 00 Lifting platform (ws01.00-p-0091a)…326
01.00 – 000 588 04 62 00 Removal fixture (ws01.00-n-3014b)…327
01.00 – 000 588 11 62 00 Major assembly mount (ws01.00-p-0092b)…328
01.00 – 000 589 01 25 00 Hand pressure gun (ws01.00-n-3060b)…329
01.00 – 001 589 00 91 00 Set of protective covers (ws01.00-n-0110b)…330
01.00 – 001 589 01 91 00 Set of protective covers (ws01.00-p-0111b)…331
01.00 – 001 589 02 91 00 Set of protective covers (ws01.00-n-0112b)…332
01.00 – 001 589 76 21 00 Compression tester (ws01.00-p-0004a)…333
01.00 – 003 589 03 37 00 Hose clamp pliers (ws01.00-p-0113b)…334
01.00 – 240 589 00 61 00 Engine lifting device (ws01.00-p-0104c)…335
01.00 – 272 589 00 91 00 Threaded adapter (ws01.00-p-0125b)…336
01.00 – 452 589 01 99 00 Repair tools for valves (ws01.00-p-0108c)…337
01.00 – 601 589 00 10 00 Screwdriver bit (ws01.00-p-0033b)…338
01.00 – Check engine number (sm01.00-p-0001a)…339
01.00 – Cleaning and preserving engine and engine compartment (ap01.00-p-1000zz)…341
01.00 – Disconnect, connect engine wiring harness (ar01.00-p-2410qmg)…342
01.00 – Forms Passenger cars Complete engine, crankcase ventilation, cylinder head , crankcase (of01.00-z-3999az)…344
01.00 – General notes Passenger cars Complete engine, crankcase ventilation, cylinder head , crankcase (ah01.00-z-9999az)…345
01.00 – Inspect cylinders for leaks (ar01.00-p-1300tmg)…349
01.00 – Inspecting cylinders with light probe (ar01.00-p-0200tmg)…351
01.00 – Technical modifications Passenger cars Complete engine, crankcase ventilation, cylinder head , crankcase (bt01.00-z-9999az)…353
01.00 – Test and adjustment values Passenger cars Complete engine, crankcase ventilation, cylinder head , crankcase (be01.00-z-9999az)…354
01.00 – Test compression pressure (ar01.00-p-1200tmg)…356
01.00 – Tightening torques Passenger cars Complete engine, crankcase ventilation, cylinder head , crankcase (ba01.00-z-9999az)…358
01.10 – Crank engine with starter (ar01.10-p-0110pv)…360
01.10 – Remove_install engine (ar01.10-p-2400qmg)…362
01.10 – Service Information Cleaning sealing surfaces (si01.10-p-0004a)…367
01.10 – Service Information Standardized procedure for complaints on the engine (si01.10-p-0001a)…368
01.20 – Remove, install cylinder head cover (ar01.20-p-5014tmg)…370
01.20 – Remove_install centrifuge (ar01.20-p-2100amg)…372
01.30 – Remove_install cylinder head (ar01.30-p-5800tmg)…374
01.40 – Remove_install lower crankcase section at removed engine (ar01.40-p-3200amg)…380
01.40 – Remove_install timing case cover (ar01.40-p-8000amg)…384
01.40 – Replace crankcase (ar01.40-p-8400amg)…388
01.45 – Remove_install bottom part of oil pan (ar01.45-p-7555tmg)…394
01.45 – Remove_install oil pan (ar01.45-p-7500qmg)…397
03_Crank Assembly…402
03.00 – 000 589 04 14 00 Tensioning strap (ws03.00-p-0001c)…403
03.00 – 000 589 20 21 00 Hardness tester (ws03.00-p-0002c)…404
03.00 – 000 589 51 37 00 Pliers (ws03.00-p-0005c)…405
03.00 – 001 589 65 09 00 Socket wrench bit (ws03.00-p-0006b)…406
03.00 – 111 589 08 43 00 Installation tool (ws03.00-p-0016b)…407
03.00 – 112 589 00 40 00 Counterholder (ws03.00-p-0038b)…408
03.00 – 112 589 03 40 00 Retaining lock (ws03.00-p-0037b)…409
03.00 – 119 589 01 14 00 Sleeve (ws03.00-p-0022b)…410
03.00 – 156 589 00 40 00 Crankshaft bracket (ws03.00-p-0101b)…411
03.00 – 611 589 00 14 00 Insertion tool (ws03.00-p-0042b)…412
03.00 – General notes Passenger cars Crank assembly (ah03.00-z-9999az)…413
03.00 – Technical modifications Passenger cars Crank assembly (bt03.00-z-9999az)…414
03.00 – Test and adjustment values Passenger cars Crank assembly (be03.00-z-9999az)…415
03.00 – Tightening torques Passenger cars Crank assembly (ba03.00-z-9999az)…417
03.10 – Remove_install piston (ar03.10-p-7021amg)…419
03.20 – Remove_install crankshaft (ar03.20-p-4351amg)…425
03.20 – Replace front crankshaft radial sealing ring (ar03.20-p-3000tmg)…431
03.20 – Replacing rear crankshaft radial seal (ar03.20-p-3063tmg)…433
03.30 – Remove, install flywheel _ drive plate (ar03.30-p-8001tmg)…435
03.30 – Remove_install belt pulley_vibration damper (ar03.30-p-1600tmg)…437
03.30 – Remove_install retaining lock for crankshaft _ ring gear (ar03.30-p-5000qbs)…439
03.30 – Remove_install retaining lock for crankshaft_ring gear (ar03.30-p-5000tmg)…440
05_Engine Timing…442
05.00 – 000 589 10 68 00 Cylinder brush (ws05.00-p-0002c)…444
05.00 – 104 589 01 01 00 Double open-end wrench (ws05.00-n-0047b)…445
05.00 – 104 589 01 01 00 Double open-end wrench (ws05.00-p-0047b)…446
05.00 – 111 589 25 61 00 Valve assembly tools kit (ws05.00-p-3137ba)…447
05.00 – 112 589 09 63 00 Assembly inserts (ws05.00-p-0165c)…448
05.00 – 116 589 01 34 00 Threaded bolt (ws05.00-n-0083b)…449
05.00 – 116 589 02 34 00 Threaded bolt (ws05.00-n-0086b)…450
05.00 – 116 589 06 63 00 Magnetic rod (ws05.00-p-0088b)…451
05.00 – 116 589 20 33 00 Impact extractor (ws05.00-n-0089b)…452
05.00 – 119 589 06 63 00 Thrust piece (ws05.00-p-0101b)…453
05.00 – 123 589 00 34 00 Threaded bolt (ws05.00-p-0102b)…454
05.00 – 156 589 00 15 00 Drift (ws05.00-p-0253b)…455
05.00 – 156 589 00 31 00 Guide pins (ws05.00-p-0249b)…456
05.00 – 156 589 00 32 00 Locating plate (ws05.00-p-0250b)…457
05.00 – 156 589 00 34 00 Threaded stud (ws05.00-p-0251b)…458
05.00 – 156 589 00 61 00 Retaining device (ws05.00-p-0252b)…459
05.00 – 156 589 01 63 00 Clamping tool (ws05.00-p-0269b)…460
05.00 – 210 589 00 40 00 Magnetic pin (ws05.00-n-0155b)…461
05.00 – 271 589 00 59 00 Assembly tool (ws05.00-p-0202c)…462
05.00 – 271 589 02 40 00 Assembly link (ws05.00-p-0238c)…463
05.00 – 271 589 10 63 00 Thrust spindle (ws05.00-p-0232c)…464
05.00 – 602 589 00 39 00 Riveting tool (ws05.00-p-0162c)…465
05.00 – 602 589 00 98 00 Case (ws05.00-p-0158c)…466
05.00 – 602 589 02 33 00 Chain separating tool (ws05.00-p-0159c)…467
05.00 – 602 589 02 40 00 Assembly links (ws05.00-p-0171c)…468
05.00 – 602 589 05 63 00 Pressure screw (ws05.00-p-0161c)…469
05.00 – 604 589 00 43 00 Drift (ws05.00-p-0114b)…470
05.00 – 606 589 00 37 00 Pliers (ws05.00-p-0116b)…471
05.00 – 642 589 00 33 00 Riveting tool (ws05.00-p-0260c)…472
05.00 – Check hydraulic valve clearance compensating elements (ar05.00-p-2010amg)…473
05.00 – General notes Passenger cars Engine timing (ah05.00-z-9999az)…474
05.00 – Remove_install hydraulic valve clearance compensating elements (ar05.00-p-2011amg)…475
05.00 – Safety information Engine timing (as05.00-z-9999zz)…476
05.00 – Technical modifications Passenger cars Engine timing (bt05.00-z-9999az)…477
05.00 – Test and adjustment values Passenger cars Engine timing (be05.00-z-9999az)…478
05.00 – Tightening torques Passenger cars Engine timing (ba05.00-z-9999az)…480
05.10 – Remove, install tensioning rail and slide rail in timing case cover (ar05.10-p-8500tmg)…481
05.10 – Remove_install chain tensioner (ar05.10-p-7800tmg)…482
05.20 – Check basic position of camshafts (ar05.20-p-6010amg)…484
05.20 – Remove_install camshaft adjusters (ar05.20-p-7201amg)…486
05.20 – Remove_install camshaft adjusters (ar05.20-p-7201ang)…491
05.20 – Remove_install camshafts (ar05.20-p-6992amg)…492
05.20 – Remove_install camshafts (ar05.20-p-6992ang)…495
05.20 – Service Information Camshaft positioner tightening torque (si05.20-p-0001a)…496
05.30 – Remove_install valve springs and_or valve stem seals (ar05.30-p-3500amg)…497
05.30 – Remove_install valves (ar05.30-p-3511amg)…499
07_Mixture Formation…502
07.00 – 000 589 00 68 00 Cleaning kit (ws07.00-p-0001c)…504
07.00 – 000 589 68 03 00 Box wrench bit (ws07.00-n-0004a)…505
07.00 – 000 589 68 03 00 Box wrench bit (ws07.00-p-0004b)…506
07.00 – 000 589 69 03 00 Ring wrench bit (ws07.00-p-0088b)…507
07.00 – 103 589 00 21 00 Testing unit (ws07.00-n-0014b)…508
07.00 – 119 589 04 63 00 Pressure hose (ws07.00-p-0024b)…509
07.00 – Certificates Passenger cars Mixture formation (of07.00-z-1999az)…510
07.00 – Exhaust emission test I (ar07.00-p-1000a)…511
07.00 – Forms Passenger cars Mixture formation (of07.00-z-3999az)…512
07.00 – General notes Passenger cars Mixture formation (ah07.00-z-9999az)…513
07.00 – Service Information Procedure and modifications with damage codification of general complaints about engine running characteristics (si07.00-p-0014a)…515
07.00 – Service Information on fuel consumption measurement (si07.00-p-0004a)…516
07.00 – Technical modifications Passenger cars Mixture formation (bt07.00-z-9999az)…518
07.00 – Test and adjustment values Passenger cars Mixture formation (be07.00-z-9999az)…519
07.00 – Tightening torques Passenger cars Mixture formation (ba07.00-z-9999az)…521
07.03 – Remove_install fuel distributor with injection valves (ME-SFI) (ar07.03-p-1451tmg)…523
07.03 – Remove_install injection valves (ME-SFI) (ar07.03-p-6520tmg)…525
07.07 – Remove_install hot film mass air flow sensor (ar07.07-p-1453tmg)…527
07.08 – Perform SCN coding. (sm07.08-p-0012a)…528
07.08 – Remove_install injection system control unit (ar07.08-p-7008p)…529
07.08 – Service Information SCAN coding (si07.08-p-0002a)…530
07.52 – Remove_install heated O2 sensor (ar07.52-p-5303tmg)…531
07.61 – Block diagram for ME-SFI fuel injection and ignition system (pe07.61-p-2001be)…533
07.61 – Overview of system components motor electronics (ME-SFI) fuel injection and ignition system (gf07.61-p-9997amg)…534
07.61 – Remove_install throttle valve actuator (ar07.61-p-1401amg)…536
07.61 – Table of contents for function description of motor electronics (ME-SFI) fuel injection and ignition system (gf07.61-p-0999amg)…538
07.61 – Wiring diagram for ME-SFI [ME] gasoline injection and ignition system control unit (pe07.61-p-2101bi)…540
07.61 – Wiring diagram for ME-SFI [ME] gasoline injection and ignition system control unit (pe07.61-p-2101bj)…541
07.61 – Wiring diagram for ME-SFI [ME] gasoline injection and ignition system control unit (pe07.61-p-2101bk)…542
08_Electric Drive, Hybrid Drive…543
08.00 – Capacities Passenger cars Electrical drive system (bf08.00-z-9999az)…544
08.00 – Forms Passenger cars Electrical drive system (of08.00-z-3999az)…545
08.00 – Test and adjustment values Passenger cars Electrical drive system (be08.00-z-9999az)…546
08.00 – Tightening torques Passenger cars Electrical drive system (ba08.00-z-9999az)…547
09_Air Intake, Turbocharging…548
09.00 – 156 589 00 91 00 Plug neck (ws09.00-p-0021b)…549
09.00 – Forms Passenger cars Air intake, supercharging (of09.00-z-3999az)…550
09.00 – General notes Passenger cars Air intake, supercharging (ah09.00-z-9999az)…551
09.00 – Technical modifications Passenger cars Air intake, supercharging (bt09.00-z-9999az)…552
09.00 – Test and adjustment values Passenger cars Air intake, supercharging (be09.00-z-9999az)…553
09.00 – Tightening torques Passenger cars Air intake, supercharging (ba09.00-z-9999az)…554
09.10 – Remove_install air filter housing (ar09.10-p-1150tmg)…556
09.10 – Replace air filter element (ap09.10-p-0980gzs)…558
09.10 – Replace air filter element (ap09.10-p-0980qbs)…560
09.20 – Detach_attach connecting flange on intake manifold (ar09.20-p-1311amg)…562
09.20 – Remove_install resonance intake manifold (ar09.20-p-1961tmg)…564
13_Air Compressor, Belt Drives…566
13.00 – General notes Passenger cars Air compressor, belt drives (ah13.00-z-9999az)…567
13.00 – Technical modifications Passenger cars Air compressor, belt drives (bt13.00-z-9999az)…568
13.00 – Test and adjustment values Passenger cars Air compressor, belt drives (be13.00-z-9999az)…569
13.00 – Tightening torques Passenger cars Air compressor, belt drives (ba13.00-z-9999az)…570
13.22 – Check visible area of poly-V belt for wear (ap13.22-p-1352gz)…571
13.22 – Remove_install poly V-belt (ar13.22-p-1202tmg)…572
13.25 – Remove_install poly-V belt tensioning device (ar13.25-p-3200tmg)…574
14_Exhaust Manifold, Engine Brake, Emission Control System…575
14.00 – 000 588 01 71 00 Extraction pump (ws14.00-p-0013b)…576
14.00 – 000 588 08 21 00 Test and measuring kit (ws14.00-p-0012b)…577
14.00 – 103 589 01 39 00 Caulking bolt (ws14.00-n-0001b)…578
14.00 – Capacities Passenger cars Exhaust manifold, engine brake, emission control system (bf14.00-z-9999az)…579
14.00 – Certificates Passenger cars Exhaust manifold, engine brake, emission control system (of14.00-z-1999az)…580
14.00 – General notes Passenger cars Exhaust manifold, engine brake, emission control system (ah14.00-z-9999az)…581
14.00 – Safety information Exhaust manifold, engine brake, emission control system (as14.00-z-9999zz)…582
14.00 – Technical modifications Passenger cars Exhaust manifold, engine brake, emission control system (bt14.00-z-9999az)…583
14.00 – Test and adjustment values Passenger cars Exhaust manifold, engine brake, emission control system (be14.00-z-9999az)…584
14.00 – Tightening torques Passenger cars Exhaust manifold, engine brake, emission control system (ba14.00-z-9999az)…585
14.10 – Remove_install exhaust manifold on right (ar14.10-p-4005tmg)…586
14.10 – Remove_install left exhaust manifold (ar14.10-p-3930tmg)…588
14.30 – Remove, install air pump (ar14.30-p-7251qbs)…590
14.30 – Remove, install air pump (ar14.30-p-7251tz)…591
14.30 – Remove_install air pump switchover valve (ar14.30-p-7255ts)…593
14.30 – Remove_install air shutoff valve (ar14.30-p-7200tmg)…594
14.40 – Service Information Fill AdBlue container (si14.40-p-0014a)…596
14.40 – Service Information Return delivery of AdBlue tank (si14.40-p-0023a)…597
15_Electrical System – Engine…598
15.00 – 000 588 03 19 00 Load tester (ws15.00-p-0027b)…600
15.00 – 112 589 01 09 00 Spark plug wrench (ws15.00-p-0016a)…601
15.00 – 124 589 09 63 00 Ohm decade (ws15.00-n-0009c)…602
15.00 – 124 589 09 63 00 Ohm decade (ws15.00-p-0009c)…603
15.00 – 201 589 00 99 00 Electrical connection kit (ws15.00-n-0014c)…604
15.00 – 602 589 00 10 00 Socket wrench (ws15.00-p-0015b)…605
15.00 – Block diagram of starter, alternator, battery (pe15.00-p-2001ba)…606
15.00 – Forms Passenger cars Electrical system – engine (of15.00-z-3999az)…607
15.00 – General notes Passenger cars Electrical system – engine (ah15.00-z-9999az)…608
15.00 – Safety information Electrical system – engine (as15.00-z-9999zz)…609
15.00 – Technical modifications Passenger cars Electrical system – engine (bt15.00-z-9999az)…610
15.00 – Test and adjustment values Passenger cars Electrical system – engine (be15.00-z-9999az)…611
15.00 – Tightening torques Passenger cars Electrical system – engine (ba15.00-z-9999az)…612
15.00 – Wiring diagram of starter, alternator, battery (pe15.00-p-2101bf)…614
15.10 – Remove_install camshaft Hall sensor (ar15.10-p-2000tmg)…615
15.10 – Replace spark plugs (ap15.10-p-1580tmg)…616
15.10 – Service Information Spark plug connector grease (si15.10-p-0004a)…618
15.12 – Remove_install crankshaft position sensor (ar15.12-p-2133qmg)…619
15.12 – Remove_install ignition coils (ar15.12-p-2003tmg)…621
15.12 – Remove_install knock sensors (ar15.12-p-2184tmg)…623
15.12 – Remove_install spark plugs (ar15.12-p-1010tmg)…626
15.30 – Remove_install starter (ar15.30-p-7100qmg)…628
15.30 – Service Information Return delivery of starter diagnostic data (si15.30-p-0002a)…630
15.30 – Wiring diagrams for starter (pe15.30-p-0001ba)…631
15.40 – Checking the alternator and regulator (ar15.40-p-5000t)…632
15.40 – Remove_install alternator (ar15.40-p-5032tmg)…634
15.40 – Remove_install regulator for alternator (ar15.40-p-5760tmg)…636
15.40 – Service information Alternator diagnosis (si15.40-p-0003c)…638
15.40 – Test alternator charging current (ar15.40-p-5011qmg)…639
15.40 – Test alternator fuse (ar15.40-p-5012qb)…641
15.40 – Wiring diagrams for alternator (pe15.40-p-0001ba)…643
15.60 – Remove_install temperature sensor (ar15.60-p-3000tmg)…644
18_Engine Lubrication, Engine Oil Cooling…646
18.00 – 000 588 05 82 00 Oil extraction sensor (ws18.00-p-0027b)…648
18.00 – 000 588 06 82 00 Oil dispenser (ws18.00-p-0026b)…649
18.00 – 117 589 02 07 00 Pin box wrench (ws18.00-p-0009a)…650
18.00 – 124 589 07 21 00 Remote thermometer (ws18.00-p-0011b)…651
18.00 – 156 589 00 63 00 Test cap (ws18.00-p-0049b)…652
18.00 – 271 589 02 63 00 Assembly inserts (ws18.00-p-0037c)…653
18.00 – 642 589 00 09 00 Socket wrench bit (ws18.00-p-0039a)…654
18.00 – Capacities Passenger cars Engine lubrication, engine oil cooling (bf18.00-z-9999az)…655
18.00 – Check engine oil level using on-board oil dipstick (ap18.00-p-1811mp)…657
18.00 – Check oil pressure (ar18.00-p-1250tmg)…659
18.00 – Engine oil and filter change (ap18.00-p-0101tmg)…661
18.00 – Forms Passenger cars Engine lubrication, engine oil cooling (of18.00-z-3999az)…664
18.00 – Full overview of engine oils with service intervals according to Mercedes-Benz specifications for operating fluids for gasoline engines in cars (ap18.00-p-1849ub)…665
18.00 – Full overview of engine oils with service intervals according to Mercedes-Benz specifications for operating fluids for gasoline engines in cars (ap18.00-p-1849ubu)…666
18.00 – General notes Passenger cars Engine lubrication, engine oil cooling (ah18.00-z-9999az)…667
18.00 – Measure oil consumption (ar18.00-p-0025gzs)…668
18.00 – Measure oil consumption (ar18.00-p-0025tmg)…669
18.00 – Overview – Check engine oil level (ap18.00-p-1848u)…670
18.00 – Remove_install oil spray nozzles (pistons) (ar18.00-p-4000amg)…671
18.00 – Replace oil dipstick (code 1303P01A44) (sm18.00-p-0009a)…672
18.00 – Service Information Engine oil change (si18.00-p-0011a)…673
18.00 – Service Information Engine oil change (si18.00-p-0011b)…678
18.00 – Technical modifications Passenger cars Engine lubrication, engine oil cooling (bt18.00-z-9999az)…684
18.00 – Test and adjustment values Passenger cars Engine lubrication, engine oil cooling (be18.00-z-9999az)…685
18.00 – Test sheet for oil consumption test (Weight method) Passenger cars and cross country vehicles (wb6516lit7401z)…687
18.00 – Tightening torques Passenger cars Engine lubrication, engine oil cooling (ba18.00-z-9999az)…689
18.10 – Remove_install oil pump (ar18.10-p-6020tmg)…691
18.10 – Replace the oil pump chain (ar18.10-p-2140tmg)…693
18.20 – Remove_install oil filter housing (ar18.20-p-3471tmg)…695
18.30 – Remove, install oil temperature regulator (ar18.30-p-3000amg)…697
18.30 – Remove_install engine oil cooler (ar18.30-p-1000qbs)…698
18.30 – Remove_install engine oil cooler (ar18.30-p-1000qsb)…700
18.30 – Remove_install engine oil cooler (ar18.30-p-1000tmg)…703
18.30 – Remove_install engine oil cooler (ar18.30-p-1000tmr)…705
18.40 – Remove_install oil dipstick guide tube (ar18.40-p-3510tmg)…707
18.40 – Remove_install sensor for engine oil temperature (ar18.40-p-4123amg)…709
18.40 – Remove_install the oil level check switch (ar18.40-p-5113tmg)…711
20_Engine Cooling System…713
20.00 – 124 589 24 21 00 Pressure pump (ws20.00-p-0016b)…715
20.00 – 210 589 00 91 00 Test cap (ws20.00-p-0017b)…716
20.00 – 210 589 03 63 00 Adapter (ws20.00-p-0019b)…717
20.00 – 285 589 00 21 00 Cooler vacuum filling device (ws20.00-p-0030b)…718
…
47.20 – Remove_install fuel pump control unit (ar47.20-p-5717qmg)…1878
47.20 – Replace fuel filter (ap47.20-p-0780qbs)…1879
47.20 – Service Information Procedure in the case of complaints concerning fuel pump or fuel filter (si47.20-p-0004a)…1881
47.20 – Wiring diagram for fuel pump (pe47.20-p-2100bb)…1882
47.30 – Remove_ install activated charcoal canister (ar47.30-p-8212qmg)…1883
47.50 – Remove_install fuel tank pressure sensor (ar47.50-p-0050qbs)…1884
49_Exhaust System…1885
49.00 – Certificates Passenger cars Exhaust system (of49.00-z-1999az)…1886
49.00 – General notes Passenger cars Exhaust system (ah49.00-z-9999az)…1887
49.00 – Safety information Exhaust system (as49.00-z-9999zz)…1888
49.00 – Technical modifications Passenger cars Exhaust system (bt49.00-z-9999az)…1889
49.00 – Tightening torques Passenger cars Exhaust system (ba49.00-z-9999az)…1890
49.10 – Instructions for treatment of exhaust pipes, catalytic converters, mufflers as toxic waste (os49.10-n-1000a)…1891
49.10 – Remove _ install catalytic converter and front exhaust system (ar49.10-p-5531ac)…1892
49.10 – Remove_install exhaust system complete (ar49.10-p-7000ac)…1896
49.10 – Remove_install rear muffler (ar49.10-p-4823qbs)…1898
49.10 – Replace rear muffler (ar49.10-p-4951ac)…1899
49.10 – Service Information Care of tail pipe finishers (si49.10-p-0008a)…1901
49.10 – Service Information Recycling of diesel particulate filters (si49.10-p-0007a)…1902
54_Electrical System, Equipment & Instruments…1903
54.00 – 000 586 00 99 00 Battery diagnostic unit (ws54.00-p-0033c)…1911
54.00 – 000 588 00 19 00 Insulation measuring unit (ws54.00-p-0046b)…1912
54.00 – 000 588 00 81 00 Charger (ws54.00-p-0037b)…1913
54.00 – 000 588 00 84 00 Heat gun (ws54.00-p-0049b)…1914
54.00 – 000 588 02 19 00 Battery tester (ws54.00-n-3006b)…1915
54.00 – 000 588 02 81 00 Jump-starting device (ws54.00-p-0041b)…1916
54.00 – 000 588 03 81 00 Jumper cables (ws54.00-p-0039b)…1917
54.00 – 000 588 06 19 00 Measuring instrument (ws54.00-p-0043b)…1918
54.00 – 000 588 16 98 00 Support (ws54.00-p-0047b)…1919
54.00 – 000 589 30 37 00 Wire stripper (ws54.00-p-0025b)…1920
54.00 – 000 589 88 63 00 Removal assembly (ws54.00-p-0067b)…1921
54.00 – 124 589 00 21 00 35 Pin socket box (ws54.00-n-0002b)…1922
54.00 – 129 589 00 09 00 Pin socket (ws54.00-n-0007b)…1923
54.00 – 129 589 00 21 00 126-pin socket box (ws54.00-p-0008b)…1924
54.00 – 129 589 01 09 00 Pin socket (ws54.00-p-0040b)…1925
54.00 – 140 589 02 33 00 Pulling hook (ws54.00-p-0011b)…1926
54.00 – 140 589 12 21 00 Baseline current draw test adapter 1 (ws54.00-p-0015b)…1927
54.00 – 140 589 13 21 00 Quiescent current test adapter 2 (ws54.00-p-0016b)…1928
54.00 – 168 589 02 31 00 Unlocking tool (ws54.00-p-0051b)…1929
54.00 – 169 589 00 37 00 Pliers (ws54.00-p-0073b)…1930
54.00 – 220 589 00 99 00 Electrical connection kit (ws54.00-p-0050b)…1931
54.00 – CAN data bus, contents, function description (gf54.00-p-0999zz)…1932
54.00 – Forms Passenger cars Electrical system, equipment and instruments (of54.00-z-3999az)…1933
54.00 – General notes Passenger cars Electrical system, equipment and instruments (ah54.00-z-9999az)…1934
54.00 – Safety information Electrical system, equipment and instruments (as54.00-z-9999zz)…1935
54.00 – Technical modifications Passenger cars Electrical system, equipment and instruments (bt54.00-z-9999az)…1936
54.00 – Test and adjustment values Passenger cars Electrical system, equipment and instruments (be54.00-z-9999az)…1937
54.00 – Tightening torques Passenger cars Electrical system, equipment and instruments (ba54.00-z-9999az)…1938
54.10 – Batteries – checking and correcting fluid level (ap54.10-p-5410a)…1939
54.10 – Charge battery (ar54.10-p-1130p)…1940
54.10 – Check battery condition before vehicle delivery (ar54.10-p-1132a)…1941
54.10 – Check condition of battery (ar54.10-p-1129p)…1942
54.10 – Check quiescent current consumption (ar54.10-p-1030p)…1945
54.10 – Disconnect_connect battery ground line (ar54.10-p-0003q)…1947
54.10 – Disposal of toxic waste, battery (os54.10-p-1000zz)…1949
54.10 – Initial filling of battery (ar54.10-p-0001z)…1950
54.10 – Install_remove battery disconnect switch (ar54.10-p-1060p)…1951
54.10 – Overview – Check condition of battery (ap54.10-p-5449u)…1953
54.10 – Remove_install 12 Volt socket (ar54.10-p-1000tx)…1954
54.10 – Remove_install battery (ar54.10-p-0005p)…1956
54.10 – Remove_install cigarette lighter (ar54.10-p-0030tx)…1957
54.10 – Service Information Battery maintenance (si54.10-p-0024a)…1959
54.10 – Service Information Battery tester (si54.10-z-0023a)…1960
54.10 – Service Information Charge battery (si54.10-p-0018a)…1961
54.10 – Service Information New test method for batteries (si54.10-p-0003a)…1962
54.10 – Service Information Quiescent current test via voltage drop at the fuses (si54.10-p-0016a)…1963
54.10 – Service Information bulletin Battery test and inspection (si54.10-p-0017a)…1964
54.10 – Treatment of battery if vehicle taken out of service (ar54.10-p-0006p)…1965
54.15 – Fuse and relay box, as-built configuration (gf54.15-p-0800qbs)…1966
54.15 – Removing and installing driver's side interior fuse box (ar54.15-p-1310q)…1967
54.15 – Service Information Encoding of electrical fuses (si54.15-s-0008a)…1969
54.15 – Wiring diagram of front backup fuse box (F32) (pe54.15-p-2502ba)…1970
54.15 – Wiring diagram of interior fuse box (F34) (pe54.15-p-2501ba)…1971
54.15 – Wiring diagram of interior fuse box (F34) (pe54.15-p-2501bb)…1972
54.18 – Install headliner wiring harness (ar54.18-p-0020q)…1973
54.18 – Install wiring harness (ar54.18-p-0056p)…1975
54.18 – Repair squib wiring harness for Supplemental Restraint System (SRS) (ar54.18-p-0600a)…1979
54.18 – Service Information Damage code for electrical components (si54.18-z-0012a)…1981
54.18 – Service Information Notes on work on electrical connectors (si54.18-p-0003a)…1983
54.18 – Service Information bulletin Retrofit marten repeller on electrical lines (si54.18-p-0007a)…1984
54.20 – Removing and installing module box (ar54.20-p-2360q)…1985
54.21 – Perform SCN coding of control units (sm54.21-p-0026a)…1987
54.21 – Programming of control units (ar54.21-p-0014y)…1989
54.21 – Programming of control units (ar54.21-p-0014z)…1990
54.21 – Remove_install SAM control unit with fuse and relay box in rear (ar54.21-p-1259q)…1991
54.21 – Remove_install SAM with fuse and relay box, left front (ar54.21-p-1260p)…1993
54.21 – Remove_install upper control panel control unit (ar54.21-p-1262q)…1995
54.21 – SCAN coding of control units (ar54.21-p-0015x)…1996
54.21 – Service Information Malfunctions due to other-make installations (si54.21-p-0007a)…1997
54.21 – Service Information Programming of control units (si54.21-p-0008a)…1998
54.21 – Service Information Reimbursement of additional work in event of programming abort (si54.21-p-0039a)…1999
54.21 – Service Information Replacing signal acquisition and actuation module (SAM) control unit (si54.21-p-0022a)…2000
54.21 – Wiring diagram _ rear SAM control unit with fuse and relay module (N10_2) (pe54.21-p-2108ba)…2001
54.21 – Wiring diagram _ rear SAM control unit with fuse and relay module (N10_2) (pe54.21-p-2108bb)…2002
54.21 – Wiring diagram _ rear SAM control unit with fuse and relay module (N10_2) (pe54.21-p-2108bc)…2003
54.21 – Wiring diagram for electronic ignition lock control unit (EZS) (pe54.21-p-2104ba)…2004
54.21 – Wiring diagram for overhead control panel (OCP) control unit (pe54.21-p-2107ba)…2005
54.21 – Wiring diagram for upper control panel control unit (pe54.21-p-2119ba)…2006
54.21 – Wiring diagram of bottom control panel control unit (N72) (pe54.21-p-2120ba)…2007
54.21 – Wiring diagram of bottom control panel control unit (N72) (pe54.21-p-2120bb)…2008
54.21 – Wiring diagram of front SAM control unit with fuse and relay module (N10_1) (pe54.21-p-2106ba)…2009
54.21 – Wiring diagram of front SAM control unit with fuse and relay module (N10_1) (pe54.21-p-2106bb)…2010
54.21 – Wiring diagram of front SAM control unit with fuse and relay module (N10_1) (pe54.21-p-2106bc)…2011
54.21 – Wiring diagram of front SAM control unit with fuse and relay module (N10_1) (pe54.21-p-2106bd)…2012
54.21 – Wiring diagram of front SAM control unit with fuse and relay module (N10_1) (pe54.21-p-2106be)…2013
54.21 – Wiring diagram of front SAM control unit with fuse and relay module (N10_1) (pe54.21-p-2106bf)…2014
54.21 – Wiring diagram of rear SAM control unit with fuse and relay module (N10_2) (pe54.21-p-2108bd)…2015
54.21 – Wiring diagram rear control unit (pe54.21-p-2110ba)…2016
54.22 – Wiring diagram for data link connector_diagnostic socket (pe54.22-p-2000ba)…2017
54.22 – Wiring diagram for data link connector_diagnostic socket (pe54.22-p-2000bb)…2018
54.25 – Remove_install combination switch (ar54.25-p-2800q)…2019
54.25 – Remove_install contact switch for door (ar54.25-p-2000p)…2020
54.25 – Remove_install cruise control switch (ar54.25-p-2803pq)…2021
54.25 – Remove_install cruise control switch (ar54.25-p-2803q)…2022
54.25 – Remove_install light switch module (ar54.25-p-3270p)…2023
54.25 – Remove_install steering column adjustment switch (ar54.25-p-2804pq)…2024
54.25 – Remove_install steering column adjustment switch (ar54.25-p-2804q)…2025
54.25 – Remove_install steering column module (ar54.25-p-2802pq)…2026
54.25 – Removing and installing combination switch (ar54.25-p-2800pq)…2027
54.25 – Service Information bulletin Clutch pedal start enable switch (S40_5) (si54.25-p-0006a)…2028
54.25 – Service information Return delivery of switches (si54.25-p-0003a)…2029
54.30 – Block diagram of instrument cluster (IC) (pe54.30-p-2002ba)…2030
54.30 – Block diagram of instrument cluster (IC) (pe54.30-p-2002bb)…2031
54.30 – Check lamps in instrument cluster and interior illumination (ap54.30-p-5453q)…2032
54.30 – Check warning and function indicator lamps in instrument cluster (ap54.30-p-5451q)…2034
54.30 – Check warning lamps and function indicator lamps in the instrument cluster, general view (ap54.30-p-5449u)…2035
54.30 – Check warning lamps, indicator lamps and interior illumination (ap54.30-p-5452c)…2036
54.30 – Remove_install instrument cluster (ar54.30-p-6015p)…2038
54.30 – Remove_install outside temperature indicator sensor (ar54.30-p-6341q)…2039
54.30 – Removing and installing instrument cluster housing (ar54.30-p-6031p)…2040
54.30 – Service Information Coding of instrument cluster (si54.30-p-0017a)…2041
54.30 – Service Information Do not open instrument cluster (si54.30-p-0014a)…2042
54.30 – Service Information adaptation of instrument cluster display concept (si54.30-p-0016a)…2043
54.30 – Survey of system components of instrument cluster (IC), location _ task _ design _ function (gf54.30-p-9997qz)…2046
54.30 – Table of contents for function description of instrument cluster (IC) (gf54.30-p-0997qz)…2047
54.30 – Wiring diagram for instrument cluster (IC) control unit (pe54.30-p-2101ba)…2048
54.35 – Remove_install fanfare horns (ar54.35-p-1555q)…2049
54.50 – Service Information Reset trip computer following engine control unit software update (si54.50-p-0002a)…2050
54.50 – Survey of system components, trip computer (TRIP), location _ task _ design _ function (gf54.50-p-9999qaz)…2051
54.50 – Trip computer (TRIP), contents, function description (gf54.50-p-0999qaz)…2052
54.65 – Contents, function description, Parktronic system (PTS) (gf54.65-p-0999q)…2053
54.65 – Parktronic system (PTS), block diagram (pe54.65-p-2001ba)…2054
54.65 – Remove_install Parktronic system (PTS) control unit (ar54.65-p-0006q)…2055
54.65 – Remove_install Parktronic system (PTS) sensors in rear bumper (ar54.65-p-0002q)…2056
54.65 – Remove_install Parktronic system (PTS) warning indicator in rear dome lamp (ar54.65-p-0004p)…2058
54.65 – Removing and installing Parktronic system (PTS) sensors in front bumper (ar54.65-p-0001q)…2059
54.65 – Removing and installing Parktronic system (PTS) switch (ar54.65-p-0005q)…2060
54.65 – Removing and installing Parktronic system (PTS) warning display in instrument panel (ar54.65-p-0003q)…2061
54.65 – Service Information PARKTRONIC malfunctions (si54.65-p-0003a)…2063
54.65 – Service Information Warranty and goodwill settlement for Parktronic sensors (si54.65-p-0002a)…2065
54.65 – Survey of system components, Parktronic system (PTS), location _ task _ design _ function (gf54.65-p-9999q)…2066
54.65 – Wiring diagram for PARKTRONIC system (PTS) control unit (pe54.65-p-2101ba)…2067
58_Tools…2068
58.00 – Forms Passenger cars Tools (of58.00-z-3999az)…2070
58.00 – Safety information Tools (as58.00-z-9999zz)…2071
58.20 – Service Information Modify chain separating tool and rivet press tool (si58.20-d-0001sf)…2072
58.20 – Service Information new special tool (si58.20-p-0005e)…2074
58.20 – Service information for special tools (si58.20-p-0002b)…2075
58.20 – Special tools in EPC (si58.20-p-0019a)…2076
58.30 – Service Information New commercially available tools (si58.30-p-0002c)…2077
58.40 – Fault report for HHT, MUX, PM, Case (wb0000algfm00z)…2078
58.40 – Service Information Identification of add-ons installed on XENTRY Connect (si58.40-z-0019a)…2079
58.40 – Service Information Introduction of a removable storage device for SCAN coding (si58.40-p-0034a)…2080
58.40 – Service Information Modified display when doing quick tests in STAR DIAGNOSIS (si58.40-p-0010a)…2081
58.40 – Service Information Multiplexer (si58.40-z-0041a)…2082
58.40 – Service Information No WLAN connection between XENTRY Connect and XENTRY Tab after Update 09_2014 (si58.40-z-0025a)…2084
58.40 – Service Information Procedure for returning Star Diagnosis compact (si58.40-z-0018a)…2085
58.40 – Service Information Run time limit for Star Diagnosis software (si58.40-z-0014a)…2086
58.40 – Service Information STAR DIAGNOSIS (si58.40-p-0007b)…2087
58.40 – Service Information Software update for tester MB3000 (si58.40-p-0044a)…2088
58.40 – Service Information Test interval for Midtronics battery tester (si58.40-z-0002a)…2089
58.40 – Service Information Upgrade campaign for MIDTRONICS Micro717 battery tester (si58.40-z-0024a)…2091
58.40 – Service Information Workshop equipment in EPC_WIS_ASRA (si58.40-z-0045a)…2092
58.40 – Service Information bulletin Ease of access to the User Help Desk (si58.40-z-0030a)…2093
58.40 – Service Information bulletin Procedure when processing imports of system and component returns of the Star Diagnosis system (si58.40-z-0035a)…2094
58.40 – Service information Introduction of electronic stethoscope for noise diagnosis (si58.40-p-0036a)…2097
58.40 – Service information Procedure for messages on the screen for proxy entries as per Star Diagnosis update 10_2007 (si58.40-z-0028a)…2099
58.50 – Shop-made tools Passenger cars (wf58.50-z-0998az)…2100
60_Body – General…2103
60.00 – 000 588 01 23 00 Body straightening system (ws60.00-p-0023k)…2105
60.00 – 000 588 01 84 00 Welder (ws60.00-p-0021k)…2106
60.00 – 000 588 02 39 00 Rivet press tool (ws60.00-p-0010b)…2107
60.00 – 000 588 02 84 00 Welder (ws60.00-p-0022k)…2108
60.00 – 000 589 86 63 00 Adapter (ws60.00-p-0085k)…2109
60.00 – 108 589 00 76 00 Set of planishing tools (ws60.00-p-0002k)…2110
60.00 – 110 589 11 63 00 Angular scraper (ws60.00-p-0003k)…2111
60.00 – 115 589 28 63 00 Smoothing block (ws60.00-p-0005k)…2112
60.00 – 115 589 29 63 00 Smoothing block (ws60.00-p-0006k)…2113
60.00 – 115 589 30 63 00 Smoothing block (ws60.00-p-0007k)…2114
60.00 – 115 589 31 63 00 Smoothing block (ws60.00-p-0008k)…2115
60.00 – 124 589 03 19 00 Set of measuring tips and measuring joint (ws60.00-p-0017k)…2116
60.00 – 129 589 03 21 00 Feeler gauge (ws60.00-p-0027k)…2117
60.00 – 129 589 03 23 00 Portal frame (ws60.00-p-0028k)…2118
60.00 – 201 589 00 51 00 Spot weld milling cutter (ws60.00-p-0033k)…2119
60.00 – 203 589 00 63 00 Number punch guide (ws60.00-p-0044k)…2120
60.00 – 203 589 02 31 00 Adapter kit (ws60.00-p-3015k)…2121
60.00 – 209 589 00 23 00 Inspection and welding equipment (ws60.00-p-0045k)…2122
60.00 – 209 589 08 23 00 Welding device (ws60.00-p-0094k)…2123
60.00 – 209 589 09 23 00 Welding device (ws60.00-p-0095k)…2124
60.00 – Certificates Passenger cars Body – general (of60.00-z-1999az)…2125
60.00 – Check outside of vehicle in field of view for damage, general view (ap60.00-p-6048u)…2126
60.00 – Check outside of vehicle in visible area for signs of damage (ap60.00-p-0050p)…2127
60.00 – Check vehicle underside in field of view for damage, leakage and corrosion, general view (ap60.00-p-6049u)…2129
60.00 – Check vehicle underside in visible area for signs of damage, leaks and corrosion (ap60.00-p-0051ew)…2130
60.00 – General notes Passenger cars Body – general (ah60.00-z-9999az)…2132
60.00 – Punch in vehicle identification number (ar60.00-p-0800p)…2134
60.00 – Safety information Body – general (as60.00-z-9999zz)…2135
60.00 – Service Information Filling foam (si60.00-p-0009a)…2136
60.00 – Service Information Handling lead-free filling solder (si60.00-z-0014a)…2137
60.00 – Service Information Introduction of 2-component epoxy body filler (si60.00-p-0015a)…2138
60.00 – Service Information brazing materials for MIG brazing (si60.00-p-0006a)…2139
60.00 – Service information Measuring and straightening systems (si60.00-p-0001a)…2140
60.00 – Test and adjustment values Passenger cars Body – general (be60.00-z-9999az)…2141
60.00 – Tightening torques Passenger cars Body – general (ba60.00-z-9999az)…2142
60.10 – Service Information on straightening bracket set (si60.10-p-0002p)…2143
61_Substructure…2144
61.00 – Tightening torques Passenger cars Substructure (ba61.00-z-9999az)…2145
61.20 – Remove and install bottom engine compartment paneling (ar61.20-p-1105p)…2146
62_Front End & Fire Wall…2147
62.00 – 140 589 26 63 00 Stamping symbols set (ws62.00-p-0018k)…2148
62.00 – 203 589 00 27 00 Tension device (ws62.00-p-0110k)…2149
62.00 – 203 589 01 27 00 Puller (ws62.00-p-0111k)…2150
62.00 – 203 589 04 23 00 Inspection and welding device (ws62.00-p-0032k)…2151
62.00 – 203 589 05 23 00 Inspection and welding device (ws62.00-p-0033k)…2152
62.00 – 209 589 00 63 00 Adapter for fastening belt (ws62.00-p-0129k)…2153
62.00 – 211 589 05 63 00 Fastening belt (ws62.00-p-0124k)…2154
62.00 – General notes Passenger cars Front end and fire wall (ah62.00-z-9999az)…2155
62.00 – Technical modifications Passenger cars Front end and fire wall (bt62.00-z-9999az)…2156
62.00 – Tightening torques Passenger cars Front end and fire wall (ba62.00-z-9999az)…2157
62.20 – Install new longitudinal member front section (ar62.20-p-1260p)…2158
62.20 – Remove_install partition wall on upper firewall (ar62.20-p-1221a)…2160
62.20 – Replace complete wheel well (ar62.20-p-1200p)…2162
62.20 – Replace upper front longitudinal member (ar62.20-p-1286p)…2164
62.25 – Partially remove_install bottom section of firewall (ar62.25-p-1100p)…2167
62.30 – Remove_install front frame cross member (ar62.30-p-0001p)…2169
62.30 – Remove_install strut tower brace (ar62.30-p-2500qbs)…2170
62.30 – Replace complete front end assembly together with reinforcement (ar62.30-p-1570p)…2172
63_Side Wall…2177
63.00 – 000 589 87 63 00 Spacers (ws63.00-p-1146k)…2178
63.00 – 129 589 00 27 00 Crimping iron (ws63.00-p-0008k)…2179
63.00 – 140 589 26 23 00 Multi-Z elements MZ 260 (ws63.00-p-0020k)…2180
63.00 – 203 589 00 23 00 Test and welding jig (ws63.00-p-1126k)…2181
63.00 – 203 589 00 91 00 Caps (ws63.00-p-1127k)…2182
63.00 – 209 589 03 23 00 Cutting templates (ws63.00-p-0064k)…2183
63.00 – 210 589 17 23 00 Side portal frame (ws63.00-p-0059k)…2184
63.00 – General notes Passenger cars Side wall (ah63.00-z-9999az)…2185
63.00 – Tightening torques Passenger cars Side wall (ba63.00-z-9999az)…2186
63.10 – Partially replace outer rear wheel well (ar63.10-p-0660qbs)…2187
63.10 – Remove_install outer rear wheel well (ar63.10-p-0665q)…2191
63.10 – Replace crossmember reinforcement below rear seat (ar63.10-p-0696q)…2194
63.10 – Replace rear inner wheel well complete (ar63.10-p-0670p)…2197
63.20 – Remove_install C-pillar (ar63.20-p-0500q)…2200
63.20 – Replace complete A-pillar together with side longitudinal member (ar63.20-p-1150q)…2203
63.20 – Replace complete B-pillar (ar63.20-p-1350q)…2206
63.20 – Replace outer B-pillar with side longitudinal member (ar63.20-p-1370q)…2209
63.30 – Replace welding panel on side longitudinal member (ar63.30-p-1500q)…2212
63.40 – Partially replace main floor (ar63.40-p-1180p)…2214
63.50 – Replace complete rear fender (ar63.50-p-1400q)…2217
64_Rear Wall & Rear End…2221
64.00 – 164 589 00 39 00 Embossing tool (ws64.00-p-0115k)…2222
64.00 – 201 589 00 27 00 Cross-brace (ws64.00-p-0012k)…2223
64.00 – 203 589 02 27 00 Tension device (ws64.00-p-0106k)…2224
64.00 – General notes Passenger cars Rear wall and rear end (ah64.00-z-9999az)…2225
64.00 – Service Information bulletin Mounting holes for taillamp cutout (si64.00-p-0001a)…2226
64.00 – Tightening torques Passenger cars Rear wall and rear end (ba64.00-z-9999az)…2227
64.20 – Remove_install strut tower brace (ar64.20-p-0010qbs)…2228
64.20 – Replace complete rear end (ar64.20-p-1020q)…2229
65_Roof…2232
65.00 – 209 589 01 23 00 Spacers (ws65.00-p-0026k)…2233
65.00 – 209 589 04 23 00 Drilling_marking template (ws65.00-p-0027k)…2234
65.00 – General notes Passenger cars Roof (ah65.00-z-9999az)…2235
65.00 – Install base plates for roof rack (ar65.00-p-1000q)…2236
65.00 – Safety information Roof (as65.00-z-9999zz)…2238
65.00 – Service Information Roof rack system (si65.00-p-0001a)…2239
65.00 – Test and adjustment values Passenger cars Roof (be65.00-z-9999az)…2240
65.00 – Tightening torques Passenger cars Roof (ba65.00-z-9999az)…2241
65.10 – Replace complete center roof paneling (ar65.10-p-1000q)…2242
65.10 – Replace complete side roof paneling (ar65.10-p-1020q)…2244
67_Windows…2246
67.00 – 115 589 03 59 00 Long wedge (ws67.00-p-0002k)…2248
67.00 – 116 589 07 59 00 Hammer block (ws67.00-p-0003k)…2249
67.00 – 124 589 02 63 00 Cutting blade (ws67.00-p-0005k)…2250
67.00 – 124 589 03 63 00 Cutting blade (ws67.00-p-0006k)…2251
67.00 – 124 589 21 63 00 Cutting blade (ws67.00-p-0008k)…2252
67.00 – 124 589 40 63 00 Cutting blade (ws67.00-p-0009k)…2253
67.00 – 168 589 05 63 00 Roller (ws67.00-p-0014k)…2254
67.00 – Capacities Passenger cars Windows (bf67.00-z-9999az)…2255
67.00 – General notes Passenger cars Windows (ah67.00-z-9999az)…2256
67.00 – Service Information New window glazing repair kit without booster (si67.00-p-0004a)…2257
67.00 – Test and adjustment values Passenger cars Windows (be67.00-z-9999az)…2258
67.00 – Tightening torques Passenger cars Windows (ba67.00-z-9999az)…2259
67.10 – Remove_install detachable parts when replacing windshield (ar67.10-p-1050q)…2260
67.10 – Remove_install windshield (ar67.10-p-1000p)…2261
67.10 – Remove_install windshield molding (ar67.10-p-1200q)…2267
67.10 – Service Information Change to scope of supply of single-component windshield bonding system (si67.10-p-0002a)…2268
67.10 – Service Information Stone mark repairs on laminated glass windows (si67.10-p-0001a)…2269
67.10 – Service Information Windshield, crack formation as result of stone chipping (si67.10-p-0003a)…2270
67.10 – Service information bulletin Damage code for windshield replacement (si67.10-p-0004a)…2271
67.20 – Remove, install detachable parts when replacing rear window (ar67.20-p-2100q)…2272
67.20 – Remove_install rear wall window (ar67.20-p-2000p)…2273
67.29 – Block diagram, heated rear window (pe67.29-p-2001ba)…2278
67.29 – Contents, function description of heated rear window (gf67.29-p-0998q)…2279
67.29 – Survey, system components, heated rear window, location_task_design_function (gf67.29-p-9998q)…2280
67.30 – Adjusting rear side windows (ar67.30-p-4200q)…2281
67.30 – Remove_install ornamental frame at side windows (ar67.30-p-4020q)…2283
67.30 – Remove_install rear side window (ar67.30-p-4000q)…2284
67.39 – Remove_install electric power window on rear side window (ar67.39-p-4150q)…2286
67.39 – Remove_install electric power window switch of rear side window (ar67.39-p-4180q)…2287
67.39 – Remove_install power window motor for rear side window (ar67.39-p-4160q)…2288
68_Interior Equipment…2289
68.00 – 452 589 01 63 00 Clip remover (ws68.00-p-0012k)…2292
68.00 – Check first aid kit (ap68.00-p-6850ew)…2293
68.00 – Cleaning the vehicle interior (ap68.00-p-1000zz)…2296
68.00 – Forms Passenger cars Interior equipment (of68.00-z-3999az)…2297
68.00 – General notes Passenger cars Interior equipment (ah68.00-z-9999az)…2298
68.00 – Remove_install cup holder (ar68.00-p-1000q)…2299
68.00 – Retrofit wood_leather steering wheel with leather shift lever_leather selector lever (an68.00-p-0001q)…2300
68.00 – Service Information One-off use of expansion rivet with sealing function (si68.00-p-0002a)…2302
68.00 – Technical modifications Passenger cars Interior equipment (bt68.00-z-9999az)…2304
68.00 – Tightening torques Passenger cars Interior equipment (ba68.00-z-9999az)…2305
68.05 – Block diagram of garage door opener (pe68.05-p-2001ba)…2306
68.05 – Contents, function description of garage door opener (gf68.05-p-0999t)…2307
68.05 – Survey, system components, garage door opener, location_purpose_design_function (gf68.05-p-9999t)…2308
68.10 – Remove_install center air nozzle (ar68.10-p-1150q)…2309
68.10 – Remove_install cover below instrument panel (left) (ar68.10-p-1500p)…2310
68.10 – Remove_install cover below instrument panel (right) (ar68.10-p-1520p)…2311
68.10 – Remove_install cross member below instrument panel (ar68.10-p-1120q)…2312
68.10 – Remove_install glove box (ar68.10-p-1400q)…2314
68.10 – Remove_install glove compartment lid (ar68.10-p-1200q)…2315
68.10 – Remove_install instrument panel (ar68.10-p-1000q)…2316
68.10 – Remove_install instrument panel lower section on driver side (ar68.10-p-1505q)…2319
68.10 – Remove_install instrument panel lower section on passenger side (ar68.10-p-1507q)…2321
68.10 – Remove_install instrument panel lower section on passenger side with glove box (ar68.10-p-1508q)…2323
68.10 – Remove_install side air nozzle (ar68.10-p-1100q)…2326
68.10 – Remove_install stowage compartment in passenger-side instrument panel bottom section (ar68.10-p-1610q)…2327
68.20 – Disassemble_assemble center console (ar68.20-p-2150q)…2328
68.20 – Disassemble_assemble center console (ar68.20-p-2150qa)…2330
68.20 – Remove_install armrest cover lock on center console (ar68.20-p-2380p)…2332
68.20 – Remove_install armrest lid on center console (ar68.20-p-2370q)…2333
68.20 – Remove_install armrest with stowage compartment (ar68.20-p-1101q)…2334
68.20 – Remove_install armrest with stowage compartment (ar68.20-p-1101qa)…2336
68.20 – Remove_install ashtray housing in front center console (ar68.20-p-2400p)…2338
68.20 – Remove_install center console (ar68.20-p-2000q)…2339
68.20 – Remove_install center console (ar68.20-p-2000qbs)…2342
68.20 – Remove_install cover for control and operating unit (ar68.20-p-2314q)…2344
68.20 – Remove_install cover for upper control panel control unit (ar68.20-p-2313q)…2345
68.20 – Remove_install cover on center console (ar68.20-p-2350q)…2346
68.20 – Remove_install cover on gearshift lever (ar68.20-p-2310q)…2347
68.20 – Remove_install cover on gearshift lever (ar68.20-p-2310qa)…2348
68.20 – Remove_install cover on gearshift lever (ar68.20-p-2310qbs)…2349
68.20 – Remove_install floor covering in rear (ar68.20-p-4800pb)…2350
68.20 – Remove_install front floor covering (left) (ar68.20-p-2050p)…2352
68.20 – Remove_install front floor covering (right) (ar68.20-p-2070p)…2353
68.20 – Remove_install lock cylinder in catch for armrest on middle console (ar68.20-p-2390p)…2354
68.20 – Service Information Latch armrest lid in position on the center console (si68.20-p-0001a)…2355
68.30 – Prepare headliner for installation (ar68.30-p-4305q)…2356
68.30 – Remove paneling in trunk (ar68.30-p-4600pb)…2358
68.30 – Remove_install and disassemble rear shelf (ar68.30-p-4580p)…2359
68.30 – Remove_install handle on roof (ar68.30-p-4330p)…2361
68.30 – Remove_install headliner (ar68.30-p-4300q)…2362
68.30 – Remove_install paneling belt in rear (ar68.30-p-4782qbs)…2365
68.30 – Remove_install paneling on A-pillar (ar68.30-p-4050q)…2366
68.30 – Remove_install rear shelf (ar68.30-p-4581qbs)…2367
…
91.60 – Supplemental restraint system (SRS), function description table of contents (gf91.60-p-0999qz)…3159
91.60 – Table of contents Function description of supplemental restraint system (SRS) (gf91.60-p-0999qm)…3160
91.60 – Table of contents Function description of supplemental restraint system (SRS) (gf91.60-p-0999qma)…3161
91.60 – Wiring diagram for airbag control unit with integrated emergency call system (pe91.60-p-2101ba)…3162
91.60 – Wiring diagram for airbag control unit with integrated emergency call system (pe91.60-p-2101bb)…3163
94_Body Noise, Noise Insulation…3164
94.30 – Remove_install bottom parts of soundproofing (ar94.30-p-5300p)…3165
97_Boby Sealing, Corrosion Protection…3166
97.00 – 000 588 00 72 00 Sealing and corrosion protection gun (ws97.00-p-0001b)…3167
97.00 – 000 588 01 72 00 Sealing and corrosion protection gun (ws97.00-n-0002b)…3168
97.00 – General notes Passenger cars Body sealing, corrosion protection (ah97.00-z-9999az)…3169
97.10 – Seam sealing following repair (ar97.10-p-4000q)…3170
97.10 – Service Information sprayable seam seal (si97.10-p-0001a)…3171
97.20 – Apply wax preservation agent to underfloor (sm97.20-p-0003a)…3172
97.20 – Cavity preservation following repair work (ar97.20-p-1500q)…3174
97.20 – Installing transport foil (ar97.20-p-4000a)…3177
97.20 – Preservation (ap97.20-p-0640a)…3178
97.20 – Process corrosion protection materials before painting (ar97.20-p-0500a)…3180
98_Paintwork…3181
98.00 – 000 588 03 98 00 Cover (ws98.00-p-0003b)…3184
98.00 – 000 588 04 98 00 Cover (ws98.00-p-0005b)…3185
98.00 – 000 588 06 98 00 Cover (ws98.00-p-0013b)…3186
98.00 – 000 588 08 98 00 Cover (ws98.00-p-0014b)…3187
98.00 – Application of nano paint sealer (ap98.00-p-9830a)…3188
98.00 – Application of paintwork care and polishing agents (ap98.00-p-0635a)…3190
98.00 – Application of paintwork care and polishing agents (ap98.00-p-0635rq)…3192
98.00 – Care for lacquered surfaces (ar98.00-p-0011a)…3194
98.00 – Covering, masking and aids when painting (ar98.00-p-0200a)…3195
98.00 – Forms Passenger cars Paintwork (of98.00-z-3999az)…3199
98.00 – General notes Passenger cars Paintwork (ah98.00-z-9999az)…3201
98.00 – Inspect body for damage to paintwork (ap98.00-p-9850ba)…3203
98.00 – Overview of MB materials and how they are processed (ar98.00-p-0150a)…3204
98.00 – Paintwork Passenger vehicles incl. cross country vehicles (wb6516lit7502z)…3205
98.00 – Polish damaged areas (ar98.00-p-0009sx)…3208
98.00 – Removing adhesive residue from paintwork (ar98.00-p-0014a)…3209
98.00 – Repair paint coat of leather cover (ar98.00-p-0700a)…3210
98.00 – Sanding and polishing of scratch resistant clearcoat paints (ar98.00-p-0012a)…3211
98.00 – Service Information ALU-BEAM color (si98.00-p-0003a)…3212
98.00 – Service Information Cleaning of tin-plated surfaces (si98.00-p-0019a)…3213
98.00 – Service Information Clearcoat paint systems with higher scratch resistance (si98.00-p-0013a)…3214
98.00 – Service Information Inquiries regarding factory finish (si98.00-p-0014a)…3215
98.00 – Service Information Matching color due to work on body shell complaints (si98.00-p-0024a)…3216
98.00 – Service Information Notes on paint drying in drying facility (si98.00-p-0020a)…3217
98.00 – Service Information Painting roof paneling with antenna (si98.00-p-0016a)…3218
98.00 – Service Information Processing of preparatory work for paintwork and body shell complaints (si98.00-p-0025a)…3219
98.00 – Service Information Refinishing paint (si98.00-p-0002a)…3220
98.00 – Service Information bulletin Painting systems for warranty operations (si98.00-p-0010a)…3222
98.00 – Service information Matt paintwork (si98.00-p-0017a)…3223
98.00 – Table of contents for paintwork and anticorrosion materials in series production (gf98.00-p-0991a)…3225
98.00 – Use of fine polishing paste (ap98.00-p-0638a)…3226
98.00 – Use of gloss preserver (ap98.00-p-0641a)…3228
98.00 – Use of metal dust remover (ap98.00-p-0636a)…3229
98.00 – Use of paint cleaners (ap98.00-p-0637a)…3230
98.00 – Use of polish (ap98.00-p-0639a)…3231
98.20 – Painting plastic detachable body components (ar98.20-p-0685a)…3232
98.20 – Service information Paint repairs and repair work on plastic parts (si98.20-z-0002a)…3233
98.30 – Cleaning and care of MB vehicle paintwork (ap98.30-p-8070a)…3235
98.30 – Service Information Polish and care products for vehicle conditioning (si98.30-p-0001a)…3237
99_Printed Matter…3238
99.00 – General notes Passenger cars Publications (ah99.00-z-9999az)…3239
99.00 – Safety information Publications (as99.00-z-9999zz)…3240
99.00 – Technical modifications Passenger cars Publications (bt99.00-z-9999az)…3241
99.00 – Tightening torques Passenger cars Publications (ba99.00-z-9999az)…3242
99.20 – Body exposure Passenger vehicles incl. cross country vehicles (wb6516lit7490z)…3243
99.20 – Center section, Rear end Passenger vehicles incl. cross country vehicles (wb6516lit7501z)…3247
99.20 – Fault code documentation Passenger cars and Off Road Vehicles (wb6516lit7481z)…3251
99.20 – Front end Passenger cars and cross country vehicles (wb6516lit7500z)…3253
99.20 – Test Sheet Passenger Cars (wb6516lit7438z)…3256

Mercedes-Benz C209/A209 CLK-Class Repair Service Manual 2003-2010

INSTANT DOWNLOAD

Posted on December 15, 2024December 15, 2024 by admin

Mercedes-Benz C208/A208 CLK-Class Repair Service Manual 1997-2003

INSTANT DOWNLOAD

Complete service repair manual with Electrical Wiring Diagrams for Mercedes-Benz C208/A208 CLK-Class, with all the technical information to maintain, diagnose, repair, and rebuild like professional mechanics.

Mercedes-Benz C208/A208 CLK-Class workshop service repair manual includes:
* Numbered table of contents easy to use so that you can find the information you need fast.
* Detailed sub-steps expand on repair procedure information
* Numbered instructions guide you through every repair procedure step by step.
* Troubleshooting and electrical service procedures are combined with detailed wiring diagrams for ease of use.
* Notes, cautions and warnings throughout each chapter pinpoint critical information.
* Bold figure number help you quickly match illustrations with instructions.
* Detailed illustrations, drawings and photos guide you through every procedure.
* Enlarged inset helps you identify and examine parts in detail.

Mercedes-Benz C208_A208 CLK-Class Service Repair Manual 1997-2003.pdf
C208_CLK-Class_Technical_Information.zip

CLK 200, CLK 200 Kompressor, CLK 230 Kompressor, CLK 320, CLK 430, CLK 55 AMG

PRODUCT DETAILS:
Total Pages: 3,021 pages
File Format: PDF (Internal Links, Bookmarked, Table of Contents, Searchable, Printable, high quality)
Language: English

TABLE OF CONTENTS
00_Overall Vehicle..3
00.00 – 00 – Overview of test descriptions Diagnosis – Gasoline engine Engines 102, 103, 104, 111, 116, 117, 119, 120 (dh0000pm0up00x)..11
00.00 – 00 – Preface Diagnosis Manual Models 124, 129, 140, 170, 201, 202, 210 (dh0000p00vt00x)..13
00.00 – 00 – Summary of test descriptions Diagnosis – Body Models 124, 129, 140, 163, 168, 170, 202, 208, 210 (dh0000pa0up00x)..14
00.00 – 00 – Use of Diagnosis Manual Diagnosis – Gasoline engine Engines 102, 103, 104, 111, 116, 117, 119, 120 (dh0000pm0an00x)..17
00.00 – 000 588 03 90 00 Extractor link arm (ws00.00-p-0037b)..19
00.00 – 000 588 04 90 00 Hose grommet (ws00.00-p-0035b)..20
00.00 – 000 588 05 80 00 Pit lift (ws00.00-p-0248b)..21
00.00 – 000 588 05 90 00 Clamping grommet (ws00.00-p-0036b)..22
00.00 – 000 589 00 21 00 Test box (ws00.00-p-0034b)..23
00.00 – 000 589 01 10 00 Torx bit set (ws00.00-n-0001z)..24
00.00 – 000 589 01 40 00 Bracket (ws00.00-p-0244z)..25
00.00 – 000 589 10 99 00 Tool kit (ws00.00-p-0030z)..26
00.00 – 000 589 25 33 00 Internal extractor (ws00.00-n-0050z)..27
00.00 – 000 589 28 33 00 Puller dia. 28-37 mm (ws00.00-n-3026z)..28
00.00 – 000 589 29 33 00 Internal extractor (ws00.00-n-3027z)..29
00.00 – 000 589 30 16 00 Hexagon ratchet, 10 mm (ws00.00-p-0002z)..30
00.00 – 000 589 31 16 00 Hexagon ratchet, 13 mm (ws00.00-p-0003z)..31
00.00 – 000 589 32 16 00 Hexagon ratchet, 17 mm (ws00.00-p-0004z)..32
00.00 – 000 589 33 33 00 Counter stay (ws00.00-n-0051z)..33
00.00 – 000 589 35 33 00 Countersupport (ws00.00-n-3033z)..34
00.00 – 000 589 40 37 00 Clamp (ws00.00-n-0005z)..35
00.00 – 000 589 40 37 00 Clamp (ws00.00-p-0005z)..36
00.00 – 000 589 49 98 00 Oil sample container (ws00.00-p-0263b)..37
00.00 – 000 589 54 37 00 Clamp (ws00.00-p-0006z)..38
00.00 – 000 589 65 33 00 Puller (ws00.00-p-0007z)..39
00.00 – 000 589 67 21 00 Torque wrench (ws00.00-p-0008z)..40
00.00 – 000 589 68 33 00 Internal extractor (ws00.00-n-3030z)..41
00.00 – 000 589 75 03 00 Box wrench bit (ws00.00-p-0009z)..42
00.00 – 000 589 76 03 00 Box wrench (ws00.00-p-0010z)..43
00.00 – 000 589 87 33 00 Gripper (ws00.00-n-3054z)..44
00.00 – 000 589 89 33 00 Puller (ws00.00-n-3022z)..45
00.00 – 001 589 00 16 00 Adapter coupling (ws00.00-p-0120z)..46
00.00 – 001 589 03 91 00 Set of protective covers (ws00.00-p-3069b)..47
00.00 – 001 589 51 21 00 Torque wrench (ws00.00-p-0012z)..48
00.00 – 001 589 53 21 00 Dial gage (ws00.00-n-0013z)..49
00.00 – 001 589 66 21 00 Torque wrench (ws00.00-n-0015z)..50
00.00 – 001 589 67 21 00 Torque wrench (ws00.00-n-0016z)..51
00.00 – 001 589 72 21 00 Torque wrench (ws00.00-p-0017z)..52
00.00 – 001 589 73 21 00 Hand vacuum pump (ws00.00-p-0018z)..53
00.00 – 001 589 74 21 00 Torque wrench (ws00.00-n-0019z)..54
00.00 – 001 589 75 21 00 Torque wrench (ws00.00-n-3049b)..55
00.00 – 001 589 76 09 00 External torx set (ws00.00-n-0020z)..56
00.00 – 001 589 81 09 00 Set of flexible head wrenches (ws00.00-p-0251b)..57
00.00 – 001 589 81 21 00 Torque screwdriver (ws00.00-n-0021z)..58
00.00 – 001 589 87 21 00 Torque wrench (ws00.00-p-0119z)..59
00.00 – 003 589 05 09 00 Torque tool set (ws00.00-n-0261a)..60
00.00 – 003 589 06 09 00 Plug-in wrench (ws00.00-p-0262a)..61
00.00 – 100 589 02 59 00 Adapter (ws00.00-p-0022z)..62
00.00 – 110 589 03 59 00 Mounting wedge (ws00.00-p-0274k)..63
00.00 – 112 589 00 25 00 Squeeze gun (ws00.00-p-0052z)..64
00.00 – 116 589 02 07 00 Screwdriver, 5 mm (ws00.00-n-0023z)..65
00.00 – 116 589 03 07 00 T-handle Allen wrench (ws00.00-p-0024z)..66
00.00 – 117 589 02 07 00 Pin box wrench (ws00.00-p-0054z)..67
00.00 – 123 589 00 16 00 Extension (ws00.00-p-0025z)..68
00.00 – 123 589 02 09 00 Socket (ws00.00-p-0026z)..69
00.00 – 123 589 02 10 00 Allen wrench socket (ws00.00-p-0027z)..70
00.00 – 123 589 03 09 00 Socket (ws00.00-p-0028z)..71
00.00 – 163 589 03 43 00 Press (ws00.00-p-0057z)..72
00.00 – 198 589 00 09 00 Flexible head wrench socket (ws00.00-p-0032z)..73
00.00 – 210 589 00 71 00 Hand pump (ws00.00-p-0280z)..74
00.00 – 220 589 05 99 00 Electrical connection kit (ws00.00-p-0279z)..75
00.00 – 363 589 02 21 00 Dial indicator holder (ws00.00-p-0033z)..76
00.00 – Collection and disposal of components containing mercury (os00.00-p-1000zz)..77
00.00 – Connecting and using test equipment (ad00.00-p-1000az)..78
00.00 – Forms Passenger cars Overall vehicle (of00.00-z-3999az)..79
00.00 – General notes Passenger cars Overall vehicle (ah00.00-z-9999az)..80
00.00 – Safety information Overall vehicle (as00.00-z-9999zz)..82
00.00 – Scrapping gas-filled hydraulic components (os00.00-p-2000zz)..85
00.00 – Service Information AMG After Sales Portal (si00.00-p-0125a)..86
00.00 – Service Information Exclusion of liability for third-party retrofits (si00.00-p-0025a)..87
00.00 – Service Information Identification of fine dust badge for vehicles not registered in Germany (si00.00-p-0082a)..88
00.00 – Service Information New operation number structure for diagnosis jobs (si00.00-p-0051a)..89
00.00 – Service Information Operation items for test drives (si00.00-p-0009a)..93
00.00 – Service Information Processing of warranty and goodwill claims (si00.00-p-0116a)..95
00.00 – Service Information QR code for rescue forces (si00.00-p-0089a)..96
00.00 – Service information Important notes on the use of various vehicle systems and components (si00.00-p-0500a)..97
00.00 – Service information New damage code (si00.00-z-0038a)..100
00.00 – Service information New update concept for diagnosis applications (si00.00-z-0004a)..101
00.00 – Sheet of drawings on paint damage Passenger cars, Model des. 129, 140, 202, 210 (wb6516lit7423z)..102
00.00 – Tightening torques Passenger cars Overall vehicle (ba00.00-z-9999az)..104
00.01 – Certificates (of00.01-z-1999zz)..105
00.01 – Forms (of00.01-z-3999zz)..106
00.01 – Function group overview, engine (ov00.01-z-1904a)..107
00.01 – Function group survey, body (ov00.01-z-1906a)..108
00.01 – Information for the user (ov00.01-z-0100zz)..109
00.01 – Introduction of WIS Service Media (sn00.01-z-0012a)..110
00.01 – Overall vehicle model and major assembly installation overview (ov00.01-z-0150az)..112
00.01 – Overview of function groups, chassis (ov00.01-z-1905a)..114
00.01 – Search aid for electrical components (ov00.01-z-1800a)..115
00.01 – Search aid through all wiring diagram groups (ov00.01-p-1901d)..117
00.01 – Service Information Content and application of data mediums Telematics CD_DVD, Regio DVD and Digital Owner‘s Manual DVD (si00.01-p-0014a)..126
00.01 – Service Information Damage or breakdown case in international traffic (si00.01-z-0031a)..127
00.01 – Service Information Invoicing of quick test (si00.01-p-0006a)..128
00.01 – Service Information Modification of battery maintenance (si00.01-p-0013a)..129
00.01 – Service Information SDconnect rechargeable battery (si00.01-p-0003a)..130
00.01 – Service Information Structure of the new operation numbers for SmallRepair in ASRA [operation texts, standard texts, flat rates and work units] (si00.01-z-0001a)..131
00.01 – Service Information Synonym search – New functionality in WIS (si00.01-z-0036a)..132
00.01 – Service Information Trouble diagnosis bulletins (AF) publication type not applicable (si00.01-z-0029a)..133
00.01 – Service Information WIS Service Media (si00.01-z-0012a)..134
00.01 – Service Information bulletin Use of basic operations (G) and linked operations (V) (si00.01-p-0024a)..135
00.01 – Service-Information Xentry Support & Feedback in WIS net (si00.01-z-0030a)..136
00.01 – Summaries (ov00.01-z-0102zz)..139
00.01 – Survey of function groups – overall vehicle (ov00.01-z-1903a)..140
00.01 – Terminology (ov00.01-z-0104zz)..141
00.10 – Check gear capacity (ar00.10-p-1010a)..142
00.10 – Complete vehicle, model_component installation survey, build condition (gf00.10-p-0801f)..145
00.10 – Contents retrofitting and converting special equipment (an00.10-p-1000hz)..146
00.10 – Service Information Vehicle identification plate orders (si00.10-p-0003b)..148
00.10 – Service information on increase of engine performance (si00.10-p-0004a)..149
00.10 – Table of contents for subsequent installation and conversion of accessories (az00.10-p-1000cz)..150
00.19 – 000 589 13 99 00 Wiring harness repair kit, basic (ws00.19-p-0007b)..154
00.19 – 220 589 01 99 00 Wiring harness repair kit (ws00.19-p-0009b)..155
00.19 – 220 589 02 99 00 Wiring harness repair kit (ws00.19-p-0002b)..158
00.19 – 220 589 03 99 00 Positioning mount with quick-release fitting (ws00.19-p-0003b)..160
00.19 – 220 589 04 99 00 Wiring harness repair kit, supplement (ws00.19-p-0006b)..161
00.19 – 930 589 00 99 00 Wiring harness repair kit, supplement (ws00.19-n-0004b)..162
00.19 – Extended vehicle network (GVN) diagnosis, content (ad00.19-p-1000az)..163
00.19 – Extended vehicle networking (EVN) – networking of components (pe00.19-p-2001a)..165
00.19 – General repair methods for wiring harness (ar00.19-p-0100a)..166
00.19 – Performing basic programming (ar00.19-p-0200c)..170
00.19 – Removing contacts from plugs and connectors (ar00.19-p-0120a)..171
00.19 – Repair wiring harness as per specified repair method (ar00.19-p-0001a)..176
00.19 – Wiring diagram of CAN bus – engine (pe00.19-p-2200e)..178
00.19 – Wiring diagram of CAN bus – interior compartment (pe00.19-p-2300d)..179
00.19 – Wiring diagram of front axle speed signal (VSS) (pe00.19-p-2000f)..180
00.19 – Wiring diagram of rear axle speed signal (VSS) (pe00.19-p-2100f)..181
00.20 – Active service system (ASSYST) function description contents (gf00.20-p-0997az)..182
00.20 – Active service system (ASSYST) function description contents (gf00.20-p-0997bz)..183
00.20 – Check all visible parts for leaks and damage (ap00.20-p-0053ba)..184
00.20 – Economy service – vehicles older than 4 years (ap00.20-p-0008h)..187
00.20 – Inspect chassis and load-bearing body parts for damage and corrosion (ap00.20-p-0090ba)..190
00.20 – Maintenance (ap00.20-p-0000d)..193
00.20 – SERVICE SHEET for Active Service System (ASSYST) (ap00.20-p-0001g)..195
00.20 – Service Information Check of axle components during maintenance (si00.20-p-0042b)..199
00.20 – Service Information Filling of AdBlue during service (si00.20-p-0004a)..201
00.20 – Service Information Forms for delivery and hand-over inspections, inspections and checks in information type AP (si00.20-p-0044a)..203
00.20 – Service Information Notes on Economy-Service (si00.20-p-0035a)..204
00.40 – Directory of additional operating fluids (bb00.40-p-0300zz)..205
00.40 – General list (bb00.40-p-0000zz)..206
00.40 – List of fuels (bb00.40-p-0100zz)..207
00.40 – List of lubricants (bb00.40-p-0200zz)..208
00.40 – Search aid for Specifications for Operating Fluids (bb00.40-p-0900a)..209
00.40 – Service Information Exclusive use of Mercedes-Benz lubricants in warranty and goodwill cases (si00.40-p-0009a)..213
00.40 – Service Information bulletin Specifications for Operating Fluids for automatic transmission (si00.40-p-0014a)..214
00.40 – Service information Dying of windshield washer fluid concentrate (si00.40-z-0006a)..216
00.45 – Auxiliary repair materials (br00.45-z-0999zz)..217
00.45 – Service Information Multipurpose metal grease (si00.45-p-0004a)..218
00.45 – Service Information Service kit for rectifying squeaking, creaking and tearing noises (si00.45-p-0002a)..219
00.70 – Carry out convertible check, roadster check (ap00.70-p-1002a)..220
01_Complete Engine, Crankcase Ventilation, Cylinder Head, Crankcase..221
01.00 – 000 588 00 31 00 Assembly stand (ws01.00-n-3028b)..224
01.00 – 000 588 00 62 00 Load tilter (ws01.00-p-0102b)..225
01.00 – 000 588 01 21 00 Endoscope (ws01.00-p-0097b)..226
01.00 – 000 588 03 62 00 Lifting platform (ws01.00-p-0091a)..227
01.00 – 000 588 04 62 00 Removal fixture (ws01.00-n-3014b)..228
01.00 – 000 588 09 62 00 Engine support fixture (ws01.00-p-0094b)..229
01.00 – 000 588 11 62 00 Major assembly mount (ws01.00-p-0092b)..230
01.00 – 000 589 01 25 00 Hand pressure gun (ws01.00-n-3060b)..231
01.00 – 001 589 00 91 00 Set of protective covers (ws01.00-n-0110b)..232
01.00 – 001 589 01 91 00 Set of protective covers (ws01.00-p-0111b)..233
01.00 – 001 589 02 91 00 Set of protective covers (ws01.00-n-0112b)..234
01.00 – 001 589 76 21 00 Compression tester (ws01.00-p-0004a)..235
01.00 – 001 589 77 21 00 Compression recorder (ws01.00-p-0005a)..236
01.00 – 003 589 03 37 00 Hose clamp pliers (ws01.00-p-0113b)..237
01.00 – 102 589 00 99 00 HELI-COIL repair set (ws01.00-n-0009c)..238
01.00 – 111 589 00 91 00 Connector (ws01.00-n-0018b)..239
01.00 – 111 589 04 15 00 Drift punch (ws01.00-p-0049c)..240
01.00 – 111 589 12 31 00 Support (ws01.00-p-0021c)..241
01.00 – 124 589 36 63 00 Adapter line (ws01.00-p-0031a)..242
01.00 – 452 589 01 99 00 Repair tools for valves (ws01.00-p-0108c)..243
01.00 – 601 589 00 10 00 Screwdriver bit (ws01.00-p-0033b)..244
01.00 – 602 589 00 25 00 Adapter (ws01.00-n-3094a)..245
01.00 – Check for cylinder leakage (ar01.00-p-1300ha)..246
01.00 – Cleaning and preserving engine and engine compartment (ap01.00-p-1000zz)..249
01.00 – Disconnecting, connecting engine wiring harness (ar01.00-p-2410l)..250
01.00 – Forms Passenger cars Complete engine, crankcase ventilation, cylinder head , crankcase (of01.00-z-3999az)..251
01.00 – General notes Passenger cars Complete engine, crankcase ventilation, cylinder head , crankcase (ah01.00-z-9999az)..252
01.00 – Inspecting cylinders with a light probe (ar01.00-p-0200ha)..256
01.00 – Technical modifications Passenger cars Complete engine, crankcase ventilation, cylinder head , crankcase (bt01.00-z-9999az)..258
01.00 – Test and adjustment values Passenger cars Complete engine, crankcase ventilation, cylinder head , crankcase (be01.00-z-9999az)..259
01.00 – Tightening torques Passenger cars Complete engine, crankcase ventilation, cylinder head , crankcase (ba01.00-z-9999az)..261
01.10 – Cranking engine with starter (ar01.10-p-0110a)..263
01.10 – Remove_install engine (ar01.10-p-2400a)..264
01.10 – Removing and installing carrier of power steering pump (ar01.10-p-4190a)..267
01.10 – Removing and installing carrier of power steering pump (ar01.10-p-4190b)..268
01.10 – Service Information Cleaning sealing surfaces (si01.10-p-0004a)..270
01.20 – Crankcase ventilation function description contents (gf01.20-p-0999ag)..271
01.20 – Removing and installing spark plug shaft seals (ar01.20-p-5020a)..272
01.30 – Check_face-grind cylinder head contact surfaces (ar01.30-p-7162a)..273
01.30 – Cleaning oil gallery in cylinder head (ar01.30-p-5450a)..275
01.30 – Remove_install cylinder head (ar01.30-p-5800a)..276
01.30 – Remove_install front cover on cylinder head (ar01.30-p-5700a)..280
01.30 – Repairing spark plug thread (ar01.30-p-5440a)..281
01.40 – Clean main oil gallery, seal (ar01.40-p-8500a)..282
01.40 – Cleaning, sealing oil return gallery in crankcase (ar01.40-p-8510a)..283
01.40 – Machining crankcase contact surface (ar01.40-p-9133a)..284
01.40 – Measuring, boring and honing cylinder bores (ar01.40-p-9201a)..286
01.40 – Remove_install end cover (ar01.40-p-8913ha)..288
01.40 – Remove_install timing case cover (ar01.40-p-8000a)..291
01.40 – Replace core plugs in crankcase (ar01.40-p-8499ha)..296
01.45 – Remove_install oil pan (ar01.45-p-7500e)..298
03_Crank Assembly..300
03.00 – 000 589 04 14 00 Tensioning strap (ws03.00-p-0001c)..302
03.00 – 000 589 20 21 00 Hardness tester (ws03.00-p-0002c)..303
03.00 – 000 589 51 37 00 Pliers (ws03.00-p-0005c)..304
03.00 – 001 589 65 09 00 Socket wrench bit (ws03.00-p-0006b)..305
03.00 – 102 589 01 40 00 Retaining lock (ws03.00-p-0011b)..306
03.00 – 111 589 08 43 00 Installation tool (ws03.00-p-0016b)..307
03.00 – 601 589 02 40 00 Retaining lock (ws03.00-p-0025b)..308
03.00 – 601 589 03 14 00 Sleeve (ws03.00-n-0026b)..309
03.00 – 602 589 00 40 00 Retaining lock (ws03.00-p-0028b)..310
03.00 – 606 589 03 15 00 Installation tool (ws03.00-p-0036c)..311
03.00 – 617 589 00 16 00 Square drive (ws03.00-p-0032b)..312
03.00 – General notes Passenger cars Crank assembly (ah03.00-z-9999az)..313
03.00 – Technical modifications Passenger cars Crank assembly (bt03.00-z-9999az)..314
03.00 – Test and adjustment values Passenger cars Crank assembly (be03.00-z-9999az)..315
03.00 – Tightening torques Passenger cars Crank assembly (ba03.00-z-9999az)..317
03.10 – Connecting rod as-built configuration (gf03.10-p-0800a)..319
03.10 – Remove_install piston (ar03.10-p-7021a)..320
03.10 – Remove_install piston rings (ar03.10-p-7311a)..324
03.10 – Repairing connecting rod (ar03.10-p-6111a)..327
03.20 – Measure crankshaft and remount in bearings (ar03.20-p-4355ag)..330
03.20 – Removing, installing crankshaft (ar03.20-p-4351a)..334
03.20 – Removing, installing grooved ball bearing of crankshaft (ar03.20-p-8400ha)..336
03.20 – Replacing front crankshaft radial seal (ar03.20-p-3000a)..337
03.20 – Replacing rear crankshaft radial seal (ar03.20-p-3063ha)..338
03.30 – Remove_install belt pulley_vibration damper (ar03.30-p-1600a)..340
03.30 – Remove_install flywheel _ drive plate (ar03.30-p-8001a)..342
03.30 – Removing and installing retaining lock for crankshaft_ring gear (ar03.30-p-5000ha)..344
03.30 – Removing, installing needle bush in two-mass flywheel (ar03.30-p-8400a)..347
05_Engine Timing..349
05.00 – 000 589 10 68 00 Cylinder brush (ws05.00-p-0002c)..352
05.00 – 000 589 58 43 00 Installation tool (ws05.00-n-0006c)..353
05.00 – 102 589 00 34 00 Threaded bolt (ws05.00-p-0009b)..354
05.00 – 102 589 01 53 00 Reamer (ws05.00-p-0013c)..355
05.00 – 102 589 03 40 00 Magnet (ws05.00-n-0023a)..356
05.00 – 103 589 01 63 00 Assembly inserts (ws05.00-n-0040c)..357
05.00 – 104 589 01 01 00 Double open-end wrench (ws05.00-n-0047b)..358
05.00 – 104 589 01 01 00 Double open-end wrench (ws05.00-p-0047b)..359
05.00 – 111 589 01 40 00 Thrust nut (ws05.00-p-0068c)..360
05.00 – 111 589 01 59 00 Supporting bridge (ws05.00-n-0069c)..361
05.00 – 111 589 02 15 00 Drift (ws05.00-p-0070c)..362
05.00 – 111 589 02 59 00 Assembly board (ws05.00-n-0071c)..363
05.00 – 111 589 03 15 00 Retaining pins (ws05.00-n-0072b)..364
05.00 – 111 589 18 61 00 Lever pusher (ws05.00-n-0073b)..365
05.00 – 111 589 19 61 00 Retaining device (ws05.00-p-0172c)..366
05.00 – 111 589 25 61 00 Valve assembly tools kit (ws05.00-p-3137ba)..367
05.00 – 111 589 25 63 00 Thrust element (ws05.00-n-0074b)..368
05.00 – 112 589 09 63 00 Assembly inserts (ws05.00-p-0165c)..369
05.00 – 116 589 01 34 00 Threaded bolt (ws05.00-n-0083b)..370
05.00 – 116 589 06 63 00 Magnetic rod (ws05.00-p-0088b)..371
05.00 – 116 589 20 33 00 Impact extractor (ws05.00-n-0089b)..372
05.00 – 119 589 00 43 00 Drift (ws05.00-n-0098b)..373
05.00 – 119 589 01 53 00 Broaching tool (ws05.00-p-0152c)..374
05.00 – 119 589 05 63 00 Guide sleeve (ws05.00-p-0153c)..375
05.00 – 210 589 00 40 00 Magnetic pin (ws05.00-n-0155b)..376
05.00 – 271 589 00 59 00 Assembly tool (ws05.00-p-0202c)..377
05.00 – 602 589 00 39 00 Riveting tool (ws05.00-p-0162c)..378
05.00 – 602 589 00 98 00 Case (ws05.00-p-0158c)..379
05.00 – 602 589 02 33 00 Chain separating tool (ws05.00-p-0159c)..380
05.00 – 602 589 02 40 00 Assembly links (ws05.00-p-0171c)..381
05.00 – 602 589 05 63 00 Pressure screw (ws05.00-p-0161c)..382
05.00 – 605 589 00 33 00 Puller (ws05.00-p-0154b)..383
05.00 – 606 589 00 37 00 Pliers (ws05.00-p-0116b)..384
05.00 – 606 589 02 15 00 Drift punch (ws05.00-p-0167c)..385
05.00 – 642 589 00 33 00 Riveting tool (ws05.00-p-0260c)..386
05.00 – General notes Passenger cars Engine timing (ah05.00-z-9999az)..387
05.00 – Inspecting hydraulic valve clearance compensation elements (ar05.00-p-2010a)..388
05.00 – Remove_install hydraulic valve clearance compensating elements (ar05.00-p-2011a)..390
05.00 – Safety information Engine timing (as05.00-z-9999zz)..391
05.00 – Technical modifications Passenger cars Engine timing (bt05.00-z-9999az)..392
05.00 – Test and adjustment values Passenger cars Engine timing (be05.00-z-9999az)..393
05.00 – Tightening torques Passenger cars Engine timing (ba05.00-z-9999az)..395
05.10 – Remove_install chain tensioner (ar05.10-p-7800a)..396
05.10 – Remove_install slide rail in cylinder head (ar05.10-p-8432a)..398
05.10 – Removing, installing crankshaft gear (ar05.10-p-4600a)..399
05.10 – Removing, installing guide rail in timing case cover (ar05.10-p-8484a)..401
05.10 – Removing, installing tensioning rail (ar05.10-p-8127a)..403
05.10 – Replacing timing chain (ar05.10-p-7601a)..405
05.20 – Checking basic position of camshafts (ar05.20-p-6010a)..407
05.20 – Checking operation of camshaft adjuster (ar05.20-p-7290a)..409
05.20 – Remove_install camshaft adjusters (ar05.20-p-7201a)..411
05.20 – Remove_install camshafts (ar05.20-p-6992a)..413
05.20 – Sealing camshaft oil bore (ar05.20-p-7300a)..418
05.20 – Set basic position of camshafts (ar05.20-p-6020a)..419
05.20 – Table of contents for function description Camshaft adjustment (gf05.20-p-0999ag)..421
05.30 – Check, remove_install valve guides (ar05.30-p-3731b)..422
05.30 – Machine valve seat rings (ar05.30-p-4511a)..425
05.30 – Remove_install valve springs and_or valve stem seals (ar05.30-p-3500a)..427
05.30 – Remove_install valves (ar05.30-p-3511a)..430
07_Mixture Formation..432
07.00 – 000 589 00 68 00 Cleaning kit (ws07.00-p-0001c)..438
07.00 – 000 589 68 03 00 Box wrench bit (ws07.00-n-0004a)..439
07.00 – 000 589 68 03 00 Box wrench bit (ws07.00-p-0004b)..440
07.00 – 000 589 69 03 00 Ring wrench bit (ws07.00-p-0088b)..441
07.00 – 103 589 00 21 00 Testing unit (ws07.00-n-0014b)..442
07.00 – 103 589 02 63 00 Adapter (ws07.00-p-0017b)..443
07.00 – 119 589 04 63 00 Pressure hose (ws07.00-p-0024b)..444
07.00 – 123 589 05 33 00 Puller (ws07.00-p-0027b)..445
07.00 – 124 589 01 37 00 Lead-sealing pliers (ws07.00-p-0028b)..446
07.00 – 124 589 24 63 00 Stamping set (ws07.00-p-0030b)..447
07.00 – 126 589 11 63 00 Emission probe (ws07.00-p-0036b)..448
07.00 – 137 589 00 63 00 Test cable 134-pin (ws07.00-p-0093b)..449
07.00 – 210 589 08 63 00 145-pin test cable (ws07.00-p-0080b)..450
07.00 – A – Test and adjustment Data 00 – Test values with ignition ON and starting speed All Engines (dh0a00pm00000x)..451
07.00 – B3 – Test and Adjustment Operations 51 – Testing engine output and exhaust emissions All Engines (dh0b03pm00051x)..457
07.00 – C – Diagnosis test equipment 60 – Diagnosis test All engines (dh0c00pm00060x)..461
07.00 – C – Diagnostic Testers 11 – General All Engines (dh0c00pm10011x)..464
07.00 – C – Diagnostic Testers 12 – Fault Analysis All Engines (dh0c00pm10012z)..465
07.00 – C – Diagnostic Testers 13 – Test procedure engine not running All Engines (dh0c00pm10013z)..466
07.00 – C – Diagnostic Testers 14 – Test procedure engine running All Engines (dh0c00pm10014z)..467
07.00 – C – Diagnostic Testers 21 – Fault code with diagnostic testers All Engines (dh0c00pm10021x)..468
07.00 – C – Diagnostic Testers 31 – Connection diagram All Engines (dh0c00pm10031x)..471
07.00 – C – Diagnostic Testers 32 – Connection diagram single-circuit ignition system Engines 102, 103, 116, 117 KE and 104 KE_LH (dh0c00pm10032x)..472
07.00 – C – Diagnostic Testers 42 – Diagnostic Test – Start Test All Engines (dh0c00pm10042x)..474
07.00 – C – Diagnostic Testers 45 – Diagnostic Test – Engine setting All Engines (dh0c00pm10045x)..477
07.00 – C – Diagnostic Testers 48 – Diagnostic test All Engines (dh0c00pm00048x)..479
07.00 – C – Diagnostic Testers 49 – Diagnostic test – Engine output test All Engines (dh0c00pm10049x)..507
07.00 – C – Diagnostic Testers 50 – Diagnostic test – Special signals All Engines (dh0c00pm10050x)..508
07.00 – C – Diagnostic testers 41 – Diagnostic test – Overview All Engines (dh0c00pm10041x)..521
07.00 – C – Diagnostic testing devices 35 – Connection diagram, zero signal high voltage distribution All Engines (dh0c00pm00035x)..522
07.00 – Certificates Passenger cars Mixture formation (of07.00-z-1999az)..523
07.00 – Check and adjust engine (ar07.00-p-3001wa)..524
07.00 – Check and adjust engine (ar07.00-p-3001wb)..527
07.00 – D – Diagnosis Paths 11_1 – Complaint – Starting behavior_Starting time All Engines (dh0d00pm11101x)..530
07.00 – D – Diagnosis Paths 11_2 – Complaint – Idling not smooth, surging_misfiring All Engines (dh0d00pm11102x)..531
07.00 – D – Diagnosis Paths 11_3 – Complaint – Poor throttle response_Transition fault All Engines (dh0d00pm11103x)..532
07.00 – D – Diagnosis Paths 11_4 – Complaint – Poor output_Fuel consumption All Engines (dh0d00pm11104x)..533
07.00 – Engine test and setting operations (ar07.00-p-3000wa)..534
07.00 – Engine test and setting operations (ar07.00-p-3000wb)..535
07.00 – Engine test and setting operations (ar07.00-p-3000wc)..536
07.00 – Enlargement to testing, adjusting engine (ar07.00-p-3004wb)..537
07.00 – Enlargement to testing, adjusting engine (ar07.00-p-3004wc)..538
07.00 – Exhaust emission test I (ar07.00-p-1000a)..539
07.00 – Extension to testing, adjusting engine (ar07.00-p-3004wa)..540
07.00 – Forms Passenger cars Mixture formation (of07.00-z-3999az)..541
07.00 – General notes Passenger cars Mixture formation (ah07.00-z-9999az)..542
07.00 – Safety information Mixture formation (as07.00-z-9999zz)..544
07.00 – Service Information on fuel consumption measurement (si07.00-p-0004a)..545
07.00 – Technical modifications Passenger cars Mixture formation (bt07.00-z-9999az)..547
07.00 – Test and adjustment values Passenger cars Mixture formation (be07.00-z-9999az)..548
07.00 – Test engine performance and exhaust emissions (ar07.00-p-3003wa)..550
07.00 – Test engine performance and exhaust emissions (ar07.00-p-3003wb)..553
07.00 – Test, regulate idle speed (ar07.00-p-3002wa)..556
07.00 – Test, regulate idle speed (ar07.00-p-3002wb)..558
07.00 – Tightening torques Passenger cars Mixture formation (ba07.00-z-9999az)..561
07.03 – Remove fuel distributor with injection valves (ar07.03-p-1450d)..563
07.03 – Removing and installing injection valves (ar07.03-p-6522d)..565
07.07 – Removing and installing hot film mass air sensor (ar07.07-p-1453d)..566
07.08 – Service Information SCAN coding (si07.08-p-0002a)..567
07.17 – Removing and installing diaphragm pressure regulator (ar07.17-p-1450d)..568
07.51 – 8.5 – Diagnosis module (DM) 11 – Diagnosis – Fault memory Engine 104 HFM models 129, 202, 111 HFM model 202 (dh0805pm00011x)..570
07.51 – 8.5 – Diagnosis module (DM) 21 – Test program – Electrics – Location of components Engine 104 HFM models 129, 202, 111 HFM model 202 (dh0805pm00021x)..573
07.51 – 8.5 – Diagnosis module (DM) 22 – Test program – Electrics – Pre-requisites for testing Engine 104 HFM models 129, 202, 111 HFM model 202 (dh0805pm00022x)..574
07.51 – 8.5 – Diagnosis module (DM) 23 – Test program – Electrics – Test Engine 104 HFM models 129, 202, 111 HFM model 202 (dh0805pm00023x)..576
07.51 – A – Test and adjustment Data 45 – Engine 111.944_975, 111.975 compressor (dh0a00pm00045x)..580
07.51 – B1 – Test and Adjustment Operations 22 – Testing, adjusting engine Engine 104 HFM, 111 HFM_PMS (dh0b01pm10022x)..583
07.51 – B2 – Test and Adjustment Operations 42 – Testing, adjusting idle speed Engine 104 HFM, 111 HFM_PMS (dh0b02pm10042x)..587
07.51 – C – Diagnosis test equipment 37 – Connecting diagram for rotorless high-voltage distributor Engine 111 HFM-SFI_PEC_ME-SFI (dh0c00pm00037x)..588
07.51 – Check idle, emission level_lambda control and readjust (HFM sequential multiport fuel injection_ignition system) (ap07.51-p-0750a)..592
07.51 – Fuel injection and ignition system (HFM-SFI) diagnosis, contents (ad07.51-p-1000az)..595
07.51 – HFM-SFI fuel injection and ignition system model and component installation survey as-built configuration (gf07.51-p-0801a)..596
07.51 – Removing, installing HFM-SFI variable reference resistor (ar07.51-p-1459d)..597
07.51 – Table of contents for function description for gasoline injection and ignition system for hot film sequential multiport fuel injection_ignition system (HFM) (gf07.51-p-0999zz)..598
07.51 – Wiring diagram HFM-SFI sequential multiport fuel injection_ ignition system (pe07.51-p-2000j)..602
07.51 – Wiring diagram HFM-SFI sequential multiport fuel injection_ ignition system (pe07.51-p-2000k)..603
07.61 – A – Test and adjustment Data Engines 111.943 comp. (GR) (I) (P) from 09_96, 111.944 comp. (GR) (I) (P) from 08_96, 111.973 comp. from 09_96, 111.975 comp. from 08_96 (dh0a00pm00063x)..604
07.61 – B1 – Test and adjustment work 23 – checking and adjusting engine Engine 111,119,120 ME (dh0b01pm00023x)..607
07.61 – B2 – Test and adjustment work 43 – Checking and adjusting closed throttle position (idle) 1) Engines 111, 119, 120 ME (dh0b02pm00043x)..610
07.61 – Fuel injection and ignition system (ME-SFI) diagnosis contents (ad07.61-p-1000dz)..611
07.61 – Fuel injection and ignition system (ME-SFI) diagnosis contents (ad07.61-p-1000wz)..612
07.61 – ME-SFI fuel injection and ignition system model and component installation survey as-built configuration (gf07.61-p-0801f)..613
07.61 – Motor electronics (ME-SFI) fuel injection and ignition system contents function description (gf07.61-p-0999z)..614
07.61 – Motor electronics (ME-SFI) fuel injection and ignition system survey of system components location_task_design_function (gf07.61-p-9999f)..618
07.61 – Pneumatic diagrams ME-SFI (pp07.61-p-5000ga)..621
07.61 – Test_adjust idle speed, emission value_lambda control (ME-SFI) (ap07.61-p-0750b)..622
07.61 – Wiring diagram – ME-SFI fuel injection and ignition system (pe07.61-p-2000ac)..626
…
40.00 – 124 589 01 31 00 Quick clamping device (ws40.00-p-0015b)..1527
40.00 – 124 589 02 19 00 Telescopic measuring rod (ws40.00-p-0016c)..1528
40.00 – 124 589 04 21 00 Gage pins (ws40.00-p-0017c)..1529
40.00 – 124 589 08 63 00 Connecting pieces (ws40.00-p-0018c)..1530
40.00 – 124 589 17 63 00 Assembly tool (ws40.00-p-0021b)..1531
40.00 – 124 589 20 63 00 Chain (ws40.00-p-0022b)..1532
40.00 – 126 589 04 09 00 Socket wrench bit (ws40.00-p-0023a)..1533
40.00 – 129 589 00 59 00 Removal tool (ws40.00-p-0101b)..1534
40.00 – 129 589 01 21 00 Retainer device (ws40.00-p-0025b)..1535
40.00 – 140 589 09 63 00 Measuring fixture set (ws40.00-p-0029c)..1536
40.00 – 164 589 04 63 00 Retaining tube (ws40.00-p-0071c)..1537
40.00 – 168 589 07 63 00 Measuring set (ws40.00-p-0046b)..1538
40.00 – 170 589 00 63 00 Mount (ws40.00-p-0043c)..1539
40.00 – 201 589 11 31 00 Pulling device (ws40.00-p-0036b)..1540
40.00 – 201 589 12 21 00 Level carrier (ws40.00-p-0037c)..1541
40.00 – 202 589 00 63 00 Retaining bracket (ws40.00-p-0039b)..1542
40.00 – 211 589 00 31 00 Adapter for brake pedal winch (ws40.00-p-0047b)..1543
40.00 – 211 589 06 23 00 Brake pad test gauge (ws40.00-p-0066a)..1544
40.00 – 230 589 01 09 00 Socket wrench (ws40.00-p-0049b)..1545
40.00 – Forms Passenger cars Wheels, chassis alignment check (of40.00-z-3999az)..1546
40.00 – General information on vehicle level measurement (ar40.00-p-0202a)..1547
40.00 – General notes Passenger cars Wheels, chassis alignment check (ah40.00-z-9999az)..1549
40.00 – Safety information Wheels, chassis alignment check (as40.00-z-9999zz)..1550
40.00 – Service Information Permissible valve caps for vehicles with tire pressure monitoring system (si40.00-p-0003a)..1551
40.00 – Service Information Use of nitrogen as a tire-filling gas (si40.00-p-0004a)..1552
40.00 – Technical modifications Passenger cars Wheels, chassis alignment check (bt40.00-z-9999az)..1553
40.00 – Test and adjustment values Passenger cars Wheels, chassis alignment check (be40.00-z-9999az)..1554
40.00 – Tightening torques Passenger cars Wheels, chassis alignment check (ba40.00-z-9999az)..1559
40.10 – Balancing wheels (ar40.10-p-1040a)..1560
40.10 – Check tires for damage and crack formations (ap40.10-p-4051z)..1562
40.10 – Checking tires for lateral and radial runout (ar40.10-p-1025a)..1565
40.10 – General overview of approved wheel_tire combinations in as-built configuration (gf40.10-p-0804a)..1566
40.10 – Overview of tire checks for damage and crack formation (ap40.10-p-4048u)..1581
40.10 – Perform smooth operation optimization (ar40.10-p-3201a)..1582
40.10 – Remove_install wheels, rotate if necessary (ap40.10-p-4050z)..1584
40.10 – Replace tires (ar40.10-p-1030a)..1587
40.10 – Retrofit light alloy wheels (az40.10-p-0003e)..1591
40.10 – Retrofit light alloy wheels (az40.10-p-0003g)..1594
40.10 – Service Information Clean light alloy disk wheel (si40.10-p-0022a)..1597
40.10 – Service Information Cosmetic processing of light alloy wheels (si40.10-p-0026a)..1598
40.10 – Service Information Speed index (si40.10-p-0006a)..1599
40.10 – Service Information bulletin TIREFIT tire sealant (si40.10-p-0020a)..1600
40.10 – Service information It is not permissible to use lead balancing weights (si40.10-p-0015a)..1601
40.10 – Service information Plastic wheel (si40.10-p-0002a)..1603
40.10 – Service information Radial crack in light alloy disk wheel (si40.10-p-0023a)..1604
40.10 – Service information Wheel bolts (si40.10-p-0005a)..1605
40.20 – Adjusting ball point position (ar40.20-p-0321b)..1606
40.20 – Attaching Mercedes-Benz quick-clamping devices (ar40.20-p-0230a)..1607
40.20 – Chassis alignment test sheet Passenger cars (wb6516lit7434z)..1608
40.20 – Check and adjust camber and caster at front axle (ar40.20-p-0322c)..1610
40.20 – Check and adjust control point of level control (ar40.20-p-0310b)..1612
40.20 – Check and adjust front axle toe-in (ar40.20-p-0323c)..1614
40.20 – Check and adjust toe on rear axle (ar40.20-p-0332a)..1616
40.20 – Check ball point position (ar40.20-p-0320a)..1618
40.20 – Check vehicle level at front and rear axle with electronic inclinometer, adjust if necessary (ar40.20-p-0301a)..1619
40.20 – Checking rear axle camber (ar40.20-p-0331a)..1623
40.20 – Checking toe-out on turns (ar40.20-p-0325a)..1626
40.20 – Checking vehicle level at front and rear axles (ar40.20-p-0300a)..1628
40.20 – General information on wheel alignment (ar40.20-p-0201a)..1632
40.20 – Perform chassis alignment check (ar40.20-p-0200a)..1633
40.20 – Service Information Operation texts and work units for chassis alignment (si40.20-p-0005a)..1635
40.20 – Service Information Passenger car chassis specifications CD (si40.20-p-0007a)..1636
40.20 – Service Information for chassis alignment system (si40.20-p-0002a)..1637
40.30 – Carry out distance and comparison measurements on front and rear axles (ar40.30-p-0402a)..1638
40.30 – Check accidents vehicles and vehicles in which accident damage is suspected (ar40.30-p-0400a)..1640
40.30 – Checking alignment of spring control arm, camber strut, strut rod, thrust arm and tie rod on rear axle (ar40.30-p-0420a)..1641
40.30 – Measuring rear axle carrier (when removed) (ar40.30-p-0410a)..1644
40.30 – Measuring steering knuckle (removed) (ar40.30-p-0451c)..1647
40.30 – Measuring wheel carrier (when removed) (ar40.30-p-0425a)..1649
40.30 – Preparations for distance and comparison measurements (ar40.30-p-0401b)..1651
41_Propeller Shaft..1653
41.00 – 126 589 03 15 00 Drift (ws41.00-p-0003c)..1654
41.00 – 129 589 00 34 00 Puller arms (ws41.00-p-0004c)..1655
41.00 – 201 589 07 15 00 Drift (ws41.00-p-0010c)..1656
41.00 – 201 589 09 43 00 Extraction and insertion tool (ws41.00-p-0011c)..1657
41.00 – Capacities Passenger cars Propeller shaft (bf41.00-z-9999az)..1658
41.00 – Forms Passenger cars Propeller shaft (of41.00-z-3999az)..1659
41.00 – General notes Passenger cars Propeller shaft (ah41.00-z-9999az)..1660
41.00 – Technical modifications Passenger cars Propeller shaft (bt41.00-z-9999az)..1661
41.00 – Test and adjustment values Passenger cars Propeller shaft (be41.00-z-9999az)..1662
41.00 – Tightening torques Passenger cars Propeller shaft (ba41.00-z-9999az)..1663
41.10 – Check propeller shaft flexible couplings for signs of damage and deformation (ap41.10-p-4152z)..1664
41.10 – Measure propeller shaft alignment using mechanical propeller shaft articulated angle measuring device (ar41.10-p-0085a)..1665
41.10 – Measure propeller shaft alignment with electronic propeller shaft inclinometer (ar41.10-p-0086a)..1668
41.10 – Removal and installation of propeller shaft intermediate bearing and replacement of grooved ball bearing (ar41.10-p-0100da)..1670
41.10 – Remove_install propeller shaft (ar41.10-p-0050ea)..1672
41.10 – Replacing centering sleeve (ar41.10-p-0200da)..1676
42_Brakes – Hydraulic & Mechanical Systems..1679
42.00 – 000 588 05 21 00 Roller brake test stand (ws42.00-p-0006b)..1684
42.00 – 000 588 07 21 00 Test equipment (ws42.00-p-0014b)..1685
42.00 – 000 589 26 68 00 Brake caliper brush (ws42.00-p-0002a)..1686
42.00 – 000 589 49 37 00 Pliers (ws42.00-n-0005c)..1687
42.00 – 000 589 50 37 00 Pliers (ws42.00-n-0007c)..1688
42.00 – 000 589 52 43 00 Resetting device (ws42.00-p-0009a)..1689
42.00 – 0009 – Notes on accident prevention on the brake roller dynamometers T2 model 668-670 with air-pressure power braking (ra4302dfk0009x)..1690
42.00 – 112 589 09 61 00 Installation tool (ws42.00-n-0012b)..1692
42.00 – 116 589 01 62 00 Removal and installation tool (ws42.00-p-0017b)..1693
42.00 – 123 589 13 33 00 Lever (ws42.00-p-0018a)..1694
42.00 – 129 589 11 63 00 Snap-release tool (ws42.00-n-0027b)..1695
42.00 – 140 589 00 19 00 Caliper gauge (ws42.00-p-0028a)..1696
42.00 – 140 589 03 09 00 Socket wrench (ws42.00-p-0032b)..1697
42.00 – 140 589 45 63 00 -pin test cable (ws42.00-p-0038b)..1698
42.00 – 168 589 08 63 00 Test connection (ws42.00-p-0044b)..1699
42.00 – 201 589 13 21 00 Vacuum tester (ws42.00-p-0036b)..1700
42.00 – 202 589 18 63 00 Test cable 47-pin (ws42.00-p-0045b)..1701
42.00 – 220 589 01 31 00 Guard plate (ws42.00-p-0042b)..1702
42.00 – 220 589 03 63 00 Dispensing gun (ws42.00-p-0076b)..1703
42.00 – 220 589 04 63 00 Repair set (ws42.00-p-0077b)..1704
42.00 – 352 589 02 37 00 Pliers (ws42.00-n-3022c)..1705
42.00 – 601 589 07 63 00 Wedge (ws42.00-n-3005b)..1706
42.00 – Brake test (ap42.00-p-4290ba)..1707
42.00 – Capacities Passenger cars Brakes – hydraulic and mechanical systems (bf42.00-z-9999az)..1712
42.00 – Forms Passenger cars Brakes – hydraulic and mechanical systems (of42.00-z-3999az)..1713
42.00 – General notes Passenger cars Brakes – hydraulic and mechanical systems (ah42.00-z-9999az)..1714
42.00 – Locate noises from the brake (ar42.00-p-2000a)..1715
42.00 – Replace brake fluid (ap42.00-p-4280ba)..1717
42.00 – Safety information Brakes – hydraulic and mechanical systems (as42.00-z-9999zz)..1723
42.00 – Technical modifications Passenger cars Brakes – hydraulic and mechanical systems (bt42.00-z-9999az)..1724
42.00 – Test and adjustment values Passenger cars Brakes – hydraulic and mechanical systems (be42.00-z-9999az)..1725
42.00 – Tightening torques Passenger cars Brakes – hydraulic and mechanical systems (ba42.00-z-9999az)..1728
42.00 – Traction systems (ABS, ASR, ETS) and SPS diagnosis, contents (ad42.00-p-1000az)..1731
42.10 – Bleed brake system (ar42.10-p-0010a)..1732
42.10 – Brake system – inspect fluid level (ap42.10-p-4210z)..1737
42.10 – Check brake lining thickness (ap42.10-p-4253am)..1740
42.10 – Inspect condition of brake disks (ap42.10-p-4258am)..1742
42.10 – Remove_check_install front axle brake pads (ar42.10-p-1600bm)..1748
42.10 – Remove_install brake disc (ar42.10-p-0220a)..1751
42.10 – Remove_install front axle brake caliper (ar42.10-p-0070bm)..1754
42.10 – Remove_install rear axle brake caliper (ar42.10-p-0080am)..1758
42.10 – Remove_install stepped tandem master brake cylinder (ar42.10-p-0310a)..1761
42.10 – Removing and installing mechanical stop lamp switch (ar42.10-p-0040a)..1763
42.10 – Removing, checking and installing rear axle brake pads (ar42.10-p-1700am)..1764
42.10 – Repair fixed brake caliper of rear axle (ar42.10-p-0151a)..1767
42.10 – Repair floating caliper on front axle (ar42.10-p-0152b)..1772
42.10 – Replace brake hoses (ar42.10-p-0013a)..1775
42.10 – Replace brake lines (ar42.10-p-0020a)..1777
42.10 – Service Information Brake caliper with Mercedes-Benz brand cover (si42.10-p-0025a)..1782
42.10 – Service Information Brake hose (si42.10-p-0003b)..1783
42.10 – Service Information Brake lining installation instructions (si42.10-p-0002a)..1784
42.10 – Service Information Fabrication of brake lines (si42.10-p-0004a)..1785
42.10 – Test brake system with pressure tester for leaks (ar42.10-p-0015a)..1786
42.20 – Adjust parking brake (ar42.20-p-0540a)..1789
42.20 – Remove_install front brake cable (ar42.20-p-0520a)..1792
42.20 – Remove_install parking brake pedal assembly (ar42.20-p-0510a)..1794
42.20 – Removing and installing rear brake control cable (ar42.20-p-0525a)..1796
42.30 – Anti-lock brake system (ABS), function description, contents (gf42.30-p-0997a)..1798
42.30 – Anti-lock braking system (ABS) diagnosis contents (ad42.30-p-1000az)..1799
42.30 – Remove_install left front or right rpm sensor (ar42.30-p-0712a)..1800
42.30 – Remove_install pulse ring (ar42.30-p-0715a)..1802
42.30 – Service Information Notes for handling multipole rings (si42.30-p-0004a)..1806
42.30 – Wiring diagram of antilock brake system (ABS) (pe42.30-p-2000d)..1807
42.31 – Brake Assist (BAS) diagnosis, contents (ad42.31-p-1000az)..1808
42.31 – Brake Assist (BAS), contents, function description (gf42.31-p-0999a)..1809
42.31 – Checking brake assist system (BAS) (sm42.31-p-0001b)..1810
42.31 – Overview of Braking Assistant (BAS) system components – Location_Function_Design_function (gf42.31-p-9999a)..1811
42.31 – Removing and installing BAS control module (ar42.31-p-6001a)..1812
42.31 – Removing and installing BAS diaphragm travel sensor (ar42.31-p-6002a)..1813
42.31 – Testing Brake Assist System (BAS) (sm42.31-p-0001a)..1815
42.31 – Wiring diagram of Brake Assist (BAS) (pe42.31-p-2000a)..1817
42.35 – Electronic traction system (ETS) diagnosis contents (ad42.35-p-1001az)..1818
42.40 – Acceleration slip regulation (ASR) diagnosis contents (ad42.40-p-1000az)..1819
42.40 – Contents, function description, acceleration slip regulation (ASR V) (gf42.40-p-0999a)..1820
42.40 – Remove_install ETS_ASR_ESP hydraulic unit (ar42.40-p-0816a)..1821
42.40 – Remove_install ETS_ASR_ESP hydraulic unit (ar42.40-p-0816b)..1824
42.40 – Remove_install left or right rear axle speed sensor (ar42.40-p-0820a)..1827
42.40 – Wiring diagram of acceleration slip regulation (ASR) (pe42.40-p-2000e)..1829
42.45 – Remove_install yaw rate and lateral acceleration sensor (ar42.45-p-0841a)..1830
42.45 – Survey of electronic stability program (ESP) system components, location_task_design_function (gf42.45-p-9999d)..1831
42.45 – Table of contents Functional description, Electronic Stability Program (ESP) (gf42.45-p-0999d)..1832
42.45 – Wiring diagram of electronic stability program (ESP) (pe42.45-p-2000nb)..1833
43_Brakes – Pheumatic System & Auxiliary Brakes..1834
43.00 – General notes Passenger cars Brakes – pneumatic system and auxiliary brakes (ah43.00-z-9999az)..1835
43.00 – Safety information Brakes – pneumatic system and auxiliary brakes (as43.00-z-9999zz)..1836
43.00 – Test and adjustment values Passenger cars Brakes – pneumatic system and auxiliary brakes (be43.00-z-9999az)..1837
43.00 – Tightening torques Passenger cars Brakes – pneumatic system and auxiliary brakes (ba43.00-z-9999az)..1838
43.10 – Checking brake booster (ar43.10-p-0325a)..1839
43.10 – Checking check valve (ar43.10-p-0023a)..1845
43.10 – Removing and installing brake booster (ar43.10-p-0350b)..1847
46_Steering..1849
46.00 – 000 589 69 03 00 Box wrench bit (ws46.00-p-0002b)..1852
46.00 – 123 589 02 21 00 Torque wrench (ws46.00-p-0021a)..1853
46.00 – 124 589 06 21 00 Tester (ws46.00-n-0030b)..1854
46.00 – 126 589 00 10 00 Screwdriver bit (ws46.00-p-0033b)..1855
46.00 – 126 589 13 63 00 Mounting fixture (ws46.00-p-0035a)..1856
46.00 – 129 589 07 21 00 Friction torque meter (ws46.00-p-0086b)..1857
46.00 – 210 589 00 07 00 Claw-type wrench for rosette on ignition_starter switch (ws46.00-p-0065b)..1858
46.00 – 215 589 01 63 00 Connection fitting (ws46.00-p-0079b)..1859
46.00 – Capacities Passenger cars Steering (bf46.00-z-9999az)..1860
46.00 – Check and correct power steering fluid level (ap46.00-p-4611bb)..1861
46.00 – Checking and adjusting oil level in power steering (ap46.00-p-4611ba)..1865
46.00 – Forms Passenger cars Steering (of46.00-z-3999az)..1866
46.00 – General notes Passenger cars Steering (ah46.00-z-9999az)..1867
46.00 – Inspect play of track rod and drag link joints, inspect rubber boots (ap46.00-p-4653ba)..1868
46.00 – Locate noises from the steering (ar46.00-p-2000a)..1869
46.00 – Safety information Steering (as46.00-z-9999zz)..1871
46.00 – Service Information Redocumentation of steering gear in VeDoc (si46.00-p-0001a)..1872
46.00 – Technical modifications Passenger cars Steering (bt46.00-z-9999az)..1873
46.00 – Test and adjustment values Passenger cars Steering (be46.00-z-9999az)..1874
46.00 – Tightening torques Passenger cars Steering (ba46.00-z-9999az)..1875
46.10 – Dismantling and assembling rigid jacket tube (ar46.10-p-0500a)..1877
46.10 – Removal and installation of electronic ignition_starter switch (EZS (ar46.10-p-0810b)..1879
46.10 – Remove_install steering wheel (ar46.10-p-0100c)..1880
46.10 – Removing and installing contact spiral (ar46.10-p-0200b)..1882
46.10 – Removing and installing electronic steering lock (ar46.10-p-0910b)..1883
46.10 – Removing and installing jacket tube (ar46.10-p-0400a)..1884
46.10 – Removing and installing steering angle sensor (ar46.10-p-0300b)..1888
46.10 – Service Information Warranty and goodwill policies for steering wheels (si46.10-p-0006a)..1889
46.15 – Contents . Function descripiton of electric steering column adjustment (gf46.15-p-0999zz)..1890
46.15 – Dismantling and assembling manually adjustable jacket tube (ar46.15-p-0550a)..1891
46.15 – Mirror, steering column adjustment, heated mirrors (MSC) diagnosis contents (ad46.15-p-1000az)..1895
46.20 – Adjusting steering gear in vehicle (ar46.20-p-0100a)..1896
46.20 – Remove_install steering gear (ar46.20-p-0500b)..1898
46.20 – Replacing sealing ring in lower steering gear cover (ar46.20-p-0200a)..1902
46.20 – Retightening steering mounting bolts (ap46.20-p-4671ba)..1904
46.25 – Service Information Approved oils for hydraulic steering systems (si46.25-p-0004a)..1905
46.25 – Service Information Processing of steering system complaints (si46.25-p-0003a)..1907
46.30 – Checking oil pressure of power steering pump (ar46.30-p-0100a)..1908
46.30 – Fill power steering pump and bleed (ar46.30-p-0010a)..1912
46.30 – Remove_install power steering pump (ar46.30-p-0500a)..1914
46.40 – Remove_install drag link (ar46.40-p-0100c)..1917
46.40 – Remove_install steering idler arm, replacing bearing bush (ar46.40-p-0310a)..1918
46.40 – Remove_install tie rod ball joint (ar46.40-p-0210a)..1919
47_Fuel System..1921
47.00 – 000 588 03 21 00 Gas detector (ws47.00-p-0019b)..1922
47.00 – Capacities Passenger cars Fuel system (bf47.00-z-9999az)..1923
47.00 – Forms Passenger cars Fuel system (of47.00-z-3999az)..1924
47.00 – General notes Passenger cars Fuel system (ah47.00-z-9999az)..1925
47.00 – Safety information Fuel system (as47.00-z-9999zz)..1926
47.00 – Service Information Usability of E10 fuel (si47.00-p-0002a)..1927
47.00 – Service information Return delivery of fuel-guiding parts (si47.00-p-0001a)..1930
47.00 – Technical modifications Passenger cars Fuel system (bt47.00-z-9999az)..1933
47.00 – Test and adjustment values Passenger cars Fuel system (be47.00-z-9999az)..1934
47.00 – Tightening torques Passenger cars Fuel system (ba47.00-z-9999az)..1935
47.10 – Remove_install fuel tank (ar47.10-p-4100e)..1936
47.10 – Removing and installing expansion reservoir (ar47.10-p-8021f)..1939
47.10 – Removing and installing guide funnel (ar47.10-p-7571d)..1940
47.10 – Service Information Procedure for fuel tank leaks (si47.10-p-0007a)..1941
47.10 – Service information on fuel sensor (si47.10-p-0001a)..1942
47.20 – Model and components installation survey fuel pumps as-built configuration (gf47.20-p-0801a)..1944
47.20 – Remove_install fuel pumps (ar47.20-p-5713d)..1945
47.20 – Replacing fuel filter (ap47.20-p-0780db)..1948
47.20 – Service Information Parts identification for fuel tank fuel filter in the EPC (si47.20-p-0003b)..1950
47.30 – Removing and installing activated charcoal canister (ar47.30-p-8212da)..1951
49_Exhaust System..1955
49.00 – Certificates Passenger cars Exhaust system (of49.00-z-1999az)..1956
49.00 – General notes Passenger cars Exhaust system (ah49.00-z-9999az)..1957
49.00 – Safety information Exhaust system (as49.00-z-9999zz)..1958
49.00 – Technical modifications Passenger cars Exhaust system (bt49.00-z-9999az)..1959
49.00 – Tightening torques Passenger cars Exhaust system (ba49.00-z-9999az)..1960
49.10 – Instructions for treatment of exhaust pipes, catalytic converters, mufflers as toxic waste (os49.10-n-1000a)..1961
49.10 – Retrofitting AMG muffler system (az49.10-p-0001d)..1962
49.10 – Service Information Care of tail pipe finishers (si49.10-p-0008a)..1964
49.10 – Service Information Recycling of diesel particulate filters (si49.10-p-0007a)..1965
54_Electrical System, Equipment & Instruments..1966
54.00 – 000 586 00 99 00 Battery diagnostic unit (ws54.00-p-0033c)..1972
54.00 – 000 588 00 19 00 Insulation measuring unit (ws54.00-p-0046b)..1973
54.00 – 000 588 00 81 00 Charger (ws54.00-p-0037b)..1974
54.00 – 000 588 00 84 00 Heat gun (ws54.00-p-0049b)..1975
54.00 – 000 588 02 19 00 Battery tester (ws54.00-n-3006b)..1976
54.00 – 000 588 02 81 00 Jump-starting device (ws54.00-p-0041b)..1977
54.00 – 000 588 03 81 00 Jumper cables (ws54.00-p-0039b)..1978
54.00 – 000 588 06 19 00 Measuring instrument (ws54.00-p-0043b)..1979
54.00 – 000 588 16 98 00 Support (ws54.00-p-0047b)..1980
54.00 – 000 589 30 37 00 Wire stripper (ws54.00-p-0025b)..1981
54.00 – 000 589 88 63 00 Removal assembly (ws54.00-p-0067b)..1982
54.00 – 124 589 00 21 00 35 Pin socket box (ws54.00-n-0002b)..1983
54.00 – 129 589 00 09 00 Pin socket (ws54.00-n-0007b)..1984
54.00 – 129 589 00 21 00 126-pin socket box (ws54.00-p-0008b)..1985
54.00 – 129 589 01 09 00 Pin socket (ws54.00-p-0040b)..1986
54.00 – 140 589 02 33 00 Pulling hook (ws54.00-p-0011b)..1987
54.00 – 140 589 06 31 00 Unlocking tool (ws54.00-p-0044b)..1988
54.00 – 140 589 12 21 00 Baseline current draw test adapter 1 (ws54.00-p-0015b)..1989
54.00 – 140 589 13 21 00 Quiescent current test adapter 2 (ws54.00-p-0016b)..1990
54.00 – 140 589 43 63 00 -pin test cable (ws54.00-p-0020b)..1991
54.00 – 169 589 00 37 00 Pliers (ws54.00-p-0073b)..1992
54.00 – 202 589 03 33 00 Unlocking tool (ws54.00-p-0021b)..1993
54.00 – 210 589 02 33 00 Unlocking tool for SPT _ JPT contacts (ws54.00-p-0042b)..1994
54.00 – 220 589 00 99 00 Electrical connection kit (ws54.00-p-0050b)..1995
54.00 – CAN data bus, contents, function description (gf54.00-p-0999zz)..1996
54.00 – Forms Passenger cars Electrical system, equipment and instruments (of54.00-z-3999az)..1997
54.00 – General notes Passenger cars Electrical system, equipment and instruments (ah54.00-z-9999az)..1998
54.00 – Safety information Electrical system, equipment and instruments (as54.00-z-9999zz)..1999
54.00 – Technical modifications Passenger cars Electrical system, equipment and instruments (bt54.00-z-9999az)..2000
54.00 – Test and adjustment values Passenger cars Electrical system, equipment and instruments (be54.00-z-9999az)..2001
54.00 – Tightening torques Passenger cars Electrical system, equipment and instruments (ba54.00-z-9999az)..2002
54.10 – Batteries – checking and correcting fluid level (ap54.10-p-5410a)..2003
54.10 – Charge battery (ar54.10-p-1130z)..2004
54.10 – Check condition of battery (ar54.10-p-1129z)..2005
54.10 – Check quiescent current consumption (ar54.10-p-1030ab)..2009
54.10 – Disconnect_connect battery's ground cable (ar54.10-p-0003a)..2011
54.10 – Disposal of toxic waste, battery (os54.10-p-1000zz)..2013
54.10 – Initial filling of battery (ar54.10-p-0001z)..2014
54.10 – Remove_install 12 Volt socket (ar54.10-p-1000tx)..2015
54.10 – Remove_install cigarette lighter (ar54.10-p-0030tx)..2016
54.10 – Removing and installing battery (ar54.10-p-0005ea)..2018
54.10 – Service Information Battery tester (si54.10-z-0023a)..2021
54.10 – Service Information Charge battery (si54.10-p-0018a)..2022
54.10 – Service Information New test method for batteries (si54.10-p-0003a)..2023
54.10 – Service Information Quiescent current test via voltage drop at the fuses (si54.10-p-0016a)..2024
54.10 – Service Information Wet battery handling (si54.10-p-0006a)..2025
54.10 – Service Information bulletin Battery test and inspection (si54.10-p-0017a)..2027
54.10 – Treatment of battery if vehicle taken out of service (ar54.10-p-0006ea)..2028
54.15 – Removing and installing fuse and relay box (ar54.15-p-1255ef)..2029
54.15 – Removing and installing fuse box in trunk (ar54.15-p-1324a)..2031
54.15 – Service Information Encoding of electrical fuses (si54.15-s-0008a)..2032
54.15 – Wiring diagram of fuse and relay box (F1) (pe54.15-p-2000d)..2033
54.15 – Wiring diagram of rear fuse box (F4) (pe54.15-p-2100c)..2034
54.18 – 54.02 – Installation instructions Connectors A. Working instructions for connectors, B. Parts ordering note Models 170, 202, 208, 210, 220 (ea5402pb5es00x)..2035
54.18 – Repair squib wiring harness for Supplemental Restraint System (SRS) (ar54.18-p-0600a)..2037
54.18 – Service Information CAN distributor (si54.18-p-0004a)..2039
54.18 – Service Information Damage code for electrical components (si54.18-z-0012a)..2040
54.18 – Service Information bulletin Retrofit marten repeller on electrical lines (si54.18-p-0007a)..2042
54.18 – Service Information on wiring harness complaints (si54.18-p-0001a)..2043
54.20 – Electric wiring diagram of driver-side fuse and relay module (K40_2) (pe54.20-p-2100b)..2044
54.20 – Removing and installing control module box (ar54.20-p-1257d)..2045
54.20 – Wiring diagram of front passenger-side fuse and relay module (K40_4) (pe54.20-p-2200c)..2046
54.21 – Electric wiring diagram of front passenger-side signal-acquisition and actuation module (SAM) (N10_1) (pe54.21-p-2200b)..2047
54.21 – Pneumatic control unit control module (PSE) stabilizing (sm54.21-p-0001a)..2048
54.21 – Programming of control units (ar54.21-p-0014y)..2049
54.21 – Programming of control units (ar54.21-p-0014z)..2050
54.21 – SCAN coding of control units (ar54.21-p-0015x)..2051
54.21 – Service Information Malfunctions due to other-make installations (si54.21-p-0007a)..2052
54.21 – Service Information Programming of control units (si54.21-p-0008a)..2053
54.21 – Service Information Reimbursement of additional work in event of programming abort (si54.21-p-0039a)..2054
54.22 – Wiring diagram of data link connector_diagnostic socket (pe54.22-p-2000d)..2055
54.22 – Wiring diagram of data link connector_diagnostic socket (pe54.22-p-2000na)..2056
54.25 – Removing and installing combination switch (ar54.25-p-2800ea)..2057
54.25 – Removing and installing light module (ar54.25-p-3260a)..2058
54.25 – Service Information bulletin Clutch pedal start enable switch (S40_5) (si54.25-p-0006a)..2059
54.30 – Contents, function description, instrument cluster (IC) (gf54.30-p-0997az)..2060
54.30 – Instrument cluster (IC) diagnosis, contents (ad54.30-p-1000az)..2062
54.30 – Removing and installing bulbs in instrument cluster (ar54.30-p-6049eb)..2063
54.30 – Removing and installing instrument cluster (ar54.30-p-6015ea)..2066
54.30 – Removing and installing instrument cluster housing (ar54.30-p-6031ea)..2067
54.30 – Removing and installing outside temperature indicator sensor (ar54.30-p-6341eb)..2069
54.30 – Service information on reading and parameterizing instrument cluster (si54.30-p-0002a)..2070
54.30 – Table of contents, function description of instrument cluster (IC) (gf54.30-p-0997bz)..2071
54.30 – Wiring diagram of instrument cluster (CLUS)_display instruments_warning devices (pe54.30-p-2000na)..2072
54.30 – Wiring diagram of instrument cluster (IC)_ display instruments_ warning devices (pe54.30-p-2000k)..2073
54.35 – Contents function description fanfare horns (gf54.35-p-0999az)..2074
54.35 – Contents function description fanfare horns (gf54.35-p-0999zz)..2075
54.35 – Removing and installing fanfare horns (ar54.35-p-1555ed)..2076
54.35 – Signal devices fanfare horns diagnosis, contents (ad54.35-p-1000az)..2077
54.35 – Wiring diagram of signal system (pe54.35-p-2000e)..2078
54.50 – Service Information Reset trip computer following engine control unit software update (si54.50-p-0002a)..2079
54.50 – Trip computer (TRIP) contents function description (gf54.50-p-0999uz)..2080
54.50 – Trip computer (TRIP) contents function description (gf54.50-p-0999vz)..2081
54.65 – Contents, function description, Parktronic system (PTS) (gf54.65-p-0999a)..2082
54.65 – Overview of system components of Parktronic system (PTS), location_task_design_function (gf54.65-p-9999a)..2083
54.65 – Parktronic system (PTS) diagnosis, contents (ad54.65-p-1000az)..2084
54.65 – Removing and installing Parktronic System (PTS) sensors in front bumper (ar54.65-p-0001a)..2085
54.65 – Removing and installing Parktronic System (PTS) sensors in rear bumper (ar54.65-p-0002a)..2087
54.65 – Removing and installing Parktronic system (PTS) control module (ar54.65-p-0006b)..2089
54.65 – Removing and installing Parktronic system (PTS) switch (ar54.65-p-0005b)..2090
54.65 – Removing and installing Parktronic system (PTS) warning indicator in rear dome lamp (ar54.65-p-0004b)..2091
54.65 – Removing and installing Parktronic system (PTS) warning indicator on instrument panel (ar54.65-p-0003b)..2092
54.65 – Retrofitting ultrasonic backup assist (az54.65-p-0001f)..2093
54.65 – Service Information PARKTRONIC malfunctions (si54.65-p-0003a)..2094
54.65 – Service Information Warranty and goodwill settlement for Parktronic sensors (si54.65-p-0002a)..2096
54.65 – Wiring diagram Parktronic system (PTS) (pe54.65-p-2000b)..2097
55_Auxiliary Drive Systems, Hydraulic and Linkage Systems..2098
55.00 – Safety information Auxiliary drive systems, hydraulic and articulation systems (as55.00-z-9999zz)..2099
58_Tools..2100
58.00 – Forms Passenger cars Tools (of58.00-z-3999az)..2102
58.00 – Safety information Tools (as58.00-z-9999zz)..2103
58.20 – Service Information Modify chain separating tool and rivet press tool (si58.20-d-0001sf)..2104
58.20 – Service Information Special tool modification (si58.20-p-0004c)..2106
58.20 – Service information New special tool (si58.20-p-0005a)..2107
58.20 – Service information New special tool (si58.20-p-0005b)..2108
58.20 – Service information for special tools (si58.20-p-0002b)..2109
58.20 – Special tools in EPC (si58.20-p-0019a)..2110
…
98.20 – Service information Paint repairs and repair work on plastic parts (si98.20-z-0002a)..3028
98.30 – Cleaning and care of MB vehicle paintwork (ap98.30-p-8070a)..3030
98.30 – Service Information Polish and care products for vehicle conditioning (si98.30-p-0001a)..3032
99_Printed Matter..3033
99.00 – General notes Passenger cars Publications (ah99.00-z-9999az)..3034
99.00 – Safety information Publications (as99.00-z-9999zz)..3035
99.00 – Technical modifications Passenger cars Publications (bt99.00-z-9999az)..3036
99.00 – Tightening torques Passenger cars Publications (ba99.00-z-9999az)..3037
99.20 – Body exposure Passenger vehicles incl. cross country vehicles (wb6516lit7490z)..3038
99.20 – Center section, Rear end Passenger vehicles incl. cross country vehicles (wb6516lit7501z)..3042
99.20 – Fault code documentation Passenger cars and Off Road Vehicles (wb6516lit7481z)..3046
99.20 – Front end Passenger cars and cross country vehicles (wb6516lit7500z)..3048
99.20 – Mobilo Attachment to warranty claim for the reimbursement of costs incurred from breakdowns and starting problems (wb65160010399z)..3051
99.20 – Predelivery inspection for passenger cars, Stage 1 (New vehicles up to 1 year after market launch) (wb6516lit7503z)..3054
99.20 – Predelivery inspection for püassenger cars, stage 2 (New vehicles up to 1 year after market launch) (wb6516lit7504z)..3055
99.20 – Test Sheet Passenger Cars (wb6516lit7438z)..305

INSTANT DOWNLOAD

Posted on December 15, 2024December 15, 2024 by admin

Mercedes-Benz C207/A207 E-Class Repair Service Manual

INSTANT DOWNLOAD

Complete service repair manual with Electrical Wiring Diagrams for Mercedes-Benz C207/A207 E-Class, with all the technical information to maintain, diagnose, repair, and rebuild like professional mechanics.

Mercedes-Benz C207/A207 E-Class workshop service repair manual includes:
* Numbered table of contents easy to use so that you can find the information you need fast.
* Detailed sub-steps expand on repair procedure information
* Numbered instructions guide you through every repair procedure step by step.
* Troubleshooting and electrical service procedures are combined with detailed wiring diagrams for ease of use.
* Notes, cautions and warnings throughout each chapter pinpoint critical information.
* Bold figure number help you quickly match illustrations with instructions.
* Detailed illustrations, drawings and photos guide you through every procedure.
* Enlarged inset helps you identify and examine parts in detail.

Mercedes-Benz C207_A207 E-Class Service Repair Manual 2009-2017.pdf

PRODUCT DETAILS:
Total Pages: 3,632 pages
File Format: PDF (Internal Links, Bookmarked, Table of Contents, Searchable, Printable, high quality)
Language: English

2-door coupé (C207)
2-door convertible (A207)

E 200 CGI BlueEFFICIENCY, E 250 CGI BlueEFFICIENCY, E 300 BlueEFFICIENCY, E 350 CGI BlueEFFICIENCY, E 400, E 500, E 220 CDI BlueEFFICIENCY, E 250 CDI BlueEFFICIENCY, E 350 CDI BlueEFFICIENCY

TABLE OF CONTENTS
00_Overall Vehicle..3
00.00 – 000 588 03 90 00 Extractor link arm (ws00.00-p-0037b)..16
00.00 – 000 588 04 90 00 Hose grommet (ws00.00-p-0035b)..17
00.00 – 000 588 05 80 00 Pit lift (ws00.00-p-0248b)..18
00.00 – 000 588 05 90 00 Clamping grommet (ws00.00-p-0036b)..19
00.00 – 000 589 00 21 00 Test box (ws00.00-p-0034b)..20
00.00 – 000 589 01 10 00 Torx bit set (ws00.00-n-0001z)..21
00.00 – 000 589 01 40 00 Bracket (ws00.00-p-0244z)..22
00.00 – 000 589 10 99 00 Tool kit (ws00.00-p-0030z)..23
00.00 – 000 589 25 33 00 Internal extractor (ws00.00-n-0050z)..24
00.00 – 000 589 28 33 00 Puller dia. 28-37 mm (ws00.00-n-3026z)..25
00.00 – 000 589 29 33 00 Internal extractor (ws00.00-n-3027z)..26
00.00 – 000 589 30 16 00 Hexagon ratchet, 10 mm (ws00.00-p-0002z)..27
00.00 – 000 589 31 16 00 Hexagon ratchet, 13 mm (ws00.00-p-0003z)..28
00.00 – 000 589 32 16 00 Hexagon ratchet, 17 mm (ws00.00-p-0004z)..29
00.00 – 000 589 33 33 00 Counter stay (ws00.00-n-0051z)..30
00.00 – 000 589 35 33 00 Countersupport (ws00.00-n-3033z)..31
00.00 – 000 589 40 37 00 Clamp (ws00.00-n-0005z)..32
00.00 – 000 589 40 37 00 Clamp (ws00.00-p-0005z)..33
00.00 – 000 589 49 98 00 Oil sample container (ws00.00-p-0263b)..34
00.00 – 000 589 54 37 00 Clamp (ws00.00-p-0006z)..35
00.00 – 000 589 65 33 00 Puller (ws00.00-p-0007z)..36
00.00 – 000 589 67 21 00 Torque wrench (ws00.00-p-0008z)..37
00.00 – 000 589 68 33 00 Internal extractor (ws00.00-n-3030z)..38
00.00 – 000 589 75 03 00 Box wrench bit (ws00.00-p-0009z)..39
00.00 – 000 589 76 03 00 Box wrench (ws00.00-p-0010z)..40
00.00 – 000 589 87 33 00 Gripper (ws00.00-n-3054z)..41
00.00 – 000 589 89 33 00 Puller (ws00.00-n-3022z)..42
00.00 – 001 589 00 16 00 Adapter coupling (ws00.00-p-0120z)..43
00.00 – 001 589 03 91 00 Set of protective covers (ws00.00-p-3069b)..44
00.00 – 001 589 51 21 00 Torque wrench (ws00.00-p-0012z)..45
00.00 – 001 589 53 21 00 Dial gage (ws00.00-n-0013z)..46
00.00 – 001 589 66 21 00 Torque wrench (ws00.00-n-0015z)..47
00.00 – 001 589 67 21 00 Torque wrench (ws00.00-n-0016z)..48
00.00 – 001 589 72 21 00 Torque wrench (ws00.00-p-0017z)..49
00.00 – 001 589 73 21 00 Hand vacuum pump (ws00.00-p-0018z)..50
00.00 – 001 589 74 21 00 Torque wrench (ws00.00-n-0019z)..51
00.00 – 001 589 75 21 00 Torque wrench (ws00.00-n-3049b)..52
00.00 – 001 589 76 09 00 External torx set (ws00.00-n-0020z)..53
00.00 – 001 589 81 09 00 Set of flexible head wrenches (ws00.00-p-0251b)..54
00.00 – 001 589 81 21 00 Torque screwdriver (ws00.00-n-0021z)..55
00.00 – 001 589 87 21 00 Torque wrench (ws00.00-p-0119z)..56
00.00 – 003 589 05 09 00 Torque tool set (ws00.00-n-0261a)..57
00.00 – 003 589 06 09 00 Plug-in wrench (ws00.00-p-0262a)..58
00.00 – 100 589 02 59 00 Adapter (ws00.00-p-0022z)..59
00.00 – 110 589 03 59 00 Mounting wedge (ws00.00-p-0274k)..60
00.00 – 112 589 00 25 00 Squeeze gun (ws00.00-p-0052z)..61
00.00 – 116 589 02 07 00 Screwdriver, 5 mm (ws00.00-n-0023z)..62
00.00 – 116 589 03 07 00 T-handle Allen wrench (ws00.00-p-0024z)..63
00.00 – 117 589 02 07 00 Pin box wrench (ws00.00-p-0054z)..64
00.00 – 123 589 00 16 00 Extension (ws00.00-p-0025z)..65
00.00 – 123 589 02 09 00 Socket (ws00.00-p-0026z)..66
00.00 – 123 589 02 10 00 Allen wrench socket (ws00.00-p-0027z)..67
00.00 – 123 589 03 09 00 Socket (ws00.00-p-0028z)..68
00.00 – 163 589 03 43 00 Press (ws00.00-p-0057z)..69
00.00 – 171 589 01 31 00 Vehicle hoist securing tool (ws00.00-p-0282z)..70
00.00 – 198 589 00 09 00 Flexible head wrench socket (ws00.00-p-0032z)..71
00.00 – 210 589 00 71 00 Hand pump (ws00.00-p-0280z)..72
00.00 – 211 589 01 99 00 Wiring harness repair kit (ws00.00-p-0273b)..73
00.00 – 220 589 05 99 00 Electrical connection kit (ws00.00-p-0279z)..74
00.00 – 363 589 02 21 00 Dial indicator holder (ws00.00-p-0033z)..75
00.00 – Check on-board literature (sm00.00-p-0014b)..76
00.00 – Check operating instructions (sm00.00-p-0013e)..77
00.00 – Check owner's manual (code 1403P58A93) (sm00.00-p-0024a)..80
00.00 – Collection and disposal of components containing mercury – s00.00-p-1000zz)..82
00.00 – Forms Passenger cars Overall vehicle (of00.00-z-3999az)..83
00.00 – General notes Passenger cars Overall vehicle (ah00.00-z-9999az)..84
00.00 – Insert supplementary sheet for ECO start_stop in operator's manual (sm00.00-p-0019a)..86
00.00 – Overview of innovations_changes (sn00.00-p-0082ag)..87
00.00 – Overview of innovations_changes (sn00.00-p-0082am)..88
00.00 – Overview of innovations_changes 06_2010 (sn00.00-p-1034g)..90
00.00 – Overview of innovations_changes 06_2011 (sn00.00-p-1033g)..94
00.00 – Overview of new products_features_modifications 06_2012 (sn00.00-p-0034g)..96
00.00 – Overview of new products_features_modifications 06_2013 (sn00.00-p-0033g)..97
00.00 – Safety information Overall vehicle (as00.00-z-9999zz)..100
00.00 – Scrapping gas-filled hydraulic components – s00.00-p-2000zz)..103
00.00 – Service Information AMG After Sales Portal – i00.00-p-0125a)..104
00.00 – Service Information Exclusion of liability for third-party retrofits – i00.00-p-0025a)..105
00.00 – Service Information New features_modifications in passenger cars – i00.00-p-0127a)..106
00.00 – Service Information New features_modifications in passenger cars, June 2013 – i00.00-p-0126a)..107
00.00 – Service Information New operation number structure for diagnosis jobs – i00.00-p-0051a)..108
00.00 – Service Information New products_new features_modifications – passenger cars (June 2011) (si00.00-p-0122a)..112
00.00 – Service Information New products_new features_modifications – passenger cars (June 2011) – i00.00-p-0122a)..115
00.00 – Service Information Operation items for test drives (si00.00-p-0009a)..118
00.00 – Service Information Operation items for test drives – i00.00-p-0009a)..120
00.00 – Service Information Processing of warranty and goodwill claims (si00.00-p-0116a)..122
00.00 – Service Information Processing of warranty and goodwill claims – i00.00-p-0116a)..123
00.00 – Service Information QR code for rescue forces (si00.00-p-0089a)..124
00.00 – Service Information QR code for rescue forces – i00.00-p-0089a)..125
00.00 – Service Information Short summary of vehicle operation (si00.00-p-0020a)..126
00.00 – Service Information Short summary of vehicle operation – i00.00-p-0020a)..127
00.00 – Service Information Software-based retrofits (si00.00-p-0015a)..128
00.00 – Service Information Software-based retrofits – i00.00-p-0015a)..130
00.00 – Service information Important notes on the use of various vehicle systems and components (si00.00-p-0500a)..132
00.00 – Service information Important notes on the use of various vehicle systems and components – i00.00-p-0500a)..135
00.00 – Service information New damage code (si00.00-z-0038a)..138
00.00 – Service information New damage code – i00.00-z-0038a)..139
00.00 – Service information New update concept for diagnosis applications (si00.00-z-0004a)..140
00.00 – Service information New update concept for diagnosis applications – i00.00-z-0004a)..141
00.00 – Sheet of drawings on paint damage Passenger cars, Model des. 129, 140, 202, 210 (wb6516lit7423z)..142
00.00 – Tightening torques Passenger cars Overall vehicle – a00.00-z-9999az)..144
00.01 – Abbreviations of signal and circuit designations for wiring diagrams – v00.01-p-1001-28eaa)..145
00.01 – Certificates – f00.01-z-1999zz)..153
00.01 – Forms – f00.01-z-3999zz)..154
00.01 – Function group overview, engine – v00.01-z-1904a)..155
00.01 – Function group survey, body – v00.01-z-1906a)..156
00.01 – Information for the user – v00.01-z-0100zz)..157
00.01 – Introduction of WIS Service Media (sn00.01-z-0012a)..158
00.01 – Overall vehicle model and major assembly installation overview – v00.01-z-0150az)..160
00.01 – Overview of function groups, chassis – v00.01-z-1905a)..162
00.01 – Search aid for all electrical components – v00.01-p-1909eaa)..163
00.01 – Search aid for all function schematics – v00.01-p-1912eaa)..191
00.01 – Search aid for all wiring diagram groups – v00.01-p-1901eaa)..194
00.01 – Search aid for electrical components – v00.01-z-1800a)..202
00.01 – Service Information Content and application of data mediums Telematics CD_DVD, Regio DVD and Digital Owner‘s Manual DVD (si00.01-p-0014a)..204
00.01 – Service Information Content and application of data mediums Telematics CD_DVD, Regio DVD and Digital Owner‘s Manual DVD – i00.01-p-0014a)..205
00.01 – Service Information Damage or breakdown case in international traffic (si00.01-z-0031a)..206
00.01 – Service Information Damage or breakdown case in international traffic – i00.01-z-0031a)..207
00.01 – Service Information Invoicing of quick test (si00.01-p-0006a)..208
00.01 – Service Information Invoicing of quick test – i00.01-p-0006a)..209
00.01 – Service Information SDconnect rechargeable battery (si00.01-p-0003a)..210
00.01 – Service Information SDconnect rechargeable battery – i00.01-p-0003a)..211
00.01 – Service Information Structure of the new operation numbers for SmallRepair in ASRA [operation texts, standard texts, flat rates and work units] (si00.01-z-0001a)..212
00.01 – Service Information Structure of the new operation numbers for SmallRepair in ASRA [operation texts, standard texts, flat rates and work units] – i00.01-z-0001a)..213
00.01 – Service Information Synonym search – New functionality in WIS (si00.01-z-0036a)..214
00.01 – Service Information Trouble diagnosis bulletins (AF) publication type not applicable (si00.01-z-0029a)..215
00.01 – Service Information Trouble diagnosis bulletins (AF) publication type not applicable – i00.01-z-0029a)..216
00.01 – Service Information WIS Service Media (si00.01-z-0012a)..217
00.01 – Service Information WIS Service Media – i00.01-z-0012a)..218
00.01 – Service Information bulletin Use of basic operations (G) and linked operations (V) (si00.01-p-0024a)..219
00.01 – Service Information bulletin Use of basic operations (G) and linked operations (V) – i00.01-p-0024a)..220
00.01 – Service-Information Xentry Support & Feedback in WIS net (si00.01-z-0030a)..221
00.01 – Service-Information Xentry Support & Feedback in WIS net – i00.01-z-0030a)..224
00.01 – Summaries – v00.01-z-0102zz)..227
00.01 – Survey of function groups – overall vehicle – v00.01-z-1903a)..228
00.01 – Terminology – v00.01-z-0104zz)..229
00.01 – Use of wiring diagrams – v00.01-p-1901-03eaa)..230
00.10 – Check gear capacity – r00.10-p-1010a)..233
00.10 – Full vehicle model and equipment installation summary, as-built configuration – f00.10-p-0801ak)..236
00.10 – Retrofit information label (sm00.10-p-0006b)..237
00.10 – Service Information Vehicle identification plate orders (si00.10-p-0003b)..238
00.10 – Service Information Vehicle identification plate orders – i00.10-p-0003b)..239
00.10 – Table of contents for retrofitting and converting accessories – z00.10-p-1000cza)..240
00.10 – Table of contents for retrofitting and converting special equipment – n00.10-p-1000ezc)..243
00.19 – 000 589 13 99 00 Wiring harness repair kit, basic (ws00.19-p-0007b)..251
00.19 – 220 589 01 99 00 Wiring harness repair kit (ws00.19-p-0009b)..252
00.19 – 220 589 02 99 00 Wiring harness repair kit (ws00.19-p-0002b)..255
00.19 – 220 589 03 99 00 Positioning mount with quick-release fitting (ws00.19-p-0003b)..257
00.19 – 220 589 04 99 00 Wiring harness repair kit, supplement (ws00.19-p-0006b)..258
00.19 – 930 589 00 99 00 Wiring harness repair kit, supplement (ws00.19-n-0004b)..259
00.19 – General repair methods for wiring harness – r00.19-p-0100a)..260
00.19 – Location and assignment of Z connector sleeves (wiring and plug connectors in wiring harness) – f00.19-p-3000eaa)..264
00.19 – Location and assignment of line and plug connectors – f00.19-p-1000eaa)..272
00.19 – Overall network (GVN) function description table of contents – f00.19-p-0999ca)..282
00.19 – Overall network (GVN) function description table of contents – f00.19-p-0999cam)..283
00.19 – Overview of system components for overall network (GVN) – f00.19-p-9997ca)..284
00.19 – Overview of system components for overall network (GVN) – f00.19-p-9997cam)..290
00.19 – Removing contacts from plugs and connectors – r00.19-p-0120a)..296
00.19 – Repair wiring harness as per specified repair method – r00.19-p-0001a)..301
00.19 – Wiring diagram for drive train sensor CAN – e00.19-p-2171eaa)..303
00.19 – Wiring diagram of chassis CAN – e00.19-p-2195eaa)..304
00.19 – Wiring diagram of chassis CAN – e00.19-p-2195eab)..305
00.19 – Wiring diagram of chassis CAN – e00.19-p-2195eac)..306
00.19 – Wiring diagram of drive train CAN – e00.19-p-2170eaa)..307
00.19 – Wiring diagram of ground cabling – e00.19-p-2800eaa)..308
00.19 – Wiring diagram of ground cabling – e00.19-p-2800eab)..309
00.19 – Wiring diagram of ground cabling – e00.19-p-2800eac)..310
00.19 – Wiring diagram of ground cabling – e00.19-p-2800ead)..311
00.19 – Wiring diagram of ground cabling – e00.19-p-2800eae)..312
00.19 – Wiring diagram of ground cabling – e00.19-p-2800eaf)..313
00.19 – Wiring diagram of ground cabling – e00.19-p-2800eag)..314
00.19 – Wiring diagram of ground cabling – e00.19-p-2800eah)..315
00.19 – Wiring diagram of ground cabling – e00.19-p-2800eai)..316
00.19 – Wiring diagram of ground cabling – e00.19-p-2800eaj)..317
00.19 – Wiring diagram of interior CAN – e00.19-p-2185eaa)..318
00.19 – Wiring diagram of interior CAN – e00.19-p-2185eab)..319
00.19 – Wiring diagram of interior CAN – e00.19-p-2185eac)..320
00.19 – Wiring diagram of soldered points _ Z connector sleeves – e00.19-p-2600eaa)..321
00.19 – Wiring diagram of soldered points _ Z connector sleeves – e00.19-p-2600eab)..322
00.19 – Wiring diagram of soldered points _ Z connector sleeves – e00.19-p-2600eac)..323
00.19 – Wiring diagram of telematics CAN – e00.19-p-2180eaa)..324
00.19 – Wiring diagram of vehicle dynamics CAN – e00.19-p-2190eaa)..325
00.19 – Wiring diagrams, contents – e00.19-p-1050eaa)..326
00.20 – Bring up workshop level on instrument cluster – p00.20-p-0046a)..327
00.20 – Check all visible parts for leaks and damage – p00.20-p-0053ew)..329
00.20 – Check all visible parts in engine compartment for damage and leaks – p00.20-p-0055ew)..331
00.20 – Check all visible parts of vehicle underside for damage and leaks – p00.20-p-0054ew)..333
00.20 – Inspect chassis and load-bearing body parts for damage and corrosion – p00.20-p-0090ew)..336
00.20 – Maintenance – p00.20-p-0000e)..337
00.20 – OVERVIEW for service sheet – p00.20-p-1228p)..339
00.20 – OVERVIEW for service sheet – p00.20-p-1228pc)..344
00.20 – OVERVIEW for service sheet – p00.20-p-1228td)..349
00.20 – Overview of operations not controlled via workshop code – p00.20-p-0047u)..355
00.20 – Perform delivery and hand-over inspection – p00.20-p-1100b)..356
00.20 – Perform delivery check for new vehicles – p00.20-p-1101a)..361
00.20 – Plus package service items, general view – p00.20-p-0048u)..363
00.20 – Read out maintenance data from instrument cluster and reset service indicator, general view – p00.20-p-0049u)..364
00.20 – Reset service indicator – p00.20-p-0042ew)..365
00.20 – Service Information Additional information on introduction of reception report (si00.20-p-0038a)..367
00.20 – Service Information Additional information on introduction of reception report – i00.20-p-0038a)..369
00.20 – Service Information Filling of AdBlue during service (si00.20-p-0004a)..371
00.20 – Service Information Filling of AdBlue during service – i00.20-p-0004a)..373
00.20 – Service Information Forms for delivery and hand-over inspections, inspections and checks in information type AP (si00.20-p-0044a)..375
00.20 – Service Information Forms for delivery and hand-over inspections, inspections and checks in information type AP – i00.20-p-0044a)..376
00.20 – Service Information Introduction of maintenance reception report for all model series (si00.20-p-0013a)..377
00.20 – Service Information Introduction of maintenance reception report for all model series – i00.20-p-0013a)..384
00.20 – Service information Digital Service Booklet Confirmation of maintenance operations in WIS service sheet (si00.20-p-0034a)..391
00.20 – Service information Digital Service Booklet Confirmation of maintenance operations in WIS service sheet – i00.20-p-0034a)..394
00.20 – Spring Inspection – p00.20-p-0081a)..397
00.20 – Travel inspection – p00.20-p-0080a)..400
00.20 – Used car check (Young Stars) – p00.20-p-0085a)..403
00.20 – Used car check – p00.20-p-0084a)..409
00.20 – Winter Inspection – p00.20-p-0082a)..414
00.40 – Directory of additional operating fluids – b00.40-p-0300zz)..417
00.40 – General list – b00.40-p-0000zz)..418
00.40 – List of fuels – b00.40-p-0100zz)..419
00.40 – List of lubricants – b00.40-p-0200zz)..420
00.40 – Search aid for Specifications for Operating Fluids – b00.40-p-0900a)..421
00.40 – Service Information Exclusive use of Mercedes-Benz lubricants in warranty and goodwill cases (si00.40-p-0009a)..425
00.40 – Service Information Exclusive use of Mercedes-Benz lubricants in warranty and goodwill cases – i00.40-p-0009a)..426
00.40 – Service Information bulletin Specifications for Operating Fluids for automatic transmission (si00.40-p-0014a)..427
00.40 – Service Information bulletin Specifications for Operating Fluids for automatic transmission – i00.40-p-0014a)..429
00.40 – Service information Dying of windshield washer fluid concentrate (si00.40-z-0006a)..431
00.40 – Service information Dying of windshield washer fluid concentrate – i00.40-z-0006a)..432
00.45 – Auxiliary repair materials – r00.45-z-0999zz)..433
00.45 – Service Information Multipurpose metal grease (si00.45-p-0004a)..434
00.45 – Service Information Multipurpose metal grease – i00.45-p-0004a)..435
00.45 – Service Information Service kit for rectifying squeaking, creaking and tearing noises (si00.45-p-0002a)..436
00.45 – Service Information Service kit for rectifying squeaking, creaking and tearing noises – i00.45-p-0002a)..437
00.60 – Remove_install freewheeling device – r00.60-p-1500a)..438
00.60 – Secure vehicle on vehicle lift – r00.60-p-0100cw)..441
00.70 – Render new vehicles, which were immobilized operational – p00.70-p-1001zz)..443
00.70 – Safety precautions for new vehicles that are being put in storage – p00.70-p-1000zz)..444
01_Complete Engine, Crankcase Ventilation, Cylinder Head, Crankcase..445
01.00 – 000 588 00 31 00 Assembly stand (ws01.00-n-3028b)..448
01.00 – 000 588 00 62 00 Load tilter (ws01.00-p-0102b)..449
01.00 – 000 588 01 21 00 Endoscope (ws01.00-p-0097b)..450
01.00 – 000 588 03 62 00 Lifting platform (ws01.00-p-0091a)..451
01.00 – 000 588 04 62 00 Removal fixture (ws01.00-n-3014b)..452
01.00 – 000 588 11 62 00 Major assembly mount (ws01.00-p-0092b)..453
01.00 – 000 589 01 25 00 Hand pressure gun (ws01.00-n-3060b)..454
01.00 – 001 589 00 91 00 Set of protective covers (ws01.00-n-0110b)..455
01.00 – 001 589 01 91 00 Set of protective covers (ws01.00-p-0111b)..456
01.00 – 001 589 02 91 00 Set of protective covers (ws01.00-n-0112b)..457
01.00 – 001 589 76 21 00 Compression tester (ws01.00-p-0004a)..458
01.00 – 003 589 03 37 00 Hose clamp pliers (ws01.00-p-0113b)..459
01.00 – 240 589 00 61 00 Engine lifting device (ws01.00-p-0104c)..460
01.00 – 270 589 01 91 00 Thread adapter (ws01.00-p-0065b)..461
01.00 – 271 589 00 43 00 Installation tool (ws01.00-p-0120b)..462
01.00 – 272 589 00 91 00 Threaded adapter (ws01.00-p-0125b)..463
01.00 – 273 589 00 43 00 Insertion tool (ws01.00-p-0152b)..464
01.00 – 276 589 00 62 00 Adaptation (ws01.00-p-0157b)..465
01.00 – 278 589 00 40 00 Lifting eye (ws01.00-p-0158b)..466
01.00 – 452 589 01 99 00 Repair tools for valves (ws01.00-p-0108c)..467
01.00 – 601 589 00 10 00 Screwdriver bit (ws01.00-p-0033b)..468
01.00 – 602 589 00 33 00 Impact extractor (ws01.00-p-0039b)..469
01.00 – 642 589 00 61 00 Adaptation of engine lifting device (ws01.00-p-0141c)..470
01.00 – Check cylinders for leaks – r01.00-p-1300fh)..471
01.00 – Cleaning and preserving engine and engine compartment – p01.00-p-1000zz)..473
01.00 – Forms Passenger cars Complete engine, crankcase ventilation, cylinder head , crankcase (of01.00-z-3999az)..474
01.00 – General notes Passenger cars Complete engine, crankcase ventilation, cylinder head , crankcase (ah01.00-z-9999az)..475
01.00 – Technical modifications Passenger cars Complete engine, crankcase ventilation, cylinder head , crankcase – t01.00-z-9999az)..479
01.00 – Test and adjustment values Passenger cars Complete engine, crankcase ventilation, cylinder head , crankcase (be01.00-z-9999az)..480
01.00 – Test compression pressure – r01.00-p-1200fh)..482
01.00 – Tightening torques Passenger cars Complete engine, crankcase ventilation, cylinder head , crankcase (ba01.00-z-9999az)..484
01.10 – Crank engine with starter – r01.10-p-0110fh)..486
01.10 – Remove_install engine from_onto front axle carrier – r01.10-p-2510cwx)..487
01.10 – Remove_install engine with transmission – r01.10-p-2401ft)..490
01.10 – Service Information Cleaning sealing surfaces (si01.10-p-0004a)..494
01.10 – Service Information Standardized procedure for complaints on the engine (si01.10-p-0001a)..495
01.20 – Remove_install centrifuge – r01.20-p-2100els)..497
01.20 – Remove_install left cylinder head cover – r01.20-p-5013els)..501
01.20 – Remove_install right cylinder head cover – r01.20-p-5012els)..504
01.30 – Remove_install check valve for chain tensioner to cylinder head – r01.30-p-5810fh)..507
01.30 – Remove_install front cover on left cylinder head – r01.30-p-5711els)..510
01.30 – Remove_install front cover on right cylinder head – r01.30-p-5712els)..513
01.30 – Remove_install left cylinder head – r01.30-p-5770els)..516
01.30 – Remove_install right cylinder head – r01.30-p-5780els)..522
01.30 – Service Information Remove operation items for cylinder head; assemble temporarily depending on findings (si01.30-s-0006a)..527
01.40 – Remove_install timing case cover – r01.40-p-8000els)..528
01.45 – Remove_install oil pan – r01.45-p-7500els)..531
03_Crank Assembly..536
03.00 – 000 589 04 14 00 Tensioning strap (ws03.00-p-0001c)..537
03.00 – 000 589 20 21 00 Hardness tester (ws03.00-p-0002c)..538
03.00 – 000 589 51 37 00 Pliers (ws03.00-p-0005c)..539
03.00 – 001 589 32 21 00 Dial gage (ws03.00-p-0007b)..540
03.00 – 001 589 65 09 00 Socket wrench bit (ws03.00-p-0006b)..541
03.00 – 112 589 03 40 00 Retaining lock (ws03.00-p-0037b)..542
03.00 – 119 589 01 14 00 Sleeve (ws03.00-p-0022b)..543
03.00 – General notes Passenger cars Crank assembly (ah03.00-z-9999az)..544
03.00 – Technical modifications Passenger cars Crank assembly – t03.00-z-9999az)..545
03.00 – Test and adjustment values Passenger cars Crank assembly – e03.00-z-9999az)..546
03.00 – Tightening torques Passenger cars Crank assembly (ba03.00-z-9999az)..548
03.10 – Remove_install piston – r03.10-p-7021fh)..550
03.10 – Remove_install piston rings – r03.10-p-7311fh)..555
03.20 – Remove_install crankshaft – r03.20-p-4351fh)..556
03.20 – Replace front crankshaft radial sealing ring – r03.20-p-3000fh)..561
03.20 – Replacing rear crankshaft radial seal – r03.20-p-3063fh)..562
03.30 – Remove_install belt pulley_vibration damper – r03.30-p-1600fh)..564
03.30 – Remove_install flywheel _ drive plate – r03.30-p-8001fh)..566
03.30 – Remove_install retaining lock for crankshaft_ring gear – r03.30-p-5000cv)..568
05_Engine Timing..570
05.00 – 000 589 10 68 00 Cylinder brush (ws05.00-p-0002c)..572
05.00 – 111 589 25 61 00 Valve assembly tools kit (ws05.00-p-3137ba)..573
05.00 – 116 589 01 34 00 Threaded bolt (ws05.00-n-0083b)..574
05.00 – 116 589 06 63 00 Magnetic rod (ws05.00-p-0088b)..575
05.00 – 116 589 20 33 00 Impact extractor (ws05.00-n-0089b)..576
05.00 – 210 589 00 40 00 Magnetic pin (ws05.00-n-0155b)..577
05.00 – 271 589 00 10 00 Socket (ws05.00-p-0268b)..578
05.00 – 271 589 00 59 00 Assembly tool (ws05.00-p-0202c)..579
05.00 – 271 589 09 63 00 Assembly element (ws05.00-p-0228b)..580
05.00 – 272 589 00 10 00 Torx screwdriver bit T60 (ws05.00-p-0259b)..581
05.00 – 272 589 00 61 00 Depressor (ws05.00-p-0233b)..582
05.00 – 273 589 00 61 00 Depressor (ws05.00-p-0256b)..583
05.00 – 276 589 00 33 00 Press-in tool (ws05.00-p-0275b)..584
05.00 – 276 589 00 39 00 Rivet press tool (ws05.00-p-0115c)..585
05.00 – 276 589 00 40 00 Tie-down set (ws05.00-p-0271b)..586
05.00 – 276 589 01 40 00 Hold-down tool (ws05.00-p-0274b)..587
05.00 – 278 589 00 23 00 Template (ws05.00-p-0276b)..588
05.00 – 278 589 01 63 00 Assembly insert (ws05.00-p-0273c)..589
05.00 – 602 589 00 39 00 Riveting tool (ws05.00-p-0162c)..590
05.00 – 602 589 00 98 00 Case (ws05.00-p-0158c)..591
05.00 – 602 589 02 33 00 Chain separating tool (ws05.00-p-0159c)..592
05.00 – 602 589 02 40 00 Assembly links (ws05.00-p-0171c)..593
05.00 – 602 589 05 63 00 Pressure screw (ws05.00-p-0161c)..594
05.00 – 604 589 00 43 00 Drift (ws05.00-p-0114b)..595
05.00 – 605 589 00 33 00 Puller (ws05.00-p-0154b)..596
05.00 – 606 589 00 37 00 Pliers (ws05.00-p-0116b)..597
05.00 – 642 589 00 33 00 Riveting tool (ws05.00-p-0260c)..598
05.00 – Check hydraulic valve clearance compensating elements – r05.00-p-2010fh)..599
05.00 – General notes Passenger cars Engine timing – h05.00-z-9999az)..601
05.00 – Remove_install hydraulic valve clearance compensating elements – r05.00-p-2011fh)..602
05.00 – Safety information Engine timing – s05.00-z-9999zz)..603
05.00 – Technical modifications Passenger cars Engine timing – t05.00-z-9999az)..604
05.00 – Test and adjustment values Passenger cars Engine timing – e05.00-z-9999az)..605
05.00 – Tightening torques Passenger cars Engine timing (ba05.00-z-9999az)..607
05.10 – Remove_install chain tensioner – r05.10-p-7800fh)..608
05.10 – Remove_install primary drive timing chain – r05.10-p-7612fh)..611
05.10 – Remove_install tensioning rail – r05.10-p-8127fh)..615
05.10 – Replace timing chain – r05.10-p-7601fh)..617
05.20 – Check basic position of camshafts – r05.20-p-6010fha)..620
05.20 – Remove_install camshafts – r05.20-p-6992fh)..624
05.20 – Remove_install camshafts – r05.20-p-7201els)..626
05.20 – Remove_install solenoid camshaft – r05.20-p-7295fh)..628
05.20 – Set basic position of camshafts – r05.20-p-6020fha)..631
05.30 – Remove_install valve springs and_or valve stem seals – r05.30-p-3500fh)..634
05.30 – Remove_install valves – r05.30-p-3511fh)..637
07_Mixture Formation..640
07.00 – 000 589 00 68 00 Cleaning kit (ws07.00-p-0001c)..644
07.00 – 000 589 68 03 00 Box wrench bit (ws07.00-n-0004a)..645
07.00 – 000 589 68 03 00 Box wrench bit (ws07.00-p-0004b)..646
07.00 – 000 589 69 03 00 Ring wrench bit (ws07.00-p-0088b)..647
07.00 – 103 589 00 21 00 Testing unit (ws07.00-n-0014b)..648
07.00 – 119 589 04 63 00 Pressure hose (ws07.00-p-0024b)..649
07.00 – 266 589 01 63 00 154-pin adapter cable (ws07.00-p-0121b)..650
07.00 – 272 589 00 43 00 Assembly tool (ws07.00-p-0127b)..651
07.00 – 276 589 00 63 00 4-pin adapter cable (ws07.00-p-0150b)..652
07.00 – 276 589 01 91 00 Connection line (ws07.00-p-0148b)..653
07.00 – 276 589 02 91 00 Latch (ws07.00-p-0149b)..654
07.00 – 278 589 00 15 00 Drift (ws07.00-p-0152b)..655
07.00 – 278 589 00 33 00 Puller (ws07.00-p-0153b)..656
07.00 – 278 589 01 15 00 Drift (ws07.00-p-0154b)..657
07.00 – Certificates Passenger cars Mixture formation – f07.00-z-1999az)..658
07.00 – Exhaust emission test I – r07.00-p-1000a)..659
07.00 – Forms Passenger cars Mixture formation – f07.00-z-3999az)..660
07.00 – General notes Passenger cars Mixture formation – h07.00-z-9999az)..661
07.00 – Safety information Mixture formation (as07.00-z-9999zz)..663
07.00 – Service Information on fuel consumption measurement (si07.00-p-0004a)..664
07.00 – Technical modifications Passenger cars Mixture formation – t07.00-z-9999az)..666
07.00 – Test and adjustment values Passenger cars Mixture formation – e07.00-z-9999az)..667
07.00 – Tightening torques Passenger cars Mixture formation (ba07.00-z-9999az)..669
07.02 – Remove_install high-pressure pump – r07.02-p-1020fh)..671
07.03 – Remove_install fuel injectors – r07.03-p-0004fh)..677
07.03 – Remove_install rail – r07.03-p-1010fh)..679
07.04 – Remove_install a pressure sensor – r07.04-p-0050fh)..684
07.04 – Remove_install fuel pressure sensor – r07.04-p-0030el)..686
07.08 – Load software for ME-SFI (ME) control unit (sm07.08-p-0017k)..688
07.08 – Remove_install injection system control unit – r07.08-p-7008els)..689
07.08 – Wiring diagram for gasoline direct injection system control unit – e07.08-p-2101eaf)..690
07.08 – Wiring diagram for gasoline direct injection system control unit – e07.08-p-2101ean)..691
07.08 – Wiring diagram for gasoline direct injection system control unit – e07.08-p-2101eao)..692
07.10 – Electrical function diagram for ignition OFF – e07.10-p-2702eak)..693
07.10 – Electrical function diagram for injection control – e07.10-p-2704eal)..694
07.10 – Electrical function schematic for engine limp-home mode – e07.10-p-2719eak)..695
07.10 – Electrical function schematic for engine timing start stop – e07.10-p-2722eak)..696
07.10 – Electrical function schematic for fuel supply – e07.10-p-2703eah)..697
07.10 – Electrical function schematic for ignition system – e07.10-p-2705eal)..698
07.10 – Electrical function schematic for knock control – e07.10-p-2715eal)..699
07.10 – Electrical function schematic for lambda control – e07.10-p-2710eak)..700
07.10 – Electrical function schematic for on-board diagnosis – e07.10-p-2720eak)..701
07.10 – Electrical function schematic for rpm control – e07.10-p-2708eak)..702
07.10 – Electrical function schematic for safety fuel shutoff – e07.10-p-2733eak)..703
07.10 – Electrical function schematic for smooth running control – e07.10-p-2711eak)..704
07.10 – Electrical function schematic for start phase, post-start phase and warm-up enrichment – e07.10-p-2707eal)..705
07.10 – Electrical function schematic for starting – e07.10-p-2701eak)..706
07.10 – Electrical function schematic for thermal management – e07.10-p-2712eal)..707
07.10 – Electrical function schematic for torque coordination – e07.10-p-2713eak)..708
07.10 – Electrical function schematic, alternator interface – e07.10-p-2709eak)..709
07.10 – Electrical function schematic, ignition ON – e07.10-p-2700eak)..710
07.10 – Electrical function schematic, synchronization of the injection and firing order – e07.10-p-2706eak)..711
07.17 – Remove_install pressure transducer for boost pressure control – r07.17-p-7002els)..712
07.51 – Remove_install throttle valve actuator – r07.51-p-1401els)..713
07.52 – Remove_install heated O2 sensor – r07.52-p-5303els)..715
07.52 – Remove_install heated O2 sensor – r07.52-p-5303fh)..718
07.70 – Overview of system components for gasoline injection and ignition system with direct injection – f07.70-p-9998mmp)..721
07.70 – Remove_install NOx sensor – r07.70-p-0001fh)..732
07.70 – Remove_install for NOx temperature sensor for storage catalytic converter – r07.70-p-0002fh)..734
07.70 – Table of contents for function description of gasoline injection and ignition system with direct injection – f07.70-p-0998mm)..735
08_Electric Drive, Hybrid Drive..739
08.00 – Capacities Passenger cars Electrical drive system – f08.00-z-9999az)..740
08.00 – Forms Passenger cars Electrical drive system – f08.00-z-3999az)..741
08.00 – Test and adjustment values Passenger cars Electrical drive system – e08.00-z-9999az)..742
08.00 – Tightening torques Passenger cars Electrical drive system – a08.00-z-9999az)..743
09_Air Intake, Turbocharging..744
09.00 – 276 589 03 91 00 Adapter (ws09.00-p-0000b)..746
09.00 – 611 589 02 21 00 Leaktightness tester (ws09.00-p-0006b)..747
09.00 – Electrical function schematic for charging – e09.00-p-2050eal)..748
09.00 – Forms Passenger cars Air intake, supercharging – f09.00-z-3999az)..749
09.00 – General notes Passenger cars Air intake, supercharging – h09.00-z-9999az)..750
09.00 – Technical modifications Passenger cars Air intake, supercharging – t09.00-z-9999az)..751
09.00 – Test and adjustment values Passenger cars Air intake, supercharging – e09.00-z-9999az)..752
09.00 – Tightening torques Passenger cars Air intake, supercharging (ba09.00-z-9999az)..753
09.10 – Remove_install air filter housing – r09.10-p-1150els)..755
09.10 – Replace air filter element – p09.10-p-0980e)..757
09.40 – Remove_install turbocharger with exhaust manifold – r09.40-p-6025els)..759
09.41 – Remove_install charge air cooler, water-cooled – r09.41-p-6819els)..762
09.41 – Remove_install charge air ducts – r09.41-p-8620els)..764
09.41 – Remove_install charge air manifold – r09.41-p-1310els)..766
09.41 – Remove_install circulation pump for low-temperature water circuit – r09.41-p-6925els)..768
09.41 – Remove_install low temperature water circuit radiator – r09.41-p-6935els)..770
09.41 – Remove_install low-temperature circuit expansion reservoir – r09.41-p-0001els)..772
09.41 – Remove_install low-temperature circuit expansion reservoir with carrier – r09.41-p-0002els)..774
09.41 – Replace charge air hose upstream of charge air cooler (sm09.41-p-0006a)..776
13_Air Compressor, Belt Drives..777
13.00 – General notes Passenger cars Air compressor, belt drives – h13.00-z-9999az)..778
13.00 – Technical modifications Passenger cars Air compressor, belt drives – t13.00-z-9999az)..779
13.00 – Test and adjustment values Passenger cars Air compressor, belt drives – e13.00-z-9999az)..780
13.00 – Tightening torques Passenger cars Air compressor, belt drives (ba13.00-z-9999az)..781
13.20 – Remove_install belt drive components – r13.20-p-0001els)..782
13.22 – Check visible area of poly-V belt for wear – p13.22-p-1352ew)..784
14_Exhaust Manifold, Engine Brake, Emission Control System..786
14.00 – 000 588 01 71 00 Extraction pump (ws14.00-p-0013b)..787
14.00 – 000 588 08 21 00 Test and measuring kit (ws14.00-p-0012b)..788
14.00 – Capacities Passenger cars Exhaust manifold, engine brake, emission control system (bf14.00-z-9999az)..789
14.00 – Certificates Passenger cars Exhaust manifold, engine brake, emission control system – f14.00-z-1999az)..790
14.00 – Electrical function schematic for exhaust treatment – e14.00-p-2051eak)..791
14.00 – General notes Passenger cars Exhaust manifold, engine brake, emission control system – h14.00-z-9999az)..792
14.00 – Safety information Exhaust manifold, engine brake, emission control system (as14.00-z-9999zz)..793
14.00 – Technical modifications Passenger cars Exhaust manifold, engine brake, emission control system – t14.00-z-9999az)..794
14.00 – Test and adjustment values Passenger cars Exhaust manifold, engine brake, emission control system – e14.00-z-9999az)..795
14.00 – Tightening torques Passenger cars Exhaust manifold, engine brake, emission control system (ba14.00-z-9999az)..796
14.20 – Install, remove exhaust gas recirculation – r14.20-p-1050els)..797
14.20 – Remove_install exhaust gas recirculation valve – r14.20-p-7662els)..799
14.40 – Fill AdBlue(R) tank – p14.40-p-1410bt)..802
14.40 – Replace information label for exhaust treatment (sm14.40-p-0003b)..804
14.40 – Service Information Fill AdBlue container (si14.40-p-0014a)..805
14.40 – Service Information Notes about working on AdBlue system (si14.40-p-0022a)..806
14.40 – Service Information Return delivery of AdBlue tank (si14.40-p-0023a)..807
15_Electrical System – Engine..808
15.00 – 000 588 03 19 00 Load tester (ws15.00-p-0027b)..810
15.00 – 124 589 09 63 00 Ohm decade (ws15.00-n-0009c)..811
15.00 – 124 589 09 63 00 Ohm decade (ws15.00-p-0009c)..812
15.00 – 201 589 00 99 00 Electrical connection kit (ws15.00-n-0014c)..813
15.00 – 278 589 00 09 00 Spark plug wrench (ws15.00-p-0065b)..814
15.00 – 602 589 00 10 00 Socket wrench (ws15.00-p-0015b)..815
15.00 – Forms Passenger cars Electrical system – engine – f15.00-z-3999az)..816
15.00 – General notes Passenger cars Electrical system – engine – h15.00-z-9999az)..817
15.00 – Safety information Electrical system – engine (as15.00-z-9999zz)..818
15.00 – Technical modifications Passenger cars Electrical system – engine – t15.00-z-9999az)..819
15.00 – Test and adjustment values Passenger cars Electrical system – engine – e15.00-z-9999az)..820
15.00 – Tightening torques Passenger cars Electrical system – engine (ba15.00-z-9999az)..821
15.00 – Wiring diagram for engine start_stop – e15.00-p-2103eaa)..823
15.00 – Wiring diagram of starter, alternator, battery – e15.00-p-2101eag)..824
15.10 – Remove_install camshaft Hall sensor – r15.10-p-2000fh)..825
15.10 – Replace spark plugs – p15.10-p-1580ew)..827
15.10 – Service Information Diagnosis on ignition system (si15.10-p-0003a)..830
15.10 – Service Information Spark plug connector grease (si15.10-p-0004a)..832
15.12 – Remove_install crankshaft Hall sensor – r15.12-p-2136fh)..833
15.12 – Remove_install ignition coils – r15.12-p-2003fh)..834
…
42.20 – Remove_install rear brake control cable – r42.20-p-0525ew)..1822
42.30 – Remove_install left front or right rpm sensor – r42.30-p-0712ew)..1824
42.30 – Remove_install pulse ring – r42.30-p-0715a)..1825
42.30 – Service Information Notes for handling multipole rings (si42.30-p-0004a)..1829
42.40 – Remove_install ETS_ASR_ESP hydraulic unit – r42.40-p-0816ew)..1830
42.40 – Remove_install left or right rear axle speed sensor – r42.40-p-0820ew)..1834
42.45 – Remove_install electronic stability program (ESP) control unit – r42.45-p-0820ew)..1835
42.45 – Remove_install yaw rate and lateral acceleration sensor – r42.45-p-0841cw)..1838
42.47 – Electrical function schematic for Adaptive Brake (ABR) – e42.47-p-2050eaa)..1840
42.47 – Electrical function schematic for Adaptive Brake (ABR) – e42.47-p-2050eab)..1841
42.47 – Overview of system components, Adaptive Brake (ABR) – f42.47-p-9997ca)..1842
42.47 – Service Information Return of diagnostic data when replacing ABR components (si42.47-p-0001a)..1844
42.47 – Service Information bulletin Notes on programming and initial startup of ESP control unit (si42.47-p-0002a)..1845
42.47 – Service information Notes on programming and initial startup of ABR control unit (si42.47-p-0003a)..1846
42.47 – Table of contents for function description, adaptive brake (ABR) – f42.47-p-0999ca)..1847
42.47 – Wiring diagram for Adaptive Brake (ABR) – e42.47-p-2000eaa)..1848
42.47 – Wiring diagram for Adaptive Brake (ABR) – e42.47-p-2000eab)..1849
42.47 – Wiring diagram for Adaptive Brake (ABR) – e42.47-p-2000eac)..1850
43_Brakes – Pheumatic System & Auxiliary Brakes..1851
43.00 – General notes Passenger cars Brakes – pneumatic system and auxiliary brakes – h43.00-z-9999az)..1852
43.00 – Safety information Brakes – pneumatic system and auxiliary brakes (as43.00-z-9999zz)..1853
43.00 – Test and adjustment values Passenger cars Brakes – pneumatic system and auxiliary brakes – e43.00-z-9999az)..1854
43.00 – Tightening torques Passenger cars Brakes – pneumatic system and auxiliary brakes (ba43.00-z-9999az)..1855
43.05 – Remove_install vacuum pump – r43.05-p-1320fh)..1856
43.10 – Checking brake booster – r43.10-p-0325cw)..1858
43.10 – Checking check valve – r43.10-p-0023cw)..1861
43.10 – Remove_install brake booster – r43.10-p-0350cw)..1862
43.10 – Remove_install brake booster vacuum line – r43.10-p-0355cw)..1865
46_Steering..1866
46.00 – 000 589 69 03 00 Box wrench bit (ws46.00-p-0002b)..1870
46.00 – 124 589 06 21 00 Tester (ws46.00-n-0030b)..1871
46.00 – 126 589 00 10 00 Screwdriver bit (ws46.00-p-0033b)..1872
46.00 – 140 589 17 63 00 Connection fitting (ws46.00-p-0052b)..1873
46.00 – 171 589 00 37 00 Pliers for click clamps (ws46.00-p-0104b)..1874
46.00 – 201 589 00 01 00 Open wrench (ws46.00-p-0075b)..1875
46.00 – 210 589 00 07 00 Claw-type wrench for rosette on ignition_starter switch (ws46.00-p-0065b)..1876
46.00 – 210 589 01 14 00 Guide sleeve (ws46.00-p-0082c)..1877
46.00 – 210 589 05 15 00 Drift (ws46.00-p-0078c)..1878
46.00 – 212 589 00 90 00 Test adapter (ws46.00-p-0101b)..1879
46.00 – 215 589 01 63 00 Connection fitting (ws46.00-p-0079b)..1880
46.00 – 221 589 01 31 00 Steering gear housing support (ws46.00-p-0099c)..1881
46.00 – 221 589 02 09 00 Plug in open-end wrench (ws46.00-p-0097b)..1882
46.00 – 639 589 01 31 00 Bracket (ws46.00-n-3150b)..1883
46.00 – Capacities Passenger cars Steering – f46.00-z-9999az)..1884
46.00 – Check and correct power steering fluid level – p46.00-p-4611ew)..1885
46.00 – Check steering-wheel torque (sm46.00-p-0002a)..1888
46.00 – Check track rod and drag link linkage for play, check rubber boots – p46.00-p-4653cw)..1890
46.00 – Forms Passenger cars Steering – f46.00-z-3999az)..1891
46.00 – General notes Passenger cars Steering – h46.00-z-9999az)..1892
46.00 – Locate noises from the steering – r46.00-p-2000a)..1893
46.00 – Power steering – Check the oil level – p46.00-p-4612cc)..1895
46.00 – Safety information Steering (as46.00-z-9999zz)..1898
46.00 – Service Information Redocumentation of steering gear in VeDoc (si46.00-p-0001a)..1899
46.00 – Technical modifications Passenger cars Steering – t46.00-z-9999az)..1900
46.00 – Test and adjustment values Passenger cars Steering – e46.00-z-9999az)..1901
46.00 – Tightening torques Passenger cars Steering (ba46.00-z-9999az)..1902
46.10 – Electronic ignition_starter switch (EZS) removal and installation – r46.10-p-0810cw)..1904
46.10 – Remove_install electronic steering lock – r46.10-p-0910cw)..1906
46.10 – Remove_install steering column tube – r46.10-p-0400cw)..1908
46.10 – Remove_install steering coupling – r46.10-p-8000cw)..1910
46.10 – Remove_install steering wheel – r46.10-p-0100cw)..1912
46.10 – Removing_installing drive unit and motor for steering column adjustment – r46.10-p-0626cw)..1914
46.10 – Replacing steering shaft boot – r46.10-p-0621cw)..1915
46.10 – Retrofit AMG steering wheel – z46.10-p-1001ec)..1916
46.10 – Retrofit leather or wood_leather steering wheel – n46.10-p-1003ec)..1917
46.10 – Retrofit steering wheel gearshift buttons – n46.10-p-1004ec)..1918
46.10 – Service Information Warranty and goodwill policies for steering wheels (si46.10-p-0006a)..1919
46.10 – Wiring diagram for steering column module control unit – e46.10-p-2101eaa)..1920
46.11 – Function schematic of electrical system for steering wheel heater – e46.11-p-2050eaa)..1921
46.15 – Electrical function schematic for steering column easy entry_exit adjustment – e46.15-p-2051eaa)..1922
46.15 – Function schematic of electrical system for steering column adjustment – e46.15-p-2050eaa)..1923
46.20 – Check and adjust center steering position on steering gear – r46.20-p-3015p)..1924
46.20 – Check_replace water drain valve in steering gear – r46.20-p-0005ew)..1925
46.20 – Remove_install pipeline between control head and steering gear housing. – r46.20-p-3501cw)..1929
46.20 – Remove_install protective cap for input shaft on steering gear – r46.20-p-0004p)..1931
46.20 – Remove_install rack-and-pinion steering – r46.20-p-0600cw)..1937
46.20 – Remove_install rack-and-pinion steering – r46.20-p-0600el)..1941
46.20 – Replace bottom radial shaft sealing ring on control head – r46.20-p-0003q)..1946
46.20 – Service Information Play in the rack-and-pinion steering system (si46.20-p-0003a)..1957
46.20 – Setting play between thrust element and steering rack – r46.20-p-0601cw)..1958
46.25 – Remove_install hydraulic line of power steering – r46.25-p-3015cx)..1963
46.25 – Remove_install hydraulic line of power steering – r46.25-p-3015ev)..1966
46.25 – Remove_install power steering radiator – r46.25-p-3020ew)..1969
46.25 – Service Information Approved oils for hydraulic steering systems (si46.25-p-0004a)..1971
46.30 – Check power steering pump (sm46.30-p-0004c)..1973
46.30 – Checking oil pressure of power steering pump – r46.30-p-0100w)..1976
46.30 – Fill power steering pump and bleed – r46.30-p-0010cw)..1979
46.30 – List of affected vehicles (sm46.30-p-1004b)..1981
46.35 – Contents, function description of electric power steering (ES) – f46.35-p-0999ca)..1982
46.35 – Electrical function schematic for electric power steering – e46.35-p-2050eab)..1983
46.35 – Overview of system components of electric power steering (ES) – f46.35-p-9997ca)..1984
46.35 – Wiring diagram for electric power steering control unit – e46.35-p-2101eaa)..1985
46.40 – Check and replace rubber boot – r46.40-p-0400cw)..1986
46.40 – Check and replace rubber boot – r46.40-p-0400ew)..1988
46.40 – Remove_install inner tie rod with axial joint – r46.40-p-0201cw)..1990
46.40 – Remove_install track rod – r46.40-p-0200cw)..1991
46.50 – Electrical function schematic for speed-sensitive power steering (PML) – e46.50-p-2050eaa)..1993
46.50 – Overview of system components for speed-sensitive power steering (SPS [PML]) – f46.50-p-9999ca)..1994
46.50 – Remove_install SPS solenoid valve – r46.50-p-6000cw)..1995
46.50 – Speed-sensitive power steering (SPS), function description, contents – f46.50-p-0999ca)..1996
47_Fuel System..1997
47.00 – 000 588 03 21 00 Gas detector (ws47.00-p-0019b)..1999
47.00 – 001 589 00 07 00 Claw-type wrench (ws47.00-p-0034b)..2000
47.00 – Capacities Passenger cars Fuel system (bf47.00-z-9999az)..2001
47.00 – Forms Passenger cars Fuel system – f47.00-z-3999az)..2002
47.00 – General notes Passenger cars Fuel system – h47.00-z-9999az)..2003
47.00 – Safety information Fuel system (as47.00-z-9999zz)..2004
47.00 – Service Information Usability of E10 fuel (si47.00-p-0002a)..2005
47.00 – Service information Return delivery of fuel-guiding parts (si47.00-p-0001a)..2008
47.00 – Technical modifications Passenger cars Fuel system – t47.00-z-9999az)..2009
47.00 – Test and adjustment values Passenger cars Fuel system – e47.00-z-9999az)..2010
47.00 – Tightening torques Passenger cars Fuel system (ba47.00-z-9999az)..2011
47.10 – Empty fuel tank on systems with faulty fuel pumps – r47.10-p-4000fh)..2012
47.10 – Empty_fill fuel tank – r47.10-p-4001cw)..2014
47.10 – Empty_fill fuel tank – r47.10-p-4001fh)..2017
47.10 – Remove_install fuel level sensor – r47.10-p-7000cw)..2019
47.10 – Remove_install fuel tank – r47.10-p-4100cw)..2021
47.20 – Remove_install fuel pump – r47.20-p-5710cw)..2024
47.20 – Remove_install fuel pump control unit – r47.20-p-5717cw)..2028
47.20 – Replace fuel filter (sm47.20-p-0001b)..2030
47.20 – Replace fuel filter – p47.20-p-0780ew)..2031
47.20 – Service Information Fuel pump (si47.20-p-0006b)..2034
47.30 – Electrical function schematic for system purging with leak test – e47.30-p-2051eal)..2035
47.30 – Remove_ install activated charcoal canister – r47.30-p-8212cw)..2036
47.30 – Remove_ install activated charcoal canister – r47.30-p-8212ewu)..2037
47.40 – Wiring diagram for fuel pump control unit – e47.40-p-2101eac)..2038
49_Exhaust System..2039
49.00 – 270 589 01 63 00 Set of adapters (ws49.00-p-0007b)..2040
49.00 – 270 589 01 63 03 Adapter (ws49.00-p-0009b)..2041
49.00 – Certificates Passenger cars Exhaust system – f49.00-z-1999az)..2042
49.00 – General notes Passenger cars Exhaust system – h49.00-z-9999az)..2043
49.00 – Safety information Exhaust system – s49.00-z-9999zz)..2044
49.00 – Technical modifications Passenger cars Exhaust system – t49.00-z-9999az)..2045
49.00 – Tightening torques Passenger cars Exhaust system (ba49.00-z-9999az)..2046
49.10 – Instructions for treatment of exhaust pipes, catalytic converters, mufflers as toxic waste – s49.10-n-1000a)..2047
49.10 – Remove_install components for exhaust system – r49.10-p-7100cw)..2048
49.10 – Remove_install components for exhaust system – r49.10-p-7100ela)..2055
49.10 – Service Information Care of tail pipe finishers (si49.10-p-0008a)..2059
49.10 – Service Information Recycling of diesel particulate filters (si49.10-p-0007a)..2060
54_Electrical System, Equipment & Instruments..2061
54.00 – 000 586 00 99 00 Battery diagnostic unit (ws54.00-p-0033c)..2075
54.00 – 000 588 00 19 00 Insulation measuring unit (ws54.00-p-0046b)..2076
54.00 – 000 588 00 81 00 Charger (ws54.00-p-0037b)..2077
54.00 – 000 588 00 84 00 Heat gun (ws54.00-p-0049b)..2078
54.00 – 000 588 02 19 00 Battery tester (ws54.00-n-3006b)..2079
54.00 – 000 588 02 81 00 Jump-starting device (ws54.00-p-0041b)..2080
54.00 – 000 588 03 81 00 Jumper cables (ws54.00-p-0039b)..2081
54.00 – 000 588 06 19 00 Measuring instrument (ws54.00-p-0043b)..2082
54.00 – 000 588 16 98 00 Support (ws54.00-p-0047b)..2083
54.00 – 000 589 30 37 00 Wire stripper (ws54.00-p-0025b)..2084
54.00 – 000 589 88 63 00 Removal assembly (ws54.00-p-0067b)..2085
54.00 – 124 589 00 21 00 35 Pin socket box (ws54.00-n-0002b)..2086
54.00 – 129 589 00 21 00 126-pin socket box (ws54.00-p-0008b)..2087
54.00 – 140 589 02 33 00 Pulling hook (ws54.00-p-0011b)..2088
54.00 – 169 589 00 37 00 Pliers (ws54.00-p-0073b)..2089
54.00 – 204 589 04 63 00 6-pin adapter cable (ws54.00-p-0084b)..2090
54.00 – 212 589 01 63 00 38-pin adapter cable (ws54.00-p-0079b)..2091
54.00 – 220 589 00 99 00 Electrical connection kit (ws54.00-p-0050b)..2092
54.00 – Deactivate transport mode prior to vehicle delivery – r54.00-p-0001a)..2093
54.00 – Forms Passenger cars Electrical system, equipment and instruments (of54.00-z-3999az)..2095
54.00 – General notes Passenger cars Electrical system, equipment and instruments (ah54.00-z-9999az)..2096
54.00 – Overview of system components for driver assistance systems – f54.00-p-9998cam)..2097
54.00 – Overview of system components of parking assistance systems – f54.00-p-9997cam)..2112
54.00 – Safety information Electrical system, equipment and instruments (as54.00-z-9999zz)..2118
54.00 – Service Information Transport mode (si54.00-p-0004a)..2119
54.00 – Table of contents for function description of driver assistance systems – f54.00-p-0998cam)..2121
54.00 – Table of contents for function description of parking assistance systems – f54.00-p-0997cam)..2122
54.00 – Technical modifications Passenger cars Electrical system, equipment and instruments – t54.00-z-9999az)..2123
54.00 – Test and adjustment values Passenger cars Electrical system, equipment and instruments – e54.00-z-9999az)..2124
54.00 – Tightening torques Passenger cars Electrical system, equipment and instruments (ba54.00-z-9999az)..2125
54.10 – Charge battery – r54.10-p-1130cw)..2126
54.10 – Check battery condition before vehicle delivery – r54.10-p-1132a)..2128
54.10 – Check condition of additional battery – r54.10-p-1128ew)..2129
54.10 – Check condition of battery – r54.10-p-1129cw)..2131
54.10 – Disconnect_connect battery ground line – r54.10-p-0003ew)..2133
54.10 – Disposal of toxic waste, battery – s54.10-p-1000zz)..2136
54.10 – Electrical function schematic for alternator management – e54.10-p-2064eaa)..2137
54.10 – Electrical function schematic for alternator management – e54.10-p-2064eab)..2138
54.10 – Electrical function schematic for comfort function shutoff – e54.10-p-2076eaa)..2139
54.10 – Electrical function schematic for comfort function shutoff – e54.10-p-2076eab)..2140
54.10 – Electrical function schematic for dynamic idle speed increase – e54.10-p-2063eaa)..2141
54.10 – Electrical function schematic for dynamic idle speed increase – e54.10-p-2063eab)..2142
54.10 – Electrical function schematic for energy management for engine start_stop – e54.10-p-2070eaa)..2143
54.10 – Electrical function schematic for energy management for engine start_stop – e54.10-p-2070eab)..2144
54.10 – Electrical function schematic for no-load current management – e54.10-p-2074eaa)..2145
54.10 – Electrical function schematic for no-load current management – e54.10-p-2074eab)..2146
54.10 – Initial filling of battery – r54.10-p-0001z)..2147
54.10 – Install backup battery cover (sm54.10-p-0021a)..2148
54.10 – Maintaining on-board electrical system voltage when performing test and diagnosis work on vehicle – r54.10-p-1127cw)..2149
54.10 – Overview – Check condition of battery – p54.10-p-5449u)..2151
54.10 – Overview of energy management system components – f54.10-p-9990ca)..2152
54.10 – Overview of energy management system components – f54.10-p-9990cam)..2153
54.10 – Remove_install 12 Volt socket – r54.10-p-1000ec)..2155
54.10 – Remove_install additional battery – r54.10-p-0007ec)..2156
54.10 – Remove_install battery – r54.10-p-0005ew)..2158
54.10 – Remove_install battery sensor – r54.10-p-0002ew)..2160
54.10 – Remove_install cigarette lighter – r54.10-p-0030tx)..2162
54.10 – Replace battery sensor (sm54.10-p-0010b)..2164
54.10 – Service Information Battery maintenance (si54.10-p-0024a)..2165
54.10 – Service Information Battery sensor data read out (si54.10-p-0029a)..2166
54.10 – Service Information Battery tester (si54.10-z-0023a)..2167
54.10 – Service Information Charge battery (si54.10-p-0018a)..2168
54.10 – Service Information bulletin Battery test and inspection (si54.10-p-0017a)..2169
54.10 – Table of contents for function description of energy management – f54.10-p-0990ca)..2170
54.10 – Table of contents for function description of energy management – f54.10-p-0990cam)..2171
54.15 – Correct lock for fuses in driver-side vehicle interior fuse box (code 1311P54C03) (sm54.15-p-0016a)..2172
54.15 – Fuse and relay box, as-built configuration – f54.15-p-0800ca)..2173
54.15 – Remove_install additional battery relay – r54.15-p-2000ew)..2174
54.15 – Remove_install driver's side interior fuse box – r54.15-p-1310ec)..2177
54.15 – Remove_install front prefuse box – r54.15-p-1330ec)..2178
54.15 – Remove_install pyrofuse electrical connector – r54.15-p-1100ew)..2180
54.15 – Replace prefuse box (sm54.15-p-0006d)..2182
54.15 – Replace prefuse box (sm54.15-p-0006g)..2183
54.15 – Service Information Encoding of electrical fuses (si54.15-s-0008a)..2184
54.15 – Wiring diagram of front backup fuse box (F32) – e54.15-p-2502eaa)..2185
54.15 – Wiring diagram of front backup fuse box (F32) – e54.15-p-2502eab)..2186
54.15 – Wiring diagram of interior fuse box (F34) – e54.15-p-2501eaa)..2187
54.18 – Check wiring harness on passenger-side (sm54.18-p-0026a)..2188
54.18 – Connector separation point wiring diagram – e54.18-p-2300eaa)..2189
54.18 – Connector separation point wiring diagram – e54.18-p-2300eac)..2190
54.18 – Connector separation point wiring diagram – e54.18-p-2300ead)..2191
54.18 – Connector separation point wiring diagram – e54.18-p-2300eae)..2192
54.18 – Connector separation point wiring diagram – e54.18-p-2300eaf)..2193
54.18 – Connector separation point wiring diagram – e54.18-p-2300eah)..2194
54.18 – Repair squib wiring harness for Supplemental Restraint System (SRS) – r54.18-p-0600a)..2195
54.18 – Service Information Damage code for electrical components (si54.18-z-0012a)..2197
54.18 – Service Information bulletin Retrofit marten repeller on electrical lines (si54.18-p-0007a)..2199
54.21 – Install software for multifunction camera control unit (sm54.21-p-0037b)..2200
54.21 – Install software for rear SAM control unit (sm54.21-p-0030f)..2201
54.21 – Install software for reversible emergency tensioning retractor (sm54.21-p-0054a)..2202
54.21 – Perform SCN coding in SAM control unit with fuse and relay module (sm54.21-p-0048b)..2203
54.21 – Perform SCN coding in driver-side SAM control unit (sm54.21-p-0039d)..2204
54.21 – Programming of control units – r54.21-p-0014y)..2205
54.21 – Programming of control units – r54.21-p-0014z)..2206
54.21 – Remove_install SAM control unit with fuse and relay box in trunk – r54.21-p-1258ec)..2207
54.21 – Remove_install front central operating unit – r54.21-p-0500ecm)..2209
54.21 – Remove_install left front SAM control unit with fuse and relay box – r54.21-p-1260cw)..2210
54.21 – Remove_install multifunction camera – r54.21-p-3000ew)..2212
54.21 – Remove_install rear control unit – r54.21-p-2009ec)..2214
54.21 – Remove_install upper control panel control unit – r54.21-p-1262cy)..2215
54.21 – SCAN coding of control units – r54.21-p-0015x)..2217
54.21 – Service Information Initial startup of steering column tube module (si54.21-p-0021a)..2218
54.21 – Service Information Malfunctions due to other-make installations (si54.21-p-0007a)..2219
54.21 – Service Information Offline process for control unit initial startup & SCN coding as of DVD 07_2012 (si54.21-p-0010a)..2220
54.21 – Service Information Reimbursement of additional work in event of programming abort (si54.21-p-0039a)..2221
54.21 – Service Information SAM control unit diagnosis procedure (si54.21-p-0034a)..2222
54.21 – Wiring diagram _ rear SAM control unit with fuse and relay module (N10_2) – e54.21-p-2108eaa)..2223
54.21 – Wiring diagram _ rear SAM control unit with fuse and relay module (N10_2) – e54.21-p-2108eab)..2224
54.21 – Wiring diagram _ rear SAM control unit with fuse and relay module (N10_2) – e54.21-p-2108eac)..2225
54.21 – Wiring diagram _ rear SAM control unit with fuse and relay module (N10_2) – e54.21-p-2108ead)..2226
54.21 – Wiring diagram _ rear SAM control unit with fuse and relay module (N10_2) – e54.21-p-2108eae)..2227
54.21 – Wiring diagram _ rear SAM control unit with fuse and relay module (N10_2) – e54.21-p-2108eaf)..2228
54.21 – Wiring diagram _ rear SAM control unit with fuse and relay module (N10_2) – e54.21-p-2108eag)..2229
54.21 – Wiring diagram for FlexRay gateway control unit – e54.21-p-2143eaa)..2230
54.21 – Wiring diagram for electronic ignition lock control unit (EZS) – e54.21-p-2104eaa)..2231
54.21 – Wiring diagram for electronic ignition lock control unit (EZS) – e54.21-p-2104eab)..2232
54.21 – Wiring diagram for lower control panel – e54.21-p-2150eaa)..2233
54.21 – Wiring diagram for multifunction camera – e54.21-p-2129eaa)..2234
54.21 – Wiring diagram for multifunction camera – e54.21-p-2129eab)..2235
54.21 – Wiring diagram for overhead control panel (OCP) control unit – e54.21-p-2107eab)..2236
54.21 – Wiring diagram for upper control panel control unit – e54.21-p-2119eaa)..2237
54.21 – Wiring diagram for upper control panel control unit – e54.21-p-2119eab)..2238
54.21 – Wiring diagram of front SAM control unit with fuse and relay module (N10_1) – e54.21-p-2106eaa)..2239
54.21 – Wiring diagram of front SAM control unit with fuse and relay module (N10_1) – e54.21-p-2106eab)..2240
54.21 – Wiring diagram of front SAM control unit with fuse and relay module (N10_1) – e54.21-p-2106eac)..2241
54.21 – Wiring diagram of front SAM control unit with fuse and relay module (N10_1) – e54.21-p-2106ead)..2242
54.21 – Wiring diagram of front SAM control unit with fuse and relay module (N10_1) – e54.21-p-2106eae)..2243
54.21 – Wiring diagram of front SAM control unit with fuse and relay module (N10_1) – e54.21-p-2106eaf)..2244
54.21 – Wiring diagram of front SAM control unit with fuse and relay module (N10_1) – e54.21-p-2106eag)..2245
54.21 – Wiring diagram of front SAM control unit with fuse and relay module (N10_1) – e54.21-p-2106eah)..2246
54.21 – Wiring diagram of front SAM control unit with fuse and relay module (N10_1) – e54.21-p-2106eai)..2247
54.21 – Wiring diagram rear control unit – e54.21-p-2110eaa)..2248
54.22 – Wiring diagram for data link connector_diagnostic socket – e54.22-p-2000eaa)..2249
54.25 – Remove_install light switch module – r54.25-p-3270cw)..2250
54.25 – Remove_install light switch module – r54.25-p-3270ew)..2252
54.25 – Remove_install steering column module – r54.25-p-2802cw)..2253
54.25 – Replace steering column tube module (sm54.25-p-0006a)..2255
54.25 – Service Information bulletin Clutch pedal start enable switch (S40_5) (si54.25-p-0006a)..2256
54.25 – Service information Return delivery of switches (si54.25-p-0003a)..2257
54.30 – Check lamps in instrument cluster and interior illumination – p54.30-p-5453cc)..2258
54.30 – Check warning and function indicator lamps in instrument cluster – p54.30-p-5451ca)..2260
54.30 – Check warning lamps and function indicator lamps in the instrument cluster, general view – p54.30-p-5449u)..2261
54.30 – Check warning lamps, indicator lamps and interior illumination – p54.30-p-5452c)..2262
54.30 – Electrical function schematic for Traffic Sign Assist – e54.30-p-2066eaa)..2264
54.30 – Electrical function schematic of instrument cluster, comfort display – e54.30-p-2056eaa)..2265
54.30 – Electrical function schematic of instrument cluster, comfort display – e54.30-p-2056eab)..2266
54.30 – Electrical function schematic of instrument cluster, indicator_warning message – e54.30-p-2054eaa)..2267
54.30 – Electrical function schematic of instrument cluster, indicator_warning message – e54.30-p-2054eab)..2268
54.30 – Electrical function schematic of instrument cluster, operating condition display – e54.30-p-2055eaa)..2269
54.30 – Electrical function schematic of instrument cluster, operating condition display – e54.30-p-2055eab)..2270
54.30 – Electrical function schematic, Speed Limit Assist – e54.30-p-2059eaa)..2271
54.30 – Electrical function schematic, instrument cluster trip computer – e54.30-p-2057eaa)..2272
54.30 – Electrical function schematic, instrument cluster trip computer – e54.30-p-2057eab)..2273
54.30 – Overview of system components, Speed Limit Assist – f54.30-p-9990ca)..2274
54.30 – Overview of system components, attention assist – f54.30-p-9991ca)..2277
54.30 – Overview of system components, instrument cluster (IC) component description – f54.30-p-9996ca)..2279
54.30 – Remove_install 360° camera control unit – r54.30-p-3004eam)..2288
54.30 – Remove_install 360° camera in outside mirror – r54.30-p-3002ecm)..2290
54.30 – Remove_install 360°front camera – r54.30-p-3001ecm)..2291
54.30 – Remove_install cockpit clock – r54.30-p-1000ecm)..2294
54.30 – Remove_install instrument cluster – r54.30-p-6015ew)..2295
54.30 – Remove_install instrument cluster – r54.30-p-6015ez)..2297
54.30 – Retrofit Speed Limit Assist – n54.30-p-0100ec)..2300
54.30 – Service Information Reducing the seat belt warning (si54.30-p-0019a)..2301
54.30 – Table of contents for function description of instrument cluster (IC) – f54.30-p-0997ca)..2302
54.30 – Table of contents for function description, Speed Limit Assist – f54.30-p-0991ca)..2303
54.30 – Table of contents for function description, attention assist – f54.30-p-0992ca)..2304
54.30 – Wiring diagram for instrument cluster (IC) control unit – e54.30-p-2101eaa)..2305
54.35 – Electrical function schematic, fanfare horns – e54.35-p-2051eaa)..2306
54.35 – Overview of system components for fanfare horns – f54.35-p-9997ca)..2307
54.35 – Remove_install fanfare horns – r54.35-p-1555ef)..2308
54.35 – Table of contents for function description of fanfare horn system – f54.35-p-0999ca)..2309
54.50 – Service Information Reset trip computer following engine control unit software update (si54.50-p-0002a)..2310
54.65 – Calibration of the backup camera – r54.65-p-0022gz)..2311
54.65 – Electrical function schematic for 360 degree viewing system – e54.65-p-2060eaa)..2313
54.65 – Electrical function schematic of parking system – e54.65-p-2054eaa)..2314
54.65 – Electrical function schematic of parking system – e54.65-p-2054eab)..2315
54.65 – Electrical function schematic, backup camera – e54.65-p-2051eaa)..2316
54.65 – Electrical function schematic, backup camera – e54.65-p-2051eab)..2317
54.65 – Electrical function schematic, backup camera – e54.65-p-2051eaf)..2318
54.65 – Overview of system components, parking system – f54.65-p-9992ca)..2319
54.65 – Remove_install Parktronic system (PTS) control unit – r54.65-p-0006cw)..2322
54.65 – Remove_install Parktronic system (PTS) sensors in front bumper – r54.65-p-0001ec)..2324
54.65 – Remove_install Parktronic system (PTS) sensors in rear bumper – r54.65-p-0002ew)..2325
54.65 – Remove_install backup camera – r54.65-p-0030ew)..2326
54.65 – Remove_install voltage supply of backup camera – r54.65-p-0032ec)..2328
54.65 – Retrofit reversing camera – n54.65-p-0030ec)..2329
54.65 – Retrofit reversing camera – n54.65-p-0030ecc)..2331
54.65 – Retrofit reversing camera – n54.65-p-0030ecm)..2333
54.65 – Reversing camera (RFK), table of contents for function description – f54.65-p-0995ca)..2335
54.65 – Reversing camera (RFK), table of contents for function description – f54.65-p-0995caj)..2336
54.65 – Reversing camera, (RFK), overview of system components – f54.65-p-9997ca)..2337
54.65 – Reversing camera, (RFK), overview of system components – f54.65-p-9997caj)..2339
54.65 – Service Information PARKTRONIC malfunctions (si54.65-p-0003a)..2341
54.65 – Service Information Painted PARKTRONIC sensors (si54.65-p-0004a)..2343
54.65 – Service Information Warranty and goodwill settlement for Parktronic sensors (si54.65-p-0002a)..2344
54.65 – Table of contents for function description, parking – f54.65-p-0992ca)..2345
54.65 – Wiring diagram for 360° camera control unit – e54.65-p-2104eaa)..2346
54.65 – Wiring diagram for PARKTRONIC system (PTS) control unit – e54.65-p-2101eaa)..2347
54.65 – Wiring diagram for PARKTRONIC system (PTS) control unit – e54.65-p-2101eab)..2348
54.65 – Wiring diagram for backup camera control unit – e54.65-p-2102eaa)..2349
54.65 – Wiring diagram for backup camera control unit – e54.65-p-2102eab)..2350
54.65 – Wiring diagram of reversing camera – e54.65-p-2103eaa)..2351
54.65 – Wiring diagram of reversing camera – e54.65-p-2103eab)..2352
54.71 – Attention Assist electrical function schematic – e54.71-p-2054eaa)..2353
54.71 – Attention Assist electrical function schematic – e54.71-p-2054eab)..2354
54.71 – Blind Spot Assist wiring diagram – e54.71-p-2100eaa)..2355
54.71 – Blind Spot Assist wiring diagram – e54.71-p-2100eab)..2356
54.71 – Electrical function schematic for Active Lane Keeping Assist – e54.71-p-2053eaa)..2357
54.71 – Electrical function schematic for Active Lane Keeping Assist – e54.71-p-2053eab)..2358
54.71 – Electrical function schematic for Lane Keeping Assist – e54.71-p-2057eaa)..2359
54.71 – Electrical function schematic for Lane Keeping Assist – e54.71-p-2057eab)..2360
54.71 – Electrical function schematic for active Blind Spot Assist – e54.71-p-2055eaa)..2361
54.71 – Electrical function schematic, blind spot assistant – e54.71-p-2051eaa)..2362
54.71 – Electrical function schematic, blind spot assistant – e54.71-p-2051eab)..2363
54.71 – Electrical function schematic, blind spot assistant – e54.71-p-2051ead)..2364
54.71 – Overview of system components for Active Lane Keeping Assist – f54.71-p-9996ca)..2365
54.71 – Overview of system components for Blind Spot Assist – f54.71-p-9997ca)..2368
54.71 – Overview of system components for Lane Keeping Assist – f54.71-p-9995ca)..2372
54.71 – Remove_install radar sensor for Lane Assistant in rear bumper – r54.71-p-0200ecm)..2375
54.71 – Remove_install sensors for Blind Spot Assist – r54.71-p-0100ec)..2377
54.71 – Table of contents for function description of Active Lane Keeping Assist – f54.71-p-0996ca)..2378
54.71 – Table of contents for function description of Lane Keeping Assist – f54.71-p-0995ca)..2379
54.71 – Table of contents for function description, Blind Spot Assist – f54.71-p-0997ca)..2380
55_Auxiliary Drive Systems, Hydraulic and Linkage Systems..2381
55.00 – Safety information Auxiliary drive systems, hydraulic and articulation systems (as55.00-z-9999zz)..2382
58_Tools..2383
58.00 – Forms Passenger cars Tools – f58.00-z-3999az)..2385
58.00 – Safety information Tools – s58.00-z-9999zz)..2386
58.10 – Service information Wheel change tool discontinued (si58.10-p-0001a)..2387
58.20 – Service Information Modify chain separating tool and rivet press tool (si58.20-d-0001sf)..2388
58.20 – Service Information Use of drift special tool for injection nozzle (si58.20-p-0015a)..2390
58.20 – Service information Change of special tool (si58.20-p-0008a)..2391
58.20 – Service information Change of special tool (si58.20-p-0008b)..2393
58.20 – Service information for special tools (si58.20-p-0002a)..2394
58.20 – Special tools in EPC (si58.20-p-0019a)..2395
58.40 – Fault report for HHT, MUX, PM, Case (wb0000algfm00z)..2396
58.40 – Service Information Identification of add-ons installed on XENTRY Connect (si58.40-z-0019a)..2397
58.40 – Service Information Multiplexer (si58.40-z-0041a)..2398
58.40 – Service Information No WLAN connection between XENTRY Connect and XENTRY Tab after Update 09_2014 (si58.40-z-0025a)..2400
58.40 – Service Information STAR DIAGNOSIS (si58.40-p-0007b)..2401
58.40 – Service Information Software update for tester MB3000 (si58.40-p-0044a)..2402
58.40 – Service Information Test interval for Midtronics battery tester (si58.40-z-0002a)..2403
58.40 – Service Information Upgrade campaign for MIDTRONICS Micro717 battery tester (si58.40-z-0024a)..2405
58.40 – Service Information Workshop equipment in EPC_WIS_ASRA (si58.40-z-0045a)..2406
58.40 – Service Information bulletin Ease of access to the User Help Desk (si58.40-z-0030a)..2407
58.40 – Service Information bulletin Procedure when processing imports of system and component returns of the Star Diagnosis system (si58.40-z-0035a)..2408
58.40 – Service information Introduction of electronic stethoscope for noise diagnosis (si58.40-p-0036a)..2411
58.40 – Service information Procedure for messages on the screen for proxy entries as per Star Diagnosis update 10_2007 (si58.40-z-0028a)..2413
58.50 – Shop-made tools Passenger cars (wf58.50-z-0998az)..2414
60_Body – General..2417
60.00 – 000 588 01 23 00 Body straightening system (ws60.00-p-0023k)..2419
60.00 – 000 588 01 84 00 Welder (ws60.00-p-0021k)..2420
60.00 – 000 588 02 39 00 Rivet press tool (ws60.00-p-0010b)..2421
60.00 – 000 588 02 84 00 Welder (ws60.00-p-0022k)..2422
60.00 – 000 589 86 63 00 Adapter (ws60.00-p-0085k)..2423
60.00 – 108 589 00 76 00 Set of planishing tools (ws60.00-p-0002k)..2424
60.00 – 110 589 11 63 00 Angular scraper (ws60.00-p-0003k)..2425
60.00 – 115 589 28 63 00 Smoothing block (ws60.00-p-0005k)..2426
60.00 – 115 589 29 63 00 Smoothing block (ws60.00-p-0006k)..2427
60.00 – 115 589 30 63 00 Smoothing block (ws60.00-p-0007k)..2428
60.00 – 115 589 31 63 00 Smoothing block (ws60.00-p-0008k)..2429
60.00 – 124 589 03 19 00 Set of measuring tips and measuring joint (ws60.00-p-0017k)..2430
60.00 – 129 589 03 21 00 Feeler gauge (ws60.00-p-0027k)..2431
60.00 – 129 589 03 23 00 Portal frame (ws60.00-p-0028k)..2432
60.00 – 201 589 00 51 00 Spot weld milling cutter (ws60.00-p-0033k)..2433
60.00 – 203 589 02 31 00 Adapter kit (ws60.00-p-3015k)..2434
60.00 – Certificates Passenger cars Body – general (of60.00-z-1999az)..2435
60.00 – Check outside of vehicle in field of view for damage, general view – p60.00-p-6048u)..2436
60.00 – Check outside of vehicle in visible area for signs of damage – p60.00-p-0050c)..2437
60.00 – Check vehicle underside in field of view for damage, leakage and corrosion, general view – p60.00-p-6049u)..2439
60.00 – Check vehicle underside in visible area for signs of damage, leaks and corrosion – p60.00-p-0051ew)..2440
60.00 – General notes Passenger cars Body – general (ah60.00-z-9999az)..2442
60.00 – Safety information Body – general (as60.00-z-9999zz)..2444
60.00 – Service Information Filling foam (si60.00-p-0009a)..2445
60.00 – Service Information Handling lead-free filling solder (si60.00-z-0014a)..2446
60.00 – Service Information Introduction of 2-component epoxy body filler (si60.00-p-0015a)..2447
60.00 – Service information Measuring and straightening systems (si60.00-p-0001a)..2448
60.00 – Stamp in vehicle identification number – r60.00-p-0800cw)..2449
60.00 – Test and adjustment values Passenger cars Body – general – e60.00-z-9999az)..2451
60.00 – Tightening torques Passenger cars Body – general – a60.00-z-9999az)..2452
60.10 – Service information on straightening tool set (si60.10-p-0002c)..2453
61_Substructure..2454
61.00 – 171 589 00 63 00 Stamping guide (ws61.00-p-0002k)..2455
61.00 – Tightening torques Passenger cars Substructure (ba61.00-z-9999az)..2456
61.20 – Remove_install bottom engine compartment paneling – r61.20-p-1105ew)..2457
61.30 – Remove_install underbody paneling – r61.30-p-1001ec)..2460
62_Front End & Fire Wall..2461
62.00 – 140 589 26 63 00 Stamping symbols set (ws62.00-p-0018k)..2462
62.00 – 204 589 00 27 00 Set of pulling devices (ws62.00-p-0152k)..2463
62.00 – 204 589 01 23 00 Welding device (ws62.00-p-0151k)..2464
62.00 – 204 589 03 23 00 Device (ws62.00-p-0153k)..2465
62.00 – 204 589 04 23 00 Device (ws62.00-p-0154k)..2466
62.00 – General notes Passenger cars Front end and fire wall (ah62.00-z-9999az)..2467
62.00 – Technical modifications Passenger cars Front end and fire wall – t62.00-z-9999az)..2468
62.00 – Tightening torques Passenger cars Front end and fire wall – a62.00-z-9999az)..2469
62.20 – Install new longitudinal member front section – r62.20-p-1260cw)..2470
62.20 – Replace complete wheel well – r62.20-p-1200cw)..2473
62.20 – Replace upper front longitudinal member – r62.20-p-1286cw)..2477
62.25 – Replace left firewall half – r62.25-p-1110cw)..2481
62.25 – Rework heat shield (sm62.25-p-0004a)..2484
62.30 – Replace complete front end assembly together with reinforcement – r62.30-p-1570ew)..2486
63_Side Wall..2490
63.00 – 000 589 87 63 00 Spacers (ws63.00-p-1146k)..2491
63.00 – 210 589 17 23 00 Side portal frame (ws63.00-p-0059k)..2492
63.00 – General notes Passenger cars Side wall – h63.00-z-9999az)..2493
63.00 – Tightening torques Passenger cars Side wall – a63.00-z-9999az)..2494
63.10 – Completely replace inner C-pillar side wall – r63.10-p-0700ec)..2495
63.10 – Remove_install outer rear wheel well – r63.10-p-0665ec)..2498
63.20 – Remove_install A-pillar outer section – r63.20-p-1102ec)..2501
63.20 – Replace complete A-pillar – r63.20-p-1100ec)..2504
63.20 – Replace complete B-pillar – r63.20-p-1350ec)..2507
63.30 – Partially replace outer side longitudinal member – r63.30-p-1050ec)..2510
63.50 – Replace complete rear fender – r63.50-p-1400ec)..2513
64_Rear Wall & Rear End..2517
64.00 – 201 589 00 27 00 Cross-brace (ws64.00-p-0012k)..2518
64.00 – General notes Passenger cars Rear wall and rear end – h64.00-z-9999az)..2519…

98.00 – Care for lacquered surfaces – r98.00-p-0011a)..3632
98.00 – Forms Passenger cars Paintwork (of98.00-z-3999az)..3633
98.00 – General notes Passenger cars Paintwork (ah98.00-z-9999az)..3635
98.00 – Inspect body for damage to paintwork – p98.00-p-9850ew)..3637
98.00 – Overview of MB materials and how they are processed – r98.00-p-0150cw)..3638
98.00 – Paintwork Passenger vehicles incl. cross country vehicles (wb6516lit7502z)..3640
98.00 – Polish damaged areas – r98.00-p-0009sx)..3643
98.00 – Repair paint coat of leather cover – r98.00-p-0700cw)..3644
98.00 – Safety information Paintwork (as98.00-z-9999zz)..3645
98.00 – Sanding and polishing of scratch resistant clearcoat paints – r98.00-p-0012a)..3646
98.00 – Service Information ALU-BEAM color (si98.00-p-0003a)..3647
98.00 – Service Information Cleaning of tin-plated surfaces (si98.00-p-0019a)..3648
98.00 – Service Information Clearcoat paint systems with higher scratch resistance (si98.00-p-0013a)..3649
98.00 – Service Information Inquiries regarding factory finish (si98.00-p-0014a)..3650
98.00 – Service Information Matching color due to work on body shell complaints (si98.00-p-0024a)..3651
98.00 – Service Information Notes on paint drying in drying facility (si98.00-p-0020a)..3652
98.00 – Service Information Processing of preparatory work for paintwork and body shell complaints (si98.00-p-0025a)..3653
98.00 – Service Information Refinishing paint (si98.00-p-0002a)..3654
98.00 – Service Information bulletin Painting systems for warranty operations (si98.00-p-0010a)..3656
98.00 – Service information Matt paintwork (si98.00-p-0017a)..3657
98.00 – Table of contents for paintwork and anticorrosion materials in series production – f98.00-p-0991a)..3659
98.00 – Use of fine polishing paste – p98.00-p-0638a)..3660
98.00 – Use of gloss preserver – p98.00-p-0641a)..3662
98.00 – Use of metal dust remover – p98.00-p-0636a)..3663
98.00 – Use of paint cleaners – p98.00-p-0637a)..3664
98.00 – Use of polish – p98.00-p-0639a)..3665
98.20 – Painting plastic detachable body components – r98.20-p-0685a)..3666
98.20 – Service information Paint repairs and repair work on plastic parts (si98.20-z-0002a)..3667
98.30 – Cleaning and care of MB vehicle paintwork – p98.30-p-8070a)..3669
98.30 – Service Information Polish and care products for vehicle conditioning (si98.30-p-0001a)..3671
99_Printed Matter..3672
99.00 – General notes Passenger cars Publications – h99.00-z-9999az)..3673
99.00 – Safety information Publications – s99.00-z-9999zz)..3674
99.00 – Technical modifications Passenger cars Publications – t99.00-z-9999az)..3675
99.00 – Tightening torques Passenger cars Publications – a99.00-z-9999az)..3676
99.20 – Body exposure Passenger vehicles incl. cross country vehicles (wb6516lit7490z)..3677
99.20 – Center section, Rear end Passenger vehicles incl. cross country vehicles (wb6516lit7501z)..3681
99.20 – Fault code documentation Passenger cars and Off Road Vehicles (wb6516lit7481z)..3685
99.20 – Front end Passenger cars and cross country vehicles (wb6516lit7500z)..3687
99.20 – Test Sheet Passenger Cars (wb6516lit7438z)..3690

INSTANT DOWNLOAD

Posted on December 15, 2024December 15, 2024 by admin

Mercedes-Benz Model 205 C-Class Repair Service Manual

INSTANT DOWNLOAD

Complete service repair manual with Electrical Wiring Diagrams for Mercedes-Benz 205 C-Class, with all the technical information to maintain, diagnose, repair, and rebuild like professional mechanics.

Mercedes-Benz 205 C-Class workshop service repair manual includes:
* Numbered table of contents easy to use so that you can find the information you need fast.
* Detailed sub-steps expand on repair procedure information
* Numbered instructions guide you through every repair procedure step by step.
* Troubleshooting and electrical service procedures are combined with detailed wiring diagrams for ease of use.
* Notes, cautions and warnings throughout each chapter pinpoint critical information.
* Bold figure number help you quickly match illustrations with instructions.
* Detailed illustrations, drawings and photos guide you through every procedure.
* Enlarged inset helps you identify and examine parts in detail.

Mercedes-Benz 205 C-Class Service Repair Manual 2015-2022.pdf

PRODUCT DETAILS:
Total Pages: 3,321 pages
File Format: PDF (Internal Links, Bookmarked, Table of Contents, Searchable, Printable, high quality)
Language: English

sedan (W205), station wagon/estate (S205), coupe (C205), cabriolet (A205), long-wheelbase sedan (V205)
C 160, C 180,C 200 4MATIC, C 200, C 200 4MATIC, C 250, C 300 4MATIC, C 300, C 400 4MATIC, C 450 4MATIC AMG Sport, AMG C 43 4MATIC, AMG C 63, AMG C 63 S, C 180d, C 200d, C 220d BlueEFFICIENCY Edition, C 220d 4MATIC, C 220d, C 250d 4MATIC, C 250d,C 300d 4MATIC, C 300d, C 300h, C 350e, C 300e 4MATIC, C 300de, AMG C 43 4MATIC, AMG C 63, AMG C 63 S

TABLE OF CONTENTS
00_Overall Vehicle….3
00.00 – 000 588 03 90 00 Extractor link arm (ws00.00-p-0037b)….12
00.00 – 000 588 04 90 00 Hose grommet (ws00.00-p-0035b)….13
00.00 – 000 588 05 80 00 Pit lift (ws00.00-p-0248b)….14
00.00 – 000 588 05 90 00 Clamping grommet (ws00.00-p-0036b)….15
00.00 – 000 589 00 21 00 Test box (ws00.00-p-0034b)….16
00.00 – 000 589 01 10 00 Torx bit set (ws00.00-n-0001z)….17
00.00 – 000 589 01 40 00 Bracket (ws00.00-p-0244z)….18
00.00 – 000 589 10 99 00 Tool kit (ws00.00-p-0030z)….19
00.00 – 000 589 25 33 00 Internal extractor (ws00.00-n-0050z)….20
00.00 – 000 589 28 33 00 Puller dia. 28-37 mm (ws00.00-n-3026z)….21
00.00 – 000 589 29 33 00 Internal extractor (ws00.00-n-3027z)….22
00.00 – 000 589 30 16 00 Hexagon ratchet, 10 mm (ws00.00-p-0002z)….23
00.00 – 000 589 31 16 00 Hexagon ratchet, 13 mm (ws00.00-p-0003z)….24
00.00 – 000 589 32 16 00 Hexagon ratchet, 17 mm (ws00.00-p-0004z)….25
00.00 – 000 589 33 33 00 Counter stay (ws00.00-n-0051z)….26
00.00 – 000 589 35 33 00 Countersupport (ws00.00-n-3033z)….27
00.00 – 000 589 40 37 00 Clamp (ws00.00-n-0005z)….28
00.00 – 000 589 40 37 00 Clamp (ws00.00-p-0005z)….29
00.00 – 000 589 49 98 00 Oil sample container (ws00.00-p-0263b)….30
00.00 – 000 589 54 37 00 Clamp (ws00.00-p-0006z)….31
00.00 – 000 589 65 33 00 Puller (ws00.00-p-0007z)….32
00.00 – 000 589 67 21 00 Torque wrench (ws00.00-p-0008z)….33
00.00 – 000 589 68 33 00 Internal extractor (ws00.00-n-3030z)….34
00.00 – 000 589 75 03 00 Box wrench bit (ws00.00-p-0009z)….35
00.00 – 000 589 76 03 00 Box wrench (ws00.00-p-0010z)….36
00.00 – 000 589 87 33 00 Gripper (ws00.00-n-3054z)….37
00.00 – 000 589 89 33 00 Puller (ws00.00-n-3022z)….38
00.00 – 001 589 00 16 00 Adapter coupling (ws00.00-p-0120z)….39
00.00 – 001 589 03 91 00 Set of protective covers (ws00.00-p-3069b)….40
00.00 – 001 589 51 21 00 Torque wrench (ws00.00-p-0012z)….41
00.00 – 001 589 53 21 00 Dial gage (ws00.00-n-0013z)….42
00.00 – 001 589 66 21 00 Torque wrench (ws00.00-n-0015z)….43
00.00 – 001 589 67 21 00 Torque wrench (ws00.00-n-0016z)….44
00.00 – 001 589 72 21 00 Torque wrench (ws00.00-p-0017z)….45
00.00 – 001 589 73 21 00 Hand vacuum pump (ws00.00-p-0018z)….46
00.00 – 001 589 74 21 00 Torque wrench (ws00.00-n-0019z)….47
00.00 – 001 589 75 21 00 Torque wrench (ws00.00-n-3049b)….48
00.00 – 001 589 76 09 00 External torx set (ws00.00-n-0020z)….49
00.00 – 001 589 81 09 00 Set of flexible head wrenches (ws00.00-p-0251b)….50
00.00 – 001 589 81 21 00 Torque screwdriver (ws00.00-n-0021z)….51
00.00 – 001 589 86 21 00 Torque wrench (ws00.00-p-0060z)….52
00.00 – 001 589 87 21 00 Torque wrench (ws00.00-p-0119z)….53
00.00 – 003 589 05 09 00 Torque tool set (ws00.00-n-0261a)….54
00.00 – 003 589 06 09 00 Plug-in wrench (ws00.00-p-0262a)….55
00.00 – 100 589 02 59 00 Adapter (ws00.00-p-0022z)….56
00.00 – 110 589 03 59 00 Mounting wedge (ws00.00-p-0274k)….57
00.00 – 112 589 00 25 00 Squeeze gun (ws00.00-p-0052z)….58
00.00 – 116 589 02 07 00 Screwdriver, 5 mm (ws00.00-n-0023z)….59
00.00 – 116 589 03 07 00 T-handle Allen wrench (ws00.00-p-0024z)….60
00.00 – 117 589 02 07 00 Pin box wrench (ws00.00-p-0054z)….61
00.00 – 123 589 00 16 00 Extension (ws00.00-p-0025z)….62
00.00 – 123 589 02 09 00 Socket (ws00.00-p-0026z)….63
00.00 – 123 589 02 10 00 Allen wrench socket (ws00.00-p-0027z)….64
00.00 – 123 589 03 09 00 Socket (ws00.00-p-0028z)….65
00.00 – 163 589 03 43 00 Press (ws00.00-p-0057z)….66
00.00 – 171 589 01 31 00 Vehicle hoist securing tool (ws00.00-p-0282z)….67
00.00 – 198 589 00 09 00 Flexible head wrench socket (ws00.00-p-0032z)….68
00.00 – 210 589 00 71 00 Hand pump (ws00.00-p-0280z)….69
00.00 – 220 589 05 99 00 Electrical connection kit (ws00.00-p-0279z)….70
00.00 – 363 589 02 21 00 Dial indicator holder (ws00.00-p-0033z)….71
00.00 – Check operator's manual (code 1412P58C63) (sm00.00-p-0020a)….72
00.00 – Collection and disposal of components containing mercury (os00.00-p-1000zz)….74
00.00 – Forms Passenger cars Overall vehicle (of00.00-z-3999az)….75
00.00 – General notes Passenger cars Overall vehicle (ah00.00-z-9999az)….76
00.00 – Overview of innovations_changes (sn00.00-p-0082ae)….78
00.00 – Overview of innovations_changes (sn00.00-p-0082al)….79
00.00 – Overview of new products_features for market launch (sn00.00-p-0080f)….81
00.00 – Safety information Overall vehicle (as00.00-z-9999zz)….87
00.00 – Scrapping gas-filled hydraulic components (os00.00-p-2000zz)….90
00.00 – Service Information AMG After Sales Portal (si00.00-p-0125a)….91
00.00 – Service Information Exclusion of liability for third-party retrofits (si00.00-p-0025a)….92
00.00 – Service Information New features_modifications in passenger cars (si00.00-p-0127a)….93
00.00 – Service Information New operation number structure for diagnosis jobs (si00.00-p-0051a)….94
00.00 – Service Information Operation items for test drives (si00.00-p-0009a)….98
00.00 – Service Information Processing of warranty and goodwill claims (si00.00-p-0116a)….100
00.00 – Service Information QR code for rescue forces (si00.00-p-0089a)….101
00.00 – Service Information Software-based retrofits (si00.00-p-0015a)….102
00.00 – Service information Important notes on the use of various vehicle systems and components (si00.00-p-0500a)….104
00.00 – Service information New damage code (si00.00-z-0038a)….107
00.00 – Service information New update concept for diagnosis applications (si00.00-z-0004a)….108
00.00 – Sheet of drawings on paint damage Passenger cars, Model des. 129, 140, 202, 210 (wb6516lit7423z)….109
00.00 – Tightening torques Passenger cars Overall vehicle (ba00.00-z-9999az)….111
00.01 – Certificates (of00.01-z-1999zz)….112
00.01 – Forms (of00.01-z-3999zz)….113
00.01 – Function group overview, engine (ov00.01-z-1904a)….114
00.01 – Function group survey, body (ov00.01-z-1906a)….115
00.01 – Information for the user (ov00.01-z-0100zz)….116
00.01 – Introduction of WIS Service Media (sn00.01-z-0012a)….117
00.01 – Overview of function groups, chassis (ov00.01-z-1905a)….119
00.01 – Search aid for all electrical components (ov00.01-p-1909fba)….120
00.01 – Search aid for electrical components (ov00.01-z-1800a)….144
00.01 – Service Information Content and application of data mediums Telematics CD_DVD, Regio DVD and Digital Owner‘s Manual DVD (si00.01-p-0014a)….146
00.01 – Service Information Damage or breakdown case in international traffic (si00.01-z-0031a)….147
00.01 – Service Information Invoicing of quick test (si00.01-p-0006a)….148
00.01 – Service Information SDconnect rechargeable battery (si00.01-p-0003a)….149
00.01 – Service Information Structure of the new operation numbers for SmallRepair in ASRA [operation texts, standard texts, flat rates and work units] (si00.01-z-0001a)….150
00.01 – Service Information Synonym search – New functionality in WIS (si00.01-z-0036a)….151
00.01 – Service Information Trouble diagnosis bulletins (AF) publication type not applicable (si00.01-z-0029a)….152
00.01 – Service Information WIS Service Media (si00.01-z-0012a)….153
00.01 – Service-Information Xentry Support & Feedback in WIS net (si00.01-z-0030a)….154
00.01 – Summaries (ov00.01-z-0102zz)….157
00.01 – Survey of function groups – overall vehicle (ov00.01-z-1903a)….158
00.01 – Terminology (ov00.01-z-0104zz)….159
00.10 – Check gear capacity (ar00.10-p-1010a)….160
00.10 – Service Information Vehicle identification plate orders (si00.10-p-0003b)….163
00.10 – Table of contents for retrofitting and converting accessories (az00.10-p-1000lw)….164
00.10 – Table of contents for retrofitting and converting special equipment (an00.10-p-1000lzw)….166
00.19 – 000 589 13 99 00 Wiring harness repair kit, basic (ws00.19-p-0007b)….169
00.19 – 220 589 01 99 00 Wiring harness repair kit (ws00.19-p-0009b)….170
00.19 – 220 589 02 99 00 Wiring harness repair kit (ws00.19-p-0002b)….173
00.19 – 220 589 03 99 00 Positioning mount with quick-release fitting (ws00.19-p-0003b)….175
00.19 – 220 589 04 99 00 Wiring harness repair kit, supplement (ws00.19-p-0006b)….176
00.19 – 930 589 00 99 00 Wiring harness repair kit, supplement (ws00.19-n-0004b)….177
00.19 – AMG CAN wiring diagram (pe00.19-p-2191fba)….178
00.19 – General repair methods for wiring harness (ar00.19-p-0100a)….179
00.19 – Overall network (GVN) function description table of contents (gf00.19-p-0999rf)….183
00.19 – Overview of system components for overall network (GVN) (gf00.19-p-9997rf)….184
00.19 – Removing contacts from plugs and connectors (ar00.19-p-0120a)….199
00.19 – Wiring diagram for peripherals CAN (pe00.19-p-2135fba)….204
00.19 – Wiring diagram for user interface CAN (pe00.19-p-2145fba)….205
00.19 – Wiring diagram of chassis FlexRay (pe00.19-p-2405fba)….206
00.19 – Wiring diagram of drive train CAN (pe00.19-p-2170fba)….207
00.19 – Wiring diagram of drive train CAN (pe00.19-p-2170fbb)….208
00.19 – Wiring diagram of ground cabling (pe00.19-p-2800fba)….209
00.19 – Wiring diagram of ground cabling (pe00.19-p-2800fbb)….210
00.19 – Wiring diagram of ground cabling (pe00.19-p-2800fbc)….211
00.19 – Wiring diagram of ground cabling (pe00.19-p-2800fbd)….212
00.19 – Wiring diagram of ground cabling (pe00.19-p-2800fbe)….213
00.19 – Wiring diagram of ground cabling (pe00.19-p-2800fbf)….214
00.19 – Wiring diagram of ground cabling (pe00.19-p-2800fbg)….215
00.19 – Wiring diagram of ground cabling (pe00.19-p-2800fbh)….216
00.19 – Wiring diagram of ground cabling (pe00.19-p-2800fbi)….217
00.19 – Wiring diagram of ground cabling (pe00.19-p-2800fbj)….218
00.19 – Wiring diagram of ground cabling (pe00.19-p-2800fbk)….219
00.19 – Wiring diagram of ground cabling (pe00.19-p-2800fbl)….220
00.19 – Wiring diagram of ground cabling (pe00.19-p-2800fbm)….221
00.19 – Wiring diagram of interior CAN (pe00.19-p-2185fba)….222
00.19 – Wiring diagram of interior CAN (pe00.19-p-2185fbb)….223
00.19 – Wiring diagram of soldered points _ Z connector sleeves (pe00.19-p-2600fba)….224
00.19 – Wiring diagram of soldered points _ Z connector sleeves (pe00.19-p-2600fbb)….225
00.19 – Wiring diagram of soldered points _ Z connector sleeves (pe00.19-p-2600fbc)….226
00.19 – Wiring diagram of soldered points _ Z connector sleeves (pe00.19-p-2600fbd)….227
00.19 – Wiring diagram of soldered points _ Z connector sleeves (pe00.19-p-2600fbe)….228
00.19 – Wiring diagram of soldered points _ Z connector sleeves (pe00.19-p-2600fbf)….229
00.19 – Wiring diagram of soldered points _ Z connector sleeves (pe00.19-p-2600fbg)….230
00.19 – Wiring diagram of soldered points _ Z connector sleeves (pe00.19-p-2600fbh)….231
00.19 – Wiring diagram of telematics CAN (pe00.19-p-2180fba)….232
00.19 – Wiring diagram, hybrid CAN (pe00.19-p-2130fba)….233
00.20 – Bring up workshop level on instrument cluster (ap00.20-p-0046a)….234
00.20 – Check all visible parts in engine compartment for damage and leaks (ap00.20-p-0055c)….236
00.20 – Check all visible parts of vehicle underside for damage and leaks (ap00.20-p-0054e)….237
00.20 – Electrical function schematic for ASSYST, ASSYST PLUS maintenance (pe00.20-p-2050fba)….239
00.20 – Maintenance (ap00.20-p-0000e)….240
00.20 – OVERVIEW for service sheet (ap00.20-p-1228ca)….242
00.20 – OVERVIEW for service sheet (ap00.20-p-1228cb)….248
00.20 – OVERVIEW for service sheet (ap00.20-p-1228j)….254
00.20 – Overview of operations not controlled via workshop code (ap00.20-p-0047u)….261
00.20 – Perform delivery and hand-over inspection (ap00.20-p-1100b)….262
00.20 – Perform delivery check for new vehicles (ap00.20-p-1101a)….267
00.20 – Plus package service items, general view (ap00.20-p-0048u)….269
00.20 – Read out maintenance data from instrument cluster and reset service indicator, general view (ap00.20-p-0049u)….270
00.20 – Service Information Filling of AdBlue during service (si00.20-p-0004a)….271
00.20 – Service Information Forms for delivery and hand-over inspections, inspections and checks in information type AP (si00.20-p-0044a)….273
00.20 – Service Information Maintenance interval (si00.20-p-0041a)….274
00.20 – Spring Inspection (ap00.20-p-0081a)….275
00.20 – Travel inspection (ap00.20-p-0080a)….278
00.20 – Used car check (Young Stars) (ap00.20-p-0085a)….281
00.20 – Used car check (ap00.20-p-0084a)….287
00.20 – Winter Inspection (ap00.20-p-0082a)….292
00.40 – Directory of additional operating fluids (bb00.40-p-0300zz)….295
00.40 – General list (bb00.40-p-0000zz)….296
00.40 – List of fuels (bb00.40-p-0100zz)….297
00.40 – List of lubricants (bb00.40-p-0200zz)….298
00.40 – Search aid for Specifications for Operating Fluids (bb00.40-p-0900a)….299
00.40 – Service Information Exclusive use of Mercedes-Benz lubricants in warranty and goodwill cases (si00.40-p-0009a)….303
00.40 – Service Information bulletin Specifications for Operating Fluids for automatic transmission (si00.40-p-0014a)….304
00.40 – Service information Dying of windshield washer fluid concentrate (si00.40-z-0006a)….306
00.45 – Auxiliary repair materials (br00.45-z-0999zz)….307
00.45 – Service Information Multipurpose metal grease (si00.45-p-0004a)….308
00.45 – Service Information Service kit for rectifying squeaking, creaking and tearing noises (si00.45-p-0002a)….309
00.60 – Lift_jack up vehicle (ar00.60-p-1000lw)….310
00.60 – Lift_lower vehicle (ar00.60-p-1002lwg)….312
00.60 – Secure vehicle on vehicle lift (ar00.60-p-0100cw)….314
00.70 – Render new vehicles, which were immobilized operational (ap00.70-p-1001zz)….316
00.70 – Safety precautions for new vehicles that are being put in storage (ap00.70-p-1000zz)….317
01_Complete Engine, Crankcase Ventilation, Cylinder Head, Crankcase….318
01.00 – 000 588 00 31 00 Assembly stand (ws01.00-n-3028b)….327
01.00 – 000 588 00 62 00 Load tilter (ws01.00-p-0102b)….328
01.00 – 000 588 01 21 00 Endoscope (ws01.00-p-0097b)….329
01.00 – 000 588 03 62 00 Lifting platform (ws01.00-p-0091a)….330
01.00 – 000 588 04 62 00 Removal fixture (ws01.00-n-3014b)….331
01.00 – 000 588 11 62 00 Major assembly mount (ws01.00-p-0092b)….332
01.00 – 000 589 01 25 00 Hand pressure gun (ws01.00-n-3060b)….333
01.00 – 001 589 00 91 00 Set of protective covers (ws01.00-n-0110b)….334
01.00 – 001 589 01 91 00 Set of protective covers (ws01.00-p-0111b)….335
01.00 – 001 589 02 91 00 Set of protective covers (ws01.00-n-0112b)….336
01.00 – 001 589 76 21 00 Compression tester (ws01.00-p-0004a)….337
01.00 – 003 589 03 37 00 Hose clamp pliers (ws01.00-p-0113b)….338
01.00 – 205 589 00 61 00 Engine hoist (ws01.00-p-1001b)….339
01.00 – 240 589 00 32 00 Adaptation plates (ws01.00-p-0150b)….340
01.00 – 240 589 00 61 00 Engine lifting device (ws01.00-p-0104c)….341
01.00 – 240 589 01 31 00 Set of adapters (ws01.00-p-0085b)….342
01.00 – 270 589 00 34 00 Threaded pin (ws01.00-p-0008b)….343
01.00 – 270 589 01 91 00 Thread adapter (ws01.00-p-0065b)….344
01.00 – 271 589 00 43 00 Installation tool (ws01.00-p-0120b)….345
01.00 – 273 589 00 43 00 Insertion tool (ws01.00-p-0152b)….346
01.00 – 450 589 17 21 00 Pressure loss tester (ws01.00-p-0082b)….347
01.00 – 452 589 01 99 00 Repair tools for valves (ws01.00-p-0108c)….348
01.00 – 601 589 00 10 00 Screwdriver bit (ws01.00-p-0033b)….349
01.00 – 639 589 00 61 00 Engine lifting device (ws01.00-n-3106c)….350
01.00 – Check cylinders for leaks (ar01.00-p-1300mra)….351
01.00 – Cleaning and preserving engine and engine compartment (ap01.00-p-1000zz)….353
01.00 – Determine loss of pressure at cylinder (ah01.00-n-1300-02a)….354
01.00 – Firing order (ah01.00-n-0100-01a)….355
01.00 – Forms Passenger cars Complete engine, crankcase ventilation, cylinder head , crankcase (of01.00-z-3999az)….356
01.00 – General information on inspecting cylinder walls (ah01.00-n-0300-01a)….357
01.00 – General information on inspecting cylinder walls (ah01.00-p-0300-01a)….358
01.00 – General information on inspecting cylinder walls (ah01.00-p-0300-01ak)….360
01.00 – General information on inspecting cylinder walls (ah01.00-p-0300-01al)….362
01.00 – General information on inspecting cylinder walls (ah01.00-p-0300-01mm)….364
01.00 – General information on inspecting cylinder walls (ah01.00-p-0300-01slr)….370
01.00 – General information on inspecting cylinder walls (ah01.00-p-0300-01va)….372
01.00 – General notes Passenger cars Complete engine, crankcase ventilation, cylinder head , crankcase (ah01.00-z-9999az)….376
01.00 – Inspect cylinders with a light probe (ar01.00-p-0200mra)….380
01.00 – Notes on position of engine number (ah01.00-p-0001-01a)….382
01.00 – Notes on position of engine number (ah01.00-p-0001-01b)….383
01.00 – Notes on position of engine number (ah01.00-p-0001-01c)….384
01.00 – Notes on position of engine number (ah01.00-p-0001-01d)….385
01.00 – Notes on position of engine number (ah01.00-p-0001-01e)….386
01.00 – Notes on position of engine number (ah01.00-p-0001-01mcc)….387
01.00 – Notes on position of engine number (ah01.00-p-0001-01sr)….388
01.00 – Technical modifications Passenger cars Complete engine, crankcase ventilation, cylinder head , crankcase (bt01.00-z-9999az)….389
01.00 – Test and adjustment values Passenger cars Complete engine, crankcase ventilation, cylinder head , crankcase (be01.00-z-9999az)….390
01.00 – Test compression pressure (ar01.00-p-1200mra)….392
01.00 – Tightening torques Passenger cars Complete engine, crankcase ventilation, cylinder head , crankcase (ba01.00-z-9999az)….394
01.10 – Crank engine with starter (ar01.10-p-0110mra)….396
01.10 – Remove_install engine from_onto front axle carrier (ar01.10-p-2510mra)….397
01.10 – Remove_install engine with front axle carrier (ar01.10-p-2500mra)….399
01.10 – Remove_install engine with transmission (ar01.10-p-2401mra)….404
01.10 – Service Information Cleaning sealing surfaces (si01.10-p-0004a)….409
01.10 – Service Information Standardized procedure for complaints on the engine (si01.10-p-0001a)….410
01.10 – Use of unleaded fuel in reconditioned engines (ah01.10-p-1000-01a)….412
01.20 – Bolt diagram cylinder head cover (ah01.20-p-5014-04ao)….413
01.20 – Electrical function schematic for crankcase ventilation system (pe01.20-p-2001fba)….414
01.20 – Remove_install cylinder head cover (ar01.20-p-5014mra)….415
01.20 – Remove_install oil separator (ar01.20-p-9750mra)….418
01.20 – Remove_install oil separator (ar01.20-p-9750mru)….422
01.20 – Replace full load housing ventilation (ar01.20-p-0002mra)….429
01.30 – Information for assigning cylinder head gaskets (ah01.30-p-1000-06tq)….431
01.30 – Information on applying sealant to a cylinder head gasket (ah01.30-p-1000-04va)….432
01.30 – Information on applying sealant to cylinder head gasket (ah01.30-p-1000-04rx)….433
01.30 – Information on applying sealant to cylinder head gasket (ah01.30-p-1000-04v)….434
01.30 – Information on cylinder head contact surface (ah01.30-p-1000-05a)….435
01.30 – Notes on application of sealant to cylinder shutoff oil pump (ah01.30-p-1000-01a)….436
01.30 – Notes on application of sealant to front cover of the cylinder head (ah01.30-p-1000-02al)….437
01.30 – Notes on assigning the cylinder head gaskets (ah01.30-p-1000-06v)….438
01.30 – Notes on sealant path for cylinder head cover (ah01.30-p-1000-08ak)….439
01.30 – Notes on sealant path for cylinder head cover (ah01.30-p-1000-08bk)….440
01.30 – Notes on sealant path for cylinder head cover (ah01.30-p-1000-08fb)….441
01.30 – Notes on sealant path for cylinder head cover (ah01.30-p-1000-08mm)….442
01.30 – Notes on sealant path for cylinder head cover (ah01.30-p-1000-08mmi)….443
01.30 – Notes on sealant path for cylinder head cover (ah01.30-p-1000-08olp)….444
01.30 – Notes on sealant path for cylinder head cover (ah01.30-p-1000-08sx)….445
01.30 – Notes on sealant path for cylinder head cover (ah01.30-p-1000-08sxi)….446
01.30 – Notes on sealant path for cylinder head cover (ah01.30-p-1000-08v)….447
01.30 – Notes on sealant path for front cover to cylinder head xxx (ah01.30-p-1000-02b)….448
01.30 – Notes on sealant path for front cover to cylinder head xxx (ah01.30-p-1000-02c)….449
01.30 – Notes on sealant path for front cover to cylinder head xxx (ah01.30-p-1000-02d)….450
01.30 – Notes on sealant path for front cover to cylinder head xxx (ah01.30-p-1000-02mm)….451
01.30 – Notes on sealant path for front cover to cylinder head xxx (ah01.30-p-1000-02mmi)….452
01.30 – Notes on sealant path for front cover to cylinder head xxx (ah01.30-p-1000-02mt)….453
01.30 – Notes on sealant path for front cover to cylinder head xxx (ah01.30-p-1000-02tj)….454
01.30 – Notes on sealant path for front cover to cylinder head xxx (ah01.30-p-1000-02v)….455
01.30 – Notes on the application of sealing compound to the cylinder head cover (ah01.30-p-1000-08pi)….456
01.30 – Notes on the application of sealing compound to the cylinder head cover (ah01.30-p-1000-08tq)….457
01.30 – Remove_install cylinder head (ar01.30-p-5800mrb)….458
01.30 – Remove_install front cover on cylinder head (ar01.30-p-5700mrb)….462
01.40 – Information on application of sealant to crankcase bottom section (ah01.40-p-1000-03a)….464
01.40 – Information on application of sealant to crankcase bottom section (ah01.40-p-1000-03amg)….465
01.40 – Information on application of sealant to crankcase bottom section (ah01.40-p-1000-03b)….466
01.40 – Information on application of sealant to crankcase bottom section (ah01.40-p-1000-03rq)….467
01.40 – Information on application of sealant to crankcase bottom section (ah01.40-p-1000-03sr)….468
01.40 – Information on application of sealant to crankcase bottom section (ah01.40-p-1000-03tj)….469
01.40 – Information on application of sealant to end cover of crankcase (ah01.40-p-1000-04a)….470
01.40 – Information on application of sealant to end cover of crankcase (ah01.40-p-1000-04b)….471
01.40 – Information on application of sealant to end cover of crankcase (ah01.40-p-1000-04c)….472
01.40 – Information on application of sealant to end cover of crankcase (ah01.40-p-1000-04tjt)….473
01.40 – Notes for evaluation of a cylinder barrel (ah01.40-p-0001-03sm)….474
01.40 – Notes on application of sealant to crankcase cover (ah01.40-p-1000-05a)….476
01.40 – Notes on application of sealant to end cover with radial shaft seal (ah01.40-p-1000-06a)….477
01.40 – Notes on application of sealant to end cover with radial shaft seal (ah01.40-p-1000-06ak)….478
01.40 – Notes on application of sealant to end cover with radial shaft seal (ah01.40-p-1000-06c)….479
01.40 – Notes on application of sealant to end cover with radial shaft seal (ah01.40-p-1000-06ff)….480
01.40 – Notes on application of sealant to end cover with radial shaft seal (ah01.40-p-1000-06mcc)….481
01.40 – Notes on application of sealant to right-hand crankcase (ah01.40-p-1000-02a)….482
01.40 – Notes on sealant path for cylinder crankcase (ah01.40-p-1000-08mm)….483
01.40 – Notes on sealant path for timing case cover (ah01.40-p-1000-01a)….484
01.40 – Notes on sealant path for timing case cover (ah01.40-p-1000-01ak)….485
01.40 – Notes on sealant path for timing case cover (ah01.40-p-1000-01al)….486
01.40 – Notes on sealant path for timing case cover (ah01.40-p-1000-01amg)….487
01.40 – Notes on sealant path for timing case cover (ah01.40-p-1000-01b)….488
01.40 – Notes on sealant path for timing case cover (ah01.40-p-1000-01c)….489
01.40 – Notes on sealant path for timing case cover (ah01.40-p-1000-01d)….490
01.40 – Notes on sealant path for timing case cover (ah01.40-p-1000-01ff)….491
01.40 – Notes on sealant path for timing case cover (ah01.40-p-1000-01fg)….492
01.40 – Notes on sealant path for timing case cover (ah01.40-p-1000-01mcc)….493
01.40 – Notes on sealant path for timing case cover (ah01.40-p-1000-01mma)….494
01.40 – Notes on sealant path for timing case cover (ah01.40-p-1000-01mmb)….495
01.40 – Notes on sealant path for timing case cover (ah01.40-p-1000-01mr)….496
01.40 – Notes on sealant path for timing case cover (ah01.40-p-1000-01mt)….497
01.40 – Notes on sealant path for timing case cover (ah01.40-p-1000-01olp)….498
01.40 – Notes on sealant path for timing case cover (ah01.40-p-1000-01rq)….499
01.40 – Notes on sealant path for timing case cover (ah01.40-p-1000-01sr)….500
01.40 – Notes on sealant path for timing case cover (ah01.40-p-1000-01tk)….501
01.40 – Notes on sealant path for timing case cover (ah01.40-p-1000-01va)….502
01.40 – Remove_install timing case cover (ar01.40-p-8000mra)….503
01.45 – Notes on sealant path for oil pan (ah01.45-p-0001-01a)….506
01.45 – Notes on sealant path for oil pan (ah01.45-p-0001-01ak)….507
01.45 – Notes on sealant path for oil pan (ah01.45-p-0001-01amg)….508
01.45 – Notes on sealant path for oil pan (ah01.45-p-0001-01b)….510
01.45 – Notes on sealant path for oil pan (ah01.45-p-0001-01c)….511
01.45 – Notes on sealant path for oil pan (ah01.45-p-0001-01cmg)….512
01.45 – Notes on sealant path for oil pan (ah01.45-p-0001-01d)….514
01.45 – Notes on sealant path for oil pan (ah01.45-p-0001-01e)….515
01.45 – Notes on sealant path for oil pan (ah01.45-p-0001-01f)….516
01.45 – Notes on sealant path for oil pan (ah01.45-p-0001-01fb)….517
01.45 – Notes on sealant path for oil pan (ah01.45-p-0001-01ff)….518
01.45 – Notes on sealant path for oil pan (ah01.45-p-0001-01gz)….519
01.45 – Notes on sealant path for oil pan (ah01.45-p-0001-01h)….520
01.45 – Notes on sealant path for oil pan (ah01.45-p-0001-01ma)….521
01.45 – Notes on sealant path for oil pan (ah01.45-p-0001-01mcc)….522
01.45 – Notes on sealant path for oil pan (ah01.45-p-0001-01mma)….523
01.45 – Notes on sealant path for oil pan (ah01.45-p-0001-01mmb)….525
01.45 – Notes on sealant path for oil pan (ah01.45-p-0001-01mna)….527
01.45 – Notes on sealant path for oil pan (ah01.45-p-0001-01mnb)….528
01.45 – Notes on sealant path for oil pan (ah01.45-p-0001-01mt)….529
01.45 – Notes on sealant path for oil pan (ah01.45-p-0001-01olp)….530
01.45 – Notes on sealant path for oil pan (ah01.45-p-0001-01ora)….531
01.45 – Notes on sealant path for oil pan (ah01.45-p-0001-01r)….532
01.45 – Notes on sealant path for oil pan (ah01.45-p-0001-01rmg)….533
01.45 – Notes on sealant path for oil pan (ah01.45-p-0001-01rr)….535
01.45 – Notes on sealant path for oil pan (ah01.45-p-0001-01slr)….536
01.45 – Notes on sealant path for oil pan (ah01.45-p-0001-01sr)….537
01.45 – Notes on sealant path for oil pan (ah01.45-p-0001-01sx)….538
01.45 – Notes on sealant path for oil pan (ah01.45-p-0001-01sy)….542
01.45 – Notes on sealant path for oil pan (ah01.45-p-0001-01t)….544
01.45 – Notes on sealant path for oil pan (ah01.45-p-0001-01tj)….545
01.45 – Notes on sealant path for oil pan (ah01.45-p-0001-01va)….546
01.45 – Remove_install oil pan (ar01.45-p-7500mra)….550
03_Crank Assembly….555
03.00 – 000 589 04 14 00 Tensioning strap (ws03.00-p-0001c)….557
03.00 – 000 589 20 21 00 Hardness tester (ws03.00-p-0002c)….558
03.00 – 000 589 51 37 00 Pliers (ws03.00-p-0005c)….559
03.00 – 001 589 32 21 00 Dial gage (ws03.00-p-0007b)….560
03.00 – 001 589 65 09 00 Socket wrench bit (ws03.00-p-0006b)….561
03.00 – 112 589 03 40 00 Retaining lock (ws03.00-p-0037b)….562
03.00 – 119 589 01 14 00 Sleeve (ws03.00-p-0022b)….563
03.00 – 230 589 00 40 00 Counterholder (ws03.00-p-0068b)….564
03.00 – 270 589 00 15 00 Drift (ws03.00-p-0061b)….565
03.00 – 270 589 00 33 00 Puller (ws03.00-p-0125b)….566
03.00 – 270 589 00 68 00 Adapter (ws03.00-p-0062b)….567
03.00 – 270 589 02 40 00 Retaining lock (ws03.00-p-0058c)….568
03.00 – 274 589 00 31 00 Adapter (ws03.00-p-0060b)….569
03.00 – General notes Passenger cars Crank assembly (ah03.00-z-9999az)….570
03.00 – Technical modifications Passenger cars Crank assembly (bt03.00-z-9999az)….571
03.00 – Test and adjustment values Passenger cars Crank assembly (be03.00-z-9999az)….572
03.00 – Tightening torques Passenger cars Crank assembly (ba03.00-z-9999az)….574
03.10 – Remove_install piston rings (ar03.10-p-7311mr)….576
03.20 – Measure crankshaft and remount in bearings (ar03.20-p-4355mr)….578
03.20 – Remove_install Lanchester balancer (ar03.20-p-1100mra)….581
03.20 – Replace front crankshaft radial sealing ring (ar03.20-p-3000mra)….585
03.20 – Replacing rear crankshaft radial seal (ar03.20-p-3063mra)….587
03.20 – Service Information Special tool for cleaning the crankshaft pulse wheel (si03.20-p-0006a)….589
03.30 – Measure tilt and torsional play on two-mass flywheel (ar03.30-p-8010mra)….590
03.30 – Remove_install belt pulley_vibration damper (ar03.30-p-1600mra)….593
03.30 – Remove_install flywheel _ drive plate (ar03.30-p-8001mra)….595
03.30 – Remove_install retaining lock for crankshaft_ring gear (ar03.30-p-5000mra)….597
05_Engine Timing….598
05.00 – 000 589 10 68 00 Cylinder brush (ws05.00-p-0002c)….600
05.00 – 111 589 25 61 00 Valve assembly tools kit (ws05.00-p-3137ba)….601
05.00 – 115 589 20 33 00 Puller (ws05.00-p-0079b)….602
05.00 – 116 589 06 63 00 Magnetic finger (ws05.00-n-0088b)….603
05.00 – 116 589 06 63 00 Magnetic rod (ws05.00-p-0088b)….604
05.00 – 116 589 20 33 00 Impact extractor (ws05.00-n-0089b)….605
05.00 – 210 589 00 40 00 Magnetic pin (ws05.00-n-0155b)….606
05.00 – 270 589 00 61 00 Holding device (ws05.00-p-0019c)….607
05.00 – 270 589 01 07 00 Socket wrench bit (ws05.00-p-0017c)….608
05.00 – 270 589 01 61 00 Holding device (ws05.00-p-0166c)….609
05.00 – 271 589 00 10 00 Socket (ws05.00-p-0268b)….610
05.00 – 271 589 00 59 00 Assembly tool (ws05.00-p-0202c)….611
05.00 – 271 589 09 63 00 Assembly element (ws05.00-p-0228b)….612
05.00 – 272 589 00 61 00 Depressor (ws05.00-p-0233b)….613
05.00 – 276 589 00 39 00 Rivet press tool (ws05.00-p-0115c)….614
05.00 – 602 589 00 39 00 Riveting tool (ws05.00-p-0162c)….615
05.00 – 602 589 00 98 00 Case (ws05.00-p-0158c)….616
05.00 – 602 589 02 33 00 Chain separating tool (ws05.00-p-0159c)….617
05.00 – 602 589 02 40 00 Assembly links (ws05.00-p-0171c)….618
05.00 – 604 589 00 43 00 Drift (ws05.00-p-0114b)….619
05.00 – 605 589 00 33 00 Puller (ws05.00-p-0154b)….620
05.00 – 606 589 00 37 00 Pliers (ws05.00-p-0116b)….621
05.00 – 640 589 00 61 00 Depressor (ws05.00-p-0236b)….622
05.00 – 642 589 00 33 00 Riveting tool (ws05.00-p-0260c)….623
05.00 – Check hydraulic valve clearance compensating elements (ar05.00-p-2010mra)….624
05.00 – General notes Passenger cars Engine timing (ah05.00-z-9999az)….626
05.00 – Remove_install hydraulic valve clearance compensating elements (ar05.00-p-2011mra)….627
05.00 – Safety information Engine timing (as05.00-z-9999zz)….628
05.00 – Technical modifications Passenger cars Engine timing (bt05.00-z-9999az)….629
05.00 – Test and adjustment values Passenger cars Engine timing (be05.00-z-9999az)….630
05.00 – Tightening torques Passenger cars Engine timing (ba05.00-z-9999az)….632
05.10 – Remove_install chain tensioner (ar05.10-p-7800mra)….633
05.10 – Remove_install slide rail of timing chain (ar05.10-p-8480mra)….635
05.10 – Remove_install tensioning rail (ar05.10-p-8127mra)….636
05.10 – Replace timing chain (ar05.10-p-7601mra)….637
05.20 – Check basic position of camshafts (ar05.20-p-6010mra)….639
05.20 – Remove_install camshafts (ar05.20-p-6992mra)….640
05.20 – Remove_install camshafts (ar05.20-p-7201mra)….641
05.20 – Remove_install solenoid camshaft (ar05.20-p-7295mra)….643
05.20 – Set basic position of camshafts (ar05.20-p-6020mra)….645
05.30 – Remove_install valve springs and_or valve stem seals (ar05.30-p-3500mra)….648
05.30 – Remove_install valves (ar05.30-p-3511mra)….651
07_Mixture Formation….654
07.00 – 000 589 00 68 00 Cleaning kit (ws07.00-p-0001c)….658
07.00 – 000 589 68 03 00 Box wrench bit (ws07.00-n-0004a)….659
07.00 – 000 589 68 03 00 Box wrench bit (ws07.00-p-0004b)….660
07.00 – 000 589 69 03 00 Ring wrench bit (ws07.00-p-0088b)….661
07.00 – 103 589 00 21 00 Testing unit (ws07.00-n-0014b)….662
07.00 – 119 589 04 63 00 Pressure hose (ws07.00-p-0024b)….663
07.00 – 270 589 01 68 00 Cylinder brush (ws07.00-p-0063b)….664
07.00 – 272 589 00 43 00 Assembly tool (ws07.00-p-0127b)….665
07.00 – 278 589 00 15 00 Drift (ws07.00-p-0152b)….666
07.00 – 278 589 00 33 00 Puller (ws07.00-p-0153b)….667
07.00 – 278 589 01 15 00 Drift (ws07.00-p-0154b)….668
07.00 – Certificates Passenger cars Mixture formation (of07.00-z-1999az)….669
07.00 – Exhaust emission test I (ar07.00-p-1000a)….670
07.00 – Forms Passenger cars Mixture formation (of07.00-z-3999az)….671
07.00 – General notes Passenger cars Mixture formation (ah07.00-z-9999az)….672
07.00 – Safety information Mixture formation (as07.00-z-9999zz)….674
07.00 – Service Information Notes on natural gas operation (si07.00-p-0003a)….675
07.00 – Service Information on fuel consumption measurement (si07.00-p-0004a)….676
07.00 – Technical modifications Passenger cars Mixture formation (bt07.00-z-9999az)….678
07.00 – Test and adjustment values Passenger cars Mixture formation (be07.00-z-9999az)….679
07.00 – Tightening torques Passenger cars Mixture formation (ba07.00-z-9999az)….681
07.02 – Remove_install high-pressure pump (ar07.02-p-1020mra)….683
07.03 – Remove_install fuel injectors (ar07.03-p-0004mra)….687
07.03 – Remove_install rail (ar07.03-p-1010mra)….689
07.04 – Remove_install a pressure sensor (ar07.04-p-0050mra)….693
07.04 – Remove_install oxygen sensors (ar07.04-p-0021mra)….695
07.08 – Program ME-SFI (ME) control unit (code 1403P54A82) (sm07.08-p-0025a)….697
07.08 – Remove_install injection system control unit (ar07.08-p-7008mra)….698
07.08 – Service Information Program ME-SFI control unit (si07.08-p-0015a)….699
07.08 – Wiring diagram for gasoline direct injection system control unit (pe07.08-p-2101fbj)….700
07.08 – Wiring diagram for gasoline direct injection system control unit (pe07.08-p-2101fbk)….701
07.10 – Electrical function diagram for ignition OFF (pe07.10-p-2702fba)….702
07.10 – Electrical function diagram for injection control (pe07.10-p-2704fba)….703
07.10 – Electrical function schematic for camshaft adjustment (pe07.10-p-2716fba)….704
07.10 – Electrical function schematic for deceleration fuel shutoff (pe07.10-p-2714fba)….705
07.10 – Electrical function schematic for engine limp-home mode (pe07.10-p-2719fba)….706
07.10 – Electrical function schematic for engine timing start stop (pe07.10-p-2722fba)….707
07.10 – Electrical function schematic for fuel supply (pe07.10-p-2703fba)….708
07.10 – Electrical function schematic for ignition system (pe07.10-p-2705fba)….709
07.10 – Electrical function schematic for knock control (pe07.10-p-2715fba)….710
07.10 – Electrical function schematic for lambda control (pe07.10-p-2710fba)….711
07.10 – Electrical function schematic for on-board diagnosis (pe07.10-p-2720fba)….712
07.10 – Electrical function schematic for rpm control (pe07.10-p-2708fba)….713
07.10 – Electrical function schematic for safety fuel shutoff (pe07.10-p-2733fba)….714
07.10 – Electrical function schematic for smooth running control (pe07.10-p-2711fba)….715
07.10 – Electrical function schematic for start phase, post-start phase and warm-up enrichment (pe07.10-p-2707fba)….716
07.10 – Electrical function schematic for starting (pe07.10-p-2701fba)….717
07.10 – Electrical function schematic for thermal management (pe07.10-p-2712fba)….718
07.10 – Electrical function schematic for torque coordination (pe07.10-p-2713fba)….719
07.10 – Electrical function schematic, alternator interface (pe07.10-p-2709fba)….720
07.10 – Electrical function schematic, ignition ON (pe07.10-p-2700fba)….721
07.10 – Electrical function schematic, synchronization of the injection and firing order (pe07.10-p-2706fba)….722
07.17 – Remove_install pressure transducer for boost pressure control (ar07.17-p-7002mra)….723
07.61 – Remove_install throttle valve actuator (ar07.61-p-1401mra)….724
07.70 – Overview of system components for gasoline injection and ignition system with direct injection (gf07.70-p-9998mra)….725
07.70 – Remove_install NOx sensor (ar07.70-p-0001mra)….737
07.70 – Remove_install for NOx temperature sensor for storage catalytic converter (ar07.70-p-0002mra)….739
07.70 – Table of contents for function description of gasoline injection and ignition system with direct injection (gf07.70-p-0998mra)….741
08_Electric Drive, Hybrid Drive….742
08.00 – Capacities Passenger cars Electrical drive system (bf08.00-z-9999az)….743
08.00 – Forms Passenger cars Electrical drive system (of08.00-z-3999az)….744
08.00 – Test and adjustment values Passenger cars Electrical drive system (be08.00-z-9999az)….745
08.00 – Tightening torques Passenger cars Electrical drive system (ba08.00-z-9999az)….746
08.00 – Wiring diagram of high-voltage lines and interlock circuit (pe08.00-p-2000fba)….747
08.00 – Wiring diagram of high-voltage lines and interlock circuit (pe08.00-p-2000fbb)….748
09_Air Intake, Turbocharging….749
09.00 – 270 589 02 91 00 Connection adapter (ws09.00-p-0019b)….751
09.00 – 611 589 02 21 00 Leaktightness tester (ws09.00-p-0006b)….752
09.00 – Electrical function schematic for charging (pe09.00-p-2050fba)….753
09.00 – Forms Passenger cars Air intake, supercharging (of09.00-z-3999az)….754
09.00 – General notes Passenger cars Air intake, supercharging (ah09.00-z-9999az)….755
09.00 – Technical modifications Passenger cars Air intake, supercharging (bt09.00-z-9999az)….756
09.00 – Test and adjustment values Passenger cars Air intake, supercharging (be09.00-z-9999az)….757
09.00 – Tightening torques Passenger cars Air intake, supercharging (ba09.00-z-9999az)….758
09.10 – Remove_install air filter housing (ar09.10-p-1150mra)….760
09.10 – Remove_install air intake pipe (ar09.10-p-8131mra)….761
09.10 – Replace air filter element (ap09.10-p-0980cwg)….762
09.40 – Remove_install turbocharger with exhaust manifold (ar09.40-p-6025mra)….764
09.41 – Check low-temperature circuit cooling system for leaks (ar09.41-p-1010lw)….768
09.41 – Drain_fill low-temperature circuit coolant (ar09.41-p-6834lw)….770
09.41 – Remove_install charge air cooler, water-cooled (ar09.41-p-6819mra)….772
09.41 – Remove_install charge air distributor (ar09.41-p-8683mra)….774
09.41 – Remove_install circulation pump for low-temperature water circuit (ar09.41-p-6925lw)….776
09.41 – Remove_install low temperature water circuit radiator (ar09.41-p-6935mmv)….777
09.41 – Remove_install low-temperature circuit expansion reservoir (ar09.41-p-0001mra)….779
13_Air Compressor, Belt Drives….781
13.00 – General notes Passenger cars Air compressor, belt drives (ah13.00-z-9999az)….782
13.00 – Technical modifications Passenger cars Air compressor, belt drives (bt13.00-z-9999az)….783
13.00 – Test and adjustment values Passenger cars Air compressor, belt drives (be13.00-z-9999az)….784
13.00 – Tightening torques Passenger cars Air compressor, belt drives (ba13.00-z-9999az)….785
13.20 – Remove_install belt drive components (ar13.20-p-0001mra)….786
13.22 – Check visible area of poly-V belt for wear (ap13.22-p-1352cw)….788
14_Exhaust Manifold, Engine Brake, Emission Control System….790
14.00 – 000 588 01 71 00 Extraction pump (ws14.00-p-0013b)….792
14.00 – 000 588 08 21 00 Test and measuring kit (ws14.00-p-0012b)….793
14.00 – Capacities Passenger cars Exhaust manifold, engine brake, emission control system (bf14.00-z-9999az)….794
14.00 – Certificates Passenger cars Exhaust manifold, engine brake, emission control system (of14.00-z-1999az)….795
14.00 – Electrical function schematic for exhaust treatment (pe14.00-p-2051fba)….796
14.00 – General notes Passenger cars Exhaust manifold, engine brake, emission control system (ah14.00-z-9999az)….797
14.00 – Safety information Exhaust manifold, engine brake, emission control system (as14.00-z-9999zz)….798
14.00 – Technical modifications Passenger cars Exhaust manifold, engine brake, emission control system (bt14.00-z-9999az)….799
14.00 – Test and adjustment values Passenger cars Exhaust manifold, engine brake, emission control system (be14.00-z-9999az)….800
14.00 – Tightening torques Passenger cars Exhaust manifold, engine brake, emission control system (ba14.00-z-9999az)….801
14.20 – Electrical function schematic for exhaust gas recirculation (pe14.20-p-2052fba)….802
14.20 – Install, remove exhaust gas recirculation (ar14.20-p-1050mra)….803
14.20 – Remove_install exhaust gas recirculation (AGR) differential pressure sensor (ar14.20-p-2000mra)….805
14.20 – Remove_install exhaust gas recirculation cooler (ar14.20-p-7665mra)….806
14.20 – Remove_install exhaust gas recirculation valve (ar14.20-p-7662mra)….807
14.40 – Fill AdBlue(R) tank (ap14.40-p-1410bt)….808
14.40 – Service Information Fill AdBlue container (si14.40-p-0014a)….810
14.40 – Service Information Return delivery of AdBlue tank (si14.40-p-0023a)….811
15_Electrical System – Engine….812
15.00 – 000 588 03 19 00 Load tester (ws15.00-p-0027b)….814
15.00 – 124 589 09 63 00 Ohm decade (ws15.00-n-0009c)….815
15.00 – 124 589 09 63 00 Ohm decade (ws15.00-p-0009c)….816
15.00 – 201 589 00 99 00 Electrical connection kit (ws15.00-n-0014c)….817
15.00 – 274 589 00 63 00 4-pin adapter cable (ws15.00-p-0024b)….818
15.00 – 278 589 00 09 00 Spark plug wrench (ws15.00-p-0065b)….819
15.00 – 602 589 00 10 00 Socket wrench (ws15.00-p-0015b)….820
15.00 – Forms Passenger cars Electrical system – engine (of15.00-z-3999az)….821
15.00 – General notes Passenger cars Electrical system – engine (ah15.00-z-9999az)….822
15.00 – Safety information Electrical system – engine (as15.00-z-9999zz)….823
15.00 – Technical modifications Passenger cars Electrical system – engine (bt15.00-z-9999az)….824
15.00 – Test and adjustment values Passenger cars Electrical system – engine (be15.00-z-9999az)….825
15.00 – Tightening torques Passenger cars Electrical system – engine (ba15.00-z-9999az)….826
15.00 – Wiring diagram for engine start_stop (pe15.00-p-2103fba)….828
15.00 – Wiring diagram for engine start_stop (pe15.00-p-2103fbb)….829
15.00 – Wiring diagram of starter, alternator, battery (pe15.00-p-2101fbb)….830
15.10 – Remove_install camshaft Hall sensor (ar15.10-p-2000mra)….831
15.10 – Replace spark plugs (ap15.10-p-1580cwf)….832
15.10 – Service Information Diagnosis on ignition system (si15.10-p-0003a)….834
15.10 – Service Information Spark plug connector grease (si15.10-p-0004a)….836
15.12 – Remove install crankshaft pulse ring (ar15.12-p-0001mra)….837
15.12 – Remove_install crankshaft Hall sensor (ar15.12-p-2136mra)….839
15.12 – Remove_install ignition coils (ar15.12-p-2003mra)….840
15.12 – Remove_install knock sensors (ar15.12-p-2184mra)….841
15.30 – Remove_install starter (ar15.30-p-7100lwa)….842
15.30 – Service Information Return delivery of starter diagnostic data (si15.30-p-0002a)….844
15.40 – Check regulator and alternator (ar15.40-p-5000cw)….845
15.40 – Remove_install alternator (ar15.40-p-5032lwa)….847
15.40 – Remove_install alternator belt pulley (ar15.40-p-5710lwa)….849
15.40 – Remove_install regulator for alternator (ar15.40-p-5760lwa)….850
15.40 – Service Information Return of diagnostic data when replacing the alternator or alternator regulator (si15.40-p-0007a)….851
15.40 – Service information Alternator diagnosis (si15.40-p-0003c)….852
15.40 – Test alternator charging current (ar15.40-p-5011cw)….853
15.60 – Remove_install coolant temperature sensor (ar15.60-p-2711mra)….858
18_Engine Lubrication, Engine Oil Cooling….859
18.00 – 000 588 05 82 00 Oil extraction sensor (ws18.00-p-0027b)….861
18.00 – 000 588 06 82 00 Oil dispenser (ws18.00-p-0026b)….862
18.00 – 124 589 07 21 00 Remote thermometer (ws18.00-p-0011b)….863
18.00 – 270 589 00 63 00 Tester cap (ws18.00-p-0002b)….864
18.00 – 270 589 03 91 00 Stop plug (ws18.00-p-0006b)….865
18.00 – Capacities Passenger cars Engine lubrication, engine oil cooling (bf18.00-z-9999az)….866
18.00 – Check engine oil level using on-board oil dipstick (ap18.00-p-1811mp)….868
18.00 – Check oil pressure (ar18.00-p-1250mra)….870
18.00 – Engine oil and filter change (ap18.00-p-0101cwe)….872
18.00 – Engine oil and filter change (ap18.00-p-0101cwi)….874
18.00 – Forms Passenger cars Engine lubrication, engine oil cooling (of18.00-z-3999az)….876
18.00 – Full overview of engine oils with service intervals according to Mercedes-Benz specifications for operating fluids for gasoline engines in cars (ap18.00-p-1849ub)….877
18.00 – Full overview of engine oils with service intervals according to Mercedes-Benz specifications for operating fluids for gasoline engines in cars (ap18.00-p-1849ubu)….878
18.00 – General notes Passenger cars Engine lubrication, engine oil cooling (ah18.00-z-9999az)….879
18.00 – Overview – Check engine oil level (ap18.00-p-1848u)….880
18.00 – Remove_install oil spray nozzles (pistons) (ar18.00-p-4000mr)….881
18.00 – Safety information Engine lubrication, engine oil cooling (as18.00-z-9999zz)….883
18.00 – Service Information Engine oil change (si18.00-p-0011a)….884
18.00 – Technical modifications Passenger cars Engine lubrication, engine oil cooling (bt18.00-z-9999az)….889
18.00 – Test and adjustment values Passenger cars Engine lubrication, engine oil cooling (be18.00-z-9999az)….890
18.00 – Test sheet for oil consumption test (Weight method) Passenger cars and cross country vehicles (wb6516lit7401z)….892
18.00 – Tightening torques Passenger cars Engine lubrication, engine oil cooling (ba18.00-z-9999az)….894
18.10 – Remove_install oil pump (ar18.10-p-6020mra)….896
18.20 – Service Information Oil filter housing (si18.20-p-0004a)….898
18.40 – Remove_install oil dipstick guide tube (ar18.40-p-3510mra)….899
18.40 – Remove_install oil level check switch (ar18.40-p-5113mra)….901
20_Engine Cooling System….902
20.00 – 124 589 24 21 00 Pressure pump (ws20.00-p-0016b)….903
20.00 – 210 589 00 91 00 Test cap (ws20.00-p-0017b)….904
20.00 – 285 589 00 21 00 Cooler vacuum filling device (ws20.00-p-0030b)….905
20.00 – 285 589 01 21 00 NTKL Adaption (ws20.00-p-0029b)….906
20.00 – 285 589 02 21 00 Electric vacuum pump (ws20.00-p-1001b)….907
20.00 – Capacities Passenger cars Engine cooling system (bf20.00-z-9999az)….908
20.00 – Drain_pour in coolant (ar20.00-p-1142lw)….909
20.00 – General notes Passenger cars Engine cooling system (ah20.00-z-9999az)….914
20.00 – Inspect cooling system for leaks (ar20.00-p-1010lw)….915
20.00 – Safety information Engine cooling system (as20.00-z-9999zz)….917
20.00 – Technical modifications Passenger cars Engine cooling system (bt20.00-z-9999az)….918
20.00 – Test and adjustment values Passenger cars Engine cooling system (be20.00-z-9999az)….919
20.00 – Tightening torques Passenger cars Engine cooling system (ba20.00-z-9999az)….920
20.10 – Remove_install coolant thermostat (ar20.10-p-2460mra)….922
20.10 – Remove_install electric coolant pump (ar20.10-p-1281mra)….924
20.20 – Remove_install coolant line (ar20.20-p-7441mra)….926
20.20 – Remove_install radiator (ar20.20-p-3865lwb)….928
20.30 – Check coolant level in coolant expansion reservoir, general view (ap20.30-p-2049u)….930
20.30 – Check low-temperature circuit coolant level (ap20.30-p-2052a)….931
20.30 – Remove_install expansion reservoir (ar20.30-p-4950lw)….932
20.40 – Remove_install fan unit (ar20.40-p-5050lwb)….934
22_Engine Suspension….936
22.00 – 210 589 01 16 00 Four-point drive (ws22.00-p-0006b)….937
22.00 – General notes Passenger cars Engine suspension (ah22.00-z-9999az)….938
22.00 – Tightening torques Passenger cars Engine suspension (ba22.00-z-9999az)….939
22.10 – Remove_install engine mount or engine crossmember at the rear (ar22.10-p-1180lwb)….940
22.10 – Remove_install front engine mount (ar22.10-p-4330lwa)….943
22.10 – Remove_install front engine mount and_or engine support (ar22.10-p-1260lwa)….946
22.10 – Remove_install front engine support (ar22.10-p-4320lwa)….949
25_Clutch….952
25.00 – 000 588 01 82 00 Filling unit (ws25.00-p-0016b)….953
25.00 – 201 589 08 15 00 Alignment punch (ws25.00-n-0002b)….954
25.00 – Safety information Clutch (as25.00-z-9999zz)….955
25.00 – Technical modifications Passenger cars Clutch (bt25.00-z-9999az)….956
25.00 – Test and adjustment values Passenger cars Clutch (be25.00-z-9999az)….957
25.00 – Tightening torques Passenger cars Clutch (ba25.00-z-9999az)….958
26_Manual Transmission….959
26.00 – 000 588 04 19 00 Inclinometer (ws26.00-p-0140b)….960
26.00 – 000 588 10 62 00 Support plate (ws26.00-p-3309b)….961
26.00 – 124 589 04 33 00 Puller (ws26.00-p-0029c)….962
26.00 – 129 589 01 07 00 Pin wrench (ws26.00-p-0041b)….963
26.00 – 711 589 03 15 00 Drift (ws26.00-n-3263b)….964
26.00 – 716 589 01 15 00 Drift (ws26.00-n-3393b)….965
26.00 – Capacities Passenger cars Manual transmission (bf26.00-z-9999az)….966
26.00 – Forms Passenger cars Manual transmission (of26.00-z-3999az)….967
26.00 – General notes Passenger cars Manual transmission (ah26.00-z-9999az)….968
26.00 – Technical modifications Passenger cars Manual transmission (bt26.00-z-9999az)….969
26.00 – Test and adjustment values Passenger cars Manual transmission (be26.00-z-9999az)….970
26.00 – Tightening torques Passenger cars Manual transmission (ba26.00-z-9999az)….971
27_Automatic Transmission….972
27.00 – 000 588 08 82 00 Transmission flushing unit (ws27.00-p-0137b)….977
27.00 – 000 589 52 37 00 Pliers (ws27.00-p-0001c)….978
27.00 – 001 589 50 33 00 Puller (ws27.00-p-3116c)….979
27.00 – 115 589 03 59 00 Long wedge (ws27.00-p-0129k)….980
27.00 – 116 589 06 59 00 Assembly stand (ws27.00-p-0014c)….981
27.00 – 126 589 02 09 00 Socket wrench bit (ws27.00-p-0022b)….982
27.00 – 126 589 04 31 00 Parallel rest (ws27.00-p-0025c)….983
27.00 – 126 589 12 63 00 Funnel (ws27.00-p-0029a)….984
27.00 – 129 589 00 91 00 Record plug (ws27.00-p-0140b)….985
27.00 – 140 589 06 34 00 Collet chuck (ws27.00-p-0053c)….986
27.00 – 140 589 12 15 00 Drift (ws27.00-p-0048b)….987
27.00 – 140 589 13 43 00 Assembly device (ws27.00-p-0049c)….988
27.00 – 140 589 34 63 00 Mounting plate (ws27.00-p-0051c)….989
27.00 – 168 589 00 62 00 Handle (ws27.00-p-0062b)….990
27.00 – 168 589 03 21 00 Parallel support (ws27.00-p-0076c)….991
27.00 – 208 589 00 21 00 Pressing tool (ws27.00-p-0064c)….992
27.00 – 272 589 00 07 00 Counterholder (ws27.00-p-0009b)….993
27.00 – 442 589 00 31 00 Valve lifter (ws27.00-p-0151c)….994
27.00 – 722 589 00 14 00 Sleeve (ws27.00-p-0101c)….995
27.00 – 722 589 00 15 00 Drift punch (ws27.00-n-3121b)….996
27.00 – 722 589 00 31 00 Support plate (ws27.00-p-0102b)….997
27.00 – 722 589 01 14 00 Sleeve (ws27.00-p-0106c)….998
27.00 – 722 589 01 31 00 Pressing tool (ws27.00-p-0110c)….999
27.00 – 722 589 01 90 00 Set of adapters (ws27.00-p-0165b)….1000
27.00 – 722 589 02 15 00 Drift (ws27.00-n-3123c)….1001
27.00 – 722 589 03 09 00 Assembly tool (ws27.00-p-0143b)….1002
27.00 – 722 589 03 15 00 Drift (ws27.00-p-0107a)….1003
27.00 – 722 589 04 14 00 Assembly sleeve (ws27.00-p-0105c)….1004
27.00 – 722 589 04 15 00 Set of drifts (ws27.00-p-0108c)….1005
27.00 – 722 589 16 15 00 Drift (ws27.00-p-0100b)….1006
27.00 – Automatic transmission – oil and filter change (ap27.00-p-2702w)….1007
27.00 – Capacities Passenger cars Automatic transmission (bf27.00-z-9999az)….1009
27.00 – Filling automatic transmission with fluid (ar27.00-p-0270syz)….1010
27.00 – Filling automatic transmission with fluid (ar27.00-p-0270w)….1015
27.00 – Forms Passenger cars Automatic transmission (of27.00-z-3999az)….1018
27.00 – General notes Passenger cars Automatic transmission (ah27.00-z-9999az)….1019
27.00 – Service Information Additional adaptation counter indicator (si27.00-p-0014a)….1020
27.00 – Service Information Heating up automatic transmission fluid for testing and repair work (si27.00-p-0005a)….1021
27.00 – Service information Operation items (si27.00-p-0008a)….1022
27.00 – Technical modifications Passenger cars Automatic transmission (bt27.00-z-9999az)….1023
27.00 – Test and adjustment values Passenger cars Automatic transmission (be27.00-z-9999az)….1025
27.00 – Tightening torques Passenger cars Automatic transmission (ba27.00-z-9999az)….1027
27.10 – Automatic transmission (AT), contents, function description (gf27.10-p-0999ahe)….1028
27.10 – Overview of system components for automatic transmission (AT) (gf27.10-p-9992ahe)….1029
27.10 – Remove_install automatic transmission oil pan (ar27.10-p-7030w)….1034
27.10 – Remove_install transmission with torque converter (ar27.10-p-0500lwy)….1037
27.19 – Differential lock control unit wiring diagram (pe27.19-p-2107fba)….1041
27.19 – Disassemble and assemble electrohydraulic controller unit (ar27.19-p-0220b)….1042
27.19 – Electrical function schematic for shift operation (pe27.19-p-2057fba)….1046
27.19 – Electrical function schematic, Key-P (pe27.19-p-2058fba)….1047
27.19 – Electrical function schematic, fully integrated transmission control (pe27.19-p-2061fba)….1048
27.19 – Remove_install control solenoid valves of electric controller unit (ar27.19-p-0212a)….1049
27.19 – Remove_install electrohydraulic controller unit (transmission installed) (ar27.19-p-0200w)….1056
27.19 – Remove_install intelligent servo module (ar27.19-p-0550lwa)….1059
27.19 – Service Information Damage code for transmission software release (si27.19-p-0011a)….1062
27.19 – Wiring diagram for fully integrated transmission control unit (pe27.19-p-2103fba)….1063
27.19 – Wiring diagram for transmission oil auxiliary pump control unit (pe27.19-p-2104fba)….1064
27.30 – Remove_install auxiliary oil pump for automatic transmission (ar27.30-p-0651lw)….1065
27.30 – Remove_install radial shaft sealing ring on front transmission cover (ar27.30-p-4970lw)….1067
27.40 – Remove_install oil pump radial shaft sealing ring (ar27.40-p-0300a)….1069
27.40 – Remove_install shift shaft radial shaft sealing ring (ar27.40-p-0220a)….1071
27.40 – Remove_install shift shaft radial shaft sealing ring (ar27.40-p-0220b)….1074
27.50 – Detach_attach transmission housing on torque converter housing. (ar27.50-p-0601w)….1076
27.50 – Disassemble_assemble multi-disk brake B1 (ar27.50-p-0870w)….1081
27.50 – Disassemble_assemble multi-disk brake B2 (ar27.50-p-0880w)….1084
27.50 – Disassemble_assemble multi-disk brake B3 (ar27.50-p-0890w)….1087
27.50 – Dismantle and assemble rear tubular shaft (ar27.50-p-0851w)….1090
27.50 – Remove_install K3, rear hollow shaft, rear planet carrier and output shaft (ar27.50-p-0611w)….1091
27.50 – Remove_install clutch pack BR, multidisk brake B2 and park pawl gear (ar27.50-p-0782w)….1093
27.50 – Remove_install main components of transmission (ar27.50-p-0610w)….1096
27.50 – Remove_install multi-disk brake B1 and oil pump (ar27.50-p-0721w)….1098
27.50 – Removing_installing drive shaft with K2, front planet carrier, internal plate carrier with K1 and B3 (ar27.50-p-0612w)….1101
27.51 – Disassemble_assemble K2 clutch (ar27.51-p-0820w)….1103
27.51 – Disassemble_assemble K3 clutch (ar27.51-p-0830w)….1106
27.51 – Dismantling and assembling clutch K1 (ar27.51-p-0800w)….1108
27.51 – Measure and adjust clearance (ar27.51-p-7229w)….1111
27.55 – Flush out automatic transmission and torque converter (ar27.55-p-0100b)….1117
27.55 – Remove_install automatic transmission fluid cooler (ar27.55-p-1000lw)….1119
27.55 – Remove_install oil lines of oil cooling for automatic transmission (ar27.55-p-0600lwy)….1121
27.60 – Remove_install park pawl mechanism (ar27.60-p-0950w)….1124
27.60 – Service Information Adaptation of automatic transmission shift operations (si27.60-p-0001a)….1128
27.60 – Wiring diagram for intelligent servo module (ISM) control unit (pe27.60-p-2101fba)….1129
28_Transfer Case….1130
28.00 – 001 589 50 33 00 Puller (ws28.00-p-0004c)….1131
28.00 – 124 589 04 33 00 Puller (ws28.00-p-0062b)….1132
28.00 – 126 589 02 09 00 Socket wrench bit (ws28.00-p-0025b)….1133
28.00 – 129 589 01 07 00 Pin wrench (ws28.00-p-0027b)….1134
28.00 – 140 589 12 15 00 Drift (ws28.00-p-0063b)….1135
28.00 – 203 589 00 14 00 Sleeve (ws28.00-p-0076c)….1136
28.00 – 203 589 02 33 00 Puller (ws28.00-p-0078b)….1137
28.00 – 722 589 01 33 00 Extraction tool (ws28.00-p-0089c)….1138
28.00 – 722 589 03 14 00 Assembly sleeve (ws28.00-p-0091b)….1139
28.00 – 722 589 06 14 00 Assembly sleeve (ws28.00-p-0019c)….1140
28.00 – 722 589 14 15 00 Drift (ws28.00-p-0090c)….1141
28.00 – Capacities Passenger cars Transfer case (bf28.00-z-9999az)….1142
28.00 – Forms Passenger cars Transfer case (of28.00-z-3999az)….1143
28.00 – General notes Passenger cars Transfer case (ah28.00-z-9999az)….1144
28.00 – Service Information Damage codes changed for design group 28 (si28.00-p-0001a)….1145
28.00 – Technical modifications Passenger cars Transfer case (bt28.00-z-9999az)….1146
28.00 – Test and adjustment values Passenger cars Transfer case (be28.00-z-9999az)….1147
28.00 – Tightening torques Passenger cars Transfer case (ba28.00-z-9999az)….1148
28.10 – Disassemble, assemble and seal (ar28.10-p-1004lwy)….1149
28.10 – Remove_install radial shaft sealing ring at output flange to rear axle (ar28.10-p-4150lwy)….1155
28.55 – Service Information Oil restrictor in oil line (si28.55-p-0001a)….1159
29_Pedal Assembly….1160
29.00 – Safety information Pedal assembly (as29.00-z-9999zz)….1161
29.00 – Tightening torques Passenger cars Pedal assembly (ba29.00-z-9999az)….1162
29.10 – Remove_install pedal assembly (ar29.10-p-0300lw)….1163
29.10 – Retrofit pedal cover (an29.10-p-0003lw)….1167
30_Throttle Control, Speed Control Systems….1168
30.00 – 000 588 17 21 00 Adjusting device (ws30.00-p-0006b)….1170
30.00 – Certificates Passenger cars Throttle control, cruise control system (of30.00-z-1999az)….1171
30.00 – General notes Passenger cars Throttle control, cruise control system (ah30.00-z-9999az)….1172
30.00 – Safety information Throttle control, cruise control system (as30.00-z-9999zz)….1173
30.00 – Technical modifications Passenger cars Throttle control, cruise control system (bt30.00-z-9999az)….1174
30.00 – Test and adjustment values Passenger cars Throttle control, cruise control system (be30.00-z-9999az)….1175
30.00 – Tightening torques Passenger cars Throttle control, cruise control system (ba30.00-z-9999az)….1176
30.12 – Remove_install accelerator pedal (ar30.12-p-1321lf)….1177
30.20 – Electrical function schematic for electronic accelerator (pe30.20-p-2050fba)….1179
30.30 – Distronic PLUS electrical function schematic (pe30.30-p-2053fba)….1180
30.30 – Electrical function schematic for BAS PLUS (pe30.30-p-2063fba)….1181
30.30 – Electrical function schematic for COLLISION PREVENTION ASSIST PLUS (pe30.30-p-2065fba)….1182
30.30 – Electrical function schematic for DISTRONIC PLUS with Steer Assist and Stop & Go Pilot (pe30.30-p-2066fba)….1183
30.30 – Electrical function schematic for PRE-SAFE brake (pe30.30-p-2060fba)….1184
30.30 – Electrical function schematic for PRE-SAFE rear (pe30.30-p-2061fba)….1185
30.30 – Electrical function schematic for cruise control (CC) (pe30.30-p-2051fba)….1186
30.30 – Electrical function schematic for cruise control (CC) (pe30.30-p-2051fbb)….1187
30.30 – Remove_install Distronic sensor (DTR) (ar30.30-p-1010lw)….1188
30.30 – Remove_install radar sensor (ar30.30-p-1210lw)….1191
30.30 – Service Information Warranty and goodwill policy for short-range radar sensors (si30.30-p-0003a)….1193
30.30 – Wiring diagram for COLLISION PREVENTION ASSIST control unit (pe30.30-p-2104fba)….1194
30.30 – Wiring diagram for DISTRONIC (DTR) control unit (pe30.30-p-2101fba)….1195
30.30 – Wiring diagram for the radar sensors control unit (pe30.30-p-2102fba)….1196
31_Frame, Trailer Operation….1197
31.00 – Certificates Passenger cars Frame, trailer operation (of31.00-z-1999az)….1199
31.00 – Forms Passenger cars Frame, trailer operation (of31.00-z-3999az)….1200
31.00 – General notes Passenger cars Frame, trailer operation (ah31.00-z-9999az)….1201
31.00 – Test and adjustment values Passenger cars Frame, trailer operation (be31.00-z-9999az)….1202
31.00 – Tightening torques Passenger cars Frame, trailer operation (ba31.00-z-9999az)….1203
31.10 – Convert trailer hitch with reduced towing capacity to standard towing capacity (an31.10-p-0007clw)….1204
31.10 – Remove_install trailer hitch (ar31.10-p-8000clw)….1205
31.10 – Replace screws_bolts on longitudinal member for trailer hitch (code 1503P31A72) (sm31.10-p-0021a)….1206
31.11 – Check condition and operation of trailer hitch (ap31.11-p-3152cw)….1208
31.19 – Perform function check on trailer hitch with electrical release (ar31.19-p-1451clw)….1210
31.19 – Remove_install trailer hitch socket housing (ar31.19-p-1350clw)….1211
31.19 – Remove_install trailer recognition control unit (ar31.19-p-1300clw)….1212
31.19 – Trailer coupling socket wiring harness, removal and installation (ar31.19-p-1400clw)….1213
31.19 – Trailer recognition control unit wiring diagram (pe31.19-p-2101fba)….1215
31.30 – Remove_install left trailer hitch longitudinal member (ar31.30-p-0005clw)….1216
31.30 – Remove_install right trailer hitch longitudinal member (ar31.30-p-0006clw)….1218
31.30 – Remove_install trailer hitch crossmember (ar31.30-p-0007clw)….1220
32_Suspension….1221
32.00 – 000 589 12 28 00 Knife (ws32.00-n-3046d)….1224
32.00 – 001 589 00 03 00 Box wrench bit (ws32.00-p-0062b)….1225
32.00 – 164 589 00 10 00 Socket wrench (ws32.00-p-0083b)….1226
32.00 – 169 589 02 63 00 Clamping plates (ws32.00-p-0077b)….1227
32.00 – 202 589 02 31 00 Tensioning device (ws32.00-p-0041b)….1228
32.00 – 203 589 01 31 00 Tensioning device (ws32.00-p-0052b)….1229
32.00 – 205 589 00 09 00 Socket wrench (ws32.00-p-1001b)….1230
32.00 – 205 589 00 31 00 Set of emergency buffers (ws32.00-p-0104b)….1231
32.00 – 211 589 00 09 00 Socket wrench bit (ws32.00-p-0061b)….1232
32.00 – 211 589 03 63 00 Clamping plates (ws32.00-p-0070b)….1233
32.00 – 220 589 07 43 00 Extraction and press-in tools (ws32.00-p-0080b)….1234
32.00 – 230 589 11 63 00 Clamping plate (ws32.00-p-0056b)….1235
32.00 – 352 589 02 37 00 Pliers (ws32.00-n-3047c)….1236
32.00 – 451 589 00 10 00 Allen wrench, size 12 (ws32.00-p-1002b)….1237
32.00 – Capacities Passenger cars Suspension (bf32.00-z-9999az)….1238
32.00 – General notes Passenger cars Suspension (ah32.00-z-9999az)….1239
32.00 – Install_remove emergency buffer (ar32.00-p-1000lw)….1240
32.00 – Locate noises from the suspension (ar32.00-p-2000a)….1242
32.00 – Safety information Suspension (as32.00-z-9999zz)….1244
32.00 – Technical modifications Passenger cars Suspension (bt32.00-z-9999az)….1245
32.00 – Test and adjustment values Passenger cars Suspension (be32.00-z-9999az)….1246
32.00 – Tightening torques Passenger cars Suspension (ba32.00-z-9999az)….1247
32.20 – Remove_install rear spring (ar32.20-p-0230lw)….1250
32.20 – Remove_install stabilizer bar on front axle (ar32.20-p-0300lw)….1254
32.20 – Remove_install stabilizer bar on front axle (ar32.20-p-0300lwx)….1256
32.20 – Remove_install torsion bar on rear axle (ar32.20-p-0315lw)….1258
32.22 – Check AIRmatic for leaks. (ar32.22-p-8100lw)….1261
32.22 – Overview of system components for AIRMATIC (gf32.22-p-9994rf)….1264
32.22 – Remove_install air spring (ar32.22-p-1500lw)….1269
32.22 – Remove_install air suspension control unit (ar32.22-p-6000lw)….1272
32.22 – Remove_install air suspension valve unit (ar32.22-p-2015lw)….1274
32.22 – Remove_install bracket for compressor (ar32.22-p-2009lw)….1276
32.22 – Remove_install compressor (ar32.22-p-2001lw)….1278
32.22 – Replace rubber mount for compressor (ar32.22-p-2011lw)….1281
32.22 – Table of contents for function description of AIRMATIC (gf32.22-p-0997rf)….1282
32.22 – Wiring diagram of AIRmatic control unit (pe32.22-p-2101fba)….1283
32.25 – Check condition of suspension struts or shock absorbers and springs (ap32.25-p-3255a)….1284
32.25 – Checking shock absorber (ar32.25-p-0121cw)….1285
32.25 – Disassemble_assemble suspension strut (ar32.25-p-1018lw)….1286
32.25 – Remove_install rear shock absorber (ar32.25-p-0110lw)….1288
32.25 – Remove_install the suspension strut (ar32.25-p-1017lw)….1291
32.25 – Remove_install the suspension strut (ar32.25-p-1017lwl)….1294
32.25 – Service Information Assembly of suspension struts and shock absorbers (si32.25-p-0004a)….1297
32.25 – Service Information Replacement of shock absorbers (si32.25-p-0002a)….1298
32.32 – Electrical function schematic for AIRMATIC (pe32.32-p-2052fba)….1299
32.32 – Electrical function schematic for adaptive damping system (ADS) (pe32.32-p-2051fba)….1300
32.32 – Overview of system components for adaptive damping system (ADS) component description (gf32.32-p-9998rf)….1301
32.32 – Table of contents for function description of adaptive damping system (ADS) (gf32.32-p-0998rf)….1303
32.32 – Wiring diagram for adaptive damping system (ADS) control unit (pe32.32-p-2101fba)….1304
32.35 – Remove_install front stabilizer bar link rod (ar32.35-p-3328lw)….1305
32.35 – Remove_install front stabilizer bar link rod (ar32.35-p-3328lwx)….1307
33_Front Axle….1309
33.00 – 164 589 00 05 00 Pin wrench (ws33.00-p-0170b)….1311
33.00 – 203 589 03 33 00 Internal extractor (ws33.00-p-0148b)….1312
33.00 – 210 589 01 16 00 Four-point drive (ws33.00-p-0017b)….1313
33.00 – 211 589 00 43 00 Press-in tool (ws33.00-p-0195b)….1314
33.00 – 212 589 00 43 00 Extraction and installation tool (ws33.00-p-0193b)….1315
33.00 – 220 589 06 43 00 Extraction and insertion tool (ws33.00-p-0120c)….1316
33.00 – 221 589 00 43 00 Extraction and insertion tool (ws33.00-p-0020b)….1317
33.00 – 221 589 01 98 00 Assembly tool (ws33.00-p-0184b)….1318
33.00 – 221 589 04 15 00 Drift (ws33.00-p-0185b)….1319
33.00 – 221 589 04 33 00 Extraction tool (ws33.00-p-0187b)….1320
33.00 – 222 589 03 43 00 Extraction and insertion tool (ws33.00-p-0015c)….1321
33.00 – 602 589 00 33 00 Impact extractor (ws33.00-p-0189b)….1322
33.00 – Capacities Passenger cars Front axle (bf33.00-z-9999az)….1323
33.00 – Forms Passenger cars Front axle (of33.00-z-3999az)….1324
33.00 – Locate noises from the front axle (ar33.00-p-2000a)….1325
33.00 – Technical modifications Passenger cars Front axle (bt33.00-z-9999az)….1327
33.00 – Test and adjustment values Passenger cars Front axle (be33.00-z-9999az)….1328
33.00 – Tightening torques Passenger cars Front axle (ba33.00-z-9999az)….1329
33.10 – Attach engine hoist (ar33.10-p-0105lw)….1331
33.10 – Check condition of front axle and front axle ball joints (ap33.10-p-3358a)….1334
33.10 – Lower front axle (ar33.10-p-0101lw)….1340
33.10 – Remove_install front axle (ar33.10-p-0100lw)….1345
33.10 – Remove_install front axle half (ar33.10-p-0200lw)….1352
33.15 – Check installation position of spring control arm bearing of front axle, replace spring control arm if necessary (code 1412P33C71) (sm33.15-p-0006a)….1354
33.15 – Remove_install spring control arm on front axle (ar33.15-p-0170lw)….1356
33.15 – Remove_install torque strut at front axle (ar33.15-p-0160lw)….1359
33.20 – Checking follower joint of steering knuckle mount (installed) (ar33.20-p-0426lw)….1362
33.20 – Remove_install upper control arm (ar33.20-p-0500lw)….1363
33.20 – Remove_install wheel bearing (ar33.20-p-0302lw)….1366
33.25 – Remove_install steering knuckle (ar33.25-p-0400lw)….1368
33.30 – Install new radial sealing ring on outside right of front axle gear (ar33.30-p-0540lwy)….1372
33.30 – Remove_install boots on front axle shaft (ar33.30-p-0690cw)….1374
33.30 – Remove_install front axle gear (ar33.30-p-0525lwy)….1379
33.30 – Remove_install front axle shafts (ar33.30-p-0620lwy)….1381
33.30 – Remove_install intermediate shaft and replacing deep-groove ball bearing (ar33.30-p-0625lwy)….1383
33.30 – Remove_install pinion housing with drive pinion (ar33.30-p-0469syz)….1384
33.30 – Replace shaft seal on drive pinion (ar33.30-p-0530syz)….1388
33.30 – Seal front axle transmission (ar33.30-p-0542syz)….1392
35_Rear Axle….1396
35.00 – 001 589 01 63 00 Securing belt (ws35.00-p-0251b)….1399
35.00 – 001 589 51 33 00 Hollow piston cylinder (ws35.00-p-0252b)….1400
35.00 – 116 589 15 15 00 Drift (ws35.00-p-0038c)….1401
35.00 – 129 589 01 07 00 Pin wrench (ws35.00-p-0071b)….1402
35.00 – 129 589 01 33 00 Puller (ws35.00-p-0072b)….1403
35.00 – 140 589 08 15 00 Drift (ws35.00-p-0148b)….1404
35.00 – 202 589 00 43 00 Removal and installation tool (ws35.00-p-0143c)….1405
35.00 – 204 589 00 43 00 Extraction and insertion tool (ws35.00-p-0261b)….1406
35.00 – 204 589 01 43 00 Extraction and insertion tool (ws35.00-p-0259b)….1407
35.00 – 204 589 02 43 00 Insertion tool (ws35.00-p-0262b)….1408
35.00 – 204 589 03 43 00 Extraction and insertion tool (ws35.00-p-0263b)….1409
35.00 – 204 589 04 43 00 Extraction and insertion tool (ws35.00-p-0260b)….1410
35.00 – 205 589 00 15 00 Drift (ws35.00-p-0029b)….1411
35.00 – 205 589 00 43 00 Extraction and insertion tool (ws35.00-p-0033c)….1412
35.00 – 210 589 01 40 00 Bracket (ws35.00-p-0160c)….1413
35.00 – 210 589 03 43 00 Extraction and insertion tool (ws35.00-p-0154c)….1414
35.00 – 211 589 00 33 00 Insertion tool (ws35.00-p-0226b)….1415
35.00 – 211 589 00 61 00 Assembly tool (ws35.00-p-0026b)….1416
35.00 – 211 589 01 33 00 Puller (ws35.00-p-0242b)….1417
35.00 – 211 589 04 15 00 Drift (ws35.00-p-0235b)….1418
35.00 – 220 589 01 43 00 Removal and installation tool (ws35.00-p-0171b)….1419
35.00 – 220 589 02 31 00 Clamping jaws (ws35.00-p-0175b)….1420
35.00 – 221 589 01 43 00 Extraction and installation tool (ws35.00-p-0244b)….1421
35.00 – Capacities Passenger cars Rear axle (bf35.00-z-9999az)….1422
35.00 – General notes Passenger cars Rear axle (ah35.00-z-9999az)….1423
35.00 – Locate noises from rear axle (ar35.00-p-2000a)….1424
35.00 – Rear axle – oil change (ap35.00-p-3501cmg)….1426
35.00 – Service Information Repair information on self-locking threaded connections at the axle mounts (si35.00-p-0005a)….1431
35.00 – Technical modifications Passenger cars Rear axle (bt35.00-z-9999az)….1432
35.00 – Test and adjustment values Passenger cars Rear axle (be35.00-z-9999az)….1434
35.00 – Tightening torques Passenger cars Rear axle (ba35.00-z-9999az)….1435
35.10 – Lower rear axle. (ar35.10-p-0015lw)….1438
35.10 – Remove_install complete rear axle (ar35.10-p-0010lw)….1441
35.10 – Remove_install front and rear rubber bushings in rear axle mount (ar35.10-p-0040lw)….1444
35.10 – Remove_install front differential mount on rear axle carrier (ar35.10-p-0051lw)….1446
35.10 – Remove_install rear rubber bushings for differential mount in rear axle carrier (ar35.10-p-0050lw)….1447
35.20 – Check condition of rear axle and rear axle ball joints (ap35.20-p-3552a)….1449
35.20 – Remove_install camber strut (ar35.20-p-0110lw)….1453
35.20 – Remove_install radius rod (ar35.20-p-0111lw)….1455
35.20 – Remove_install rear axle shaft flange and angular ball bearing (ar35.20-p-0130lw)….1457
35.20 – Remove_install spring control arm, replace rubber bushing (ar35.20-p-0114lw)….1459
35.20 – Remove_install supporting joint at wheel carrier (wheel carrier installed) (ar35.20-p-0116lw)….1462
35.20 – Remove_install thrust arm (ar35.20-p-0113lw)….1463
35.20 – Remove_install track rod (ar35.20-p-0109lw)….1465
35.20 – Remove_install wheel carrier (ar35.20-p-0115lw)….1467
35.30 – Remove_install constant velocity joint or boot of splined rear axle shaft (ar35.30-p-0662lw)….1473
35.30 – Remove_install inserted rear axle shaft (ar35.30-p-0621lw)….1475
35.31 – Install new radial sealing ring at drive pinion gear (with differential installed) (ar35.31-p-0530lw)….1479
35.31 – Remove_install differential (ar35.31-p-0520lw)….1482
35.31 – Remove_install end cover at differential (ar35.31-p-0554lw)….1485
35.31 – Replace radial sealing rings on side of rear axle center assembly (ar35.31-p-0545lw)….1489
35.40 – Overview of system components of electric differential lock (EAGGS) (gf35.40-p-9999rf)….1492
35.40 – Remove_install differential lock actuator motor (ar35.40-p-7400lw)….1495
40_Wheels, Chassis Alignment Check….1497
40.00 – 000 588 00 83 00 Tire mounting device (ws40.00-p-0006b)….1501
40.00 – 000 588 01 19 00 Tester (ws40.00-p-0005b)….1502
40.00 – 000 588 05 19 00 Inclinometer (ws40.00-p-0007b)….1503
40.00 – 000 588 12 21 00 Balancing machine (ws40.00-p-0024b)….1504
40.00 – 000 588 13 21 00 Wheel alignment system (ws40.00-p-0013b)….1505
40.00 – 000 589 18 31 00 Brake pedal winch (ws40.00-p-0001b)….1506
40.00 – 124 589 01 31 00 Quick clamping device (ws40.00-p-0015b)….1507
40.00 – 124 589 17 63 00 Assembly tool (ws40.00-p-0021b)….1508
40.00 – 129 589 00 59 00 Removal tool (ws40.00-p-0101b)….1509
40.00 – 129 589 01 21 00 Retainer device (ws40.00-p-0025b)….1510
40.00 – 170 589 00 63 00 Mount (ws40.00-p-0043c)….1511
40.00 – 199 589 01 09 00 Socket wrench (ws40.00-p-0068b)….1512
40.00 – 202 589 00 10 00 Retainer wrench (ws40.00-p-0070b)….1513
40.00 – 211 589 00 31 00 Adapter for brake pedal winch (ws40.00-p-0047b)….1514
40.00 – 211 589 06 23 00 Brake pad test gauge (ws40.00-p-0066a)….1515
40.00 – 230 589 00 99 00 Set of torque tools (ws40.00-p-0061b)….1516
40.00 – 230 589 01 09 00 Socket wrench (ws40.00-p-0049b)….1517
40.00 – Forms Passenger cars Wheels, chassis alignment check (of40.00-z-3999az)….1518
40.00 – General information on vehicle level measurement (ar40.00-p-0202a)….1519
40.00 – General notes Passenger cars Wheels, chassis alignment check (ah40.00-z-9999az)….1521
40.00 – Safety information Wheels, chassis alignment check (as40.00-z-9999zz)….1522
40.00 – Service Information Permissible valve caps for vehicles with tire pressure monitoring system (si40.00-p-0003a)….1523
40.00 – Service Information Use of nitrogen as a tire-filling gas (si40.00-p-0004a)….1524
40.00 – Technical modifications Passenger cars Wheels, chassis alignment check (bt40.00-z-9999az)….1525
40.00 – Test and adjustment values Passenger cars Wheels, chassis alignment check (be40.00-z-9999az)….1526
40.00 – Tightening torques Passenger cars Wheels, chassis alignment check (ba40.00-z-9999az)….1531
40.10 – Balancing wheels (ar40.10-p-1040ew)….1532
40.10 – Check TIREFIT tire sealant (ap40.10-p-4054r)….1534
40.10 – Check complete winter wheels (code 1501P40A18) (sm40.10-p-0023a)….1536
40.10 – Check tires for damage and crack formations (ap40.10-p-4051ew)….1538
40.10 – Checking tires for lateral and radial runout (ar40.10-p-1025a)….1540
40.10 – Draining TIREFIT sealant out of tires (ar40.10-p-1080ew)….1541
40.10 – General overview of approved wheel_tire combinations, as-built configuration (gf40.10-p-0804b)….1544
40.10 – Overview of tire checks for damage and crack formation (ap40.10-p-4048u)….1550
40.10 – Perform smooth operation optimization (ar40.10-p-3201a)….1551
40.10 – Remove_install wheels (ar40.10-p-1101a)….1553
40.10 – Replace tires (ar40.10-p-1030ew)….1555
40.10 – Service Information Clean light alloy disk wheel (si40.10-p-0022a)….1560
40.10 – Service Information Cosmetic processing of light alloy wheels (si40.10-p-0026a)….1561
40.10 – Service Information bulletin TIREFIT tire sealant (si40.10-p-0020a)….1562
40.10 – Service information Changing wheels_tires (si40.10-p-0004c)….1563
40.10 – Service information It is not permissible to use lead balancing weights (si40.10-p-0015a)….1564
40.10 – Service information Radial crack in light alloy disk wheel (si40.10-p-0023a)….1566
40.15 – Contents, function description of tire pressure loss warning (RDW) (gf40.15-p-0998rf)….1567
40.15 – Contents, function description, tire pressure monitor (gf40.15-p-0999rf)….1568
40.15 – Correct tire inflation pressure (ap40.15-p-4061a)….1569
40.15 – Electrical function schematic for tire pressure loss warning (RDW) system (pe40.15-p-2051fba)….1571
40.15 – Electrical function schematic for tire pressure monitor (TPM (RDK)) (pe40.15-p-2050fba)….1572
40.15 – Overview of components in tire pressure loss warning (RDW) system (gf40.15-p-9997rf)….1573
40.15 – Overview of system components for tire pressure monitor (RDK) (gf40.15-p-9999rf)….1574
40.15 – Remove_install tire pressure monitoring system control unit (ar40.15-p-0100lw)….1575
40.15 – Remove_install wheel sensor (ar40.15-p-0080ew)….1576
40.15 – Wiring diagram for tire pressure monitor control unit (pe40.15-p-2101fba)….1580
40.20 – Adjust camber and caster at the front axle (ar40.20-p-0263lw)….1581
40.20 – Adjust front axle toe (ar40.20-p-0264lw)….1590
40.20 – Adjust rear-axle toe (ar40.20-p-0261lw)….1595
40.20 – Attaching Mercedes-Benz quick-clamping devices (ar40.20-p-0230sx)….1600
40.20 – Carry out conditions and tests for chassis alignment (ar40.20-p-0260sx)….1601
40.20 – Chassis alignment test sheet Passenger cars (wb6516lit7434z)….1603
40.20 – Check toe-out angle (ar40.20-p-0325lw)….1605
40.20 – Check vehicle level at front and rear axle with electronic inclinometer, adjust if necessary (ar40.20-p-0301lw)….1606
40.20 – Checking rear axle camber (ar40.20-p-0331lw)….1610
40.20 – Perform wheel alignment check (ar40.20-p-0200lw)….1611
40.20 – Service Information Operation texts and work units for chassis alignment (si40.20-p-0005a)….1613
40.20 – Service Information Passenger car chassis specifications CD (si40.20-p-0007a)….1614
40.30 – Carry out distance and comparison measurements on front and rear axles (ar40.30-p-0402lw)….1615
41_Propeller Shaft….1616
41.00 – 116 589 09 43 00 Removal and installation tool (ws41.00-p-0001c)….1617
41.00 – 126 589 03 15 00 Drift (ws41.00-p-0003c)….1618
41.00 – 129 589 00 34 00 Puller arms (ws41.00-p-0004c)….1619
41.00 – 176 589 00 40 00 Counterholder (ws41.00-p-0005b)….1620
41.00 – Capacities Passenger cars Propeller shaft (bf41.00-z-9999az)….1621
41.00 – Forms Passenger cars Propeller shaft (of41.00-z-3999az)….1622
41.00 – General notes Passenger cars Propeller shaft (ah41.00-z-9999az)….1623
41.00 – Technical modifications Passenger cars Propeller shaft (bt41.00-z-9999az)….1624
41.00 – Test and adjustment values Passenger cars Propeller shaft (be41.00-z-9999az)….1625
41.00 – Tightening torques Passenger cars Propeller shaft (ba41.00-z-9999az)….1626
41.10 – Check propeller shaft flex disks for signs of damage and deformation (ap41.10-p-4152ew)….1627
41.10 – Measure propeller shaft alignment with electronic propeller shaft inclinometer (ar41.10-p-0086lw)….1628
41.10 – Remove_install front axle differential propeller shaft (ar41.10-p-0070lwy)….1631
41.10 – Remove_install propeller shaft (ar41.10-p-0050lw)….1633
41.10 – Remove_install propeller shaft intermediate bearing and replace grooved ball bearing (ar41.10-p-0100lw)….1636
41.10 – Replace pilot bushing (ar41.10-p-0250lw)….1638
42_Brakes – Hydraulic & Mechanical Systems….1640
42.00 – 000 588 05 21 00 Roller brake test stand (ws42.00-p-0006b)….1644
42.00 – 000 588 07 21 00 Test equipment (ws42.00-p-0014b)….1645
42.00 – 000 589 52 43 00 Resetting device (ws42.00-p-0009a)….1646
42.00 – 000 589 75 03 00 Box wrench bit (ws42.00-p-3000a)….1647
42.00 – 0009 – Notes on accident prevention on the brake roller dynamometers T2 model 668-670 with air-pressure power braking (ra4302dfk0009x)….1648
42.00 – 140 589 00 03 00 Box wrench bit (ws42.00-p-0074b)….1650
42.00 – 140 589 00 19 00 Caliper gauge (ws42.00-p-0028a)….1651
42.00 – 168 589 08 63 00 Test connection (ws42.00-p-0044b)….1652
42.00 – 201 589 13 21 00 Vacuum tester (ws42.00-p-0036b)….1653
42.00 – 205 589 00 63 00 46-pin adapter cable (ws42.00-p-0090b)….1654
42.00 – 220 589 01 31 00 Guard plate (ws42.00-p-0042b)….1655
42.00 – 352 589 02 37 00 Pliers (ws42.00-n-3022c)….1656
42.00 – 601 589 07 63 00 Wedge (ws42.00-n-3005b)….1657
42.00 – Brake test (ap42.00-p-4290ba)….1658
42.00 – Capacities Passenger cars Brakes – hydraulic and mechanical systems (bf42.00-z-9999az)….1663
42.00 – Forms Passenger cars Brakes – hydraulic and mechanical systems (of42.00-z-3999az)….1664
42.00 – General notes Passenger cars Brakes – hydraulic and mechanical systems (ah42.00-z-9999az)….1665
42.00 – Locate noises from the brake (ar42.00-p-2000a)….1666
42.00 – Replace brake fluid (ap42.00-p-4280ew)….1668
42.00 – Safety information Brakes – hydraulic and mechanical systems (as42.00-z-9999zz)….1672
42.00 – Technical modifications Passenger cars Brakes – hydraulic and mechanical systems (bt42.00-z-9999az)….1673
42.00 – Test and adjustment values Passenger cars Brakes – hydraulic and mechanical systems (be42.00-z-9999az)….1674
42.00 – Tightening torques Passenger cars Brakes – hydraulic and mechanical systems (ba42.00-z-9999az)….1677
42.10 – Assess condition of brake disks (ap42.10-p-4256ew)….1680
42.10 – Bleed brake system (ar42.10-p-0010lw)….1682
42.10 – Evaluate condition of brake disks, general view (ap42.10-p-4249u)….1684
42.10 – Evaluate condition of brake linings, general view (ap42.10-p-4248u)….1685
42.10 – Inspect condition of brake disks (ap42.10-p-4258ac)….1686
42.10 – Inspect condition of brake disks (ap42.10-p-4258ew)….1687
42.10 – Overview – Check brake system fluid level (ap42.10-p-4247u)….1694
42.10 – Remove_check_install front axle brake pads (ar42.10-p-1610lw)….1695
42.10 – Remove_check_install front axle brake pads (ar42.10-p-1610lwa)….1698
42.10 – Remove_check_install front axle brake pads (ar42.10-p-1610lwb)….1702
42.10 – Remove_check_install front axle brake pads (ar42.10-p-1610lwc)….1705
42.10 – Remove_check_install front axle brake pads (ar42.10-p-1610lwd)….1708
42.10 – Remove_check_install rear axle brake pads (ar42.10-p-1710lw)….1711
42.10 – Remove_install brake disc (ar42.10-p-0220ewe)….1713
42.10 – Remove_install front axle brake caliper (ar42.10-p-0070lw)….1716
42.10 – Remove_install front axle brake caliper (ar42.10-p-0070lwa)….1718
42.10 – Remove_install front axle brake caliper (ar42.10-p-0070lwb)….1720
42.10 – Remove_install front axle brake caliper (ar42.10-p-0070lwc)….1722
42.10 – Remove_install front axle brake caliper (ar42.10-p-0070lwd)….1724
42.10 – Remove_install master brake cylinder (ar42.10-p-0300lw)….1726
42.10 – Remove_install mechanical stop lamp switch (ar42.10-p-0040ew)….1728
42.10 – Remove_install rear axle brake caliper (ar42.10-p-0080lw)….1729
42.10 – Removing and installing brake fluid reservoir (ar42.10-p-0301lw)….1734
42.10 – Replace brake hoses (ar42.10-p-0013lw)….1736
42.10 – Replace brake lines (ar42.10-p-0020b)….1739
42.10 – Service Information Brake caliper with Mercedes-Benz brand cover (si42.10-p-0025a)….1743
42.10 – Service Information Brake lining installation instructions (si42.10-p-0002a)….1744
42.10 – Test brake system with pressure tester for leaks (ar42.10-p-0015lw)….1745
42.20 – Electrical function schematic for electric parking brake (pe42.20-p-2050fba)….1748
42.20 – Electrical function schematic for electric parking brake (pe42.20-p-2050fbb)….1749
42.20 – Overview of system components for electric parking brake (gf42.20-p-9998rf)….1750
42.20 – Remove_install electric parking brake actuator motor (ar42.20-p-0600lw)….1752
42.20 – Remove_install electric parking brake switch (ar42.20-p-0505lw)….1754
42.20 – Table of contents for function description, electric parking brake (gf42.20-p-0999rf)….1756
42.20 – Wiring diagram for electric parking brake (pe42.20-p-2101fba)….1757
42.30 – Remove_install left front or right rpm sensor (ar42.30-p-0712lw)….1758
42.30 – Remove_install pulse ring (ar42.30-p-0715a)….1760
42.40 – Remove_install ETS_ASR_ESP hydraulic unit (ar42.40-p-0816lw)….1764
42.40 – Remove_install left or right rear axle speed sensor (ar42.40-p-0820lw)….1767
42.47 – Electrical function schematic for Adaptive Brake (ABR) (pe42.47-p-2050fba)….1768
42.47 – Overview of system components, Adaptive Brake (ABR) (gf42.47-p-9997rf)….1769
42.47 – Table of contents for function description, adaptive brake (ABR) (gf42.47-p-0999rf)….1773
42.47 – Wiring diagram for Adaptive Brake (ABR) (pe42.47-p-2000fba)….1774
42.47 – Wiring diagram for Adaptive Brake (ABR) (pe42.47-p-2000fbb)….1775
43_Brakes – Pheumatic System & Auxiliary Brakes….1776
43.00 – General notes Passenger cars Brakes – pneumatic system and auxiliary brakes (ah43.00-z-9999az)….1777
43.00 – Safety information Brakes – pneumatic system and auxiliary brakes (as43.00-z-9999zz)….1778
43.00 – Test and adjustment values Passenger cars Brakes – pneumatic system and auxiliary brakes (be43.00-z-9999az)….1779
43.00 – Tightening torques Passenger cars Brakes – pneumatic system and auxiliary brakes (ba43.00-z-9999az)….1780
43.05 – Remove_install vacuum pump (ar43.05-p-1320lwa)….1781
43.10 – Checking brake booster (ar43.10-p-0325lw)….1783
43.10 – Checking check valve (ar43.10-p-0023lw)….1786
43.10 – Remove_install brake booster (ar43.10-p-0350lw)….1788
43.10 – Remove_install brake booster vacuum line (ar43.10-p-0355lw)….1792
46_Steering….1794
46.00 – 000 589 69 03 00 Box wrench bit (ws46.00-p-0002b)….1796
46.00 – 126 589 00 10 00 Screwdriver bit (ws46.00-p-0033b)….1797
46.00 – 171 589 00 37 00 Pliers for click clamps (ws46.00-p-0104b)….1798
46.00 – 201 589 00 01 00 Open wrench (ws46.00-p-0075b)….1799
46.00 – Capacities Passenger cars Steering (bf46.00-z-9999az)….1800
46.00 – Check condition of steering and tie rods (ap46.00-p-4651a)….1801
46.00 – Forms Passenger cars Steering (of46.00-z-3999az)….1803
46.00 – General notes Passenger cars Steering (ah46.00-z-9999az)….1804
46.00 – Locate noises from the steering (ar46.00-p-2000a)….1805
46.00 – Safety information Steering (as46.00-z-9999zz)….1807
46.00 – Service Information Redocumentation of steering gear in VeDoc (si46.00-p-0001a)….1808
46.00 – Technical modifications Passenger cars Steering (bt46.00-z-9999az)….1809
46.00 – Test and adjustment values Passenger cars Steering (be46.00-z-9999az)….1810
46.00 – Tightening torques Passenger cars Steering (ba46.00-z-9999az)….1811
46.10 – Electronic ignition_starter switch (EZS) removal and installation (ar46.10-p-0810lw)….1813
46.10 – Remove_install steering column tube (ar46.10-p-0400lw)….1815
46.10 – Remove_install steering coupling (ar46.10-p-8000lw)….1818
46.10 – Remove_install steering wheel (ar46.10-p-0100lw)….1821
46.10 – Replacing steering shaft boot (ar46.10-p-0621lw)….1822
46.10 – Retrofit multifunction sport steering wheel (an46.10-p-1002lw)….1824
46.10 – Service Information Warranty and goodwill policies for steering wheels (si46.10-p-0006a)….1825
46.10 – Wiring diagram for steering column module control unit (pe46.10-p-2101fba)….1826
46.11 – Function schematic of electrical system for steering wheel heater (pe46.11-p-2050fba)….1827
46.15 – Electrical function schematic for steering column adjustment (pe46.15-p-2053fba)….1828
46.15 – Electrical function schematic for steering column adjustment in conjunction with easy entry and exit feature (pe46.15-p-2055fba)….1829
46.20 – Check_replace water drain valve in steering gear (ar46.20-p-0005lw)….1830
46.20 – Remove_install rack-and-pinion steering (ar46.20-p-0600lw)….1832
46.20 – Service Information Play in the rack-and-pinion steering system (si46.20-p-0003a)….1836
46.35 – Contents, function description of electric power steering (ES) (gf46.35-p-0999rf)….1837
46.35 – Electrical function schematic for electric power steering (pe46.35-p-2050fba)….1838
46.35 – Overview of system components of electric power steering (ES) (gf46.35-p-9997rf)….1839
46.35 – Wiring diagram for electric power steering control unit (pe46.35-p-2101fba)….1841
46.40 – Check and replace rubber boot (ar46.40-p-0400lw)….1842
46.40 – Remove_install bellows (ar46.40-p-9998lw)….1843
46.40 – Remove_install inner tie rod with axial joint (ar46.40-p-0201lw)….1844
46.40 – Remove_install track rod (ar46.40-p-0200lw)….1845
47_Fuel System….1846
47.00 – 000 588 03 21 00 Gas detector (ws47.00-p-0019b)….1848
47.00 – 001 589 00 07 00 Claw-type wrench (ws47.00-p-0034b)….1849
47.00 – 171 589 00 37 00 Pliers for click clamps (ws47.00-p-0026b)….1850
47.00 – 270 589 04 91 00 Adapter (ws47.00-p-0016b)….1851
47.00 – Capacities Passenger cars Fuel system (bf47.00-z-9999az)….1852
47.00 – Forms Passenger cars Fuel system (of47.00-z-3999az)….1853
47.00 – General notes Passenger cars Fuel system (ah47.00-z-9999az)….1854
47.00 – Safety information Fuel system (as47.00-z-9999zz)….1855
47.00 – Service Information Usability of E10 fuel (si47.00-p-0002a)….1856
47.00 – Service information Return delivery of fuel-guiding parts (si47.00-p-0001a)….1859
47.00 – Technical modifications Passenger cars Fuel system (bt47.00-z-9999az)….1860
47.00 – Test and adjustment values Passenger cars Fuel system (be47.00-z-9999az)….1861
47.00 – Tightening torques Passenger cars Fuel system (ba47.00-z-9999az)….1862
47.10 – Empty_fill fuel tank (ar47.10-p-4001lw)….1863
47.10 – Remove_install fuel tank (ar47.10-p-4100lw)….1865
47.20 – Remove_install fuel pump (ar47.20-p-5710lw)….1868
47.20 – Remove_install fuel pump control unit (ar47.20-p-5717lw)….1871
47.20 – Replace fuel filter (ap47.20-p-0780ew)….1872
47.20 – Retrofit retaining clip on fuel feed module (code 1504P47A85) (sm47.20-p-0016a)….1875
47.30 – Electrical function diagram for purging function (pe47.30-p-2052fba)….1877
47.30 – Electrical function schematic for system purging with leak test (pe47.30-p-2051fba)….1878
47.30 – Remove_ install activated charcoal canister (ar47.30-p-8212lwa)….1879
47.40 – Wiring diagram for fuel pump control unit (pe47.40-p-2101fba)….1880
47.50 – Remove_install fuel level sensor (ar47.50-p-0110mna)….1881
49_Exhaust System….1882
49.00 – 270 589 01 63 00 Set of adapters (ws49.00-p-0007b)….1883
49.00 – 270 589 01 63 03 Adapter (ws49.00-p-0009b)….1884
49.00 – Certificates Passenger cars Exhaust system (of49.00-z-1999az)….1885
49.00 – General notes Passenger cars Exhaust system (ah49.00-z-9999az)….1886
49.00 – Safety information Exhaust system (as49.00-z-9999zz)….1887
49.00 – Technical modifications Passenger cars Exhaust system (bt49.00-z-9999az)….1888
49.00 – Tightening torques Passenger cars Exhaust system (ba49.00-z-9999az)….1889
49.10 – Instructions for treatment of exhaust pipes, catalytic converters, mufflers as toxic waste (os49.10-n-1000a)….1890
49.10 – Remove_install catalytic converter (ar49.10-p-5500lw)….1891
49.10 – Remove_install center exhaust system (ar49.10-p-7283lw)….1894
49.10 – Remove_install components for exhaust system (ar49.10-p-7100lwa)….1897
49.10 – Remove_install rear muffler (ar49.10-p-4952lw)….1901
49.10 – Service Information Care of tail pipe finishers (si49.10-p-0008a)….1903
49.10 – Service Information Recycling of diesel particulate filters (si49.10-p-0007a)….1904
54_Electrical System, Equipment & Instruments….1905
54.00 – 000 586 00 99 00 Battery diagnostic unit (ws54.00-p-0033c)….1916
54.00 – 000 588 00 19 00 Insulation measuring unit (ws54.00-p-0046b)….1917
54.00 – 000 588 00 81 00 Charger (ws54.00-p-0037b)….1918
54.00 – 000 588 00 84 00 Heat gun (ws54.00-p-0049b)….1919
54.00 – 000 588 02 19 00 Battery tester (ws54.00-n-3006b)….1920
54.00 – 000 588 02 81 00 Jump-starting device (ws54.00-p-0041b)….1921
54.00 – 000 588 03 81 00 Jumper cables (ws54.00-p-0039b)….1922
54.00 – 000 588 06 19 00 Measuring instrument (ws54.00-p-0043b)….1923
54.00 – 000 588 16 98 00 Support (ws54.00-p-0047b)….1924
54.00 – 000 589 30 37 00 Wire stripper (ws54.00-p-0025b)….1925
54.00 – 000 589 88 63 00 Removal assembly (ws54.00-p-0067b)….1926
54.00 – 124 589 00 21 00 35 Pin socket box (ws54.00-n-0002b)….1927
54.00 – 129 589 00 21 00 126-pin socket box (ws54.00-p-0008b)….1928
54.00 – 140 589 02 33 00 Pulling hook (ws54.00-p-0011b)….1929
54.00 – 169 589 00 37 00 Pliers (ws54.00-p-0073b)….1930
54.00 – 220 589 00 99 00 Electrical connection kit (ws54.00-p-0050b)….1931
54.00 – 451 589 07 63 00 Adapter cable, 68-pin (ws54.00-p-0005b)….1932
54.00 – Deactivate transport mode prior to vehicle delivery (ar54.00-p-0001a)….1933
54.00 – Forms Passenger cars Electrical system, equipment and instruments (of54.00-z-3999az)….1935
54.00 – General notes Passenger cars Electrical system, equipment and instruments (ah54.00-z-9999az)….1936
54.00 – Overview of system components for driver assistance systems (gf54.00-p-9998rf)….1937
54.00 – Overview of system components of parking assistance systems (gf54.00-p-9997rf)….1950
54.00 – Safety information Electrical system, equipment and instruments (as54.00-z-9999zz)….1957
54.00 – Service Information Transport mode (si54.00-p-0004a)….1958
54.00 – Table of contents for function description of driver assistance systems (gf54.00-p-0998rf)….1960
54.00 – Table of contents for function description of parking assistance systems (gf54.00-p-0997rf)….1961
54.00 – Technical modifications Passenger cars Electrical system, equipment and instruments (bt54.00-z-9999az)….1962
54.00 – Test and adjustment values Passenger cars Electrical system, equipment and instruments (be54.00-z-9999az)….1963
54.00 – Tightening torques Passenger cars Electrical system, equipment and instruments (ba54.00-z-9999az)….1964
54.10 – Charge battery (ar54.10-p-1130lw)….1965
54.10 – Check condition of additional battery (ar54.10-p-1128lw)….1967
54.10 – Check condition of battery (ar54.10-p-1129lw)….1969
54.10 – Disconnect_connect battery ground line (ar54.10-p-0003lw)….1971
54.10 – Disposal of toxic waste, battery (os54.10-p-1000zz)….1973
54.10 – Electrical function schematic for DC_AC converter (pe54.10-p-2055fba)….1974
54.10 – Electrical function schematic for alternator management (pe54.10-p-2064fba)….1975
54.10 – Electrical function schematic for comfort function shutoff (pe54.10-p-2076fba)….1976
54.10 – Electrical function schematic for dynamic idle speed increase (pe54.10-p-2063fba)….1977
54.10 – Electrical function schematic for energy management for engine start_stop (pe54.10-p-2070fba)….1978
54.10 – Electrical function schematic for no-load current management (pe54.10-p-2074fba)….1979
54.10 – Initial filling of battery (ar54.10-p-0001z)….1980
54.10 – Maintaining on-board electrical system voltage when performing test and diagnosis work on vehicle (ar54.10-p-1127lw)….1981
54.10 – Overview – Check condition of battery (ap54.10-p-5449u)….1983
54.10 – Overview of energy management system components (gf54.10-p-9990rf)….1984
54.10 – Remove_install 115V_230V socket (ar54.10-p-1002lw)….1986
54.10 – Remove_install 12 Volt socket (ar54.10-p-1000lw)….1987
54.10 – Remove_install additional battery (ar54.10-p-0007lw)….1988
54.10 – Remove_install battery (ar54.10-p-0005lw)….1990
54.10 – Remove_install battery (ar54.10-p-0005lwa)….1993
54.10 – Remove_install battery (ar54.10-p-0005lwh)….1996
54.10 – Remove_install battery sensor (ar54.10-p-0002lw)….1998
54.10 – Remove_install battery sensor (ar54.10-p-0002lwh)….2000
54.10 – Remove_install cigarette lighter (ar54.10-p-0030lw)….2002
54.10 – Remove_install park pawl capacitor (ar54.10-p-1126lw)….2003
54.10 – Remove_install pyrofuse (ar54.10-p-1180lw)….2004
54.10 – Remove_install voltage dip limiter (ar54.10-p-0014lw)….2005
54.10 – Service Information Battery maintenance (si54.10-p-0024a)….2007
54.10 – Service Information Battery tester (si54.10-z-0023a)….2008
54.10 – Service Information Charge battery (si54.10-p-0018a)….2009
54.10 – Service Information Introduction of 12 V lithium-ion battery (si54.10-p-0039a)….2010
54.10 – Service Information Maintaining the on-board electrical system voltage on exhibition and demonstration vehicles (si54.10-p-0038a)….2011
54.10 – Service Information Resetting the starter battery charge throughput counter (si54.10-p-0046a)….2012
54.10 – Service Information bulletin Battery test and inspection (si54.10-p-0017a)….2013
54.10 – Table of contents for function description of energy management (gf54.10-p-0990rf)….2014
54.10 – Wiring diagram control unit DC_AC converter (pe54.10-p-2103fba)….2015
54.10 – Wiring diagram for battery charger control unit for high-voltage battery (pe54.10-p-2003fba)….2016
54.10 – Wiring diagram for battery management control unit (pe54.10-p-2104fba)….2017
54.10 – Wiring diagram for battery management control unit (pe54.10-p-2104fbb)….2018
54.10 – Wiring diagram for the power electronics control unit (pe54.10-p-2106fba)….2019
54.15 – Fuse and relay box, as-built configuration (gf54.15-p-0800rf)….2020
54.15 – Rear fuse and relay box wiring diagram (pe54.15-p-2103fba)….2022
54.15 – Rear fuse and relay box wiring diagram (pe54.15-p-2103fbb)….2023
54.15 – Rear fuse and relay box wiring diagram (pe54.15-p-2103fbc)….2024
54.15 – Rear fuse and relay box wiring diagram (pe54.15-p-2103fbd)….2025
54.15 – Rear fuse and relay box wiring diagram (pe54.15-p-2103fbe)….2026
54.15 – Remove_install additional battery relay (ar54.15-p-2000lw)….2027
54.15 – Remove_install front prefuse box (ar54.15-p-1330lw)….2028
54.15 – Remove_install fuse and relay module in rear (ar54.15-p-0001lw)….2030
54.15 – Remove_install interior compartment prefuse box (ar54.15-p-1350lw)….2032
54.15 – Remove_install pyrofuse electrical connector (ar54.15-p-1100lw)….2034
54.15 – Special-purpose vehicle fuse block 1 wiring diagram (pe54.15-p-2121fba)….2037
54.15 – Wiring diagram for engine compartment fuse and relay module (pe54.15-p-2106fba)….2038
54.15 – Wiring diagram for engine compartment fuse and relay module (pe54.15-p-2106fbb)….2039
54.15 – Wiring diagram for left fuse and relay box (pe54.15-p-2101fba)….2040
54.15 – Wiring diagram of right A-pillar fuse box (pe54.15-p-2517fba)….2041
54.15 – Wiring diagram of right A-pillar fuse box (pe54.15-p-2517fbb)….2042
54.15 – Wiring diagram, engine compartment prefuse box (F32_3) (pe54.15-p-2513fba)….2043
54.15 – Wiring diagram, interior prefuse box (F32_4) (pe54.15-p-2514fba)….2044
54.18 – Connector separation point wiring diagram (pe54.18-p-2300fba)….2045
54.18 – Connector separation point wiring diagram (pe54.18-p-2300fbb)….2046
54.18 – Connector separation point wiring diagram (pe54.18-p-2300fbc)….2047
54.18 – Connector separation point wiring diagram (pe54.18-p-2300fbd)….2048
54.18 – Connector separation point wiring diagram (pe54.18-p-2300fbe)….2049
54.18 – Connector separation point wiring diagram (pe54.18-p-2300fbf)….2050
54.18 – Connector separation point wiring diagram (pe54.18-p-2300fbg)….2051
54.18 – Connector separation point wiring diagram (pe54.18-p-2300fbh)….2052
54.18 – Connector separation point wiring diagram (pe54.18-p-2300fbi)….2053
54.18 – Connector separation point wiring diagram (pe54.18-p-2300fbj)….2054
54.18 – Connector separation point wiring diagram (pe54.18-p-2300fbk)….2055
54.18 – Repair squib wiring harness for Supplemental Restraint System (SRS) (ar54.18-p-0600a)….2056
54.18 – Service Information Damage code for electrical components (si54.18-z-0012a)….2058
54.18 – Service Information bulletin Retrofit marten repeller on electrical lines (si54.18-p-0007a)….2060
54.21 – Check rear SAM control unit (code 1402P54A36) (sm54.21-p-0077a)….2061
54.21 – Program trailer recognition control unit software (code 1406P31B16) (sm54.21-p-0081a)….2063
54.21 – Programming of control units (ar54.21-p-0014y)….2064
54.21 – Programming of control units (ar54.21-p-0014z)….2065
54.21 – Remove and install DC_AC converter control unit (ar54.21-p-1600lw)….2066
54.21 – Remove_install front SAM control unit (ar54.21-p-1254lw)….2067
54.21 – Remove_install front central operating unit (ar54.21-p-0500lw)….2068
54.21 – Remove_install multifunction camera (ar54.21-p-3000lf)….2069
54.21 – Remove_install rear SAM control unit (ar54.21-p-1269lw)….2070
54.21 – Remove_install rear SAM control unit (ar54.21-p-1269lwh)….2073
54.21 – Remove_install touchpad control unit (ar54.21-p-0503lw)….2075
54.21 – Remove_install upper control panel control unit (ar54.21-p-1262lw)….2076
54.21 – SCAN coding of control units (ar54.21-p-0015x)….2077
54.21 – Service Information Malfunctions due to other-make installations (si54.21-p-0007a)….2078
54.21 – Service Information Reimbursement of additional work in event of programming abort (si54.21-p-0039a)….2079
54.21 – Service Information SAM control unit diagnosis procedure (si54.21-p-0034a)….2080
54.21 – Wiring diagram for AMG sports suspension control unit (pe54.21-p-2147fba)….2081
54.21 – Wiring diagram for camera cover control unit (pe54.21-p-2142fba)….2082
54.21 – Wiring diagram for drivetrain control unit (pe54.21-p-2141fba)….2083
54.21 – Wiring diagram for electronic ignition lock control unit (EZS) (pe54.21-p-2104fba)….2084
54.21 – Wiring diagram for front signal acquisition and actuation module (SAM) control unit (pe54.21-p-2114fba)….2085
54.21 – Wiring diagram for front signal acquisition and actuation module (SAM) control unit (pe54.21-p-2114fbb)….2086
54.21 – Wiring diagram for multifunction camera (pe54.21-p-2129fba)….2087
54.21 – Wiring diagram for multifunction camera (pe54.21-p-2129fbb)….2088
54.21 – Wiring diagram for overhead control panel (OCP) control unit (pe54.21-p-2107fba)….2089
54.21 – Wiring diagram for signal acquisition and actuation module (SAM) control unit (pe54.21-p-2127fba)….2090
54.21 – Wiring diagram for sound generator control unit (pe54.21-p-2115fba)….2091
54.21 – Wiring diagram for upper control panel control unit (pe54.21-p-2119fba)….2092
54.21 – Wiring diagram of engine sound control unit (pe54.21-p-2148fba)….2093
54.21 – Wiring diagram of rear signal acquisition and actuation module (SAM) control unit (pe54.21-p-2103fba)….2094
54.21 – Wiring diagram rear control unit (pe54.21-p-2110fba)….2095
54.21 – Wiring diagram, special vehicle multifunction control unit (SVMCU (MSS)) (pe54.21-p-2105fba)….2096
54.21 – Wiring diagram, special vehicle multifunction control unit (SVMCU (MSS)) (pe54.21-p-2105fbb)….2097
54.21 – Wiring diagram, special vehicle multifunction control unit (SVMCU (MSS)) (pe54.21-p-2105fbc)….2098
54.22 – Wiring diagram for data link connector_diagnostic socket (pe54.22-p-2000fba)….2099
54.25 – Remove_install light switch module (ar54.25-p-3270lw)….2100
54.25 – Remove_install steering column module (ar54.25-p-2802lw)….2101
54.25 – Service Information bulletin Clutch pedal start enable switch (S40_5) (si54.25-p-0006a)….2103
54.30 – Check warning and function indicator lamps in instrument cluster (ap54.30-p-5451ha)….2104
54.30 – Check warning lamps and function indicator lamps in the instrument cluster, general view (ap54.30-p-5449u)….2106
54.30 – Check_adjust heads-up display (ar54.30-p-6401lw)….2107
54.30 – Electrical function schematic for Traffic Sign Assist (pe54.30-p-2066fba)….2108
54.30 – Electrical function schematic for head-up display (pe54.30-p-2065fba)….2109
54.30 – Electrical function schematic of instrument cluster, comfort display (pe54.30-p-2056fba)….2110
54.30 – Electrical function schematic of instrument cluster, indicator_warning message (pe54.30-p-2054fba)….2111
54.30 – Electrical function schematic of instrument cluster, operating condition display (pe54.30-p-2055fba)….2112
54.30 – Electrical function schematic, instrument cluster trip computer (pe54.30-p-2057fba)….2113
54.30 – Overview of system components, instrument cluster (IC) component description (gf54.30-p-9996rf)….2114
54.30 – Program instrument cluster (code 1401P54A12) (sm54.30-p-0015a)….2120
54.30 – Remove_install 360° camera in outside mirror (ar54.30-p-3002lw)….2121
54.30 – Remove_install 360°front camera (ar54.30-p-3001lw)….2124
54.30 – Remove_install cockpit clock (ar54.30-p-1000lw)….2125
54.30 – Remove_install head-up display (ar54.30-p-6400lw)….2126
54.30 – Remove_install instrument cluster (ar54.30-p-6015lw)….2127
54.30 – Replace 360° camera in driver-side outside mirror (code 1402P54A44) (sm54.30-p-0016a)….2129
54.30 – Service Information Reducing the seat belt warning (si54.30-p-0019a)….2130
54.30 – Table of contents for function description of instrument cluster (IC) (gf54.30-p-0997rf)….2131
54.30 – Wiring diagram for head-up display control unit (pe54.30-p-2104fba)….2132
54.30 – Wiring diagram for instrument cluster (IC) control unit (pe54.30-p-2101fba)….2133
54.35 – Remove_install fanfare horns (ar54.35-p-1555lw)….2134
54.50 – Service Information Reset trip computer following engine control unit software update (si54.50-p-0002a)….2135
54.65 – Electrical function schematic for 360 degree viewing system (pe54.65-p-2060fba)….2136
54.65 – Electrical function schematic of parking system (pe54.65-p-2054fba)….2137
54.65 – Electrical function schematic, backup camera (pe54.65-p-2051fba)….2138
54.65 – Remove_install 360 degree camera control unit (ar54.65-p-0012clw)….2139
54.65 – Remove_install Parktronic system (PTS) control unit (ar54.65-p-0006lw)….2141
54.65 – Remove_install Parktronic system (PTS) sensors in front bumper (ar54.65-p-0001lw)….2142
54.65 – Remove_install Parktronic system (PTS) sensors in rear bumper (ar54.65-p-0002lw)….2145
54.65 – Remove_install backup camera (ar54.65-p-0030lc)….2146
54.65 – Remove_install radar sensors control unit (ar54.65-p-0040lw)….2148
54.65 – Service Information Warranty and goodwill settlement for Parktronic sensors (si54.65-p-0002a)….2149
54.65 – Wiring diagram for 360° camera control unit (pe54.65-p-2104fba)….2150
54.65 – Wiring diagram for PARKTRONIC system (PTS) control unit (pe54.65-p-2101fba)….2151
54.65 – Wiring diagram of reversing camera (pe54.65-p-2103fba)….2152
54.71 – Attention Assist electrical function schematic (pe54.71-p-2054fba)….2153
54.71 – Blind Spot Assist wiring diagram (pe54.71-p-2100fba)….2154
54.71 – Electrical function schematic for Active Lane Keeping Assist (pe54.71-p-2053fba)….2155
54.71 – Electrical function schematic for Lane Keeping Assist (pe54.71-p-2057fba)….2156
54.71 – Electrical function schematic for active Blind Spot Assist (pe54.71-p-2055fba)….2157
54.71 – Electrical function schematic, blind spot assistant (pe54.71-p-2051fba)….2158
54.71 – Remove_install radar sensor for driver assistance system in rear bumper (ar54.71-p-0003lw)….2159
54.71 – Remove_install sensors for Blind Spot Assist (ar54.71-p-0100lw)….2160
55_Auxiliary Drive Systems, Hydraulic and Linkage Systems….2161
55.00 – Safety information Auxiliary drive systems, hydraulic and articulation systems (as55.00-z-9999zz)….2162
58_Tools….2163
58.00 – Forms Passenger cars Tools (of58.00-z-3999az)….2165
58.00 – Safety information Tools (as58.00-z-9999zz)….2166
58.20 – Service Information Modify chain separating tool and rivet press tool (si58.20-d-0001sf)….2167
58.20 – Service Information new special tool (si58.20-p-0005h)….2169
58.20 – Special tools in EPC (si58.20-p-0019a)….2170
58.40 – Fault report for HHT, MUX, PM, Case (wb0000algfm00z)….2171
58.40 – Service Information Identification of add-ons installed on XENTRY Connect (si58.40-z-0019a)….2172
58.40 – Service Information Multiplexer (si58.40-z-0041a)….2173
58.40 – Service Information No WLAN connection between XENTRY Connect and XENTRY Tab after Update 09_2014 (si58.40-z-0025a)….2175
58.40 – Service Information STAR DIAGNOSIS (si58.40-p-0007b)….2176
58.40 – Service Information Software update for tester MB3000 (si58.40-p-0044a)….2177
58.40 – Service Information Special process for software update with Regio DVD (si58.40-p-0046a)….2178
58.40 – Service Information Test interval for Midtronics battery tester (si58.40-z-0002a)….2179
58.40 – Service Information Upgrade campaign for MIDTRONICS Micro717 battery tester (si58.40-z-0024a)….2181
58.40 – Service Information Use of Regio DVD 03_2015 (si58.40-p-0043a)….2182
58.40 – Service Information Workshop equipment in EPC_WIS_ASRA (si58.40-z-0045a)….2183
58.40 – Service Information bulletin Ease of access to the User Help Desk (si58.40-z-0030a)….2184
58.40 – Service Information bulletin Procedure when processing imports of system and component returns of the Star Diagnosis system (si58.40-z-0035a)….2185
58.40 – Service information Introduction of electronic stethoscope for noise diagnosis (si58.40-p-0036a)….2188
58.40 – Service information Procedure for messages on the screen for proxy entries as per Star Diagnosis update 10_2007 (si58.40-z-0028a)….2190
58.50 – Shop-made tools Passenger cars (wf58.50-z-0998az)….2191
60_Body – General….2194
60.00 – 000 588 01 23 00 Body straightening system (ws60.00-p-0023k)….2196
60.00 – 000 588 01 84 00 Welder (ws60.00-p-0021k)….2197
60.00 – 000 588 02 39 00 Rivet press tool (ws60.00-p-0010b)….2198
60.00 – 000 588 02 84 00 Welder (ws60.00-p-0022k)….2199
60.00 – 000 589 13 28 00 Marking unit (ws60.00-p-0004k)….2200
60.00 – 000 589 86 63 00 Adapter (ws60.00-p-0085k)….2201
60.00 – 108 589 00 76 00 Set of planishing tools (ws60.00-p-0002k)….2202
60.00 – 110 589 11 63 00 Angular scraper (ws60.00-p-0003k)….2203
60.00 – 115 589 28 63 00 Smoothing block (ws60.00-p-0005k)….2204
60.00 – 115 589 29 63 00 Smoothing block (ws60.00-p-0006k)….2205
60.00 – 115 589 30 63 00 Smoothing block (ws60.00-p-0007k)….2206
60.00 – 115 589 31 63 00 Smoothing block (ws60.00-p-0008k)….2207
60.00 – 129 589 03 21 00 Feeler gauge (ws60.00-p-0027k)….2208
60.00 – 201 589 00 51 00 Spot weld milling cutter (ws60.00-p-0033k)….2209
60.00 – 203 589 02 31 00 Adapter kit (ws60.00-p-3015k)….2210
60.00 – Certificates Passenger cars Body – general (of60.00-z-1999az)….2211
60.00 – Check outside of vehicle in field of view for damage, general view (ap60.00-p-6048u)….2212
60.00 – Check vehicle underside in field of view for damage, leakage and corrosion, general view (ap60.00-p-6049u)….2213
60.00 – Check vehicle underside in visible area for signs of damage, leaks and corrosion (ap60.00-p-0051ew)….2214
60.00 – General notes Passenger cars Body – general (ah60.00-z-9999az)….2216
60.00 – Perform initial accident diagnosis (ar60.00-p-1105lw)….2218
60.00 – Safety information Body – general (as60.00-z-9999zz)….2222
60.00 – Service Information Handling lead-free filling solder (si60.00-z-0014a)….2223
60.00 – Service Information Introduction of 2-component epoxy body filler (si60.00-p-0015a)….2224
60.00 – Service information Measuring and straightening systems (si60.00-p-0001a)….2225
60.00 – Stamp in vehicle identification number (ar60.00-p-0800rqa)….2226
60.00 – Test and adjustment values Passenger cars Body – general (be60.00-z-9999az)….2228
60.00 – Tightening torques Passenger cars Body – general (ba60.00-z-9999az)….2229
60.10 – Service Information on straightening set (si60.10-p-0002e)….2230
61_Substructure….2231
61.00 – Tightening torques Passenger cars Substructure (ba61.00-z-9999az)….2232
61.20 – Remove_install bottom engine compartment paneling (ar61.20-p-1105lw)….2233
61.30 – Remove_install underbody paneling (ar61.30-p-1001lw)….2234
61.45 – Retrofit right rear underfloor paneling (code 1412P61C59) (sm61.45-p-0003a)….2235
62_Front End & Fire Wall….2236
62.00 – 140 589 26 63 00 Stamping symbols set (ws62.00-p-0018k)….2237
62.00 – 205 589 00 23 00 Welding device (ws62.00-p-1001k)….2238
62.00 – 205 589 00 27 00 Set of pulling devices (ws62.00-p-1002k)….2239
62.00 – 205 589 03 23 00 Fixture (ws62.00-p-1003k)….2240
62.00 – 205 589 04 23 00 Fixture (ws62.00-p-1004k)….2241
62.00 – General notes Passenger cars Front end and fire wall (ah62.00-z-9999az)….2242
62.00 – Technical modifications Passenger cars Front end and fire wall (bt62.00-z-9999az)….2243
62.00 – Tightening torques Passenger cars Front end and fire wall (ba62.00-z-9999az)….2244
62.20 – Partially replace upper front longitudinal member (ar62.20-p-1287lw)….2245
62.20 – Replace complete wheel well (ar62.20-p-1200lw)….2248
62.20 – Replace longitudinal member front section (ar62.20-p-1260lw)….2250
62.20 – Replace suspension strut tower (ar62.20-p-1232lw)….2252
62.20 – Replace upper front longitudinal member (ar62.20-p-1286lw)….2255
62.25 – Remove, install windshield crossmember (ar62.25-p-1120lw)….2258
62.25 – Replace left firewall half (ar62.25-p-1110lw)….2261
62.30 – Replace complete front end assembly together with reinforcement (ar62.30-p-1570lw)….2264
63_Side Wall….2270
63.00 – 000 589 87 63 00 Spacers (ws63.00-p-1146k)….2271
…
98.20 – Service information Paint repairs and repair work on plastic parts (si98.20-z-0002a)….3303
98.30 – Cleaning and care of MB vehicle paintwork (ap98.30-p-8070a)….3305
98.30 – Service Information Polish and care products for vehicle conditioning (si98.30-p-0001a)….3307
99_Printed Matter….3308
99.00 – General notes Passenger cars Publications (ah99.00-z-9999az)….3309
99.00 – Safety information Publications (as99.00-z-9999zz)….3310
99.00 – Technical modifications Passenger cars Publications (bt99.00-z-9999az)….3311
99.00 – Tightening torques Passenger cars Publications (ba99.00-z-9999az)….3312
99.20 – Body exposure Passenger vehicles incl. cross country vehicles (wb6516lit7490z)….3313
99.20 – Center section, Rear end Passenger vehicles incl. cross country vehicles (wb6516lit7501z)….3317
99.20 – Fault code documentation Passenger cars and Off Road Vehicles (wb6516lit7481z)….3321
99.20 – Front end Passenger cars and cross country vehicles (wb6516lit7500z)….3323
99.20 – Test Sheet Passenger Cars (wb6516lit7438z)….3326

Mercedes-Benz Model 205 C-Class Repair Service Manual

INSTANT DOWNLOAD
